SKU #: CNC-424016
MPN #: 424016

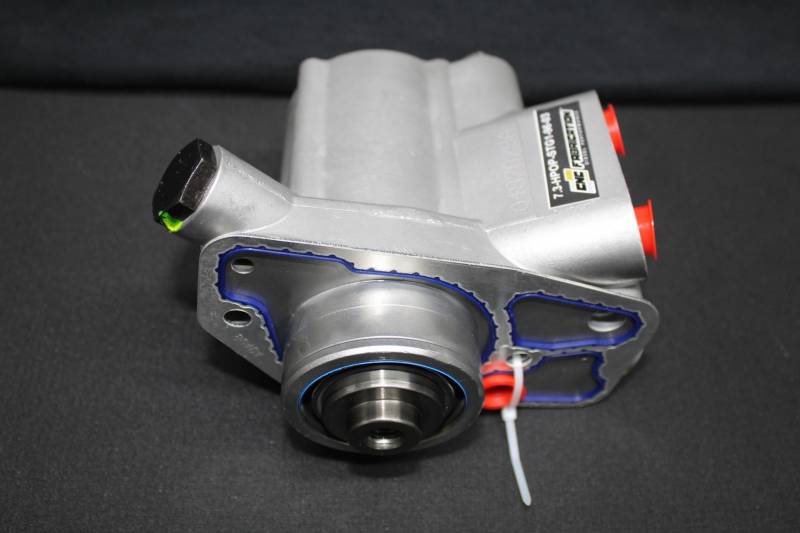

CNC Fabrication Stage 2 High Pressure Oil Pump (HPOP) 94-03 Ford 7.3L Powerstroke
Description
Overview
When it comes to making some extra power out of your 7.3, you've got plenty of options from custom tuning, larger injectors, turbo, and the list goes on. Now, how are you going to make sure that your injectors are able to flow the additional commanded fueling if you're running a stock HPOP (High Pressure Oil Pump)? Especially for the early model HPOP's found in the 1994-1999 model years, your output isn't the same as the 1999.5-2003 versions, so these trucks will benefit even more from an upgraded pump.Typically, this Stage 2 pump from CNC Fab will flow 30% more than a brand new Bosch 1999.5-2003 pump, which is enough volume to sustain 250/100 Hybrid injectors. And for those running even larger injectors, you can run up to 250/200's with this pump, but there's no guarantee that it will keep up in a hot/race tune as there are variables between injector builders. Ideally, this pump will supply enough oil volume to keep up with a set of 230-250cc Hybrid injectors. A core return shipping label is provided free of charge with each pump purchase within the lower 48 United States.
CORE CHARGE
What is a core deposit?
(opens in a new tab)
- Product Price
- $809.95
- Refundable Core Deposit
- + $300.00
- Price with Core Deposit
- $1,109.95
- Pay Core Deposit with your order
- Return Old Part within 30 days
- Get Deposit Back once approved
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
A Stage 2 High Pressure Oil Pump (HPOP) upgrade that flows 30% more than a new Bosch pump, delivering added oil volume for larger injectors.
- Fits
- 1994-2003 Ford 7.3L Powerstroke
- Brand
- CNC Fabrication
- Best for
- Supporting larger fuel injectors that need increased oil volume
- Key features
- Comes with a new gasket
- Steel thread inserts prevent threads from ripping out
- Upgraded internals for more flow
- New Viton o-rings to reuse existing fittings
- Flow bench tested to assure no DOA pumps
- Includes a test flow result sheet
- Core return shipping label included for Lower 48 US orders
- Key specs
- 30% more flow than a new Bosch 1999.5-2003 pump
- Can support up to 250/200 injectors
- Supplies enough volume for 230-250cc Hybrid injectors
- Important
- There's no guarantee it will keep up in a hot/race tune, as there are variables between injector builders.
Summarized by AI from this product’s description and specs. Confirm fitment for your year, make and engine before ordering.
FEATURES & BENEFITS:
- Comes with a new gasket
- Fitted with steel thread inserts to ensure the threads will not rip out
- Upgraded internals for more flow
- New Viton o-rings to reuse your existing fittings
- Every pump is flow bench tested to assure you no DOA pumps.
- Comes with a test flow result sheet
- Core return shipping label included for orders within the Lower 48 United States
About CNC Fabrication
CNC Fabrication is one of the most trusted names in Powerstroke performance and sensible "fix-it" parts to alleviate common problems that plague nearly any model year of Powerstroke engine. CNC Fab initially started off as a side business, and through word of mouth, has grown exponentially to allow the company to continue developing new, innovative products to keep your Ford engine running better, longer.
