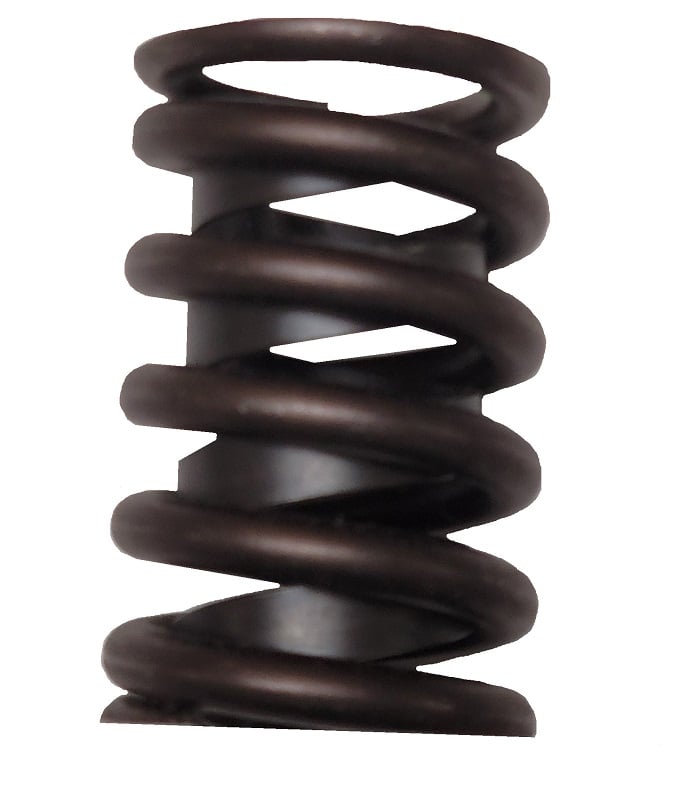

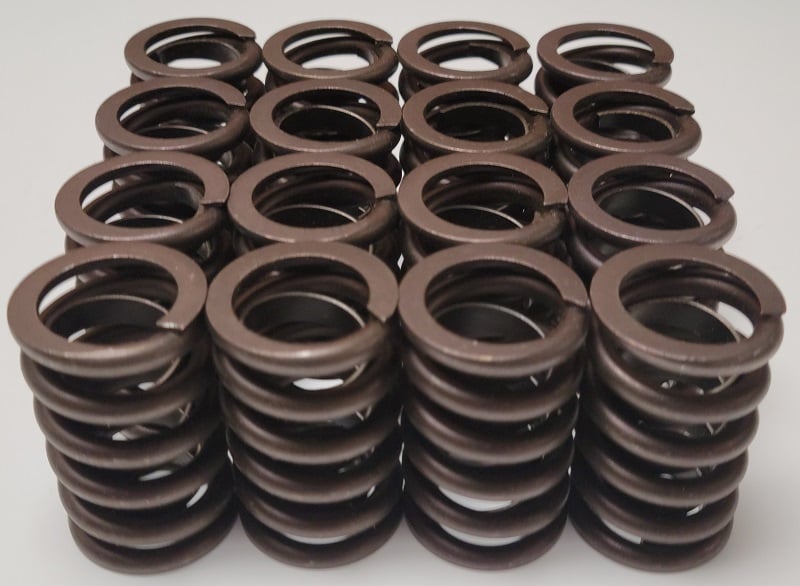

CNC Fabrication Stage 1 Valve Spring Set 94-03 Ford 7.3L Powerstroke
Description
Overview
One of the most overlooked engine parts when upgrading a turbo in your 7.3L Powerstroke is the valve springs. The added cylinder pressure from upgraded turbos can cause valve float under higher RPM conditions. This can cause a loss of power and overall efficiency issues. The CNC Fabrication Stage 1 Valve Springs are designed for trucks up to 500 horsepower and feature a 119lb seat load and are a great mild upgrade over the stock valve springs.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
A valve spring set designed as a mild upgrade over stock springs, built for trucks up to 500 horsepower with a 119lb seat load to help reduce valve float.
- Fits
- 1994-2003 7.3L Ford Powerstroke
- Brand
- CNC Fabrication
- Best for
- Reducing valve float in higher-RPM, upgraded-turbo diesel builds
- Key features
- Helps prevent valve float under higher RPM conditions
- Mild upgrade over stock valve springs
- Designed for trucks up to 500 horsepower
- Key specs
- 119lb seat load
- Up to 500 horsepower
- Important
- Valve Spring Shims and Height Mic are highly recommended for proper installation.
Summarized by AI from this product’s description and specs. Confirm fitment for your year, make and engine before ordering.
VALVE SPRING SPECIFICATIONS:
- OD: 1.354"
- ID: 0.940"
- SEAT LOAD: 119LBS @1.800"
- OPEN LOAD: 312LBS @1.350"
- COIL BIND: 1.280"
- RATE: 458LBS/IN
- 16 PER PACKAGE
- APPROXIMATELY .510" MAX LIFT AT RECOMMENDED INSTALLED HEIGHT
IMPORTANT NOTES:
- For proper installation Valve Spring Shims and Height Mic are highly recommended.
About CNC Fabrication
CNC Fabrication is one of the most trusted names in Powerstroke performance and sensible "fix-it" parts to alleviate common problems that plague nearly any model year of Powerstroke engine. CNC Fab initially started off as a side business, and through word of mouth, has grown exponentially to allow the company to continue developing new, innovative products to keep your Ford engine running better, longer.
