Quick Ship
SKU #: CS-D3SPKG-CS20RR-B MPN #: CS-D3SPKG-CS20RR-B

Carli SPEC 2.0" Backcountry Lift Shock Package 13-25 Ram 3500 | 14-25 Ram 2500 6.7L Cummins

$1,583.00
Get 1583 points in loyalty rewards
Description Overview
The Carli-SPEC 2.0 Remote Reservoir shocks for the Ram 2500 and 3500 are not your average off-the-shelf shocks. Carli takes it a step further with a tune developed to deliver all-around comfort and ride quality for on-road driving, in-town use, highway driving, and towing/hauling. The body is constructed from 6063 aluminum for long service life and excellent heat dissipation and is anodized for corrosion resistance. The 5/8" shafts are constructed from hardened and chrome-plated steel. These shocks are spec'd with premium 5WT oil to balance lubricity, consistent damping, and a wide range of temperature variation. The rod ends are constructed from 6061 billet aluminum and feature a high-quality one-piece bushing and zinc-plated crush sleeves for precision fit and longevity. The cylinder end cap overlaps the body of the shock to provide external support to the internal snap ring. These shocks serve as the travel limiter for trucks without Carli radius arms and subsequent limit straps installed, making it important that the shock remains together at top-out while bearing the load of the axle. The Remote Reservoir variant adds the separate canister to carry the dividing piston and nitrogen charge, leaving the entirety of the body available for extended piston travel. Without getting too technical, a Remote Reservoir will have more suspension travel than an IFP with the same mounting dimensions. In adding this canister, Carli has spec'd a high-quality hose and fittings similar to those offered on its King shocks. The last high-end touch Carli added is a billet, laser-etched Carli reservoir clamp on the rear shocks. Ram 2500 Application: This Carli shock package is designed to be matched with a set of Carli 3.25" front springs and Carli R1 or R2 rear coils. Not compatible with Auto-Leveling Air Rear Suspension. Ram 3500 Application: This Carli shock package is designed to be matched with a set of Carli 3" front coils and Carli add-a-packs or full progressive leaf springs. Not compatible with Auto-Leveling Air Rear Suspension.
Select Truck Model

Product photos may not match the selected option. Please confirm your choice before adding to cart.

Enter your zip and we'll see if installation is available.

  • Request quotes from local installers at checkout
  • Compare options and choose the best fit for your install

Carli SPEC 2.0 Remote Reservoir shock package delivers a tuned ride for on-road driving, towing, and hauling with added suspension travel.

Fits
2014-2025 Ram 6.7L Cummins 2500 4x4
2013-2025 Ram 6.7L Cummins 3500 4x4
Brand
Carli Suspension
Best for
On-road comfort, in-town driving, highway use, and towing/hauling
Key features
  • 6063 aluminum shock body for heat dissipation and long service life, anodized for corrosion resistance
  • 5/8" hardened, chrome-plated steel shafts
  • Premium 5WT oil for consistent damping across temperatures
  • 6061 billet aluminum rod ends with one-piece bushing and zinc-plated crush sleeves
  • Cylinder end cap overlaps body for added internal snap ring support
  • Remote reservoir with high-quality hose and fittings for extended piston travel
  • Billet, laser-etched Carli reservoir clamp on rear shocks
  • Includes coil-mounted reservoir mount(s)
Key specs
  • 9.5" front wheel travel, 11.3" rear (3500)
  • 10" front and rear travel (2500)
  • 5/8" shafts
  • 5WT shock oil
Important
NOT Compatible with Auto-Leveling Air Rear Suspension.

Summarized by AI from this product’s description and specs. Confirm fitment for your year, make and engine before ordering.

The Carli-SPEC 2.0 Remote Reservoir shocks for the Ram 2500 and 3500 are not your average off-the-shelf shocks. Carli takes it a step further with a tune developed to deliver all-around comfort and ride quality for on-road driving, in-town use, highway driving, and towing/hauling. The body is constructed from 6063 aluminum for long service life and excellent heat dissipation and is anodized for corrosion resistance. The 5/8" shafts are constructed from hardened and chrome-plated steel. These shocks are spec'd with premium 5WT oil to balance lubricity, consistent damping, and a wide range of temperature variation.

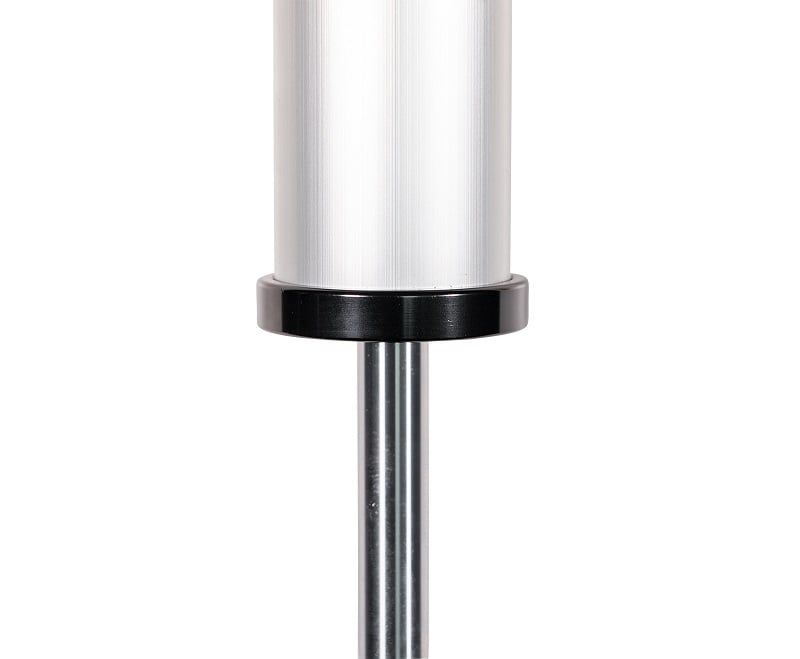

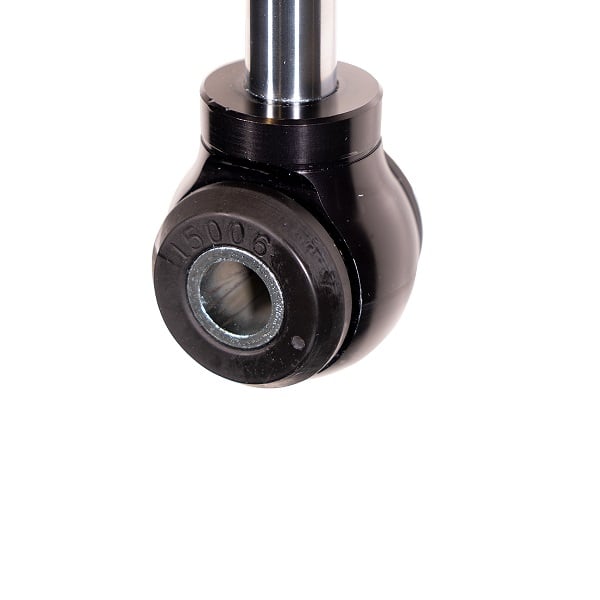

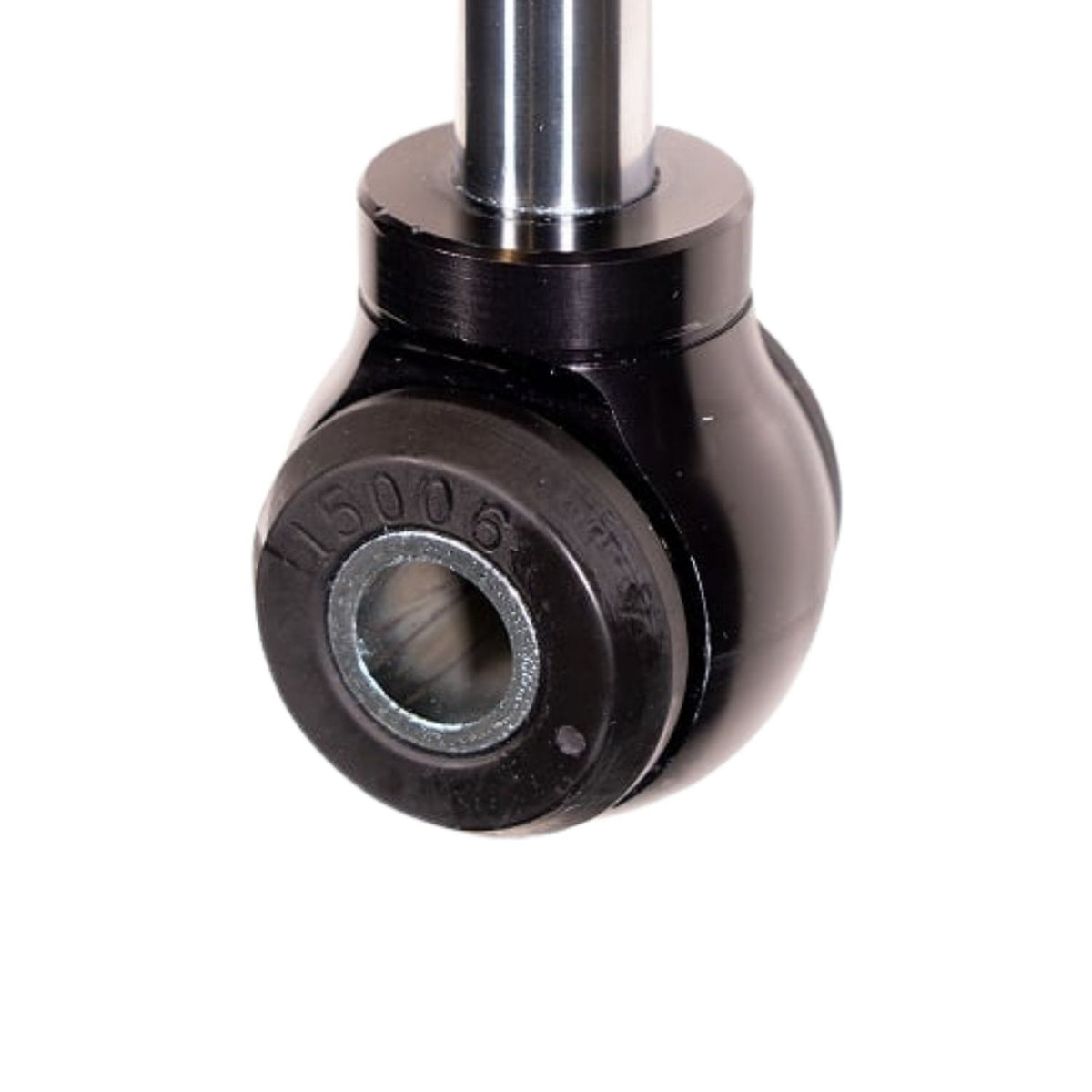

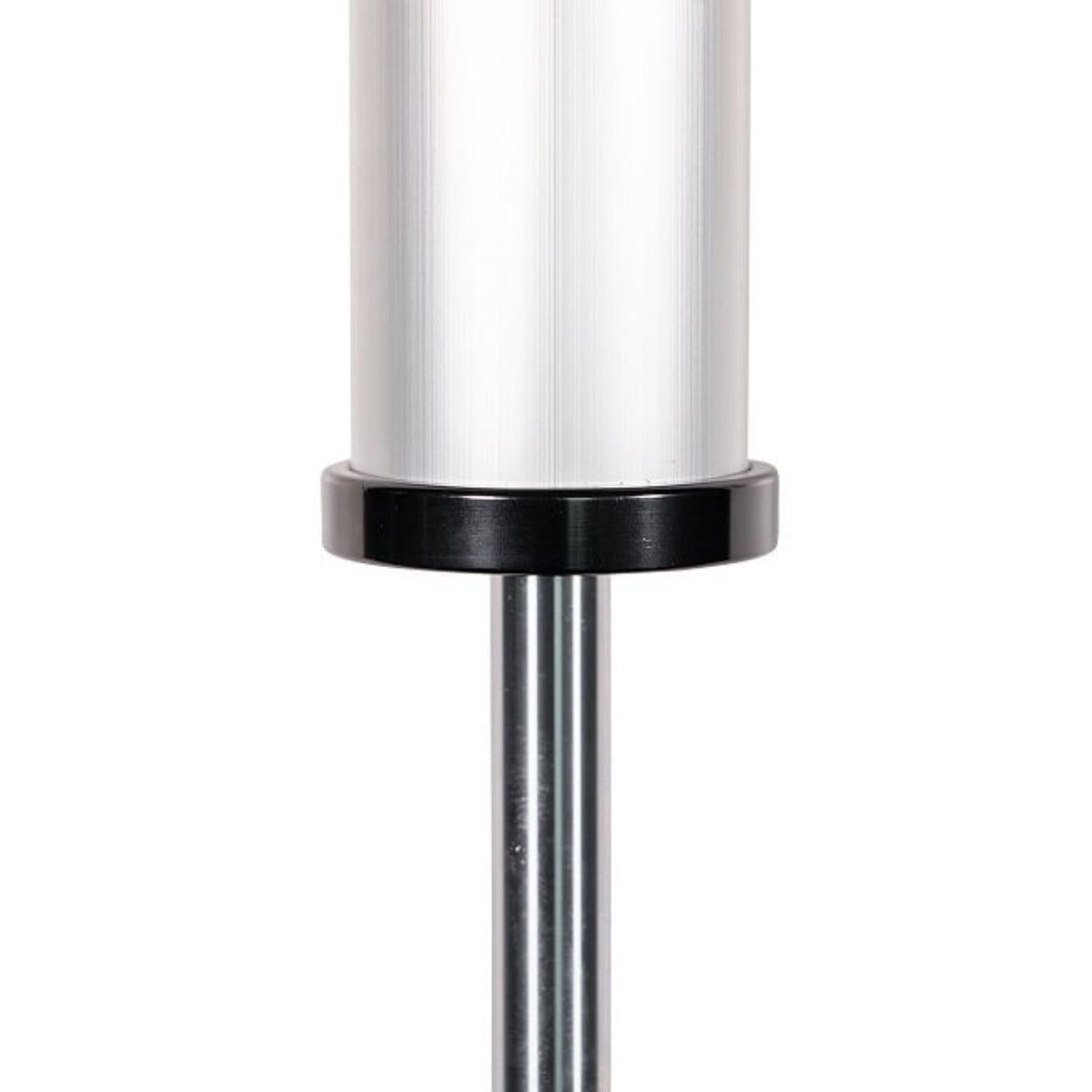

The rod ends are constructed from 6061 billet aluminum and feature a high-quality one-piece bushing and zinc-plated crush sleeves for precision fit and longevity. The cylinder end cap overlaps the body of the shock to provide external support to the internal snap ring. These shocks serve as the travel limiter for trucks without Carli radius arms and subsequent limit straps installed, making it important that the shock remains together at top-out while bearing the load of the axle.

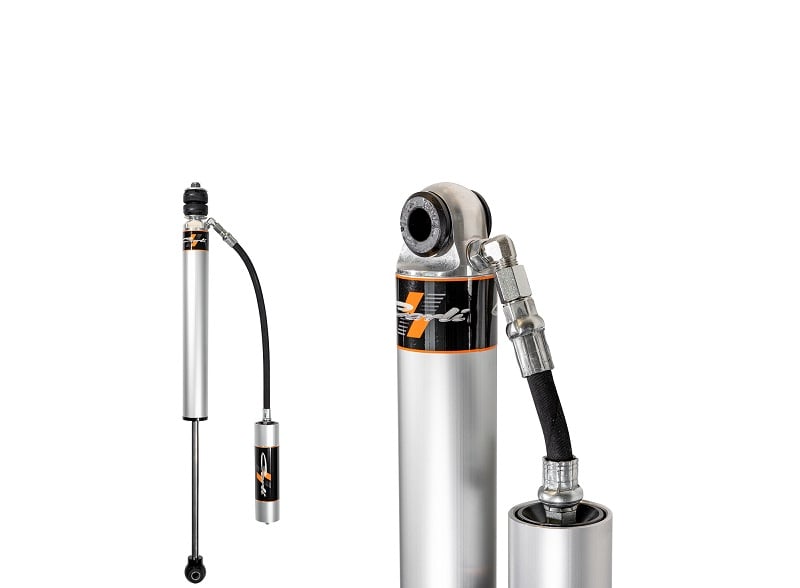

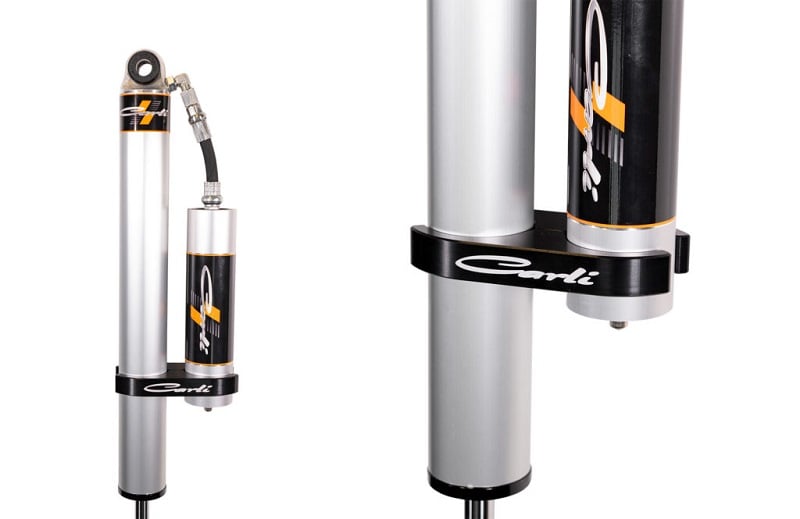

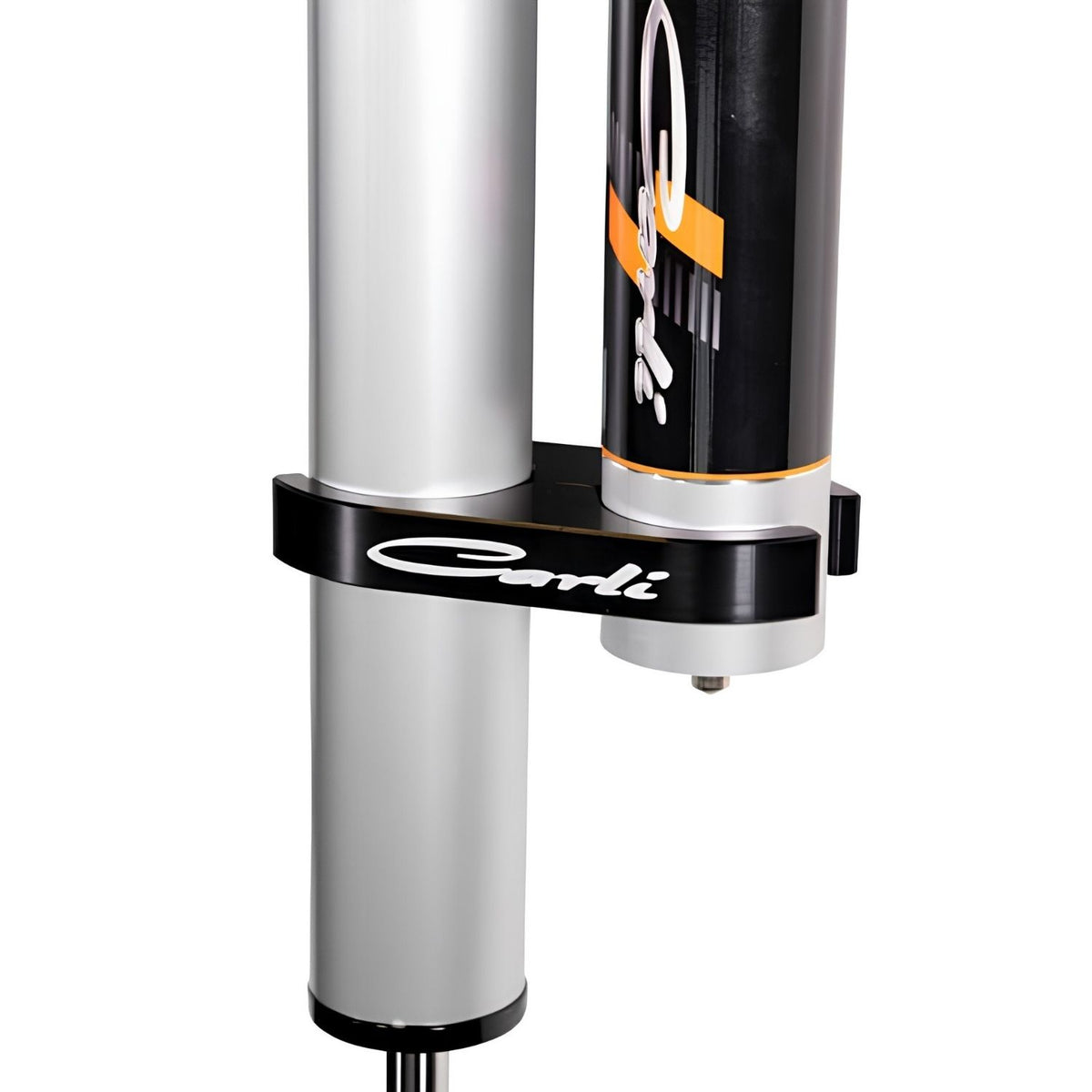

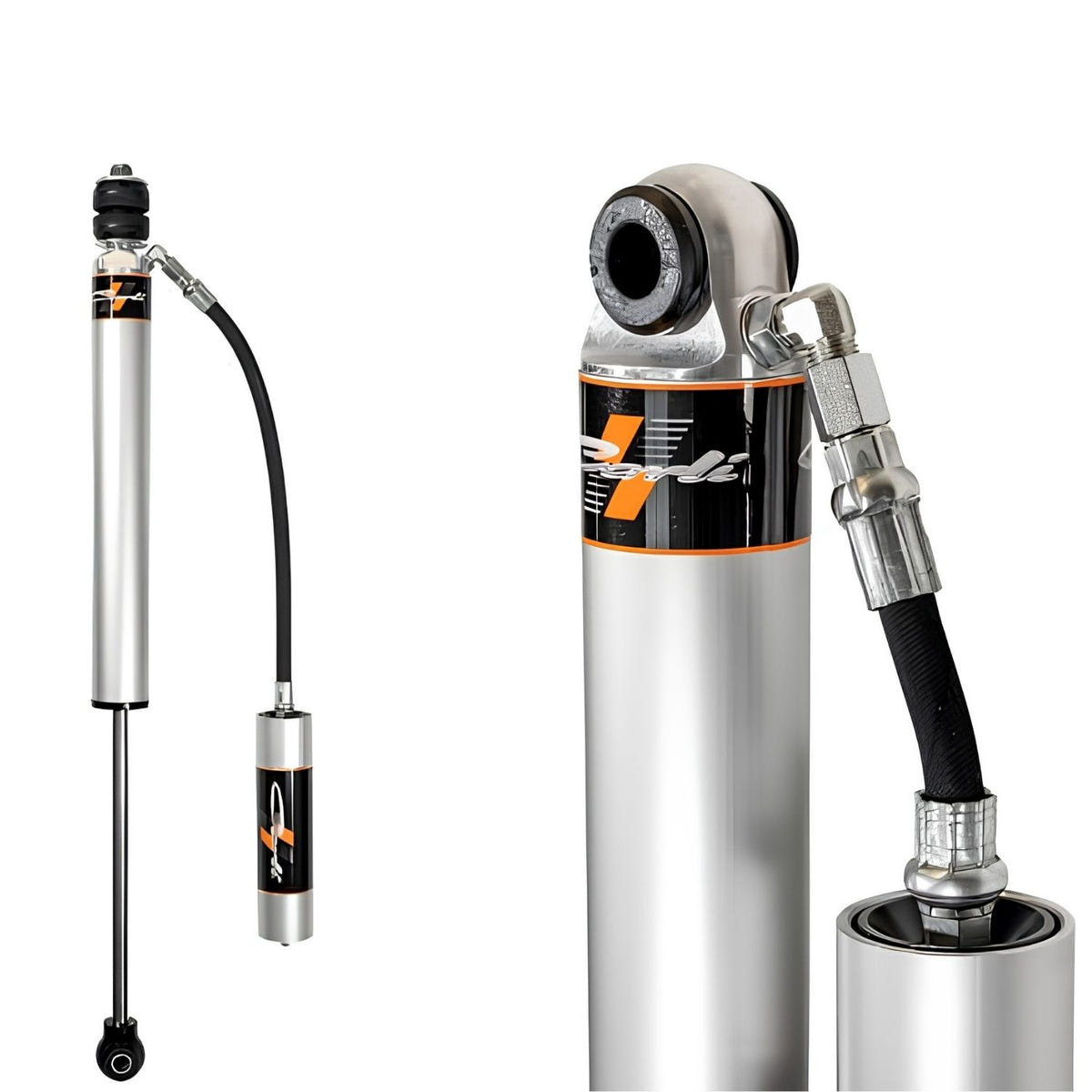

The Remote Reservoir variant adds the separate canister to carry the dividing piston and nitrogen charge, leaving the entirety of the body available for extended piston travel. Without getting too technical, a Remote Reservoir will have more suspension travel than an IFP with the same mounting dimensions. In adding this canister, Carli has spec'd a high-quality hose and fittings similar to those offered on its King shocks. The last high-end touch Carli added is a billet, laser-etched Carli reservoir clamp on the rear shocks.

Ram 2500 Application: This Carli shock package is designed to be matched with a set of Carli 3.25" front springs and Carli R1 or R2 rear coils. Not compatible with Auto-Leveling Air Rear Suspension.

Ram 3500 Application: This Carli shock package is designed to be matched with a set of Carli 3" front coils and Carli add-a-packs or full progressive leaf springs. Not compatible with Auto-Leveling Air Rear Suspension.

Vehicle Fitment
2014-2025 Ram 6.7L Cummins 2500 4x4
2013-2025 Ram 6.7L Cummins 3500 4x4
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
RAM 3500 FEATURES & BENEFITS:

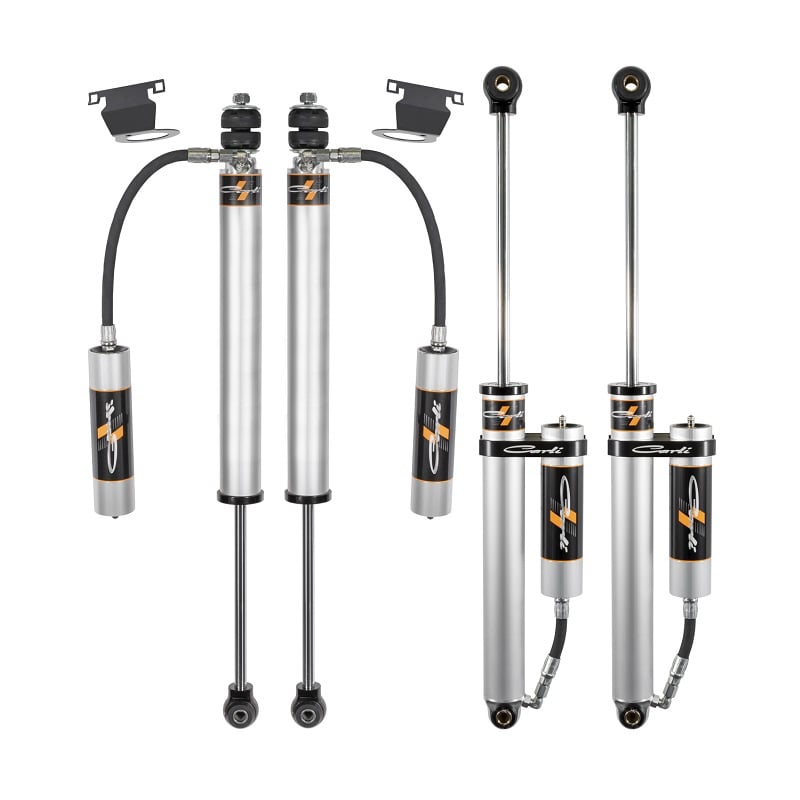

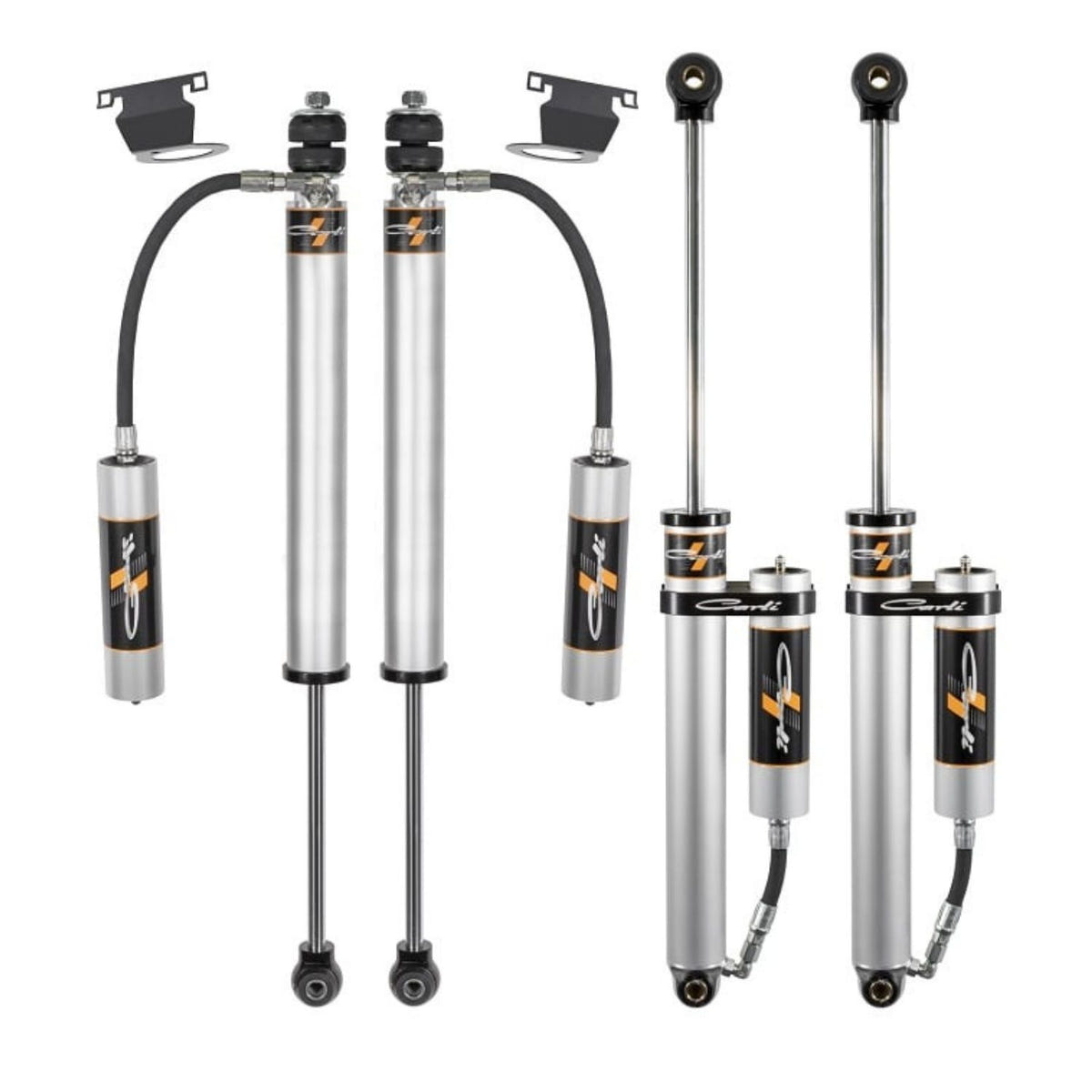

  • Carli SPEC 2.0" Remote Reservoir Shocks, Front and Rear
  • Includes Coil-Mounted Reservoir Mount
  • 9.5" Front Wheel Travel, 11.3" Rear
  • Compatible with Carli 3" Front Springs
  • Compatible with Carli Rear Add-a-Packs & Full Progressive Leaf Springs
  • NOT Compatible with Auto-Leveling Air Rear Suspension
  • Fitment: 2013+ Ram 3500 4x4 Diesel
RAM 2500 FEATURES & BENEFITS:
  • Carli SPEC 2.0" Remote Reservoir Shocks, Front and Rear
  • Includes Coil-Mounted Reservoir Mounts
  • 10" Front and Rear Travel
  • Requires 3.25" Carli Front Springs and R1 or R2 Rear Coils
  • NOT Compatible with Auto-Leveling Air Rear Suspension
  • Fitment: 2014+ Ram 2500 4x4 Diesel
