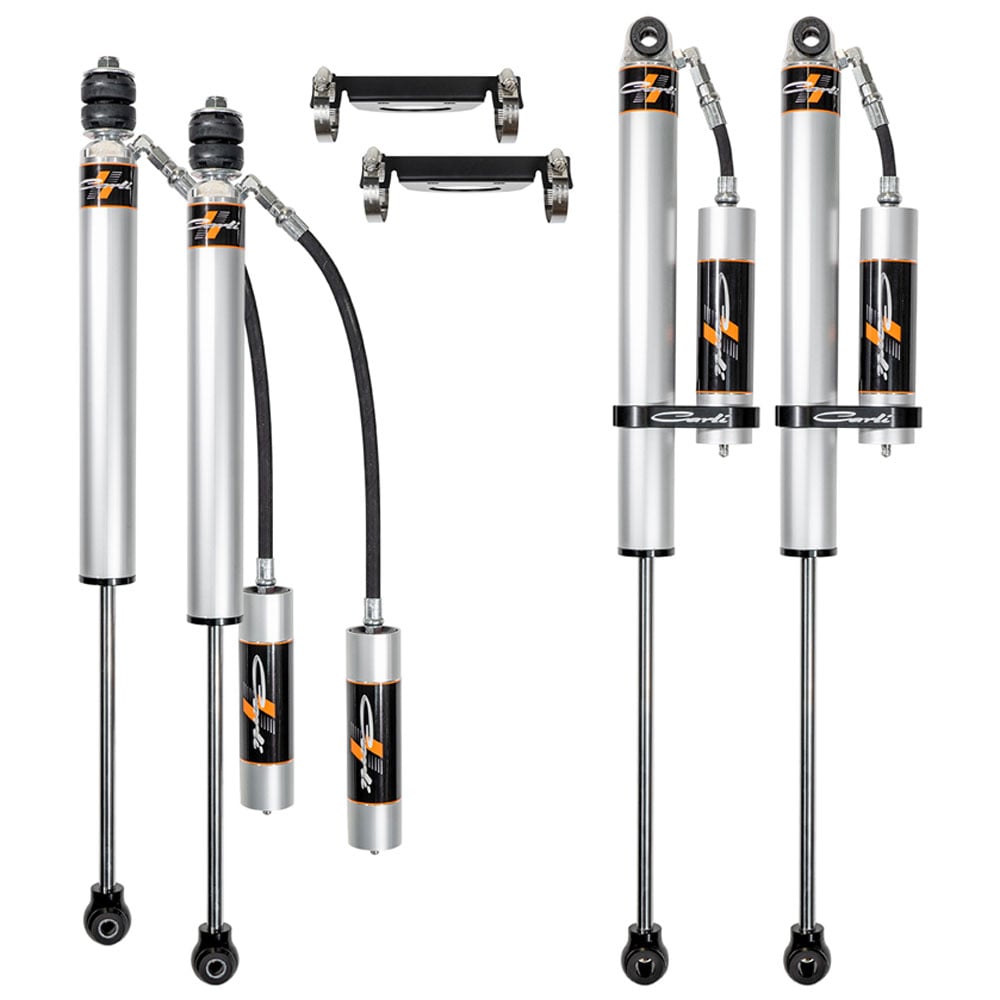

Carli Backcountry SPEC 2.0" Remote Reservoir Shock Package 05-26 Ford Powerstroke

$1,484.00

Get 1484 points in loyalty rewards

Carli Backcountry SPEC 2.0" Remote Reservoir Shock Package for 05-26 Ford Powerstroke

Description

The Super Duty Backcountry shock package is designed for people seeking the best on and off-road ride quality on a budget, the Commuter for those that want to have a little dirt-road fun in their 8,500lb truck without losing the on-road ride quality or usability for which the truck was designed. You’re no longer limited to the highway, while gravel roads become uninteresting as you can drive them at speed with one hand on the wheel. These shocks will be a touch softer on-road than a Pintop, with an impressive off-road capability for a 2.0″ shock. This is Carli's best-riding, on-road package when paired with Full Progressive Leaf Springs and Torsion Sway Bar. Both the Internal Reservoir (IFP) and Remote Reservoir shocks will feature the same construction. The body is 6063 aluminum offering a long service life and fantastic heat dissipation – they’re also anodized for corrosion resistance. The 5/8″ shafts are hardened & chrome-plated steel. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. The rod ends are constructed of 6061 billet aluminum; inside, you will find a high-quality 1-piece bushing and zinc-plated crush sleeves for precision fit and longevity. The cylinder end cap has a unique design as it overlaps the body of the shock to provide external support to the internal snap ring. These shocks serve as the travel limiter for all trucks without aftermarket radius arms (and subsequent limit straps installed), ensuring the shock stays together on top out while bearing the load of the axle is paramount. The Remote Reservoir variant adds the separate canister to carry the dividing piston and nitrogen charge leaving the entirety of the body available for extended piston travel. Without getting too technical, a Remote Reservoir will have more suspension travel than an IFP with the same mounting dimensions. In adding this canister, Carli has spec’d a high quality hose and fittings, similar to the one offered on Carli's King shocks. The last high-end touch Carli added is their billet, laser etched Carli reservoir clamp, where applicable. In front applications, they tend to run a longer reservoir hose to a Carli mount, whether frame or coil bucket mounted. Rear configurations favor piggy-back style mounting. To ensure the look is on-par with the brand and function, Carli provides a set of CNC’d reservoir clamps for the rear shocks. The warranty covers manufacturer defect for 1 year from the date of purchase. Carli services the warranty so you’ll work directly with Carli for any warranty concerns. IFP (Internal Floating Piston) shocks are designed for daily street comfort with a self-contained internal nitrogen charge, making them an affordable upgrade for better-than-stock ride quality. In contrast, RR (Remote Reservoir) shocks feature an external oil reservoir for superior cooling and more travel, preventing shock fade during aggressive off-road use—this increased performance and hardware account for the higher price point.

Please Select Lift Height Based on Model Year

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

The Super Duty Backcountry shock package is designed for people seeking the best on and off-road ride quality on a budget, the Commuter for those that want to have a little dirt-road fun in their 8,500lb truck without losing the on-road ride quality or usability for which the truck was designed. You’re no longer limited to the highway, while gravel roads become uninteresting as you can drive them at speed with one hand on the wheel.

These shocks will be a touch softer on-road than a Pintop, with an impressive off-road capability for a 2.0″ shock. This is Carli's best-riding, on-road package when paired with Full Progressive Leaf Springs and Torsion Sway Bar.

Both the Internal Reservoir (IFP) and Remote Reservoir shocks will feature the same construction. The body is 6063 aluminum offering a long service life and fantastic heat dissipation – they’re also anodized for corrosion resistance. The 5/8″ shafts are hardened & chrome-plated steel. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation.

The rod ends are constructed of 6061 billet aluminum; inside, you will find a high-quality 1-piece bushing and zinc-plated crush sleeves for precision fit and longevity. The cylinder end cap has a unique design as it overlaps the body of the shock to provide external support to the internal snap ring. These shocks serve as the travel limiter for all trucks without aftermarket radius arms (and subsequent limit straps installed), ensuring the shock stays together on top out while bearing the load of the axle is paramount.

The Remote Reservoir variant adds the separate canister to carry the dividing piston and nitrogen charge leaving the entirety of the body available for extended piston travel. Without getting too technical, a Remote Reservoir will have more suspension travel than an IFP with the same mounting dimensions. In adding this canister, Carli has spec’d a high quality hose and fittings, similar to the one offered on Carli's King shocks.

The last high-end touch Carli added is their billet, laser etched Carli reservoir clamp, where applicable. In front applications, they tend to run a longer reservoir hose to a Carli mount, whether frame or coil bucket mounted. Rear configurations favor piggy-back style mounting. To ensure the look is on-par with the brand and function, Carli provides a set of CNC’d reservoir clamps for the rear shocks.

The warranty covers manufacturer defect for 1 year from the date of purchase. Carli services the warranty so you’ll work directly with Carli for any warranty concerns.

IFP (Internal Floating Piston) shocks are designed for daily street comfort with a self-contained internal nitrogen charge, making them an affordable upgrade for better-than-stock ride quality. In contrast, RR (Remote Reservoir) shocks feature an external oil reservoir for superior cooling and more travel, preventing shock fade during aggressive off-road use—this increased performance and hardware account for the higher price point.

Vehicle Fitment

2017-2026 Ford 6.7L Powerstroke

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Carli SPEC 2.0" Remove Reservoir Shocks, Front and Rear
Includes Coil-Mounted Reservoir Mount
6063 Aluminum Body
5/8" Hardened and Chrome Plated Steel Shafts
Rubber Stem-Top Bushings
Overlapping Cylinder End Cap
6061 Billet Aluminum Rod Ends
High Quality 1 Piece Bushing
Zinc Plated Sleeves

LEVELING SHOCK SPECIFICS:

9.0″ Front Wheel Travel, 13.8″ Rear
Fitment: 2020+ F250/350 4×4, Diesel - 3.5" Lift
Fitment: 2017-19 F250/350 4×4, Diesel - 2.5" Lift

LIFTED SHOCK SPECIFICS:

11.3" Front Wheel Travel, 13.8" Rear
Fitment: 2020+ F250/350 4×4, Diesel - 5.5" Lift
Fitment: 2017-19 F250/350 4×4, Diesel - 4.5" Lift
