Carli Leveling Pintop 2.5" Suspension System 14-24 Ram 2500 6.7L Cummins

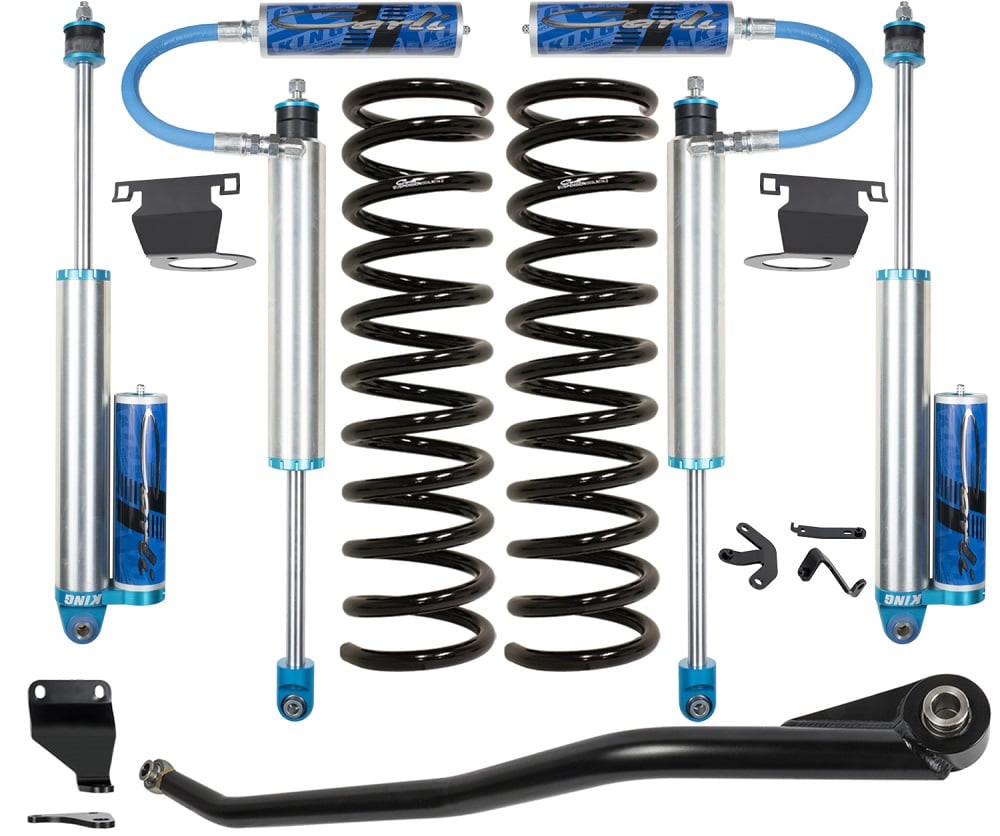

It's really difficult to classify this system as a "leveling kit," but technically, that's what it is. But if you're looking for the best leveling kit on the market that will deliver a drastic increase in ride quality on your 2500 Ram, then you've found it. At the heart of this system is a 2.5" lift, linear rate coil spring paired to matched travel King 2.5" remote reservoir shocks that have been custom-tuned in-house, for superior ride quality and handling both on-road and off. The rear piggyback reservoir shocks are also included with this system and have been custom tuned to maximize the ride quality of the factory rear coil springs. As the rear springs remain unmodified, load capacity is maintained while on and off road handling and predictability are massively improved. For those people that love the way their Ram tows from factory but don't want to be limited to a crawl wheel leaving the pavement, this is the perfect kit. CARLI TUNED KING 2.5" REMOTE RESERVOIR SHOCKS This system boasts Carli-specific, blueprinted, King 2.5" shocks on all four corners. To provide customers with the best product, we designed a custom piston to determine proper base flow rates to ensure the shock works well in the heavy-duty truck platform; we then tuned the shocks around the custom pistons based on the only thing that matters to us, seat-of-the-pants feel. We round off ALL our King shocks with shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King's standard shafts, there is no coating to wear off, weather is far less likely to hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn't damaged as they're not brittle like the stock, hardened shafts. The shocks are finished with King oil good to -55° F. Note that all King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, we recommend wrapping your shocks in 3M to provide a replaceable moisture barrier.REAR AIR RIDE SUSPENSION Starting with the airbag spacers. They’re included because the air-ride trucks have 1″ less rear-to-front rake when compared to a coil-sprung truck. Carli's choice was between making a shorter coil and shock combo for a truck already starved for suspension travel or space in the rear to match our 2.5″ spring; Carli chose the latter to maximize the travel and ride comfort. For the leveling system, this required some engineering as you can’t just throw a 1″ spacer on; the length of the factory stud doesn’t facilitate this. Carli designed a 2-piece spacer. Half bolts to the bag, half bolts to the axle – in between, Chromoly spacers to support the load, then it all bolts together. It installs seamlessly. The whole assembly snaps together like an ultra-satisfying adult Lego set. The pins pressed into the upper half of the bracket mark the rear and provide a failsafe for the airbag. EXTENDED SENSOR LINKS The factory links are cheesy polymer ends. This part sees no real load but polimer isn’t our style. We machined exact length rods for the 2.5″ Systems and 3.25″ Systems from aluminum rods then threaded the ends to accept our zinc-steel ends. The ends snap into position with authority and are provided with a spring clip keeper for insurance. BUMP STOP DROPS The Leveling Systems will be provided with a 1-7/8″ Bump Stop Drop. These bolts in place of the factory 7/8″ bumps provide a 1″ total drop over stock to compliment the 1″ airbag spacer provided. The bags bump out exactly as they do factory and are essentially shifted down 1″. The rear shocks provided with the leveling system maintain the stock rear travel. ADJUSTABLE TRACK BARWhen lifting the front end of a straight-axle truck, the front axle is pulled off-center unless the proper linkages are addressed. Three inches of front lift equates to an axle shifted toward the driver's side 3/4" and, in the radius arm equipped Rams, lightened caster and slight rearward axle shift. This system includes an Adjustable Track Bar to push the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application.WHEEL AND TIRE FITMENTThis system will fit up to a 35" tire when utilizing wheels that are no more than 9" wide with 5.75-6" of backspacing. A 12.5" wide should fit with no rubbing on the factory radius arm and only minor trimming required, while a 13.5" will require more trimming and slightly more offset to fit properly. Carli recommends running an 18" diameter wheel for optimal ride quality (more rubber = better small bump compliance) on a 35" E-rated tire running 45psi front, 40psi rear when unloaded. IMPORTANT NOTEThis system will not be upgradeable to any other Carli Suspension systems. It is designed to be a solution for customers wanting a quality, big shock system boasting huge off-road capability, minimal lift, and no reduction in payload or hauling capacity. Carli recommends slight eccentric bolt compensation to correct the caster after the lift as there are no radius arm drops included. For this reason, customers may experience a slight bow in the coil spring. This system will result in tight and responsive, sports car-like handling. WHEELS: Carli Recommends an 18" Wheel, no more than 9" wide with 5.25-5.75" of Backspacing. TIRES: 35", E-Rated Tire Fitment is Recommended. Recommended unloaded Tire Pressure 45F/40R RECOMMENDED CONFIGURATION: Carli Leveling Systems are Designed and Tested on Vehicles with 18" Wheels with 35", E-Rated Tires. Stock wheels and tires or running a larger wheel diameter will result in a stiffer ride. ENDLINKS: Factory front endlinks are retained where as the rear endlinks are provided with the kit for cleaner travel. TORSION SWAY BAR Selection of the Carli Torsion Sway Bar will aid in overall vehicle control and ride comfort. POWER WAGON APPLICATIONS: This kit will requre the removal of electronic sway bar. TORSION SWAY BAR SPECIFICATIONS: Easily the best bang for the buck upgrade for ride quality Allows front suspension to move freely without giving up control Requires removal of electronic sway bar on Power Wagons Torsion Bar may be black or silver zinc; depends on supply-chain availability. Not requestable. OPTIONAL LOW-MOUNT STEERING STABILIZERS: Direct bolt-in replacement Corrects left tire pull, adjustable Inside the Carli Stainless Stabilizer IMPORTANT NOTES: NO SWAY BAR OPTION NOTES:Diesel Power Products and Carli strongly suggest the use of either options available. These options are designed to work flawlessly with the rest of your kit and, are the best way to go. However, we understand you may already have the necessary provisions and/or products to use with this kit so we give you the option to not include any sway bar drop or Torsion Sway Bar provisions. CARLI TESTING RESULTSAfter a great deal of test runs with various weights loaded in the bed of Carli test truck, it was quickly determined that the factory payload was nearly untouched, given all of the updates Carli had made to the rear of the truck. What would a Carli kit be if it weren't getting absolutely filthy out in the dirt or getting the shocks up to temperature? In true form, Carli made absolutely sure the truck could also perform offroad by making numerous trips to the deserts of Barstow, El Cajon and Phoenix to really confirm how the new packages worked. The conclusion? These trucks can boogie just like the previous years!
