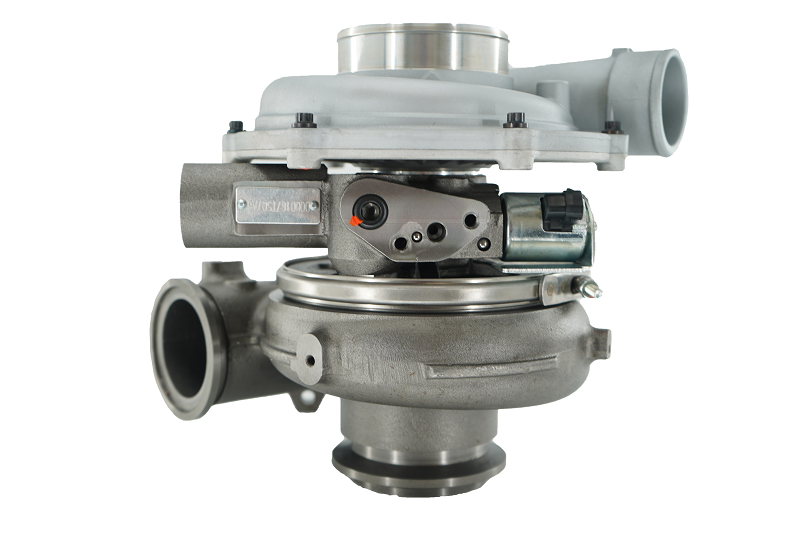

Calibrated Power Stealth 67G2 Drop In Turbo for 03-07 Ford 6.0L Powerstroke

Description

Building the line of Stealth Turbos meant designing a turbo that's safe to tow with, fun to drive every day, and a class-leading competitor. If you think street-able, clean, stealthy power is cool then this is the turbo for you.The custom 67mm compressor is milled out of high-strength 7075 Aluminum. Its TCT design is engineered to maximize peak power. To fit that wheel we developed a unique, OEM appearing, anti-surge equipped compressor cover. Redesigning the compressor to maximize power and driveability meant poring over every detail, from MWE groove width and placement to diffuser clearance and shape. The Stealth 67G2 center section is fitted with a 360-degree thrust bearing, increasing reliability and minimizing thrust wear during competition use.The turbine side innovation rivals the compressor side. The 67G2 turbine dwarfs the factory turbine in every way. The turbine is the largest on the market at 77.5x71mm. This turbo also features 15mm billet high flow vanes, matched unison ring, and proprietary doll pin spacing. The Stealth 67G2 features the largest turbine and vanes available in the this frame. Increasing turbine size dramatically reduces drive pressure under heavy load, helping you achieve nearly a 1:1 drive to boost ratio under most operating conditions. Controlling drive pressure helps make more power and significantly lowers EGT's all while maintaing a fully functional exhaust brake.

Choose add-ons

Add 2003-2004 6.0L Turbo Pedestal Adapter +$75.00

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Building the line of Stealth Turbos meant designing a turbo that's safe to tow with, fun to drive every day, and a class-leading competitor. If you think street-able, clean, stealthy power is cool then this is the turbo for you.

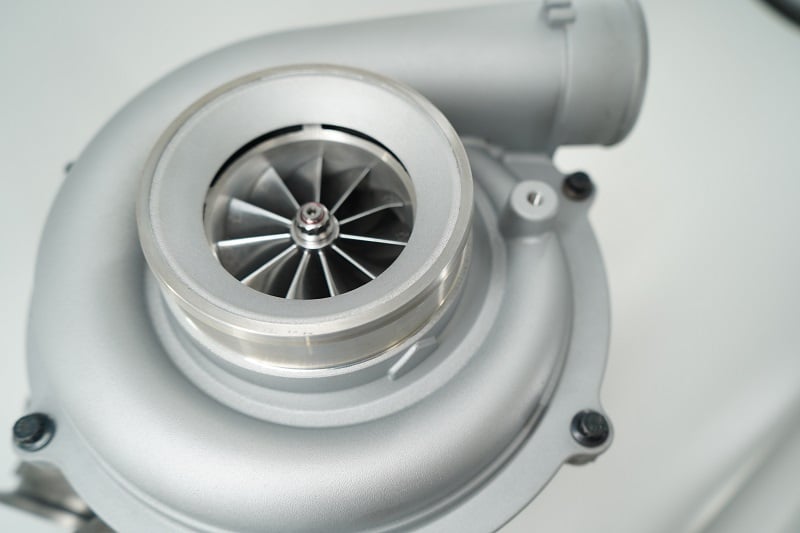

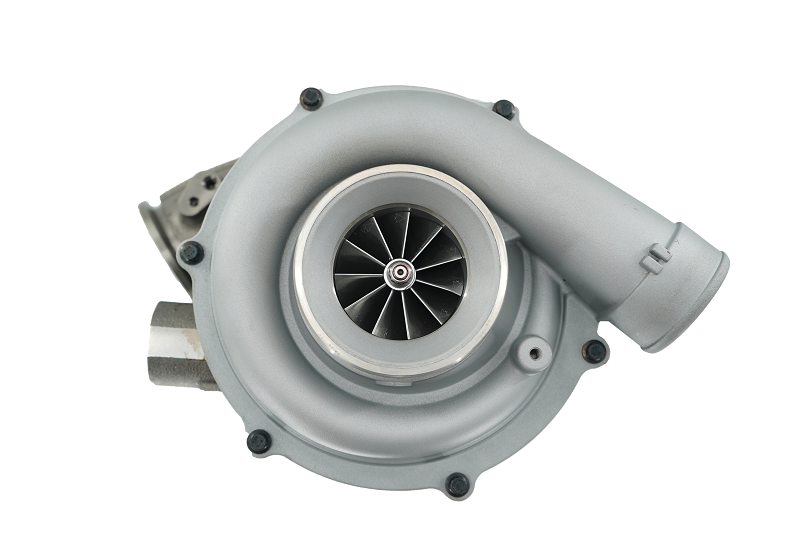

The custom 67mm compressor is milled out of high-strength 7075 Aluminum. Its TCT design is engineered to maximize peak power. To fit that wheel we developed a unique, OEM appearing, anti-surge equipped compressor cover. Redesigning the compressor to maximize power and driveability meant poring over every detail, from MWE groove width and placement to diffuser clearance and shape.

The Stealth 67G2 center section is fitted with a 360-degree thrust bearing, increasing reliability and minimizing thrust wear during competition use.

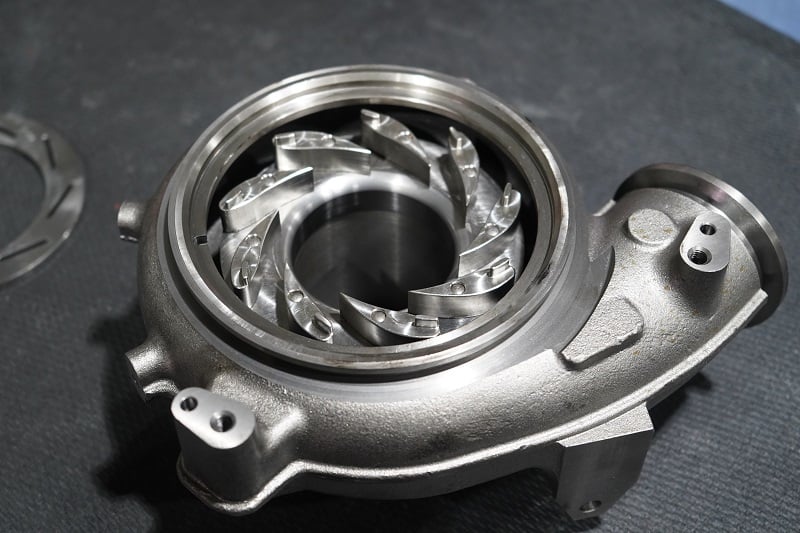

The turbine side innovation rivals the compressor side. The 67G2 turbine dwarfs the factory turbine in every way. The turbine is the largest on the market at 77.5x71mm. This turbo also features 15mm billet high flow vanes, matched unison ring, and proprietary doll pin spacing. The Stealth 67G2 features the largest turbine and vanes available in the this frame. Increasing turbine size dramatically reduces drive pressure under heavy load, helping you achieve nearly a 1:1 drive to boost ratio under most operating conditions. Controlling drive pressure helps make more power and significantly lowers EGT's all while maintaing a fully functional exhaust brake.

NOT LEGAL FOR SALE OR USE IN CALIFORNIA

Vehicle Fitment

2003-2007 6.0L Ford Powerstroke

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

750HP capable in competitive use
All new assembly, NO CORE!
Billet 67mm Compressor
Largest on the market 77.5x71mm turbine
Stock Appearing
15mm Billet high flow vanes and matched unison ring and proprietary doll pin spacing
Fully Functional Exhaust Brake
Quick Spool-Up = Usable Horsepower
Wide Torque Curve
2003 - 2004 Includes Pedestal Adapter
