SKU #: BPD-VK688-100
MPN #: VK688-100
BulletProof OEM Style Oil Cooler Remote Mount Kit 03-07 Ford 6.0L Powerstroke
Description
Overview
The factory oil cooler in your 6.0L Ford Powerstroke has been plagued with issues. Most issues are revolving around the fact that its location is in the engine valley, subjecting coolant and oil to excessive amounts of heat. This factory design works about as good as turning your A/C in your house on full blast with all your windows open on a hot day. Servicing this cooler is also a headache as you need to remove many components such as the intake manifold and turbo to even gain access to this cooler. Fix all of these issues once and for all with this complete oil cooler relocation kit from BulletProof Diesel that also includes one of Bulletproof's oil coolers.

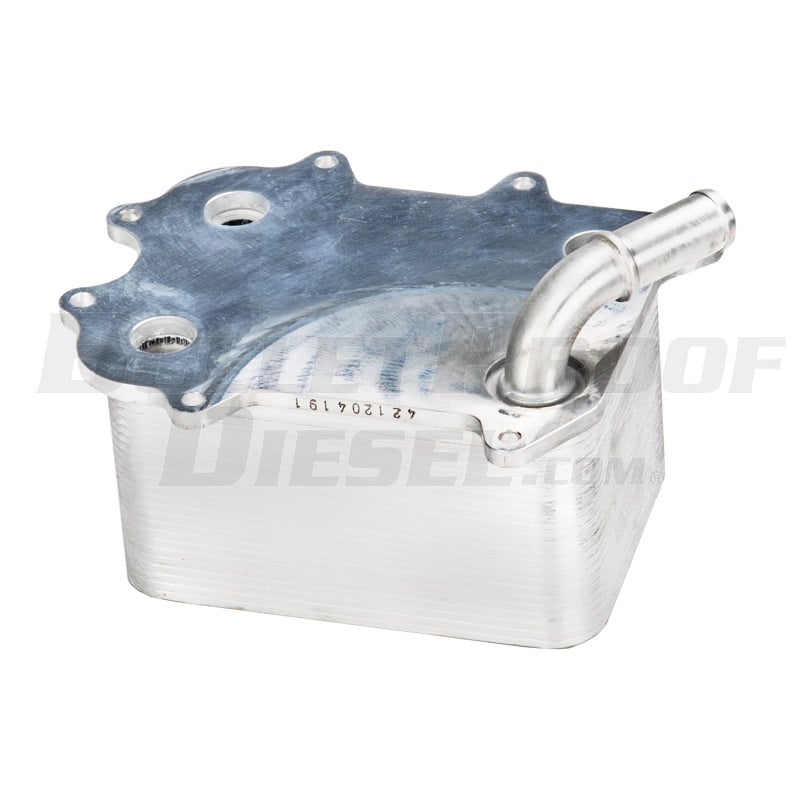

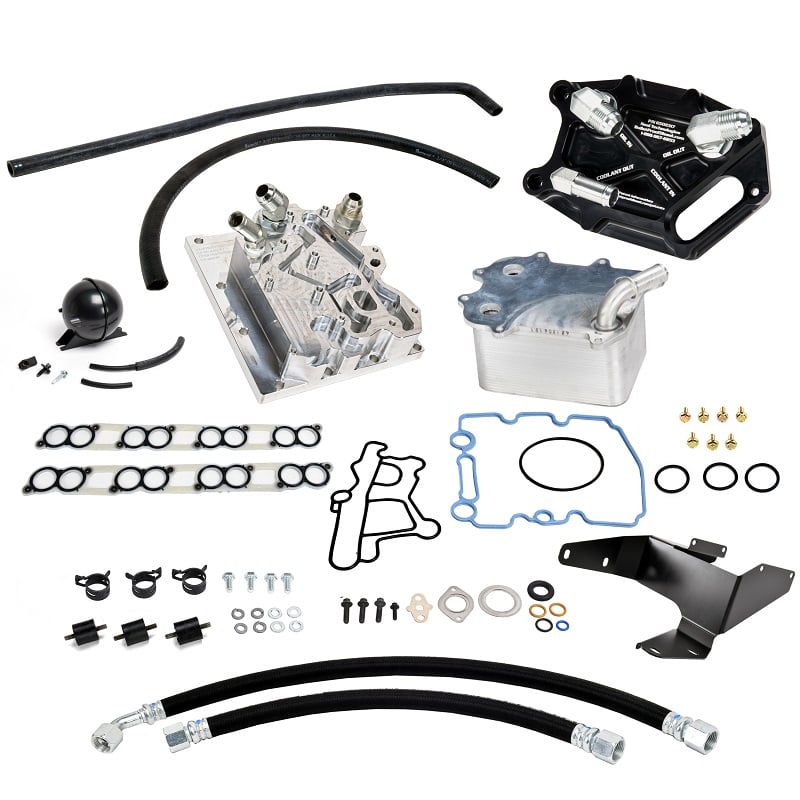

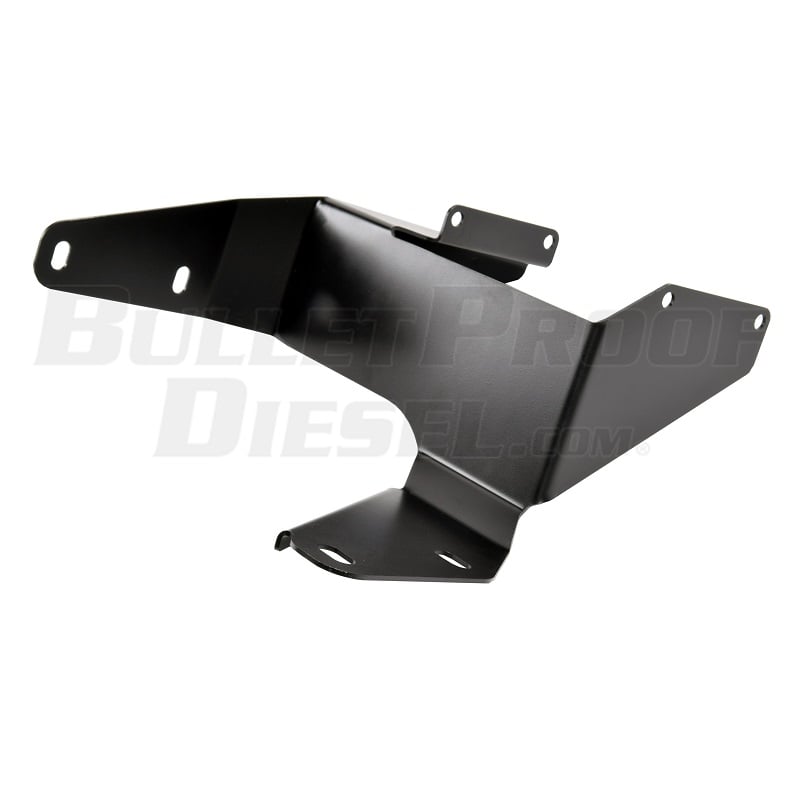

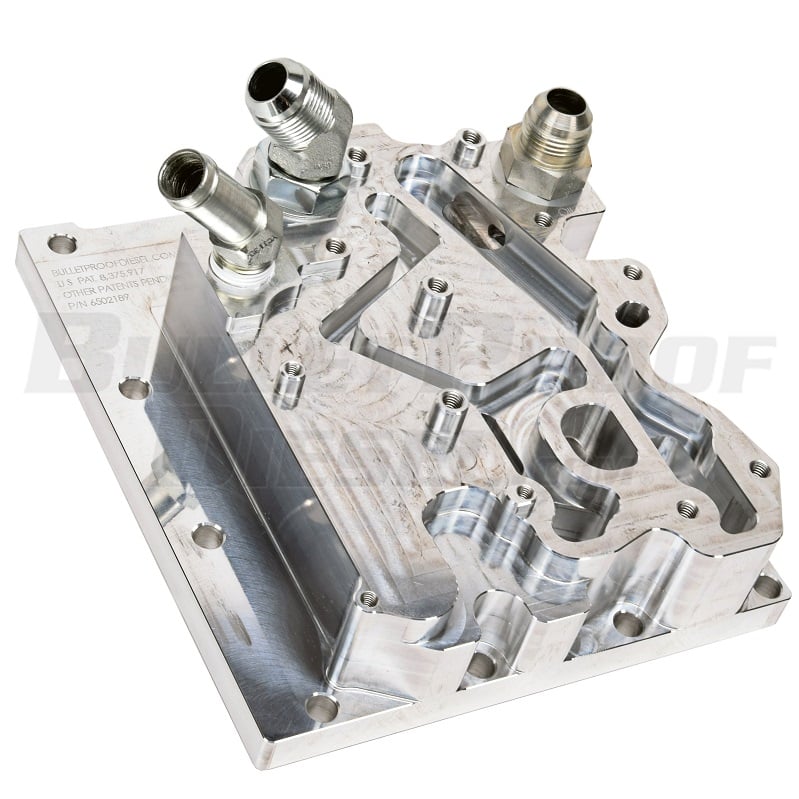

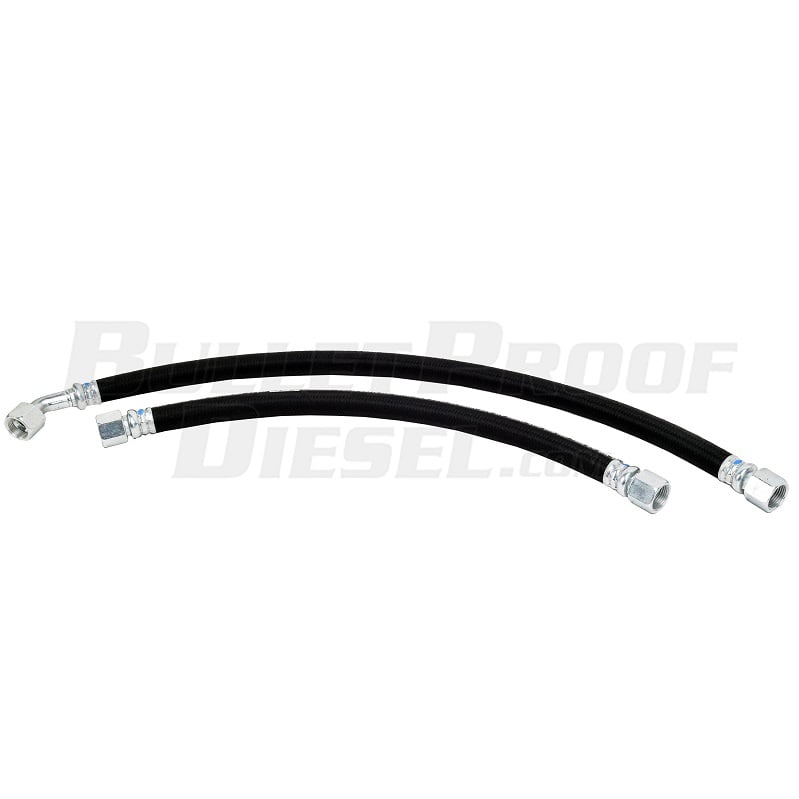

This remote mount kit replaces your stock oil cooler with a billet aluminum oil transfer block that transfers oil out of the valley using braided hoses that connect to the supplied factory style cooler. The cooler is then mounted behind the passenger battery for easier servicing and much more efficient cooling.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
An OEM style remote mount oil cooler relocation kit that moves the oil cooler out of the engine valley, using a billet aluminum oil transfer block and braided hoses to a factory style cooler mounted behind the passenger battery.
- Fits
- 2003-2007 6.0L Ford Powerstroke|2003-2005 6.0L Ford Excursion
- Brand
- BulletProof Diesel
- Best for
- Relocating a problematic engine-valley oil cooler for easier servicing and improved cooling
- Key features
- Retains efficient liquid-to-liquid heat exchanger
- Remote mount oil cooler away from engine valley
- Utilizes factory/OEM engine oil filter
- Servicing problematic oil cooler is simpler and faster
FEATURES & BENEFITS:
- Retains efficient liquid-to-liquid heat exchanger
- Remote Mount Oil Cooler - Away from Engine Valley
- Utilizes Factory/OEM Engine Oil Filter
- Servicing Problematic Oil Cooler Is Simpler and Faster
About BulletProof Diesel
BulletProof Diesel is a company that started out trying to solve a problem, the 6.0L Ford Powerstroke's inherent issues with the EGR (Exhaust Gas Recirculator) Cooler. The first product by Bulletproof was the upgraded EGR cooler and soon to follow were the EGR deletes and upgraded oil cooler. The company has positioned itself as the premier manufacturer of "6.0L fix-it parts."
