SKU #: BOSCH-F00ZR20002 MPN #: F00ZR20002

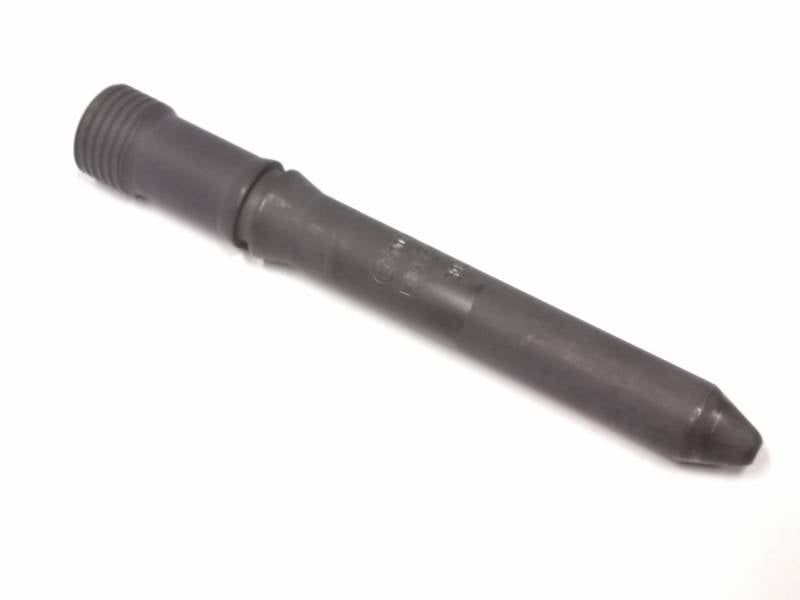

Bosch High Pressure Connector Tube 98.5-02 Dodge 5.9L Cummins

$28.08
Get 28 points in loyalty rewards
Description
Especially when replacing the injectors in your 24 valve Cummins, its very important to also replace the connector tubes, located in the head between the injector and the injector line. This tube presses against the injector and passes fuel to the injector, so a perfect seal is necessary to avoid fuel bypassing into the head. In many instances, the original tube wears itself into the original injector, creating a circular depression that does not allow the old tube to properly seat into a new injector. Connector tubes are sold individually and the o-rings are available separately. We would highly recommend replacing the o-ring with each connector tube.

Enter your zip and we'll see if installation is available.

  • Request quotes from local installers at checkout
  • Compare options and choose the best fit for your install
Especially when replacing the injectors in your 24 valve Cummins, its very important to also replace the connector tubes, located in the head between the injector and the injector line. This tube presses against the injector and passes fuel to the injector, so a perfect seal is necessary to avoid fuel bypassing into the head. In many instances, the original tube wears itself into the original injector, creating a circular depression that does not allow the old tube to properly seat into a new injector.

Connector tubes are sold individually and the o-rings are available separately. We would highly recommend replacing the o-ring with each connector tube.
Vehicle Fitment
1998.5-2002 Dodge 5.9L Cummins
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
About Bosch
Browse Bosch Auto Parts Online by Make, Model, and Year. Bosch has long been a recognizable name in the automotive industry. For those unaware, vehicle manufacturers outsource a sizable amount of the components that go into the production of vehicles, and Bosch is one of the companies that have had long standing relationships with a plethora of manufacturers over the years to build numerous vital components. In the diesel industry, Bosch is most known for producing original equipment injectors and injection pumps for use in Ram trucks powered by a Cummins engine, Chevrolet and GMC's with a Duramax diesel, and Ford SuperDuty's sporting Powerstroke engines. Rest assured that if you purchase Bosch Fuel Injection parts from us that you are only getting Bosch certified new or Bosch certified reman parts with the full factory warranty.

For the diesel market, Bosch gained considerable notoriety with the design and implementation of the common rail fuel injection system found originally on LB7 Duramax’s, then two years later with the 2003 Cummins, and finally available in 2008 on the 6.4L Powerstroke. While this may have been when Bosch was most noticed in this industry, their roots go back much further, building the original equipment HPOP (High Pressure Oil Pumps) for early Powerstrokes, the VE and VP44 injection pumps on Cummins, and injectors throughout nearly all applications. For current era light duty diesels, basically you can nearly conclude that if fuel touches it, it was most likely originally built by Bosch.

And while we continue to mention injection pumps and injectors, its SO much more than that. As previously mentioned, if fuel touches it, you can be pretty sure that Bosch made it, including the Fuel Control Actuators (FCA) also known as an MPROP that are mounted to the injection pump, Rail Pressure Sensors, and even Pressure Relief Valves. They're all made by Bosch! And finally, outside the realm of fueling, we offer Bosch Wiper Blades (yes, they make those too) because, honestly, they make a really nice wiper blade that works.

And you won’t just find Bosch in factory parts. The majority of aftermarket manufacturers or rebuilders do not build components from scratch. Rather, they start off with factory Bosch core pieces, and then remanufacture those for a final product. So whether you're simply in need of a single injector, or needing a full set of matched injectors with injection pump, we've got you covered, and can typically get the parts out almost immediately to get your stranded truck back on the road again.
