Beans Diesel Micro Fuel Tank Sump

Name: Beans Diesel Micro Fuel Tank Sump
Brand: Beans Diesel | Bean Machine
Price: 79.98 USD
Availability: InStock
Rating: 4.7 (3 reviews)

$79.98

Get 79 points in loyalty rewards

Description

Beans Diesel set the bar pretty high with their fuel tank sumps, known for their quality and the fact they included absolutely everything in the kit one could need. That said, there was still a demand for a smaller unit at a lower cost that didn't necessarily include all of the components and some of Beans' more inclusive kits, and so came the Beans Micro Sump! The Micro Sump has the same great quality you expect from a Beans Diesel Bean Machine fuel tank sump and a price that easily fits into any budget. Fuel sumps are nothing new these days. You see them everywhere and every company seems to have one. What Beans has done is step up the tank sump a notch. Made from 6061 billet aluminum, this little guy is built like a tank and is super simple to install. While still using a no tank-drop design, they have made this sump so it can be installed with a single bolt and a single 1-1/2" hole in your tank (compared to most that require a 3" hole). This means less places to leak and much quicker install. The single O-ring design creates the perfect seal insuring you have zero leaks. The Micro Sump can also be used for fuel return.If you are installing an aftermarket fuel system on your vehicle, getting enough fuel flow from the tank is always an issue. Many aftermarket fuel systems require you to drop the tank and install a suction straw of some sort that often cause issues such as fuel starvation and not being able to use 100% of your fuel capacity. Beans resolved these issues all without without having to perform the labor intensive task of lowering the fuel tank.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Beans Diesel set the bar pretty high with their fuel tank sumps, known for their quality and the fact they included absolutely everything in the kit one could need. That said, there was still a demand for a smaller unit at a lower cost that didn't necessarily include all of the components and some of Beans' more inclusive kits, and so came the Beans Micro Sump!

The Micro Sump has the same great quality you expect from a Beans Diesel Bean Machine fuel tank sump and a price that easily fits into any budget. Fuel sumps are nothing new these days. You see them everywhere and every company seems to have one. What Beans has done is step up the tank sump a notch. Made from 6061 billet aluminum, this little guy is built like a tank and is super simple to install. While still using a no tank-drop design, they have made this sump so it can be installed with a single bolt and a single 1-1/2" hole in your tank (compared to most that require a 3" hole). This means less places to leak and much quicker install. The single O-ring design creates the perfect seal insuring you have zero leaks. The Micro Sump can also be used for fuel return.

If you are installing an aftermarket fuel system on your vehicle, getting enough fuel flow from the tank is always an issue. Many aftermarket fuel systems require you to drop the tank and install a suction straw of some sort that often cause issues such as fuel starvation and not being able to use 100% of your fuel capacity. Beans resolved these issues all without without having to perform the labor intensive task of lowering the fuel tank.

Manuals and Guides

Vehicle Fitment

Universal Fitment

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

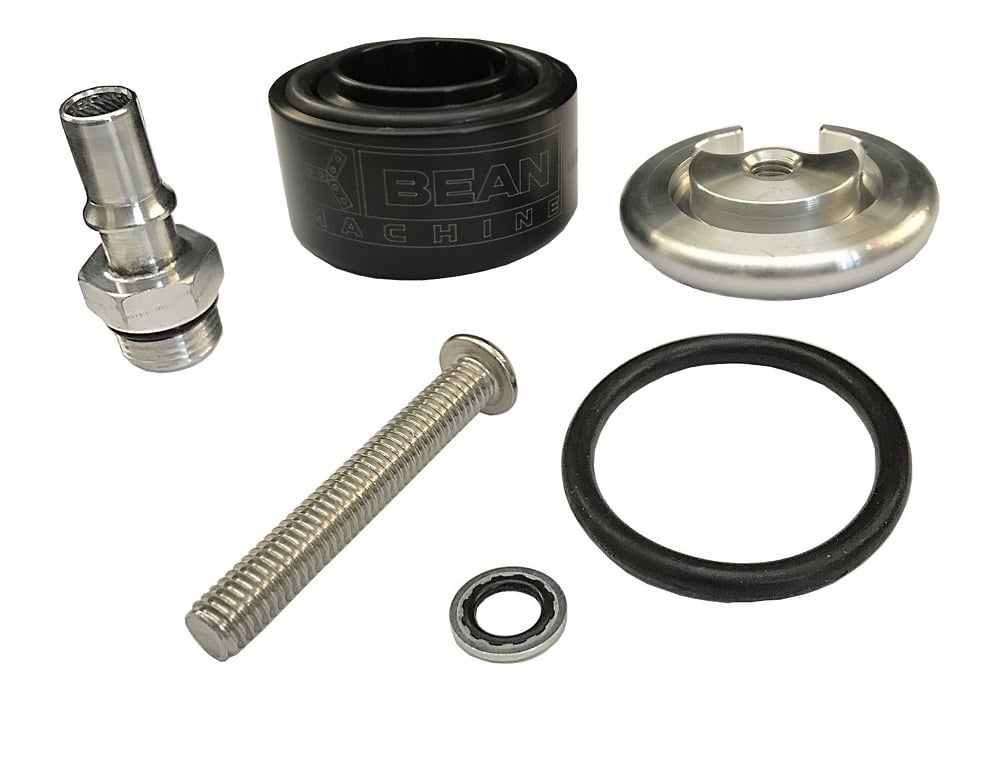

KIT CONTENTS:

Sump Body
Sump Pacman
Stainless Steel Bolt
Sealing Washer
O-Ring
(1) 8 O-Ring Boss (ORB) to 1/2" QDC/Push-Lock Fitting (With O-Ring)
Does NOT come with hole saw or drain. You will need a 1-1/2" hole saw

FEATURES & BENEFITS:

DESIGNED AND MANUFACTURED IN TENNESSEE USA!!!
Uses all available fuel from the tank. No issues with sucking air when below 1/4 tank. Perfect for use with today's high flow lift pump systems. (Airdog, FASS, etc)
Stand pipe cut into the inside of the sump to reduce the amount of sediments that get to your filter system.
Single bolt design that allows for 5 minute install as well as less chances for leaks that other tanks sumps may have when using multiple bolts drilled into the tank.
Stainless Steel hardware and Brass 1/2” Pushlock fitting provided.
Inner ring designed to go through the 1-1/2” hole so tank does not need to be dropped.
O-ring design for a perfect seal.
Super strong 1 piece machined billet design.
Can be installed on any metal or plastic fuel tank for gas or diesel applications with an available 3” diameter flat area
Billet 6061 Industrial Aluminum Material
Exclusive No Leak Technology
Installs in Minutes

About Beans Diesel | Bean Machine

Ryan Bean first officially opened the doors to Beans Diesel in 2004 in Woodbury, Tennessee in an effort to build high quality components for Powerstroke, Cummins, and Duramax powered trucks. As the catalog of products developed for Beans Diesel, they also expanded into Beans Machine where they produce an assortment of custom machined products, including valve covers, dual CP3 pulleys, tappet covers, and much more. If you're looking for quality components to either dress up your engine bay or provide additional performance (or both!), you can count on Beans Diesel Performance and Beans Machine.
