SKU #: BDS-761FPE MPN #: BDS761FPE

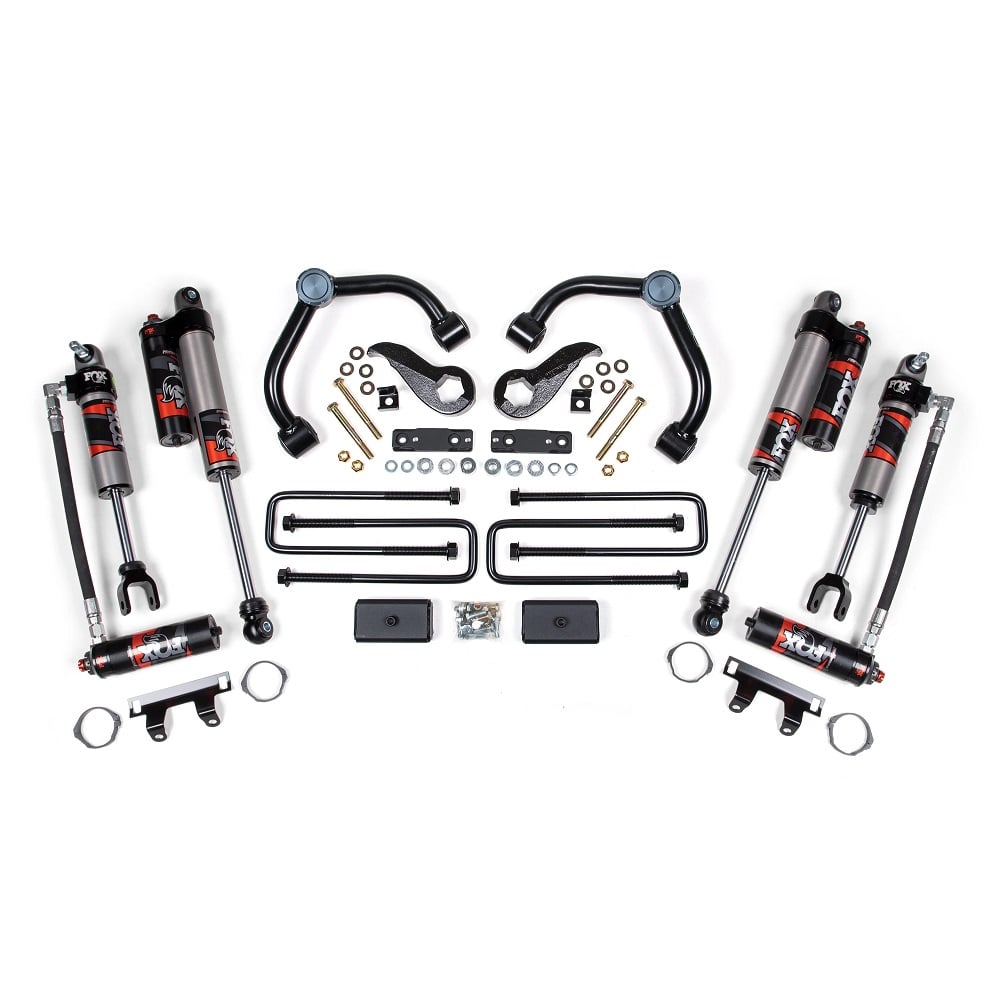

BDS Suspension 3" Upper Control Arm Kit w/ Fox 2.5 Shocks 20-25 GM 2500HD / 3500

$4,229.80

Get 4229 points in loyalty rewards

BDS Suspension 3" Upper Control Arm Kit w and Fox 2.5 Shocks for 20-25 GM 2500HD and 3500

Description

Adding a smoother ride and more lift height to your truck doesn't have to be difficult. Built for easy bolt-on installation, this 3" UCA Lift Systems offer next level performance designed around the OE suspension geometry and utilize the FOX 2.5 Performance Elite Series shocks at each corner. These large aluminum-bodied shocks feature DSC (Dual Speed Compression) adjustable reservoirs for additional damping capacity, better heat dispersion and tuneable ride. These are paired with heavy duty BDS tubular upper control arms (UCAs) designed for improved strength and increased suspension travel. These control arms are built from thick wall 1.5" DOM tubing, and use an indexed ball joint cup to reposition the upper ball joints and allowing more droop travel. These arms come fully assembled right out of the box with high quality greaseable ball joints and rubber bushings for long life, quiet operation and superior corrosion resistance over uniballs and heims. Along with the control arms, a pair of reindexed cast steel torsion bar keys are supplied up front to lift vehicle while maintaining ground clearance. A small differential relocation kit is supplied to correct CV axle operating angles without effecting ground clearance. To eliminate sway bar interference, a pair of sway bar relocation brackets is used which maintains proper operating angle. In the rear a 2" block and u-bolt kit is used to create a level to slightly tail high stance. This system utilizes next level damper performance for smooth on-road comfort and extreme off-road capability allowing you to push your truck harder. Take your HD to the next level with BDS and FOX. Recoil Traction Bar Kit Increase your traction and stability without limiting your movement with this BDS Recoil Traction Bar Kit. When your truck is in high torque situations, you need extra help absorbing shocks or vibrations through your system. Install these traction bars to smooth out your ride, increase stability while off-roading, and increase durability throughout your truck. Steering Stabilizer Option: Single NX2 Nitro: Are you worried about your steering control? NX2 Nitro Steering Stabilizer is designed to be a high-end performance shock at an affordable price. Built with a durable metallic finish, a large fluon-banded piston, and self-lubricating seals this stabilizer is tough enough to last but tuned with vehicle-specific valving to give you amazing control. Built with both the morning commute and some light off-roading in mind, keep stress out of your steer and install one of these today!

Recoil Traction Bar Kit

Increase your traction and stability without limiting your movement with this BDS Recoil Traction Bar Kit. When your truck is in high torque situations, you need extra help absorbing shocks or vibrations through your system. Install these traction bars to smooth out your ride, increase stability while off-roading, and increase durability throughout your truck.

Steering Stabilizer Option:

Single NX2 Nitro: Are you worried about your steering control? NX2 Nitro Steering Stabilizer is designed to be a high-end performance shock at an affordable price. Built with a durable metallic finish, a large fluon-banded piston, and self-lubricating seals this stabilizer is tough enough to last but tuned with vehicle-specific valving to give you amazing control. Built with both the morning commute and some light off-roading in mind, keep stress out of your steer and install one of these today!

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

2020-2025 GM 2500HD / 3500 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

Tire Wheel Combinations:

35x12.50 w/20x9 and 5.5-5.75" back spacing
295/60 w/20x9 and 5-5.75" back spacing
285/65 w/20x9 and 5-6.18" back spacing

*Trimming may be required*

Installation Information:

Estimated Installation: 3-4 hours
Difficulty Level (easy 1 - 5 complicated): 3

IMPORTANT KIT NOTES:

Disassembly/assembly of the factory torsion bar system requires the use of a special unloading tool. The GM specified tool #CH48809
Compatible with gas or diesel models
Compatible with AT4 models
Some minor trimming may be necessary to fit certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks and typically consists of trimming the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. As a rule of thumb, deeper backspacing and shorter/ narrower tires will reduce/eliminate trimming required. Further trimming tips are included at the end of this instruction sheet
