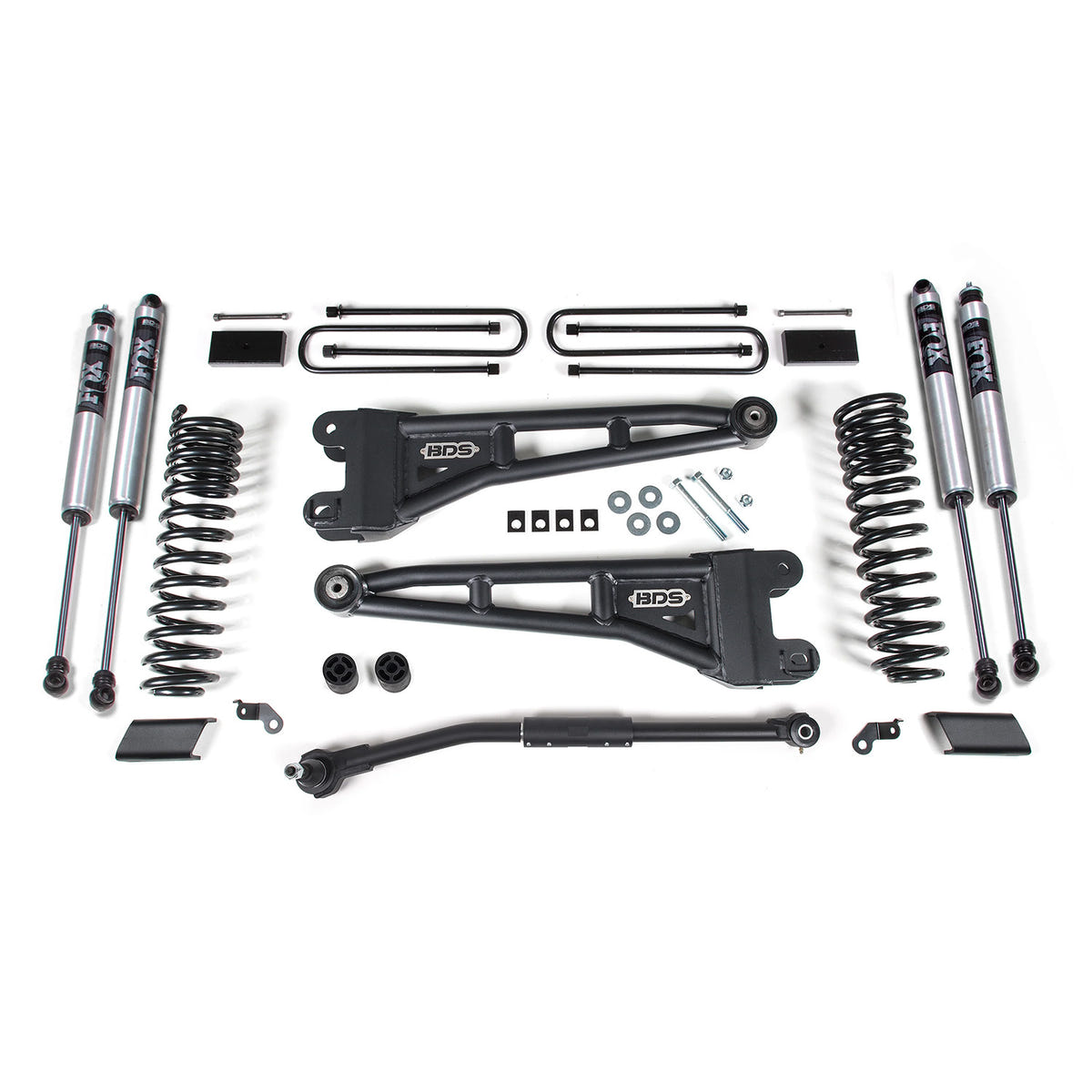

BDS Suspension 3" Lift Radius Arm Kit 23-26 Ford F-250/F-350 SuperDuty 4WD
Description
Get the stance, strength, and performance your Ford SuperDuty deserves with the BDS 3" Lift Kit with Radius Arm. Engineered specifically for diesel models, this premium system levels the truck, improves ride quality, and enhances capability while providing room for up to 35" tires. Whether you daily drive, tow, or hit the trails, this kit delivers the control and durability the new Super Duty platform demands.
This complete system includes diesel-specific Pro-Ride coil springs, heavy-duty tubular radius arms, a 1-3/8" solid steel adjustable track bar, sway bar relocation, brake line brackets, and your choice of NX2 Nitro, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite shocks. In the rear, a high-strength fabricated lift block and longer U-bolts bring the truck to a perfectly level stance.
Key Features
3" front lift height for a leveled, aggressive stance
Diesel-specific Pro-Ride dual-rate coil springs for smooth, predictable ride quality
HD tubular radius arms with built-in caster correction and OE-style rubber bushings
1-3/8" solid steel adjustable track bar keeps steering geometry dialed in
Fabricated rear lift block and extended U-bolts for proper rear height
100% bolt-on installation — no cutting or welding required
Designed for up to 35 x 12.5" tires (minor trimming may be required)
Shock Options

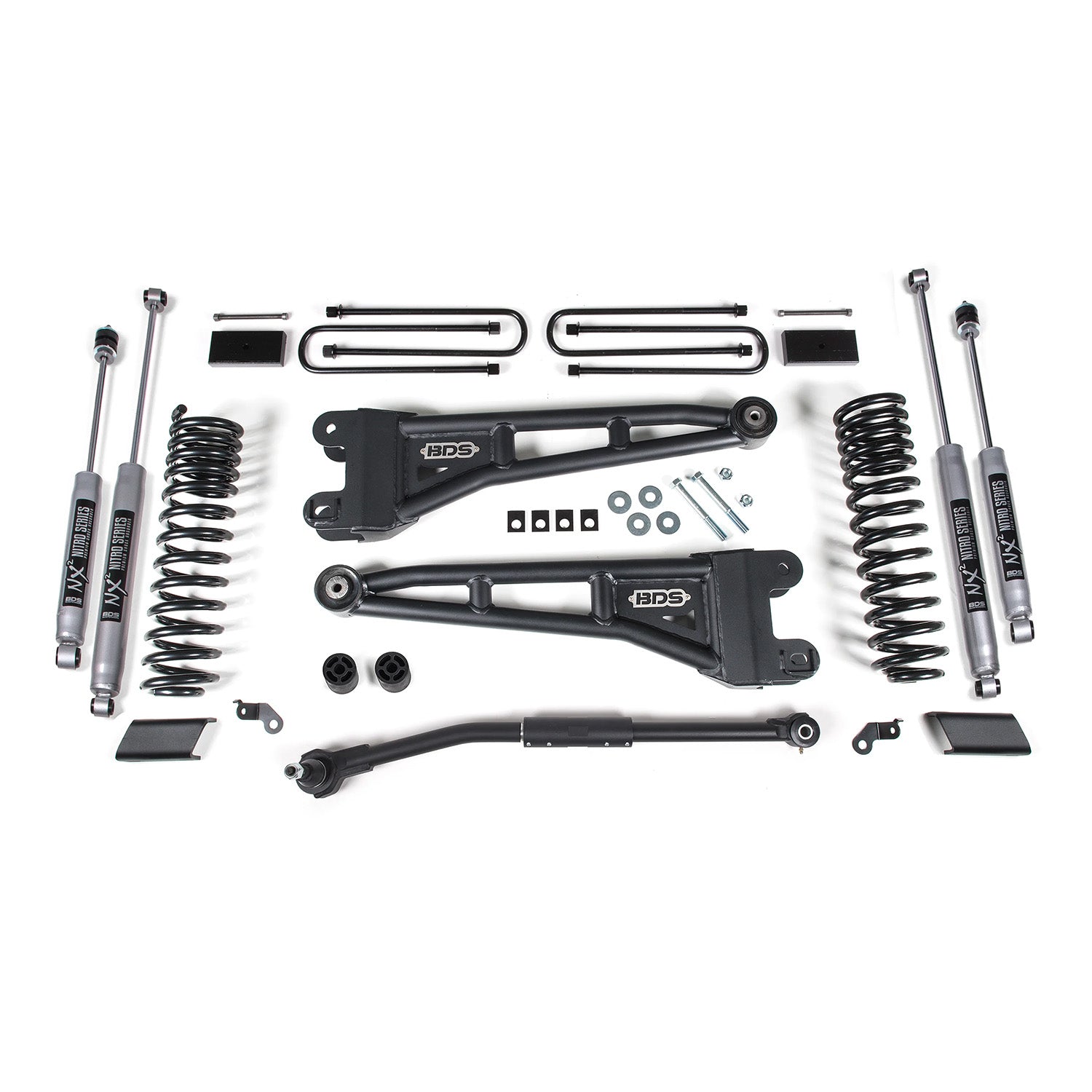

NX2 Nitro Series (Standard)
Nitrogen-charged twin-tube design
10-stage velocity-sensitive valving
Dual-welded ends for extra strength
1-3/8" high-flow piston
Self-lubricating seals
Durable silver powder-coat finish
A great all-around option for improved control, ride comfort, and value.

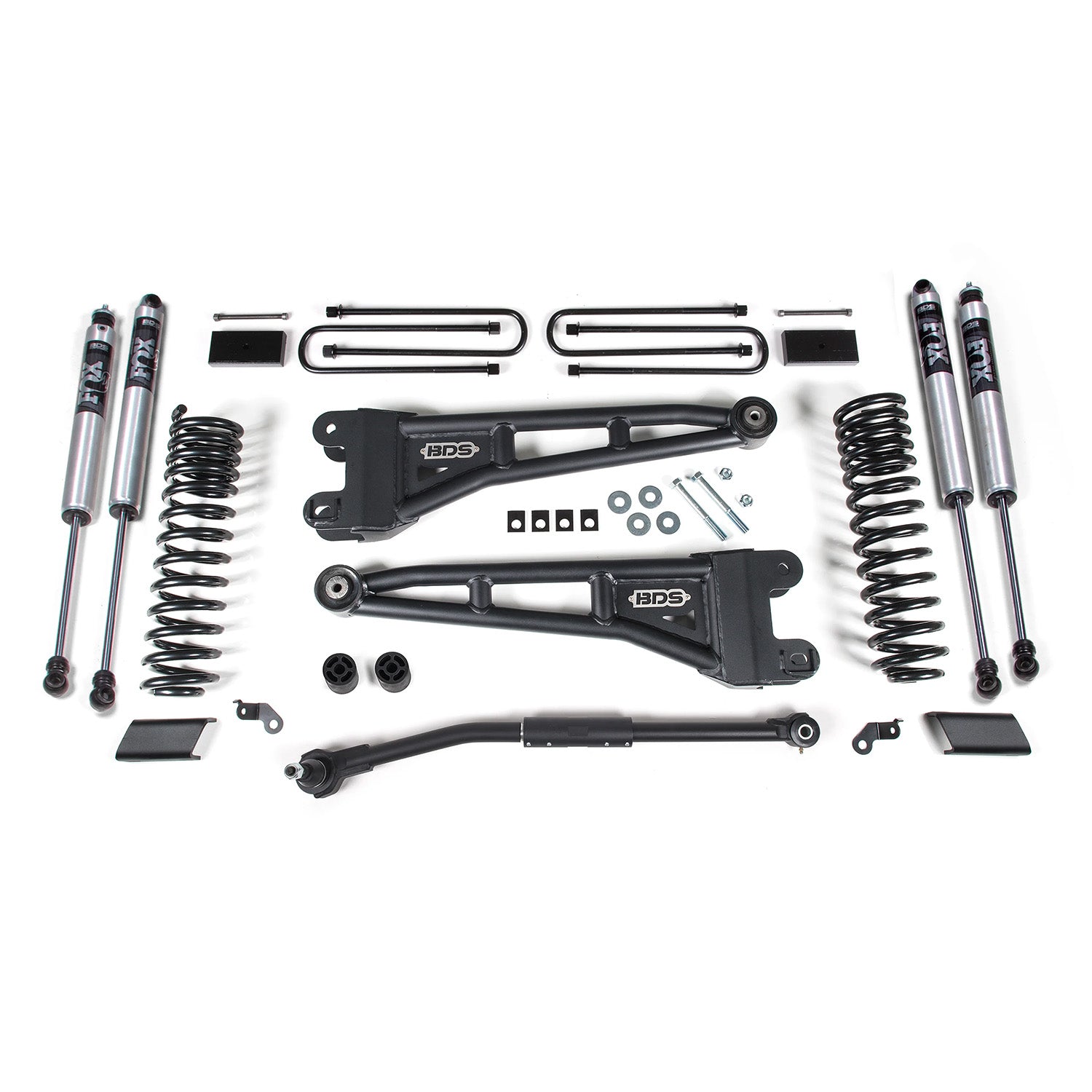

FOX 2.0 Performance Series
2" impact-extruded aluminum body
Monotube IFP (internal floating piston) design
CNC-machined 6061-T6 aluminum ends
5/8" hard chrome-plated heat-treated alloy steel shaft
High-flow race-inspired piston
Application-specific valving for maximized performance
Clear anodized finish
Ideal for drivers who want noticeable on- and off-road performance gains with premium build quality.

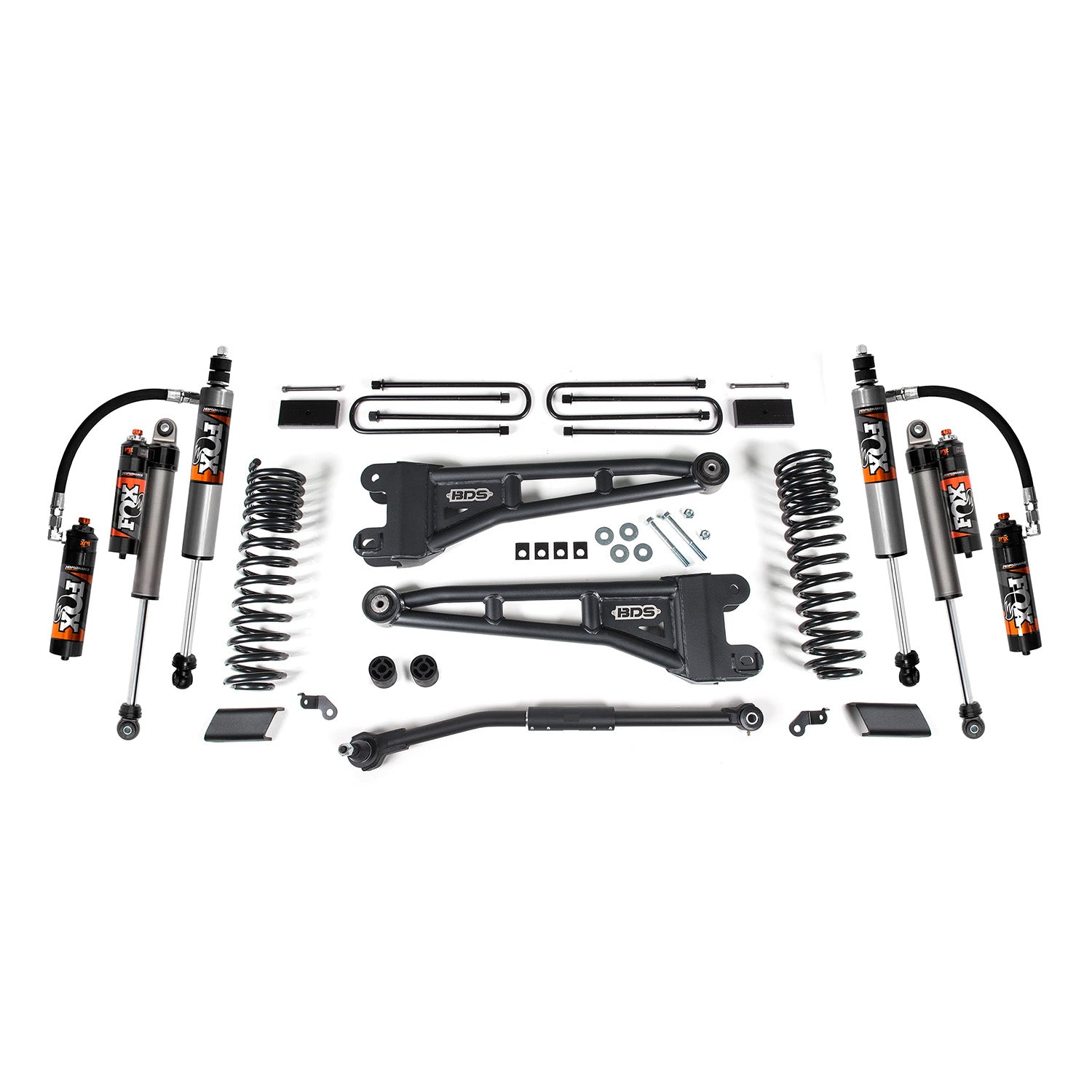

FOX 2.5 Performance Elite – (Premium Upgrade)
Large-body 2.5" aluminum shocks for superior damping
Dual-speed compression (DSC) adjusters for fine-tuning ride quality
Advanced race-derived internal components
Exceptional heat dissipation for sustained performance
Best-in-class control for towing, heavy use, or spirited off-road driving
The top choice for owners wanting maximum suspension performance and adjustability.
About BDS Suspension
BDS Suspension was started in 1996 by a business group who felt it was past time to create a suspension company that truly had the best interest of the off road consumer as its' foundation. With over 45 combined years experience with other major suspension companies, both buying and selling, the individuals that would make up the BDS name were frustrated by the lack of quality and the unwillingness to make things right by these 4x4 companies. So, they set out to create a suspension company that would be the best and made a list of the things they felt were not right and made it their mission to correct them.
One of the most important of these wrongs they were looking to right were that of other companies warranties. Too often, the standard protocol was that a broken or damaged part from another manufacturer was denied warranty because of abuse or neglect. For BDS, its simple, if it breaks, they'll replace it, and that is the motto in which they have based their entire warranty off of. So, they welcome you, try and break it, if you do, they'll replace it and probably try to determine a way to increase the rigidity of the product to ensure it never happens again.
BDS LIFT KITSWhile most people whom have heard of BDS Suspension automatically think of "lift kits," that ony touches on the wide variety of suspension and steering related products that BDS offers. BDS understands that not everyone is after a complete lift kit, but still after the quality BDS products bring to the table. Some of our most popular products from BDS are replacement adjustable track bars and dual steering stabilizer kits that in many instances can be installed on a completely stock truck, or one that's leveled or lifted. Other popular "non lift kit" parts are leveling kits that include upgraded shocks, progressive rate coil springs, heavy duty control or radius arms, and even leaf springs.
When shopping for various BDS Suspension parts, we understand that all of the choices can be overwhelming! Shock options, dual steering stabilizers, replacement coil springs or spacers.....and the list goes on! As you're considering the right suspension upgrades for you and your truck, never hesitate to reach out to us for an honest opinion of what we'd recommend for your particular build and budget. Not everyone "needs" every option and we can help you weigh the benefits of each.
