SKU #: BDS-1543H MPN #: BDS1543H

BDS Suspension 2.5" Radius Arm Lift Kit 17-19 Ford 6.7L Powerstroke 4WD

$1,745.60

Get 1745 points in loyalty rewards

BDS Suspension 2.5" Radius Arm Lift Kit for 17-19 Ford 6.7L Powerstroke 4WD

Description

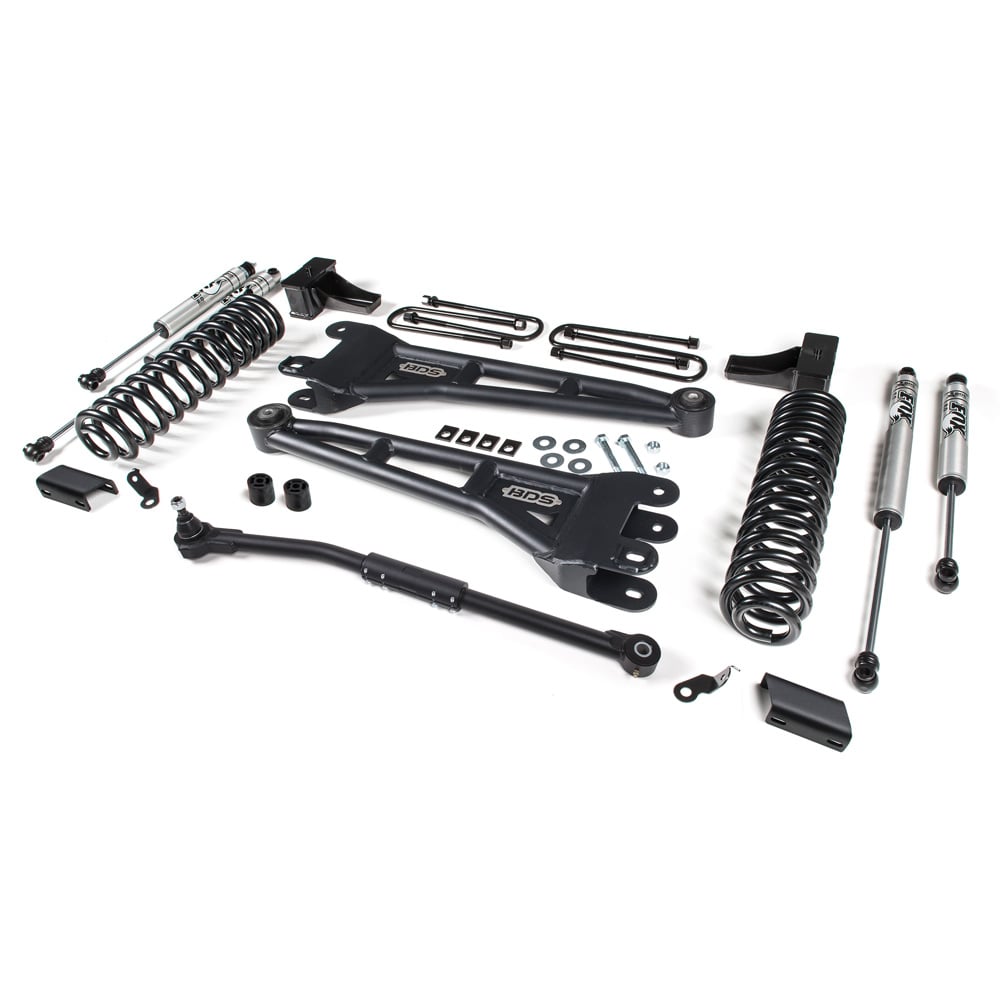

If you're wanting to improve looks and appearance, strength, and performance with clearance for 35" tires, then the BDS 2.5" Radius Arm Suspension kit is your ticket! This system include coil springs, heavy duty radius arms, adjustable track bar, your choice of gas shocks and brake line correction along with replacement rear lift blocks and u-bolts to level the stance. As with all kits these 2.5" radius arm systems for the Ford Super Duty are backed by Factory Protection Plus offering you peace of mind out on the trail or wherever your next adventure may be. Shock Options: NX2 Nitro Series Shocks - BDS NX2 series gas shocks offer impressive performance on and offroad. They use a nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving for lightning-fast dampening and superior control. FOX 2.0 Performance Series Shocks - Fox 2.0 performance series shocks have been tuned and tested by both FOX and BDS Suspension to maximize performance specific to each application and every BDS Suspension system. The Internal Floating Piston (IFP) shock design is based on proven Fox Racing Shocks race products but re-designed to maximize the ride quality, handling, and control of your BDS-equipped truck, whether on or off the road. FOX 2.5 Performance Elite Series - Need to kick your suspension up another notch? The FOX 2.5 Performance Elite Series greatly expands your off-road capabilities and how much punishment your shocks can take. Made with external reservoirs to keep your shock oil away from high stress and higher temperatures, the elite series shocks are part of a suspension that will handle whatever you throw at it. Comes with easy adjustments to switch between different terrains, load and speed. Dual Speed Compression Adjuster comes standard. Steering Stabilizer Options: Dual NX2 Nitro Series: Is one not enough? Then upgrade to a dual steering stabilizer setup which gives further enhanced vehicle control and lessens side-to-side motion to a greater effect. Heavy off-roading requires a heavy suspension that can handle it but can still be smooth on asphalt. Dual FOX 2.0 Performance Series: Taking things even further is the dual FOX 2.0 setup. Built to last from the top up this performance setup will enhance control, reduce shimmy and bump steer, and improve tire wear and front-end component life. Protect your investment and smooth out your rough spots before they leave you figuratively hanging.

Shock Options:

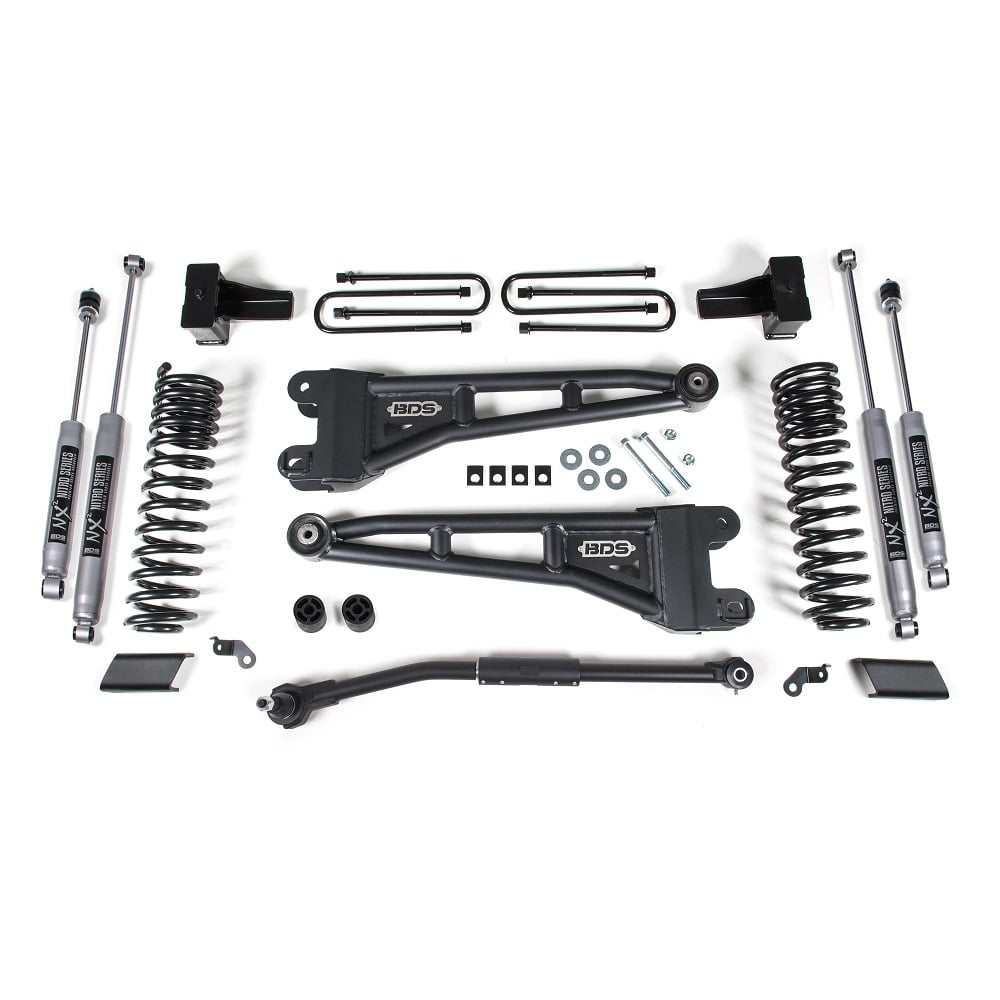

NX2 Nitro Series Shocks - BDS NX2 series gas shocks offer impressive performance on and offroad. They use a nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving for lightning-fast dampening and superior control.

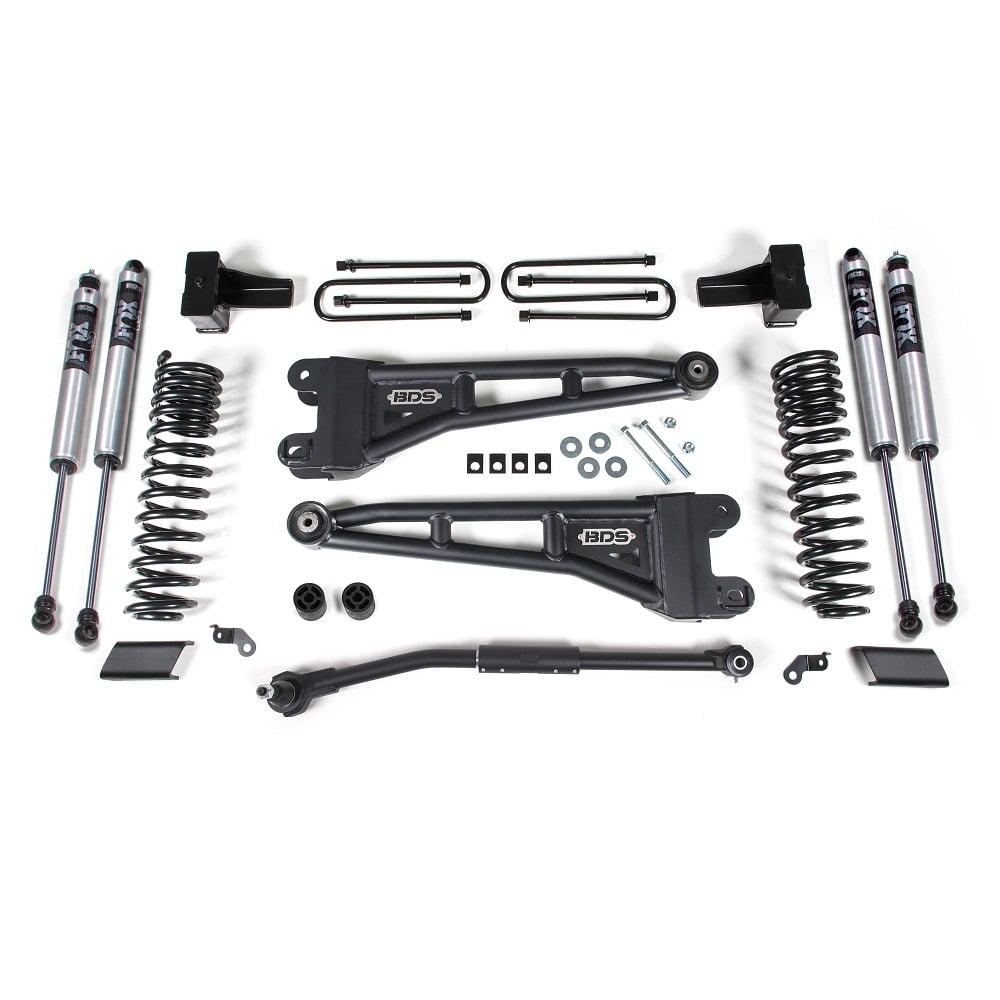

FOX 2.0 Performance Series Shocks - Fox 2.0 performance series shocks have been tuned and tested by both FOX and BDS Suspension to maximize performance specific to each application and every BDS Suspension system. The Internal Floating Piston (IFP) shock design is based on proven Fox Racing Shocks race products but re-designed to maximize the ride quality, handling, and control of your BDS-equipped truck, whether on or off the road.

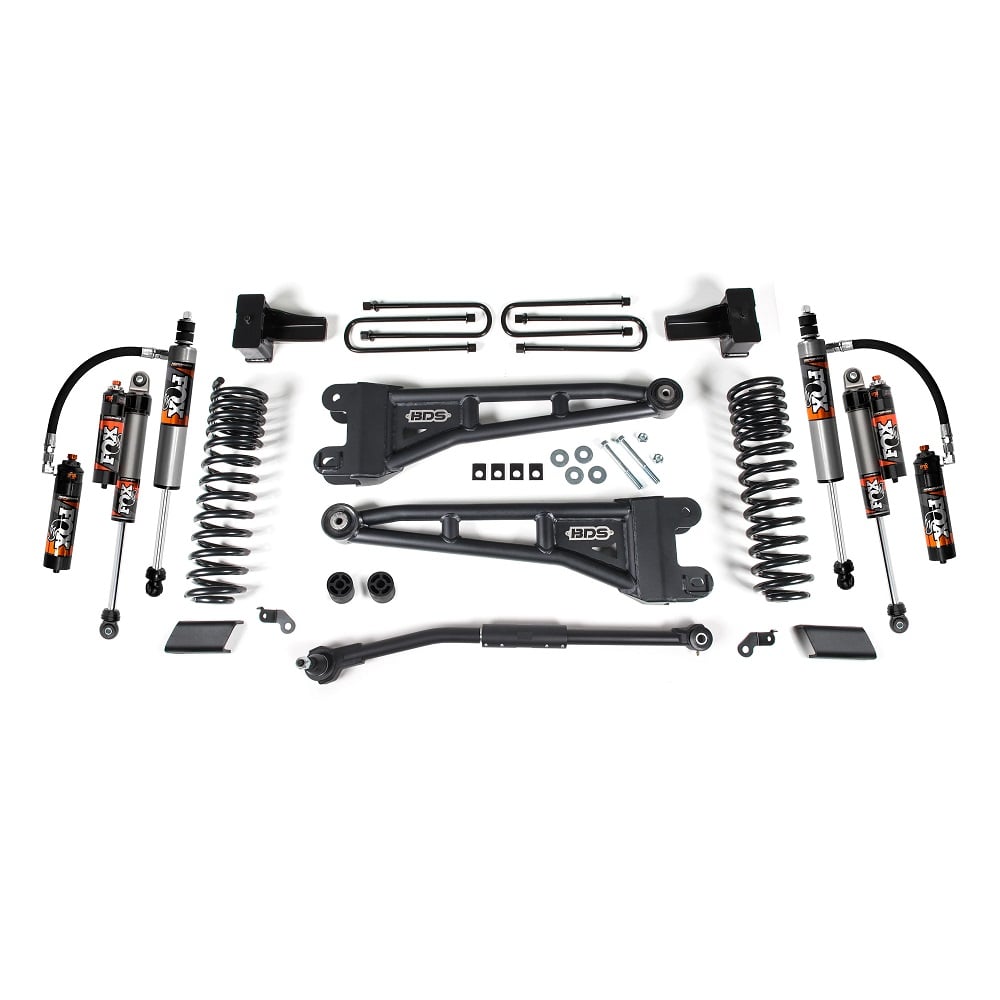

FOX 2.5 Performance Elite Series - Need to kick your suspension up another notch? The FOX 2.5 Performance Elite Series greatly expands your off-road capabilities and how much punishment your shocks can take. Made with external reservoirs to keep your shock oil away from high stress and higher temperatures, the elite series shocks are part of a suspension that will handle whatever you throw at it. Comes with easy adjustments to switch between different terrains, load and speed. Dual Speed Compression Adjuster comes standard.

Steering Stabilizer Options:

Dual NX2 Nitro Series: Is one not enough? Then upgrade to a dual steering stabilizer setup which gives further enhanced vehicle control and lessens side-to-side motion to a greater effect. Heavy off-roading requires a heavy suspension that can handle it but can still be smooth on asphalt.
Dual FOX 2.0 Performance Series: Taking things even further is the dual FOX 2.0 setup. Built to last from the top up this performance setup will enhance control, reduce shimmy and bump steer, and improve tire wear and front-end component life. Protect your investment and smooth out your rough spots before they leave you figuratively hanging.

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

2017-2019 6.7L Ford Powerstroke 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

TIRE FITMENT:

35" x 12.50 w/17 x 9 and 4.5" back spacing
35" x 12.50 w/18 x 9 and 4.5" back spacing
35" x 12.50 w/20 x 9 and 4.5" back spacing
*Trimming may be required*

ESTIMATED INSTALLATION TIME:

5 Hours

DIFFICULTY LEVEL (Easy 1 - 5 Complicated):

3

IMPORTANT FITMENT NOTES:

Coil springs designed for diesel trucks. Will work on gas trucks and will net roughly 3" of front lift.
Mounting larger tires on factory wheels is not recommended due to potential brake line clearance issues.
Factory track bar mounting bolt requires 405 ft-lbs of torque, plan ahead on how to achieve this torque spec.

About BDS Suspension

BDS Suspension was started in 1996 by a business group who felt it was past time to create a suspension company that truly had the best interest of the off road consumer as its' foundation. With over 45 combined years experience with other major suspension companies, both buying and selling, the individuals that would make up the BDS name were frustrated by the lack of quality and the unwillingness to make things right by these 4x4 companies. So, they set out to create a suspension company that would be the best and made a list of the things they felt were not right and made it their mission to correct them.

One of the most important of these wrongs they were looking to right were that of other companies warranties. Too often, the standard protocol was that a broken or damaged part from another manufacturer was denied warranty because of abuse or neglect. For BDS, its simple, if it breaks, they'll replace it, and that is the motto in which they have based their entire warranty off of. So, they welcome you, try and break it, if you do, they'll replace it and probably try to determine a way to increase the rigidity of the product to ensure it never happens again.

BDS LIFT KITS

While most people whom have heard of BDS Suspension automatically think of "lift kits," that ony touches on the wide variety of suspension and steering related products that BDS offers. BDS understands that not everyone is after a complete lift kit, but still after the quality BDS products bring to the table. Some of our most popular products from BDS are replacement adjustable track bars and dual steering stabilizer kits that in many instances can be installed on a completely stock truck, or one that's leveled or lifted. Other popular "non lift kit" parts are leveling kits that include upgraded shocks, progressive rate coil springs, heavy duty control or radius arms, and even leaf springs.

SHOP BDS SUSPENSION LIFTS & MORE

When shopping for various BDS Suspension parts, we understand that all of the choices can be overwhelming! Shock options, dual steering stabilizers, replacement coil springs or spacers.....and the list goes on! As you're considering the right suspension upgrades for you and your truck, never hesitate to reach out to us for an honest opinion of what we'd recommend for your particular build and budget. Not everyone "needs" every option and we can help you weigh the benefits of each.
