SKU #: BD-1032052 MPN #: 1032052

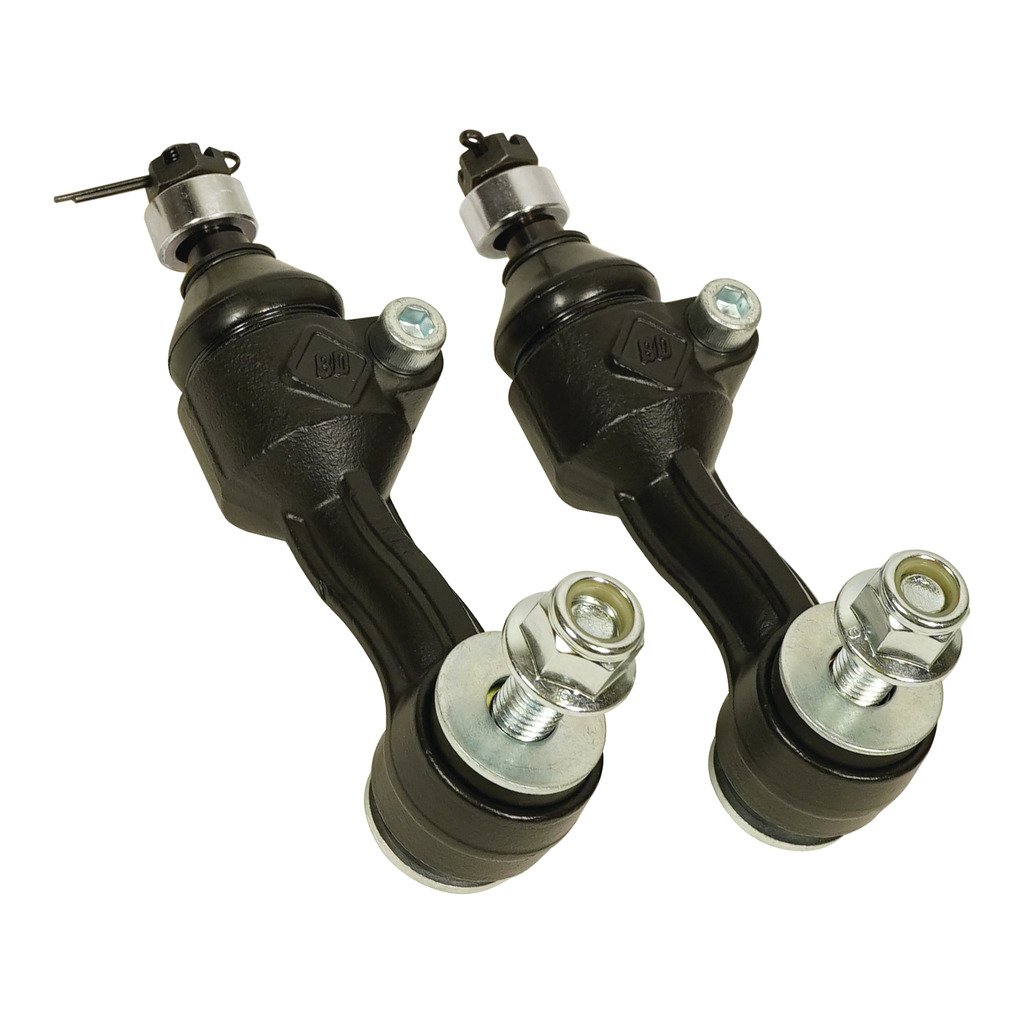

BD 1032052 Heavy Duty Sway Bar End Link Kit 14-25 Ram 2500 / 13-25 Ram 3500

$199.95
Get 199 points in loyalty rewards
Description
One of the most neglected, yet most important, piece of suspension on your Heavy Duty Ram is that of the sway bar and sway bar end links. The sway bar as a whole is in place to help prevent against excessive body roll. Essentially it operates by tying the front axle to the frame via a bar that can slightly twist as the axle articulates under the vehicle. Especially as leveling or lift kits are installed, now the distance between the axle and frame is lengthened, creating a constant pressure on the sway bar, limiting the amount of suspension travel, creating a bind, which hurts the performance of the suspension while also stressing the factory end links. What's the fix? Easy, BD's heavy duty, serviceable sway bar end links. BD's heavy duty sway bar end links are stronger and more durable than OEM links. BD end links are made with a high strength, heat treated forged steel center section that is black Cerakote finished for longevity. Utilizing an oversized ball joint and tough poly bushings, these end heavy duty links can tolerate higher loads that would cause the stock parts to break and wear rapidly. The ball joint allows for greater articulation than bushing only replacement end links can which prolongs the bushing life and allows for normal sway bar movement. All components are designed to be easily serviceable and wear items are low cost to replace. This makes the BD sway bar end links the obvious choice when it comes time to replace the worn-out factory end links.
Back-order

Please Note: This product is currently Back-Ordered. Please be aware that there may be a delay in shipping.

Enter your zip and we'll see if installation is available.

  • Request quotes from local installers at checkout
  • Compare options and choose the best fit for your install

One of the most neglected, yet most important, piece of suspension on your Heavy Duty Ram is that of the sway bar and sway bar end links. The sway bar as a whole is in place to help prevent against excessive body roll. Essentially it operates by tying the front axle to the frame via a bar that can slightly twist as the axle articulates under the vehicle.

Especially as leveling or lift kits are installed, now the distance between the axle and frame is lengthened, creating a constant pressure on the sway bar, limiting the amount of suspension travel, creating a bind, which hurts the performance of the suspension while also stressing the factory end links. What's the fix? Easy, BD's heavy duty, serviceable sway bar end links.

BD's heavy duty sway bar end links are stronger and more durable than OEM links. BD end links are made with a high strength, heat treated forged steel center section that is black Cerakote finished for longevity. Utilizing an oversized ball joint and tough poly bushings, these end heavy duty links can tolerate higher loads that would cause the stock parts to break and wear rapidly. The ball joint allows for greater articulation than bushing only replacement end links can which prolongs the bushing life and allows for normal sway bar movement. All components are designed to be easily serviceable and wear items are low cost to replace. This makes the BD sway bar end links the obvious choice when it comes time to replace the worn-out factory end links.

Manuals and Guides
Vehicle Fitment
2014-2025 Dodge Ram 2500 4WD|2013-2025 Dodge Ram 3500 4WD
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
FEATURES AND BENEFITS:
  • Oversize ball joint for higher load capability and longer life
  • Super strong forged and heat-treated end link center section
  • HD polyurethane bushing with steel sleeve for connection to axle
  • Ideal for stock height to 2-inch suspension lift
  • Can quickly be installed in approximately 1-hour
  • Gas & Diesel
  • All components are designed to be easily serviceable
  • Service kit available p/n 1312068
  • Limited Lifetime Warranty by BD
IMPORTANT NOTE:
  • Trucks lifted more than 3-inches will require sway bar offset spacer which is typically included in most lift kits
About BD-Power

BD Diesel is known as one of the originators of diesel performance because theyve been there since the very beginning. Its by no coincidence that theyve been in the industry since 1972 where theyve seen competition come and go over the years. You could consider them a front to back organization in which they design and manufacture products ranging from Super B Turbo Kits and performance injectors for your Cummins to heavy duty transmissions, torque converters, and other transmission components for your Duramax to Positive Air Shutdowns and exhaust brakes for your Powerstroke and everything in between. Quite literally, there are VERY few components that BD does not build for nearly every light duty diesel application.

BD DIESEL PERFORMANCE

Originally founded in 1972 as Valley Fuel Injection that specialized in fuel injection rebuilding and calibrating, BD Diesel gained the most notoriety beginning in 1989 with the release of their first exhaust brake designed for Ram trucks with the acclaimed 12 Valve Cummins engine. BD would later rename Valley Fuel Injection to BD Diesel Truck Service and Performance Center that operates as an extension to BD Diesel Performance. Today, they operate out of a 65,000 square foot facility in Abbotsford, British Columbia and employ over 100 highly skilled individuals. They are constantly pushing the envelope with forward thinking products that not only fill voids in the marketplace, but also take existing products and push them to the next level.

BD DIESEL TRANSMISSION UPGRADES

Transmissions have a singular but ambitious challenge - to transfer all the torque from the diesel engine to the drive wheels. This must be accomplished while maintaining shift quality and minimizing NVH (Noise, Vibration, and Harshness). With stock or OE configurations, this capacity challenge is somewhat less than extraordinary. Comparatively, a high output diesel that develops 2-4 times the original engine torque and keeping stellar driving characteristics at this power level becomes a new feat. Utilizing the latest technology in CAD and FEA simulation, BD can predict and eliminate failures before they happen. The dedicated team of BDs Transmission and Torque Convertor Department are true experts in the development and analysis of the diesel transmission.

BD EXHAUST BRAKES

BD built its reputation on exhaust brakes starting in the early 90's with many casting designs for both engine and remote mount air actuated systems. Rugged cast-iron bodies with an offset stainless steel butterfly build peak efficiency quickly.

BD TURBO UPGRADES

The turbocharger industry is a special industry for BD and remains a key technological asset. When looking at BDs experienced staff, the majority of their key staff members have been developed in or around this technology. BD focuses on the customer's needs, whether it is fast turnaround, state of the art compressor wheels or turbine wheels, they look to deliver on the highest expectations. You can be assured that a BD turbocharger has been hand crafted to the greatest standards. Using precision lathes, milling equipment, honing machines, and inspection CMMs your turbocharger is continuously graded to exceed the OEMs specifications.

BD FUELING UPGRADES

Owing to its heritage as a diesel fuel systems specialist, BD Diesel Truck Service & Performance Center is a factory-certified Bosch, Stanadyne, Delphi and Zexel calibration and repair lab. They are one of a select few injection shops in North America to have Bosch Common Rail parts and an overhaul and testing franchise. BD Diesel rebuilds most all mechanical and electronically-controlled fuel pumps and injectors for diesel engine applications.

BD ELECTRONICS

Throughout the automotive industry, electronic technology has become an integral part of the OEM solution. Whether it is safety, performance, or driving improvements, BD Diesel Performance has developed a strong electronic department to focus strictly on this technology. By focusing on the core needs of the customer, they engineer out the possible product failures and maximize key features to deliver a top to bottom solution. Utilizing state of the art manufacturing equipment, BD maximizes value and minimizes time consuming tasks that inflate costs. Vehicle electronic technology will remain a key technology at BD Diesel Performance.

Overall rating: 4.8333335 / 5 from 6 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["fit","install","buy"].

Review highlights

Reviews

Beefy

"Feels a whole lot better!"

Cody (5/5)

Heavy duty end links.

"IThese things are really heavy-duty. The design is and color is awesome. The install didn't really take to much time on my 2016 2500 ram. They fit perfectly."

Jaquob P. (5/5)

Stout design

"An easy install and an improvement to the stock sway bay. If you can’t install a Thuren active rate sway bar due to having a steering box stabilizer; this is the next best thing."

Adam O. (4/5)

Got my order fast &

"Got my order fast & install was a breeze. Really seams to take the slop out of front end. Would totally purchase again."

Todd W. (5/5)

Heavy duty

"Great fit, I really like it how it makes changes on secure my sway bar, with big tires yoi can't go wrong with this product"

Raymundo N. (5/5)

Sway bar

"If you did the leveling with the coil springs these are a must these links take a little bit more of the chatter out of the front of your truck and bump steer"

Scott S. (5/5)

Q&A

Would you recommend these for a 2" leveling spacer?
Whether you are running a spacer or larger coil spring, these are very helpful to correct the geometry for your sway bar on a 2 inch lift for your truck. -Mark
