SKU #: BAJA-297801
MPN #: 297801

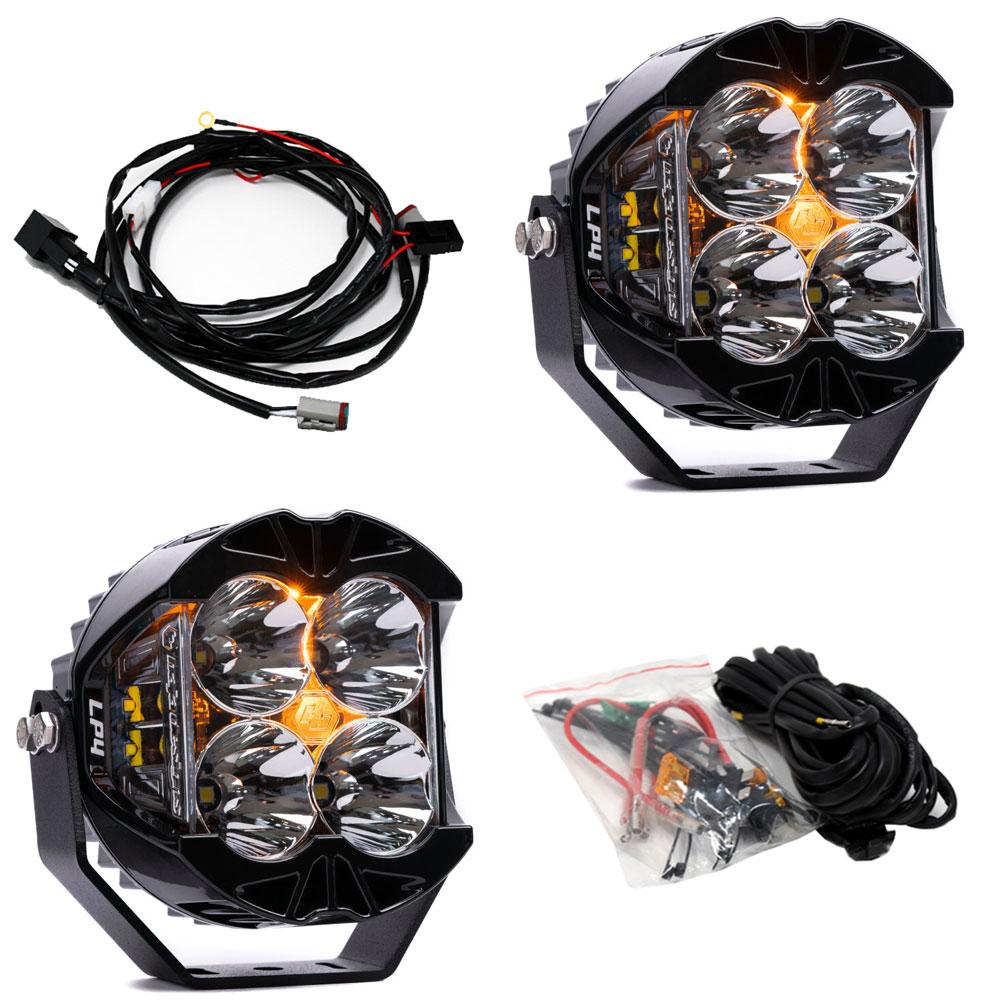

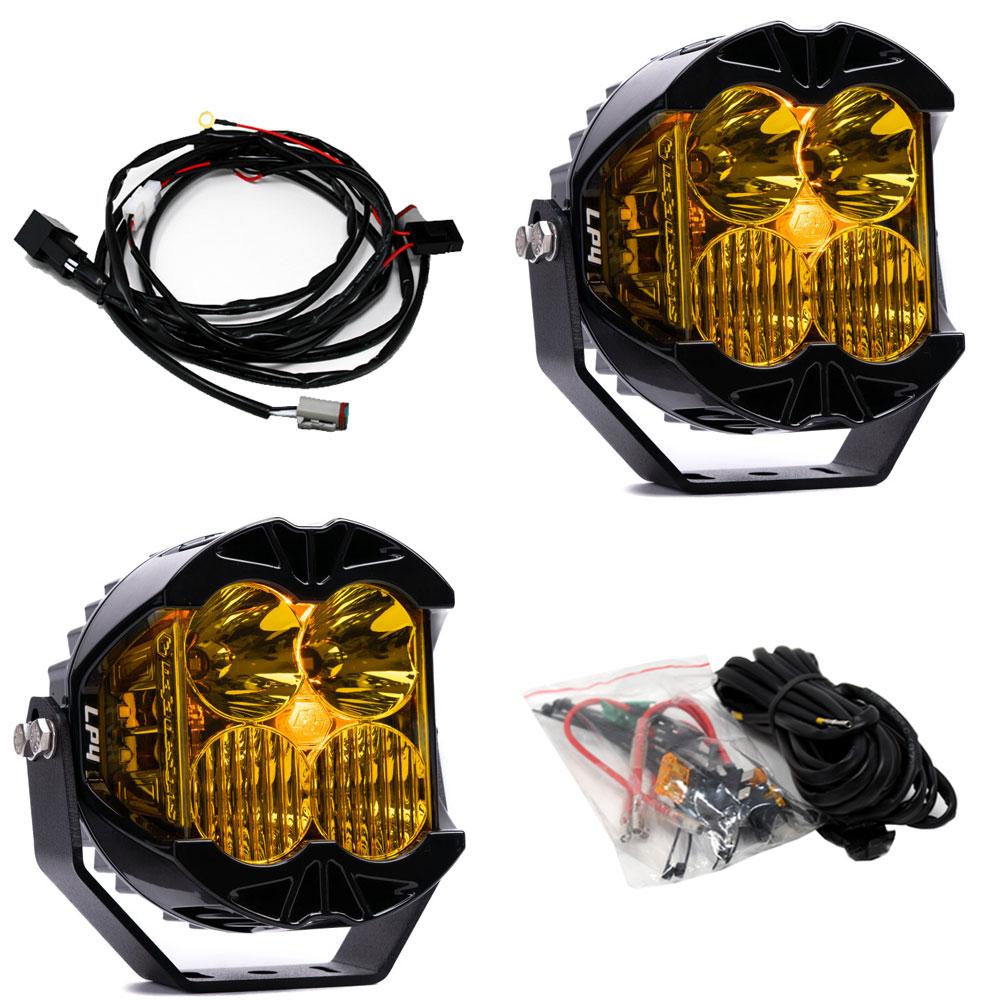

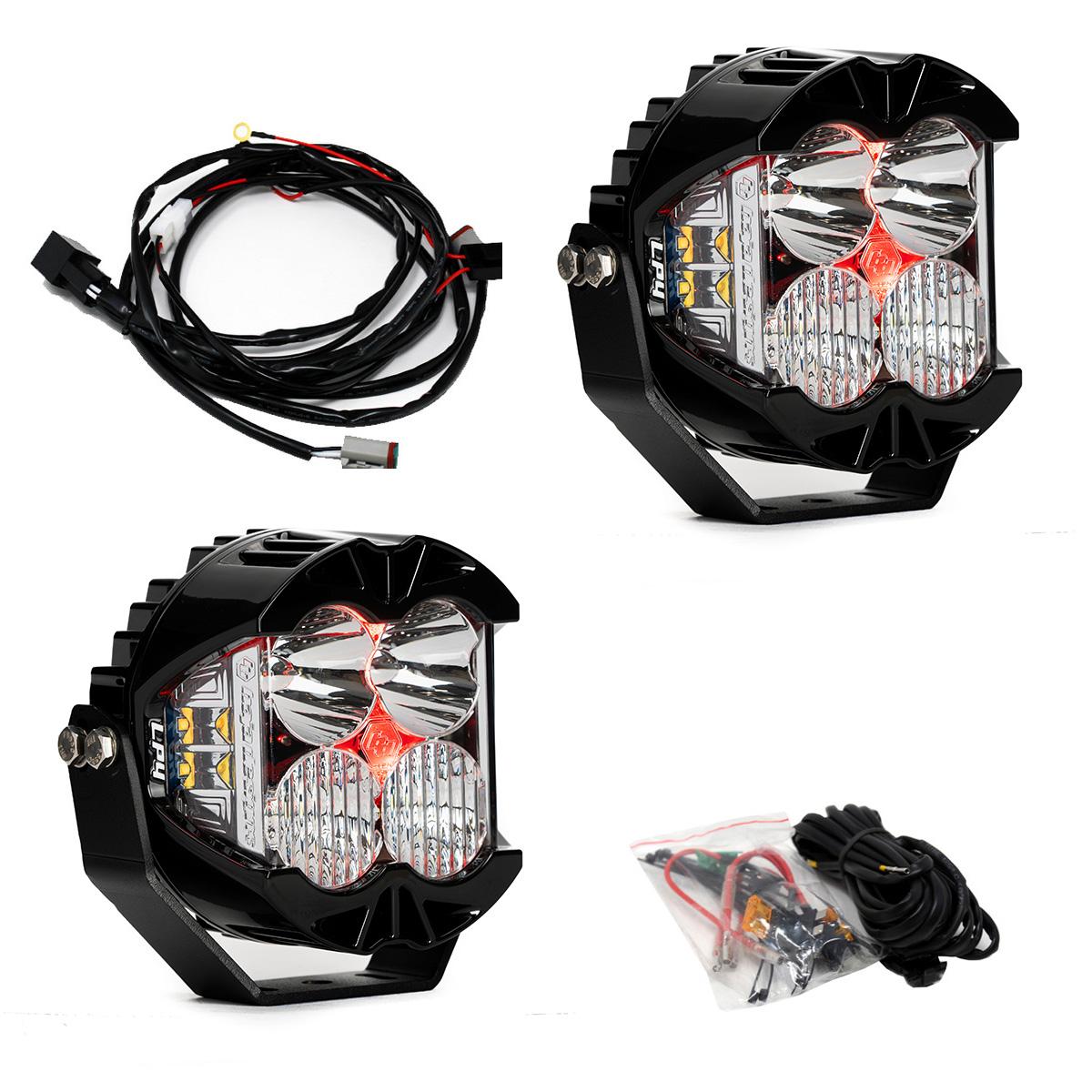

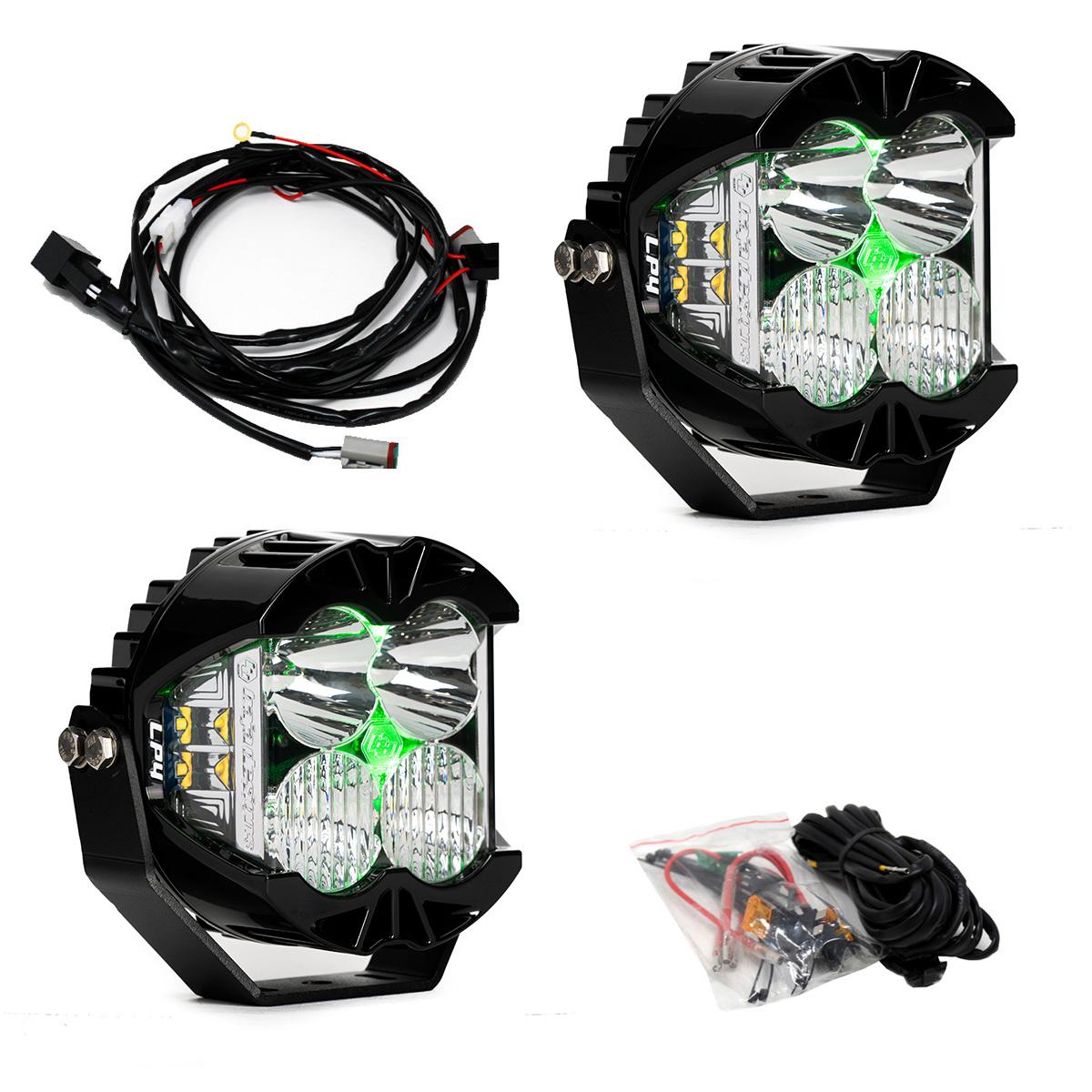

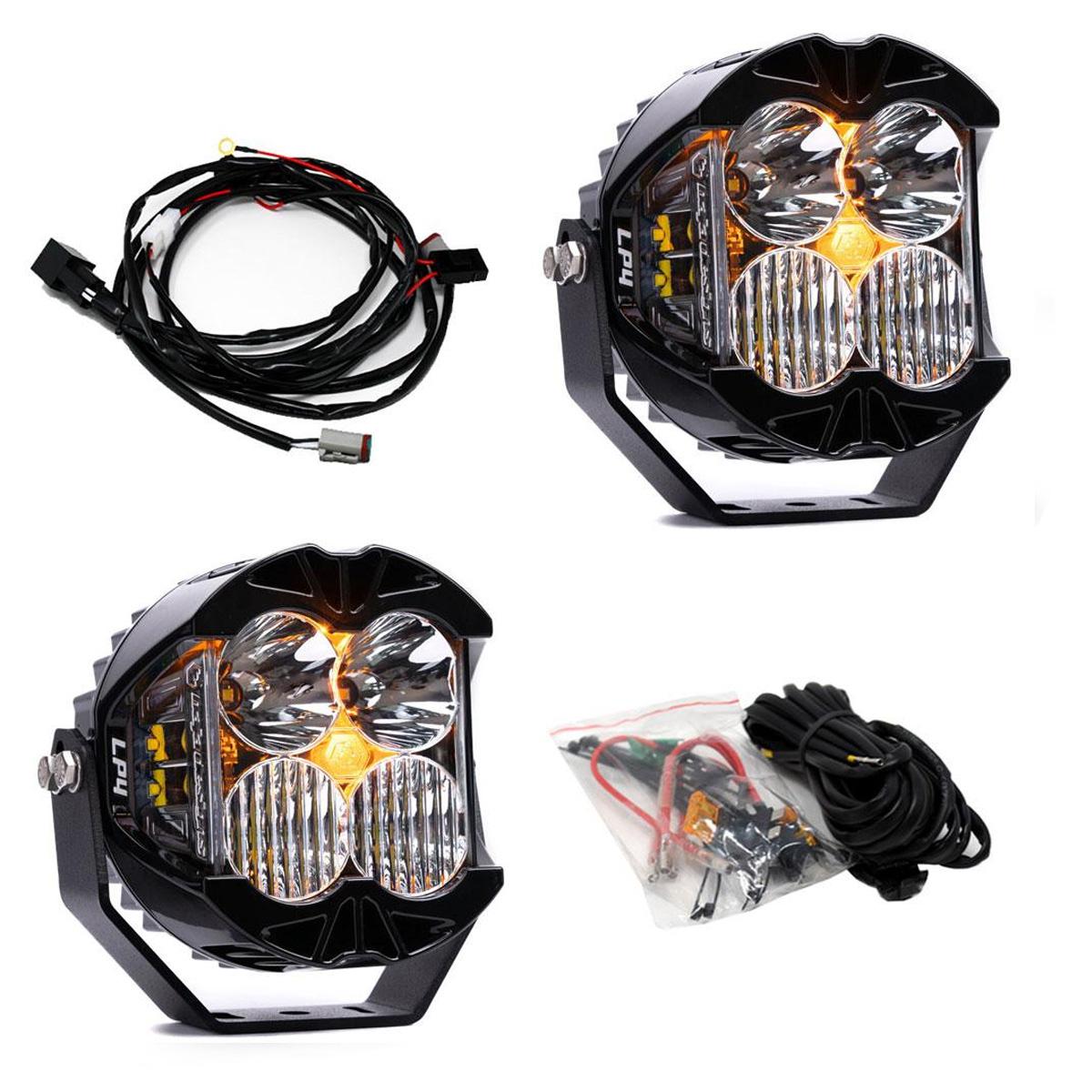

Baja Designs LP4 Pro LED Auxiliary Light Pod - Pair
Description
Overview
The Baja Designs LP4 Pro LED Auxiliary Light Pod, the most compact member of the LP lineup, retains all the power and features of its larger counterparts. Boasting a total of 8,750 lumens and a 200-degree spread of usable LED light, the LP4 delivers an impressive 7,050 lumens for forward projection and 1,700 lumens of dedicated peripheral lighting, thanks to our patented Integrated Peripheral Technology (IPT).To ensure peak performance, the LP4 seamlessly integrates our exclusive Direct Ducted Cooling (DDC) technology. This innovative design facilitates the smooth passage of air from the front of the housing over the rear heat sinks, significantly enhancing cooling capacity and overall performance.For added personalization, the LP4 Pro introduces backlight options in red, blue, or green, alongside the original amber. Enthusiasts now have the freedom to customize their vehicle for shows, photo shoots, or any occasion where they want to command attention with the LP4 Pro's vibrant backlight choices.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
The Baja Designs LP4 Pro LED Auxiliary Light Pod is a pair of LED light pods delivering 8,750 total lumens across a 200-degree spread, including 7,050 lumens forward projection.
- Fits
- Universal Fitment
- Brand
- Baja Designs Offroad LED Lights
- Best for
- Auxiliary forward and peripheral lighting
- Key features
- Mounting hardware included
- Wiring harness included
- Direct Ducted Cooling (DDC) technology for enhanced cooling
- Integrated Peripheral Technology (IPT) for dedicated peripheral lighting

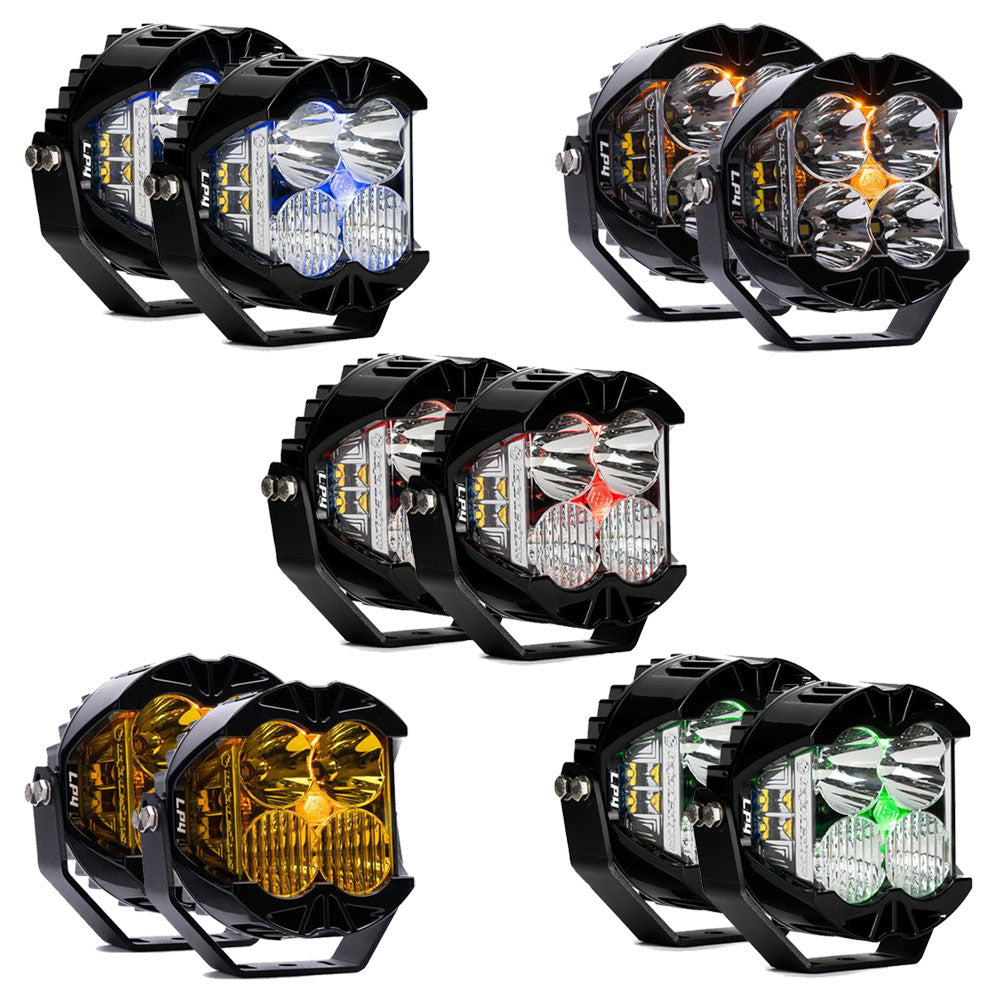

- Backlight options in red, blue, green, or amber
- Billet machined aluminum bezel
- Hard anodized machined aluminum housing
- Hardcoated polycarbonate lens
- Built-in overvoltage protection
- Beam/Day-Time Running backlighting modes
- DT06-4S Deutsch terminal connector
- Key specs
- 8,750 total lumens
- 7,050 lumens forward projection
- 1,700 lumens peripheral lighting
- 200-degree spread
- Light Quantity: 2
- Lighting Quantity: 4
- Secondary Light Quantity: 4 LEDs
- Average Rated Life: 49,930 hr.
- Amperage Rating: 5.500 A
- Backlight Amperage Rating: 0.350 A
- Exceeds MIL-STD810G
- IK10 Compliant
- IP69K
- Important
- Red, blue, or green backlight versions are for EXHIBITION USE ONLY and must never be used on public roads to avoid confusion with law enforcement or emergency vehicles.
FEATURES & BENEFITS:
- Mounting Hardware Included
- Wiring Harness Included
- Light Quantity: 2
- Lighting Quantity: 4
- Secondary Light Quantity: 4 LEDs
- Average Rated Life (hr.): 49,930
- Lighting Type: Forward Projecting
- Amperage Rating (A): 5.500
- Backlight Amperage Rating (A): 0.350
- Bezel Material: Billet Machined Aluminum
- Housing Color: Black
- Housing Material: Hard Anodized Machined Aluminum
- Lens Material: Hardcoated Polycarbonate
- Lighting Modes: Beam/Day-Time Running Backlighting
- Mounting Hardware Material: Stainless Steel
- Overvoltage Protection: Built-In
- Secondary Lighting Type: Integrated Peripheral Technology (IPT)
- Terminal Connector: DT06-4S Deutsch
- Terminal Type: Mating Connector
SPECIFICATIONS:
- Depth (in.): 3.200
- Height (in.): 5.100
- Length (in.): 5.100
- Weight (lbs.): 2.800
- Wattage (W): 75.900
- Secondary Wattage (W): 15
- Backlight Wattage (W): 4.830
- Brightness (Lumens): 8857
- Secondary Amperage Rating (A): 1.000
- Secondary Brightness (Lumens): 1972
IMPORTANT NOTES:
- Baja Designs LP series lights with red, blue, or green backlights are for EXHIBITION USE ONLY. Never use it on public roads to avoid confusion with law enforcement or emergency vehicles. The owner/driver is responsible for observing all highway equipment laws and safety regulations.
- Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
- Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
- Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
About Baja Designs Offroad LED Lights
If youre looking for the best and brightest 12 volt LED offroad lights and LED light bars on the market, look no further than a Baja Designs light bar or set of pods.
When youre shopping for LED lights, youre going to find prices that swing like a pendulum for what is seemingly a similar product, such as a 50 single row offroad LED light bar. You may find it for as low as $100 and as high as $2000, so, whats the difference?
Unbeknownst to many, quite a bit. Baja Designs CopperDrive LED management system uses a next generation circuit board and driver technology to safely run high powered LEDs at 100% power. Four levels of thermal management transfer LED heat up to 3000% more efficiently and provide an extra layer of vibration isolation, creating the highest performing and longest lasting LED light on the market. And what does this mean to you? In short, it means youll get a light that shines brighter with a more consistent beam pattern under the harshest of conditions for years to come. Whether youre looking at a pair of their Baja Designs Squadron lights for a solid set of LED offroad flood lights, an OnX Six light bar (an incredibly bright LED light bar), or their newest LP9 to be used as a set of LED offroad flood lights or spot lights, you can rest assured youre getting the best and brightest LED lights on the market.
