What is the Baja Designs Fog Pocket Kit 20-22 GMC 2500 / 3500 best for?

Upgrading factory fog light pockets with additional LED lighting

What are the key features of the Baja Designs Fog Pocket Kit 20-22 GMC 2500 / 3500?

Plug and play installation using factory fog pocket location; Lower S1 lights controlled by factory fog switch; Upper S1 lights operated by high beams; Wiring harness compatible with factory switches and sPOD/Switch Pros units; Replaceable lenses and optics (uService); ClearView optics for precise light placement; MoistureBlock waterproof, rain proof, submersible design; CopperDrive ensures LEDs driven at full power; 5000K Daylight color for reduced driver fatigue and natural color

What are the specifications of the Baja Designs Fog Pocket Kit 20-22 GMC 2500 / 3500?

5000K Daylight; 100% LED drive (CopperDrive)

SKU #: BAJA-447849 MPN #: 447849

Baja Designs Fog Pocket Kit 20-22 GMC 2500 / 3500

$911.95

Get 911 points in loyalty rewards

Baja Designs Fog Pocket Kit for 20-22 GMC 2500 and 3500

Description Overview

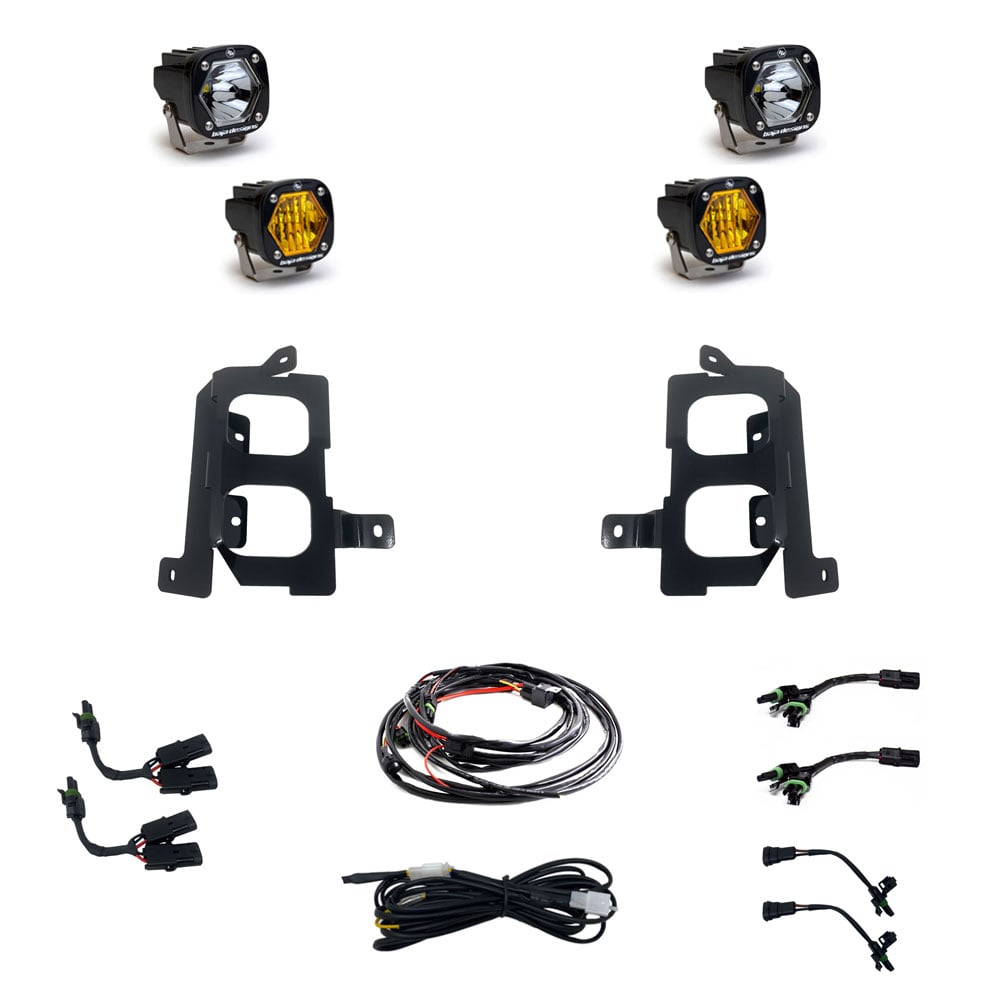

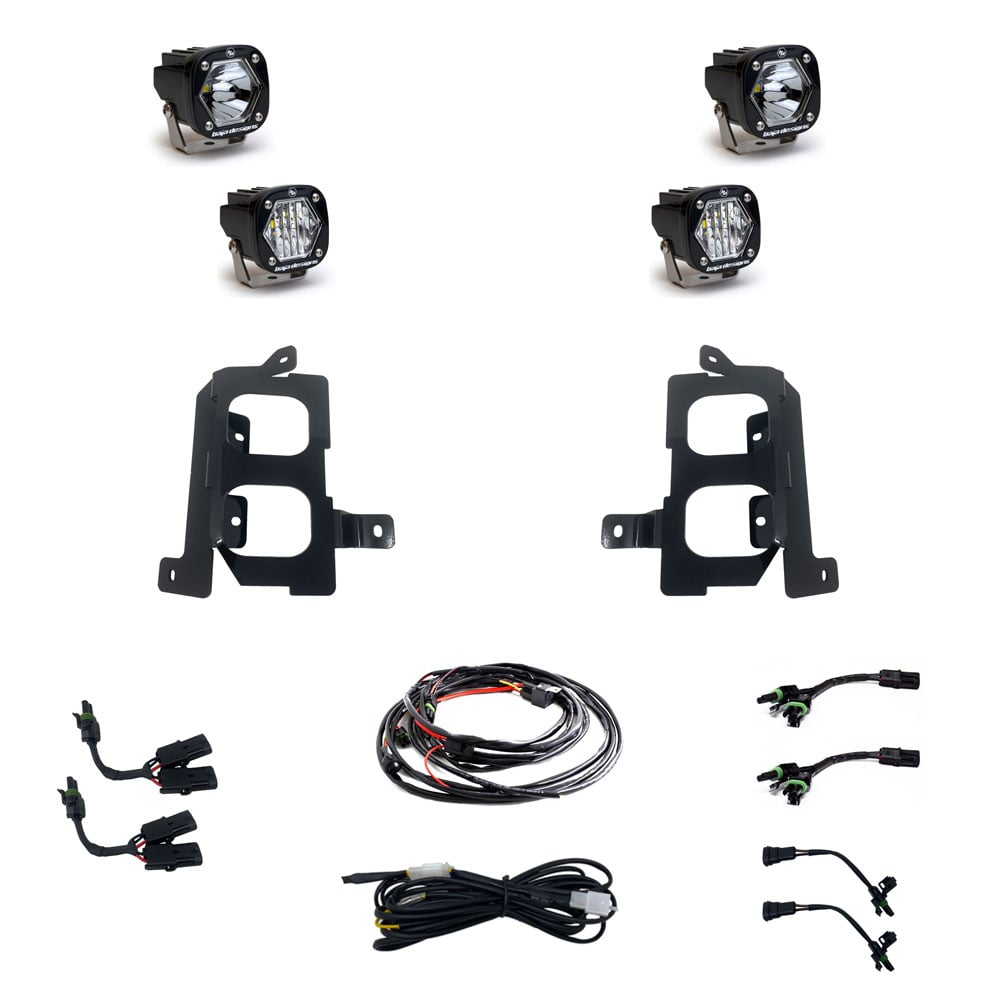

The Baja Designs Fog Pocket kit is the perfect mix of high-quality on and off-road performance for your GMC, 2500 & 3500! Available in White or Amber, this kit utilizes the factory fog pocket location to pack two S1 lights on each side. This kit is controlled by the factory fog switch to operate the lower pair S1 lights. The upper pair of S1 lights are operated by your high beams. The included wiring harness is designed to be used in conjunction with factory light switches, and sPOD / Switch Pros units. If you're looking to add not only safety but lighting performance this is your kit!

Select Options

Product photos may not match the selected option. Please confirm your choice before adding to cart.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

The Baja Designs Fog Pocket Kit adds two S1 LED lights per side into the factory fog light pockets for enhanced on- and off-road lighting.

Fits: 2020-2022 GMC 6.6L L5P Duramax
Brand: Baja Designs Offroad LED Lights
Best for: Upgrading factory fog light pockets with additional LED lighting
Key features: Plug and play installation using factory fog pocket location
Lower S1 lights controlled by factory fog switch
Upper S1 lights operated by high beams
Wiring harness compatible with factory switches and sPOD/Switch Pros units
Replaceable lenses and optics (uService)
ClearView optics for precise light placement
MoistureBlock waterproof, rain proof, submersible design
CopperDrive ensures LEDs driven at full power
5000K Daylight color for reduced driver fatigue and natural color
Key specs: 5000K Daylight
100% LED drive (CopperDrive)

The Baja Designs Fog Pocket kit is the perfect mix of high-quality on and off-road performance for your GMC, 2500 & 3500! Available in White or Amber, this kit utilizes the factory fog pocket location to pack two S1 lights on each side. This kit is controlled by the factory fog switch to operate the lower pair S1 lights. The upper pair of S1 lights are operated by your high beams. The included wiring harness is designed to be used in conjunction with factory light switches, and sPOD / Switch Pros units. If you're looking to add not only safety but lighting performance this is your kit!

Vehicle Fitment

2020-2022 GMC 6.6L L5P Duramax

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

SPECIFICATIONS:

Lumens: 2,375 Utilizing 1 LED
Wattage/Amps: 20W / 1.45A
Dimensions: 2.1" x 2.1" x 2.1"
Safe Voltage Range: 9-28V
Weight: 0.4 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

PATTERNS:

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

FEATURES & BENEFITS:

Satisfactions Guarantee – 30 Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It.
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

About Baja Designs Offroad LED Lights

If youre looking for the best and brightest 12 volt LED offroad lights and LED light bars on the market, look no further than a Baja Designs light bar or set of pods.

When youre shopping for LED lights, youre going to find prices that swing like a pendulum for what is seemingly a similar product, such as a 50 single row offroad LED light bar. You may find it for as low as $100 and as high as $2000, so, whats the difference?

Unbeknownst to many, quite a bit. Baja Designs CopperDrive LED management system uses a next generation circuit board and driver technology to safely run high powered LEDs at 100% power. Four levels of thermal management transfer LED heat up to 3000% more efficiently and provide an extra layer of vibration isolation, creating the highest performing and longest lasting LED light on the market. And what does this mean to you? In short, it means youll get a light that shines brighter with a more consistent beam pattern under the harshest of conditions for years to come. Whether youre looking at a pair of their Baja Designs Squadron lights for a solid set of LED offroad flood lights, an OnX Six light bar (an incredibly bright LED light bar), or their newest LP9 to be used as a set of LED offroad flood lights or spot lights, you can rest assured youre getting the best and brightest LED lights on the market.
