SKU #: ATS-3142203104
MPN #: 314-220-3104

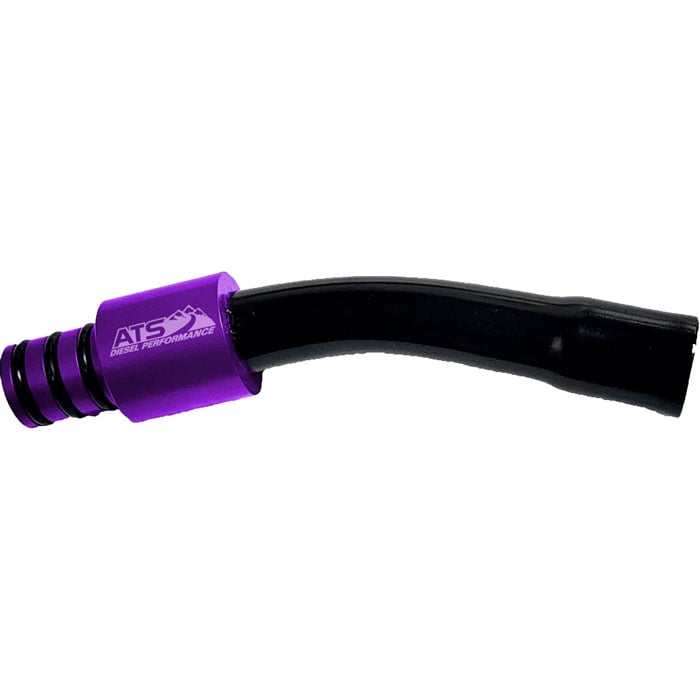

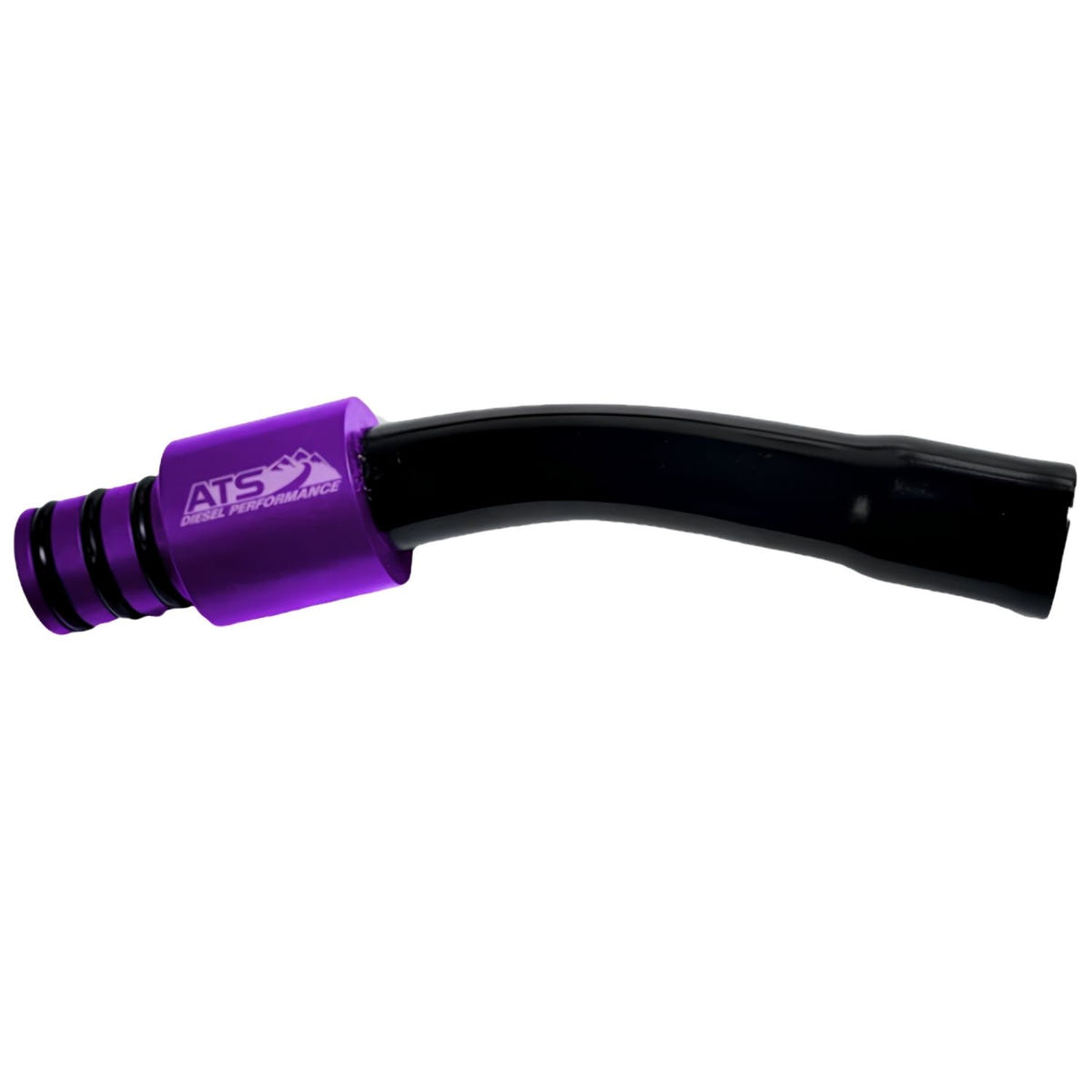

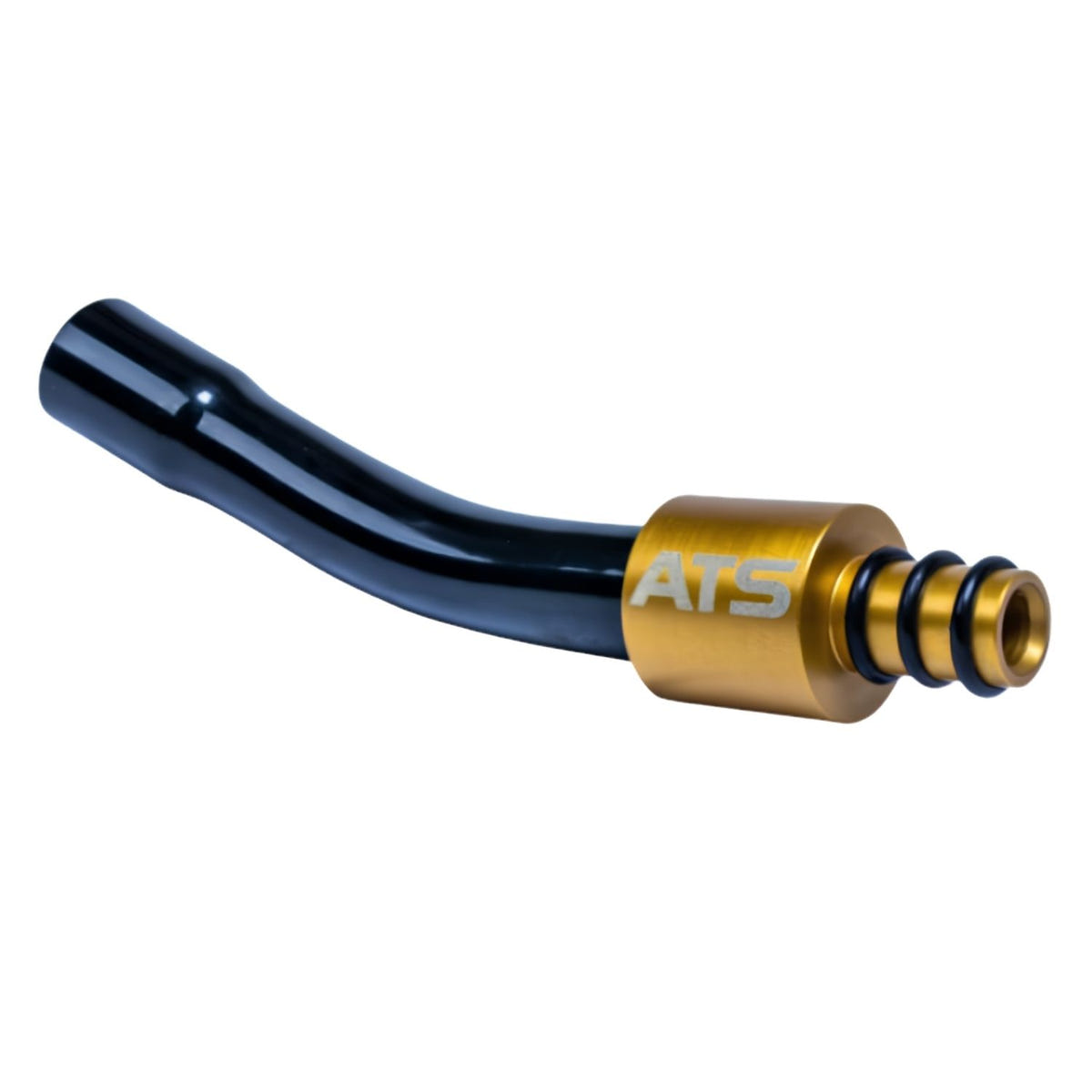

ATS 3142203104 Transmission Dipstick / Oil Fill Tube Repair Kit 89-10 Ford Powerstroke
Description
The factory dipstick / oil fill tube on the early Ford HD transmissions (1989-2010 model years) are a press in type that depend on a Teflon coating to seal and keep the transmission fluid in. Often times the Teflon coating does not seal entirely and results in a fluid leak. ATS made this two piece tube that utilizes oil resistant o-ring seals that will insure a leak free seal. This product also allows for a simple removal that allows you to remove the lower part of the dipstick / oil fill tube from the transmission case while the transmission is in place. Replacing the factory tube requires removing the transmission, the ATS repair tube does not require removing the transmission making the repair only a 20 minute replacement versus a 5 hour repair.Whether you are removing your transmission or if you are trying to fix your leaking dipstick / oil fill tube, this ATS product will give you the peace of mind that your transmission has the best components possible.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
FEATURES & BENEFITS:
- Ensures a leak-free seal
- Easy installation
- Sturdy billet base
- Oil-resistant O-rings replace weak and thin Teflon coated sealing surface
- Replaces Ford Part Number CX3Z-7A160-AA
About ATS Diesel Performance
ATS DIESEL PERFORMANCE
ATS Diesel Performance, based out of Arvada, Colorado, is a diesel performance manufacturing company that designs, engineers, and manufactures upgraded transmission components, valve bodies, patented heavy-duty torque converters, exhaust and intake manifolds, electronics, turbochargers, dual CP3 injection pumps, and more for Cummins, Powerstroke, and Duramax powered diesel trucks. Operating out of a humongous 110,000 square foot facility in the heart of the Rocky Mountains allows ATS to keep operations in-house, as opposed to overseas sourcing, and then grueling test their products at altitude and through grades and descents that would make other companies think twice. From full-time RV users who travel nonstop to high-horsepower competition-based vehicles, ATS has the answers.
ATS DIESEL TRANSMISSIONSClint Cannon and Ranee Elder founded Automotive Transmission Specialists in 1993. At that time, the company specialized in transmission repair for all types of vehicles. In 1997, the company "Performance Torque Converters" was founded, and they started doing torque converter rebuilds in-house. Bringing the capability of building torque converters in-house gave them more flexibility to service their racing customers. As the popularity of diesel trucks grew and more people became aware of the power upgrades available for their diesels, problems with diesel transmissions emerged.
Clint started research and development into a more robust torque converter to address the transmission issues. It was discovered that a clutch pack design was the answer to providing a robust torque converter. The development of the TripleLok Torque Converter and the company's focus on Diesel Performance products resulted in a rename of the company to ATS Diesel Performance.
By having their foot in the door before most, it allowed ATS Diesels transmission upgrades to grow with the demands of diesel trucks, putting them at the forefront of reliability. Fortunately for us, Clint didn't stop with transmissions and began to explore and refine upgraded turbochargers, intake and exhaust manifolds, and anything else to generate additional power with the ever-present mindset of maintaining powertrain reliability.
ATS Diesel products are proudly made in the USA.
Blog
October 28, 2025
Discover 68RFE transmission problems and the best DIY upgrades for Ram 2500 / 3500. Get expert tips,...
Read More68RFE Transmission Guide: Problems & DIY Upgrades
October 27, 2025
Learn everything you need about transfer case replacement, rebuild, and repair in diesel trucks, including symptoms, costs,...
Read MoreTransfer Case Replacement, Rebuild, and Repair Guide for Diesel Trucks
October 15, 2024
Your Ford Powerstroke works hard, and the transmission cooler lines are vital for keeping your transmission running...
Read MoreFord Transmission Cooler Lines Replacement: A How-To Guide
March 09, 2020
It seems like every 20 years or so, there is a revolution in the transmission world. The...
Read MoreGet the Most From Your 2001-2005 Allison by Converting it to a 6 Speed
Overall rating: 5.0 / 5 from 16 reviews.
AI Generated Review Summary
Summary topics
Review topics: ["quality","install","shipping","fix"].
Review highlights
Reviews
Exactly what I needed.
"Dip stick was leaking at trans case. This fixed what Ford wouldn't. Fit perfect and stopped the leak."
Great product
"Fit better than OEM"
Fixed my leaky full hose issue.
"Fixed my leaky fill hose issue. Easy install. I’ll put one in my other f250 when it starts to leak."
Easy fix for a poor factory design
"When I started seeing atf under my truck I cleaned it up real good and figured out it was coming from my factory dipstick tube, install was pretty straightforward, I had to take off my 4in down pipe for access to the tube bolts, it did fix my leak, great product"
Great product
"The shipping was fast and the tube worked awesome it stopped the leak it was easy to install"
Works perfect and looks great!
"Works perfect and looks great!"
Is it worth the price??
"Yes it is took me 3 minutes and fixed my leaky piece of crap that was in there great quality"
Excellent product, no more leaks!
"Excellent product, no more leaks!"
Stop the leak
"Works great worth the money."
Q&A
- Is this the total length of the old dipstick fill tube for a 99 f350 powerstroke truck. I understand it doesn't come with a dipstick. My question is how long is item you are selling. Does it require to purchase some more tube. By looking at the picture it looks like this part is approx 6" to 8" in length. If that is the case where do I purchase the remainder. Just got my truck and it doesn't have an upper tube or dipstick. I know I have to buy dipstick individually. I like the looks of product I just want to make sure taking care of my issues. Any help will be appreciated Tha ks
- You would correct on the length of the ATS Dipstick kit. The upper tube is different depending on the year range of the truck. 94-97: (Dorman) 917-425 99-03: XC3Z-7A228-AA Going to the parts store and asking for the upper transmission dip stick tube if you are trying to source it locally. -Mark
- Is this a whole dipstick
- It is just the pictured tube to replace your factory one in the event that it has rusted out or have been damaged. -Sands
