SKU #: ICON-67720P MPN #: 67720P

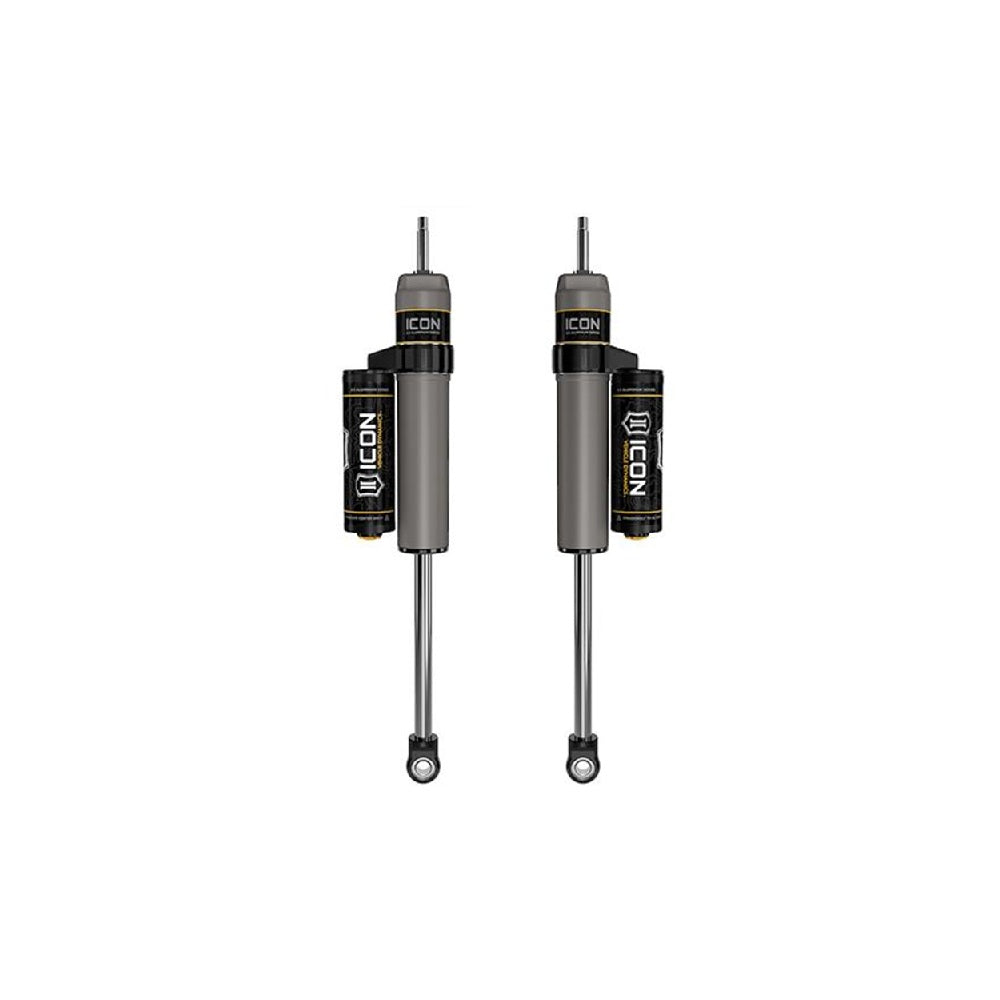

ICON 2.5 VS Piggyback Reservoir / with CDCV Shock Absorbers | 7" Lift 05-25 Ford SuperDuty

$1,193.50

Get 1193 points in loyalty rewards

ICON 2.5 VS Piggyback Reservoir and with CDCV Shock Absorbers 7" Lift for 05-25 Ford SuperDuty

Description

These 2.5" Diameter Piggy-Back Shocks are a great way to add more performance and a clean high end look to your front suspension. Designed to replace the shocks in an existing 7" lift, these will add substantial suspension performance to increase the on and off road ride quality, while providing greater wheel travel. Shocks are sold as a pair. OPTIONAL CDC VALVE - The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir creating 10 levels of compression damping force ranges. Controlling the amount of oil flow externally allows for optimally adjusting damping for varying terrain. With the addition of an ICON CDC Valve a different tune is required on the working piston to get the ride quality range of adjustment to softer than standard at the "S" setting and much firmer than standard at the "H" setting. The ICON CDC Valve piston is custom tuned per application with different valve stacks because not all shocks or applications are equal. Adding on the CDC Valve is not a one size fits all if you want optimum performance. The CDCV external knob allows for 10 positive clicks of adjustment. Each detent from S-H is a noticeable difference in ride. When engineering this feature into each shock application, the main shock piston is recalibrated such that setting "4" is equivalent to the non CDCV version. This allows for both a softer and firmer ride than the same application without this option. The ICON CDC Valve brings a new thinking to the table with an upgrade option that offers true ride quality diversity.

Select Shock Type

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

These 2.5" Diameter Piggy-Back Shocks are a great way to add more performance and a clean high end look to your front suspension. Designed to replace the shocks in an existing 7" lift, these will add substantial suspension performance to increase the on and off road ride quality, while providing greater wheel travel.

Shocks are sold as a pair.

OPTIONAL CDC VALVE - The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir creating 10 levels of compression damping force ranges. Controlling the amount of oil flow externally allows for optimally adjusting damping for varying terrain. With the addition of an ICON CDC Valve a different tune is required on the working piston to get the ride quality range of adjustment to softer than standard at the "S" setting and much firmer than standard at the "H" setting. The ICON CDC Valve piston is custom tuned per application with different valve stacks because not all shocks or applications are equal.

Adding on the CDC Valve is not a one size fits all if you want optimum performance. The CDCV external knob allows for 10 positive clicks of adjustment. Each detent from S-H is a noticeable difference in ride. When engineering this feature into each shock application, the main shock piston is recalibrated such that setting "4" is equivalent to the non CDCV version. This allows for both a softer and firmer ride than the same application without this option. The ICON CDC Valve brings a new thinking to the table with an upgrade option that offers true ride quality diversity.

Vehicle Fitment

2005-2025 Ford SuperDuty 4WD

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

Features & Benefits

ICON 2.5 Series Piggyback Shocks

Vehicle-specific piston design for smooth ride on and off-road
Premium shock oil for consistent performance in all temperatures
“Bump Zone” increases control near full compression
Aluminum cylinders resist corrosion and maintain finish
Durable PTFE-lined spherical bearings and custom mounting hardware
Chrome-plated, hardened 7/8” shock shafts
Nitrogen-charged monotube design with piggyback reservoir
Remote reservoir reduces heat for longer-lasting performance
Fully rebuildable and revalveable

ICON 2.5 Series Piggyback Shocks with CDCV

All core features of Piggyback shocks
CDV Valve offers 10 levels of compression adjustability with a simple knob
“Bump Zone” increases control near full compression
Remote reservoir improves heat dissipation for extended use
CNC-machined aircraft-grade aluminum components
Fully rebuildable and revalveable
