SKU #: ATS-3139202272
MPN #: 313-920-2272
ATS Master Transmission Overhaul Kit 03-07 Dodge 5.9L Cummins 48RE
Description
Complete overhaul kit for the Do-It-Yourselfer! The 48RE automatic transmission found behind the 03-07 5.9L Dodge Cummins has its limitations, which seems to be around 100RWHP over stock. With today's tuning technologies alone, that horsepower number is easily forgotten, which puts great stress on the transmission. Couple this with some moderate to heavy towing and you've burnt up the transmission. When it's time, don't rebuild the transmission with stock components, upgrade it with this complete kit from ATS.
This overhaul kit from ATS Diesel includes all of the necessary bearings, bushings, clutches, bands, etc. to get your 48RE transmission back on the road. These are not factory replacement components, but rather upgraded components to handle the power and loads your engine is capable of, and are the same components that ATS themselves installs into their complete transmission packages.
CORE CHARGE
What is a core charge?
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.

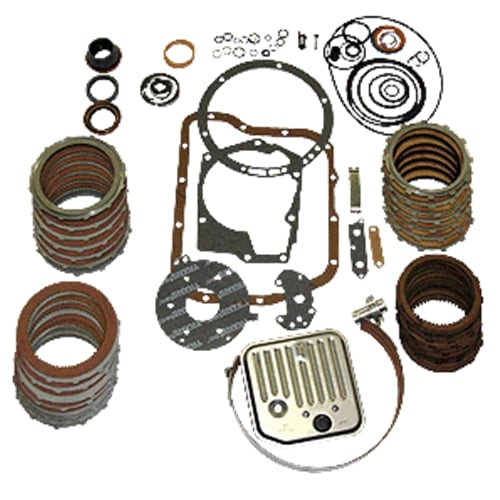

KIT CONTENTS:
- All rings seals
- Filter
- Intermediate band w/ billet strut
- Forward, direct, overdrive clutches
- Overdrive bearing w/ new race
- Billet accumulator piston
- Complete overdrive bearing kit
- Performance low/reverse band
- Overdrive bushing package
- Pump bushing
- Direct drum bushing
- Low/reverse one way clutch
IMPORTANT NOTE:
- This product requires you to return as a core your factory OD Brake Pressure Plate, Top Pressure Plates for the Forward and Direct Clutches, and the Forward Pressure Plate. Core part numbers are 3148952164, 3148982164, and 3148912164 (x2).
About ATS Diesel Performance
ATS DIESEL PERFORMANCE
ATS Diesel Performance, based out of Arvada, Colorado, is a diesel performance manufacturing company that designs, engineers, and manufactures upgraded transmission components, valve bodies, patented heavy-duty torque converters, exhaust and intake manifolds, electronics, turbochargers, dual CP3 injection pumps, and more for Cummins, Powerstroke, and Duramax powered diesel trucks. Operating out of a humongous 110,000 square foot facility in the heart of the Rocky Mountains allows ATS to keep operations in-house, as opposed to overseas sourcing, and then grueling test their products at altitude and through grades and descents that would make other companies think twice. From full-time RV users who travel nonstop to high-horsepower competition-based vehicles, ATS has the answers.
ATS DIESEL TRANSMISSIONSClint Cannon and Ranee Elder founded Automotive Transmission Specialists in 1993. At that time, the company specialized in transmission repair for all types of vehicles. In 1997, the company "Performance Torque Converters" was founded, and they started doing torque converter rebuilds in-house. Bringing the capability of building torque converters in-house gave them more flexibility to service their racing customers. As the popularity of diesel trucks grew and more people became aware of the power upgrades available for their diesels, problems with diesel transmissions emerged.
Clint started research and development into a more robust torque converter to address the transmission issues. It was discovered that a clutch pack design was the answer to providing a robust torque converter. The development of the TripleLok Torque Converter and the company's focus on Diesel Performance products resulted in a rename of the company to ATS Diesel Performance.
By having their foot in the door before most, it allowed ATS Diesels transmission upgrades to grow with the demands of diesel trucks, putting them at the forefront of reliability. Fortunately for us, Clint didn't stop with transmissions and began to explore and refine upgraded turbochargers, intake and exhaust manifolds, and anything else to generate additional power with the ever-present mindset of maintaining powertrain reliability.
ATS Diesel products are proudly made in the USA.Video
Deferred Core Program Explanation
Ben explains the benefits of our deferred core program and how to return your core when necessary. Not sure what that is or need to send your core back? Give this video a watch for information and answers to many FAQ's.
If you’d like more information on our core return policy or need to start the core return process just give us a call at 1-888-993-4373.
Blog
October 28, 2025
Discover 68RFE transmission problems and the best DIY upgrades for Ram 2500 / 3500. Get expert tips,...
Read More68RFE Transmission Guide: Problems & DIY Upgrades
October 27, 2025
Learn everything you need about transfer case replacement, rebuild, and repair in diesel trucks, including symptoms, costs,...
Read MoreTransfer Case Replacement, Rebuild, and Repair Guide for Diesel Trucks
October 15, 2024
Your Ford Powerstroke works hard, and the transmission cooler lines are vital for keeping your transmission running...
Read MoreFord Transmission Cooler Lines Replacement: A How-To Guide
March 09, 2020
It seems like every 20 years or so, there is a revolution in the transmission world. The...
Read MoreGet the Most From Your 2001-2005 Allison by Converting it to a 6 Speed
Overall rating: 2.5 / 5 from 2 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
Quality product install went smooth only down. . .
"Quality product install went smooth only downfall is they do not include the selective snap rings you need for the extra frictions and steels in which I would rather pay a few more bucks on the kit with it included than to make it a hassel finding one locally. I could not find one locally so I had to leave one of the extra frictions out"
Q&A
- Is this what u guys call the stage 3
- We don't label or consider that kit as a stage. If anything it would be a stage 1. It has upgraded components to help hold extra power. But you also have to consider valve body, converter, and shafts when it comes to hp holding capability. DppSands.
- What exactly is the kit made of. Koleen steels? What's the friction materials?
- They use the Raybestos GPZ series clutches/steels in their kits.
