SKU #: GAR-773542-5001S MPN #: 773542-5001S

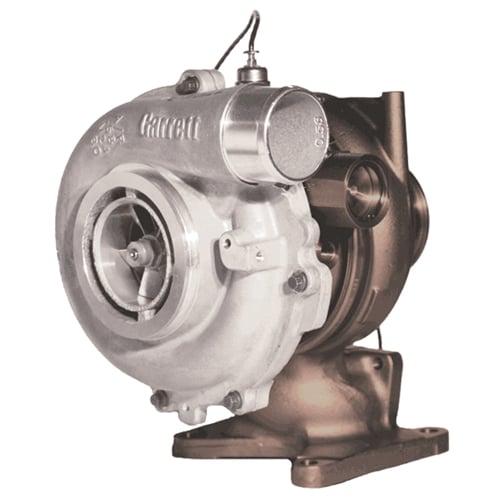

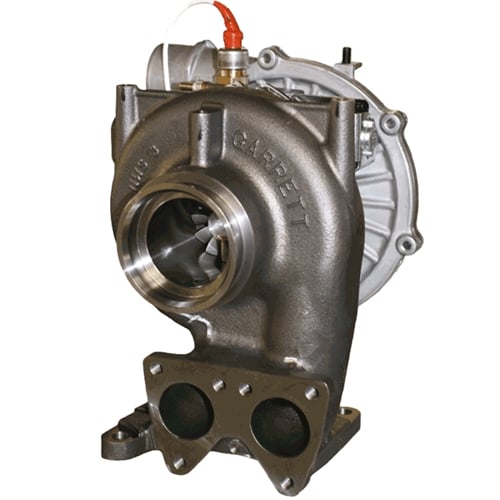

Garrett GT4094V AVNT PowerMax Stage 2 Turbo 04.5-10 GM Duramax

Name: Garrett GT4094V AVNT PowerMax Stage 2 Turbo 04.5-10 GM Duramax
Brand: Garrett
Price: 3097.38 USD
Availability: InStock

$3,097.38

Get 3097 points in loyalty rewards

Garrett GT4094V AVNT PowerMax Stage 2 Turbo for for 04.5-10 GM Duramax

Garrett GT4094V AVNT PowerMax Stage 2 Turbo for 04.5-10 GM Duramax

Description

Stock turbos are, well...stock. If you are running even a 100HP programmer, you are pushing the limits of the factory variable turbo. For those looking for a drop-in turbo that will retain the variable nozzle design to keep drivability a priority, we offer the Garrett Stage Two PowerMax! This is a Garrett model GT4094VA featuring their patented Advanced Nozzle Turbine (AVNTTM) design for increased compressor and turbine flow. It utilizes nine movable vanes which significantly increase turbine efficiency and improve the performance right from a dead stop and throughout the RPM range. The PowerMax Stage Two is capable of 575 RWH with NO sacrifice in drivability. It features a 52mm compressor trim plus a GT40 turbine wheel.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Stock turbos are, well...stock. If you are running even a 100HP programmer, you are pushing the limits of the factory variable turbo. For those looking for a drop-in turbo that will retain the variable nozzle design to keep drivability a priority, we offer the Garrett Stage Two PowerMax! This is a Garrett model GT4094VA featuring their patented Advanced Nozzle Turbine (AVNTTM) design for increased compressor and turbine flow. It utilizes nine movable vanes which significantly increase turbine efficiency and improve the performance right from a dead stop and throughout the RPM range. The PowerMax Stage Two is capable of 575 RWH with NO sacrifice in drivability. It features a 52mm compressor trim plus a GT40 turbine wheel.

NOT LEGAL FOR SALE OR USE IN CALIFORNIA

Vehicle Fitment

2004.5-2010 6.6L GM Duramax

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

About Garrett

Garrett Turbochargers are OEM equipment on many cars and trucks. The also have an aftermarket diesel performance turbo line marketed as POWERMAX Performance Diesel. At Diesel Power Products we carry a variety of Garrett stock turbo parts as well as a few of their more popular performance models. The GTP38R ball bearing turbo that Garrett produces specifically for the 99-03 7.3L Ford Powerstrokes is by far the most popular turbo we sell. It features a 4" intake along with a custom silicone adapter hose, a ported shroud intake housing which helps control surging, a 1.0 A/R exhaust housing to help keep EGT's down, a large 88mm compressor wheel to manage all that airflow and, of course, a ball bearing cartridge. The ball bearing aspect is what really sets it apart. No journal bearing turbo can touch it when it comes to spool-up or reliability. The GTP38R functions best in Powerstrokes making up to around 475HP. You can stretch it a little further by substituting a 1.15 A/R exhaust housing for the 1.0. The 1.15 is non-wastegated and requires a machined adapter, which we also carry. You can even order the turbo in this configuration if you prefer.

If you prefer to stay with the stock turbo we carry a full line of Garrett stock replacements for the Ford Powerstrokes. We can also make a variety of modifications to the stock turbo to make it suit you needs. These mods include: ATS ported shroud, wastegated or non-wastegated 1.0 A/R or 1.15 A/R exhaust housings, wicked wheel, upgraded BD Power wastegates to control creep, non EBV pedestals and more. Give us a call or send us an email, we'll be happy to help you figure out which turbo combination is right for your application.
