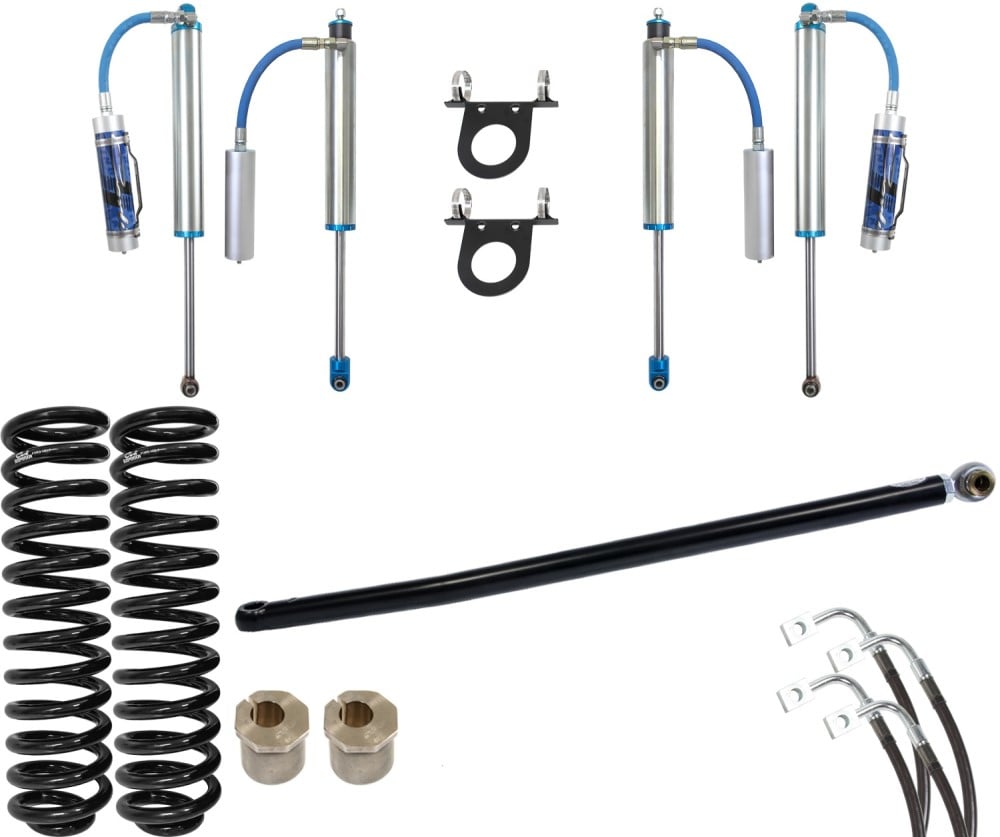

Carli 2.5" Leveling KING Pintop 2.5 Suspension System 11-16 Ford 6.7L Powerstroke

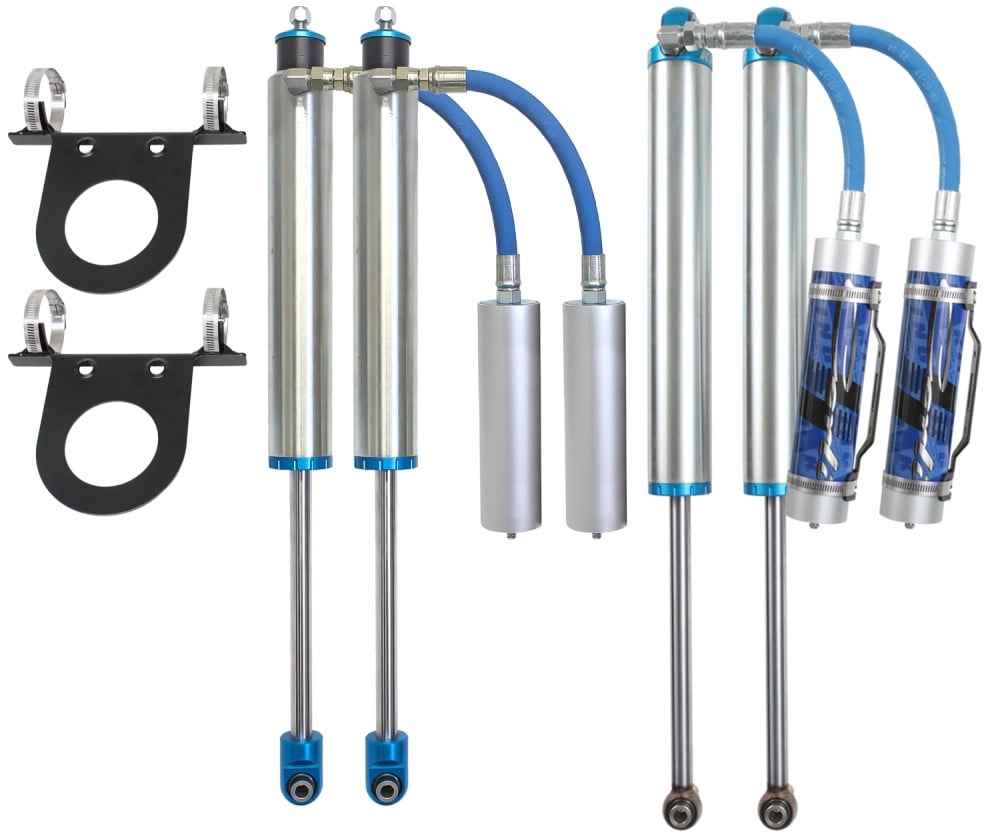

Carli's most popular system for your Powerstroke, the Pintop 2.5. This system will deliver you a leveled stance that you can tuck up to a 37" tire under, you'll gain unbelievable gains in ride comfort, both on and offroad, and have a suspension system worth bragging about. Designed and tuned in house for the customer looking for substantial on-road and off-road performance improvement. You can expect a softer ride, yet more control and bottom-out resistance than Carli's Backcountry system. The Pintop is a Jack-of-all-trades system from which every SuperDuty owner would benefit. Raising the SuperDuty Platform then adding the 2.5" diameter shocks (55% more piston surface area than a 2.0" shock) will support the argument that these trucks should come equipped with 2.5" shocks from the factory. The higher end systems will get you more off-road capability, yes, and even a bit more on-road. The premium paid for these systems; however, doesn't compare to the on and off-road ride quality per dollar spent on the Pintop. For these reasons, it will likely remain a best seller for years to come. CARLI TUNED 2.5" KING SHOCKS The Pintop system boasts Carli specific, blueprinted, King 2.5" shocks on all four corners. In an effort to provide you with the best product, Carli designed a custom piston to determine proper base flow rates to ensure the shock works well in the heavy duty truck platform; the shocks were then tuned around the custom pistons based on the only thing that truly matters, seat-of-the-pants feel. ALL of Carli's King shocks are finished off with shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King's standard shafts, there is no coating to wear off, weather can't hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn't damaged as they're not brittle like the stock, hardened shafts. The shocks are finished with King oil good to -55° F. Note that all King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, we recommend wrapping your shocks in 3M to provide a moisture barrier that's replaceable. The truck will sit 2.5" higher in the front and have more wheel travel thanks to the lighter rate Carli Coil Springs. The included Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, you'll get Caster Shims to tighten the steering. REAR LEAF SPRINGS The rear can be outfitted with a replacement Full Progressive Spring Pack (reduces capacity to a "light" 3/4-ton) or factory leaf-pack modifying Progressive Add-a-Pack (maintains factory payload capacity and pairs with the factory 2" block). This is where the F-250 and F-350 are a bit different. Since 2008, the main spring packs on these two trucks is different; the F-250 has a lighter rate spring pack than its F-350 counterpart. The F-250 Add-a-Pack equipped systems are a nice improvement over stock; the F-350 with the Add-a-Pack is still very stiff in the rear as the main pack doesn't move much unless loaded.Carli recommends the Full Replacement Leaf Spring packs for both trucks but especially the F-350 given the super-stiff factory springs. If capacity is a concern, an aftermarket airbag system should be installed to compliment the Full Progressive Leaf Springs to restore the F-350 capacity. We recommend a system that will allow the airbags to disconnect from the lower mount during suspension cycling to ensure you're able to take advantage of all your rear suspension travel. The Full Progressive Leaf Spring Pack will shift the axle slightly forward in the wheel well to ensure maximum tire clearance for a 37" M/T at full compression. ADD-A-PACK SPECIFICATIONS: Built in the USA by Deaver Leaf Spring Smooth progressive design Supplied with u-bolts and hardware Provides 2.0" of lift OEM load capacity maintained, improved ride If ordering this kit with an Add-a-Pack, Super Duties equipped with a 3-5/8" tall block from the factory will require the factory 2" tall Block to achieve a leveled stance with the Add-a-Pack. Part Number: 7C3Z-5598-L and 7C3Z-5598-K. FULL PROGRESSIVE LEAF SPRINGS SPECIFICATIONS: Block eliminating Includes new u-bolts and rear bump stop drops Provides a 1/2" rear high stance to Carli leveling suspension systems NO LEAF SPRING OPTION NOTES:Diesel Power Products and Carli strongly suggest the use of either options available. These options are designed to work flawlessly with the rest of your kit and, are the best way to go. However, we understand you may already have the necessary provisions and/or products to use with this kit so we give you the option to not include any leaf spring provisions. WHEEL AND TIRE FITMENT Carli recommends 17"-18" wheels, no more than 9" wide with 5.5" of backspacing with Carli Fabricated Radius Arms or 5" Backspace with factory arms; 5" will require a bit more trimming. Tires, 37x12.5" will fit with some trimming; 35" will likely fit without trimming. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter. IMPORTANT NOTES: WHEELS: Carli Recommends a 17"-18" Wheel, no more than 9" wide with 5"-5.5" of Backspacing on Leveling Systems TIRES: 35", E-Rated Tire Fitment is Recommended. Recommended unloaded Tire Pressure 45F/40R. RECOMMENDED CONFIGURATION: Carli Leveling Systems are Designed and Tested on Vehicles with 17"-18" Wheels with 35", E-Rated Tires. Stock wheels and tires or running a larger wheel diameter will result in a stiffer ride.
