SKU #: AFE-46-60062-1 MPN #: 46-60062-1

AFE 46-60062-1 BladeRunner GT Turbocharger 98.5-02 Dodge 5.9L Cummins

Name: AFE 46-60062-1 BladeRunner GT Turbocharger 98.5-02 Dodge 5.9L Cummins
Brand: AFE
Price: 2135.0 USD
Availability: InStock
Rating: 1.0 (1 reviews)

$2,135.00

Get 2135 points in loyalty rewards

AFE 46-60062-1 BladeRunner GT Turbocharger for 98.5-02 Dodge 5.9L Cummins

Description

The AFE BladeRunner GT Series Turbocharger adds flow and performance to your 1998.5-2002 Dodge 5.9L Cummins. This GT Series turbocharger features a gold anodized billet compressor wheel that is lighter and stronger than the stock cast wheel to help provide quicker and higher air flow than the stock turbo. Additionally, the 4" compressor housing inlet with ported shroud helps to reduce "turbo bark". The turbocharger features a billet aluminum black anodized adjustable wastegate actuator that is mounted to the integrated cast bracket. Also included is the aFe cast iron turbine elbow along with the necessary mounting gaskets and bolts. In testing this BladeRunner turbocharger produced a max gain of +18 horsepower and +47 lbs. x ft. of torque confirmed by our in house dyno. The GT Series BladeRunner turbocharger is a brand new upgrade unit (not remanufactured) with no core charge and comes with a 2-year warranty. Additional fueling is not required for improved performance over OE, but maximum gains are achieved from fuel system upgrades, either electronic or mechanical. 4" Anti-Surge Chamber: This turbo has a 4" inlet featuring a ported shroud compressor housing which helps to reduce "turbo bark". Billet Wheel: The compressor features a gold anodized 8/16 bladed billet aluminum compressor wheel that is lighter and stronger than the stock cast wheel to help provide quicker "spool-up" and higher air flow than the stock turbo. Compressor: The compressor features a light-weight billet aluminum compressor wheel with a 56mm inducer and 81mm exducer to improve turbo spool-up, handle high wheel speeds, and boost pressures. Also included is a CNC-machined, black anodized billet adjustable aluminum wastegate actuator. 12 cm2 Turbine Housing: The 12 cm2 finned turbine housing allows lower EGT's and the ability to increase horsepower and torque. Direct Replacement: This turbo can be installed on 1998.5-2002 model years as a direct bolt-on replacement. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection. Maximum gains are achieved from fuel system upgrades, either electronic or mechanical.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

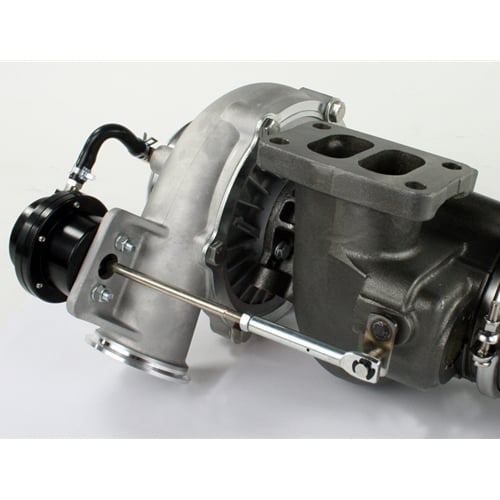

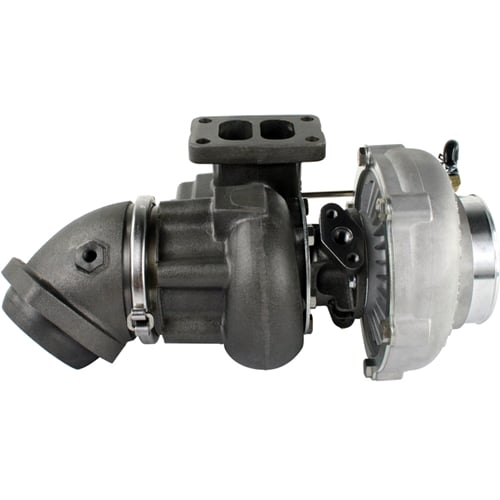

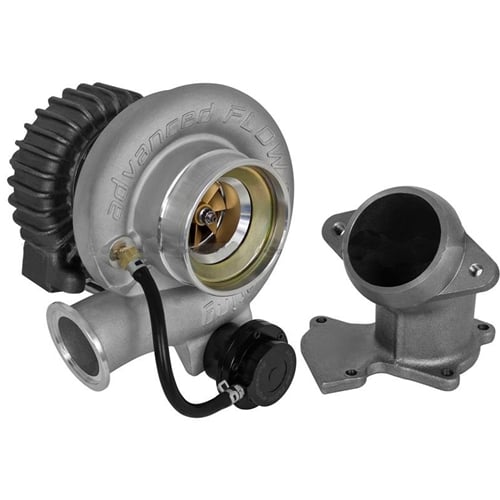

The AFE BladeRunner GT Series Turbocharger adds flow and performance to your 1998.5-2002 Dodge 5.9L Cummins. This GT Series turbocharger features a gold anodized billet compressor wheel that is lighter and stronger than the stock cast wheel to help provide quicker and higher air flow than the stock turbo. Additionally, the 4" compressor housing inlet with ported shroud helps to reduce "turbo bark". The turbocharger features a billet aluminum black anodized adjustable wastegate actuator that is mounted to the integrated cast bracket.

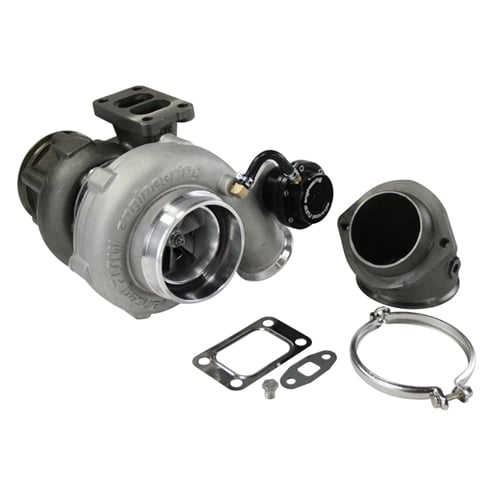

Also included is the aFe cast iron turbine elbow along with the necessary mounting gaskets and bolts. In testing this BladeRunner turbocharger produced a max gain of +18 horsepower and +47 lbs. x ft. of torque confirmed by our in house dyno. The GT Series BladeRunner turbocharger is a brand new upgrade unit (not remanufactured) with no core charge and comes with a 2-year warranty. Additional fueling is not required for improved performance over OE, but maximum gains are achieved from fuel system upgrades, either electronic or mechanical.

4" Anti-Surge Chamber: This turbo has a 4" inlet featuring a ported shroud compressor housing which helps to reduce "turbo bark".

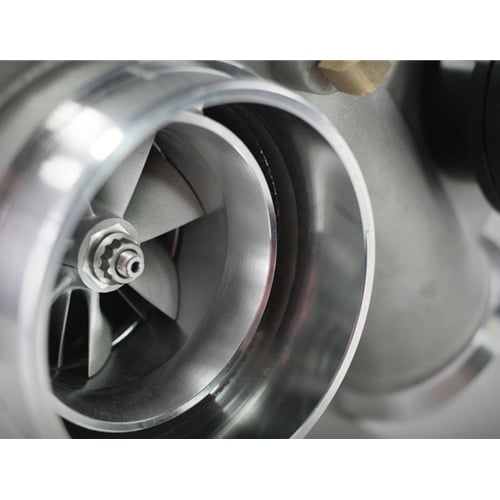

Billet Wheel: The compressor features a gold anodized 8/16 bladed billet aluminum compressor wheel that is lighter and stronger than the stock cast wheel to help provide quicker "spool-up" and higher air flow than the stock turbo.

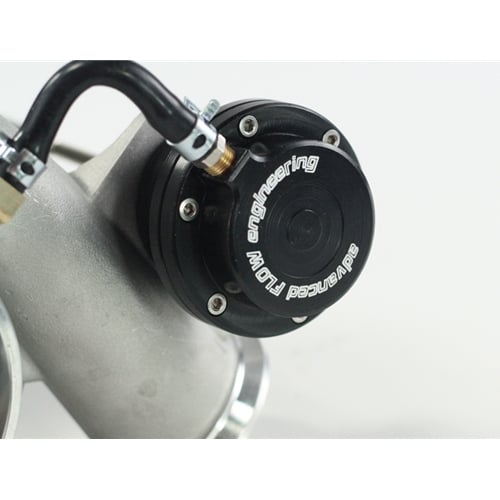

Compressor: The compressor features a light-weight billet aluminum compressor wheel with a 56mm inducer and 81mm exducer to improve turbo spool-up, handle high wheel speeds, and boost pressures. Also included is a CNC-machined, black anodized billet adjustable aluminum wastegate actuator.

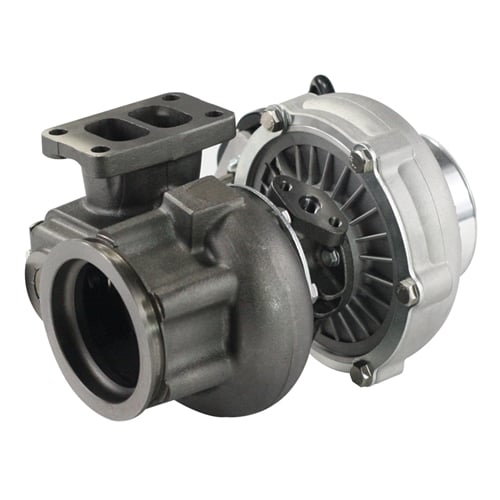

12 cm2 Turbine Housing: The 12 cm2 finned turbine housing allows lower EGT's and the ability to increase horsepower and torque.

Direct Replacement: This turbo can be installed on 1998.5-2002 model years as a direct bolt-on replacement. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection. Maximum gains are achieved from fuel system upgrades, either electronic or mechanical.

NOT LEGAL FOR SALE OR USE IN CALIFORNIA

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

1998.5-2002 Dodge 5.9L Cummins

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

+18HP +47 Ft-Lbs.
Billet Adjustable Wastegate Actuator
Stock Upgrade - No Core Charge Required
Direct, Bolt-On Replacement - Uses Factory Mounting Components
2-Year Warranty

TURBO SPECS:

Compressor Inducer - 56mm
Compressor Exducer - 81mm/ Trim 48
Turbine Inducer - 70mm
Turbine Exducer - 60mm/ Trim 73
Exhaust Turbine Housing - 12 cm2
