ICON 2.5" Leveling System 03-13 Ram 2500/3500 4WD 212500
Description

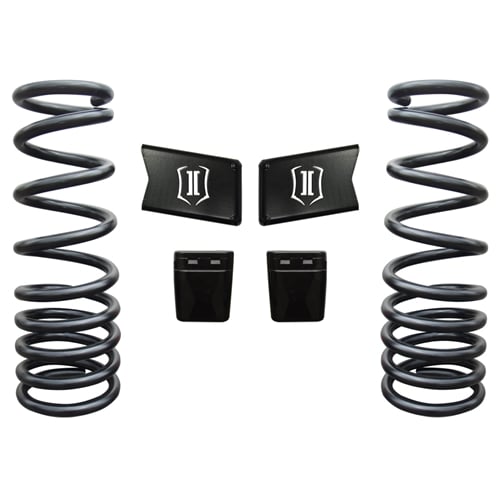

The new 2.5" Dodge 2500 / 3500 suspension system levels out your truck and offers you both incredible ride quality and performance. The system includes a set of ICON 2.5" dual rate springs that have a soft ride zone and an aggressive 2nd rate to help prevent bottoming out. The springs have a dual stage powder coat process to help prevent corrosion and are shot peened and pre-set to prevent sagging.
The system also includes 2" longer urethane bump-stops that have a more progressive bottom out and sway-bar drop brackets to compliment the additional travel. Accessories include an ICON adjustable pan-rod bar that offers a high strength heim on the axle end and dual stage bushing on the frame end. The pan-rod bar is adjustable on the vehicle to center the axle perfectly. The ICON VS Series 2.5" shocks are also available for both the front and rear of the vehicle. The VS Series shocks offer incredible ride quality and performance and are built and valved specifically for the vehicle.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
WHEEL & TIRE FITMENT INFO:
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 8.5" wide wheel with 5.75" backspace
- Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
FEATURES & BENEFITS:
- ICON engineered dual rate coil springs
- Increased wheel travel and ride quality over stock
- No change in towing capacity
- Level stance front to rear
- Less body roll than stock
- No drive shaft modifications needed
About ICON Vehicle Dynamics
ICON Vehicle Dynamics is a premiere performance suspension manufacturer specializing in aftermarket suspension components for trucks, SUVs and off road suspension development. The companys business is customer-driven, technology-influenced, engineering-oriented and focuses on world-class manufacturing processes and techniques. Led by head engineer and SCORE champion driver Dylan Evans, ICON Vehicle Dynamics has the unique qualities to design and build the highest quality suspension components and test them in both real world applications as well as race conditions.
ICON is often asked how they develop such revolutionary performance suspension systems. The answer might surprise you. Their engineers actually start by determining a desired outcome of the vehicle they are working on. By studying forces and their effect on the vehicle in motion (Vehicle Dynamics) they are able to determine what improvements can be made. They determine how they can improve drivability of the vehicle, how to improve the handling characteristics and what changes can be made to improve the vehicle in real world situations. The end result of all this study is the highest quality and performing suspension products in the world. What also sets ICON products apart is our incredible commitment of time and energy dedicated to both ride development and testing. From vehicle dynamic theory to our years of experience and involvement in off road racing, rock crawling and just about anything you can do with a vehicle on or off the road. ICON engineers are in control and the driving force of the entire product line and manufacturing processes. This is made possible because all of their laser cutting, metal forming, CNC machining, welding and assembly is done in house.
ICON is often asked how they develop such revolutionary performance suspension systems. The answer might surprise you. Their engineers actually start by determining a desired outcome of the vehicle they are working on. By studying forces and their effect on the vehicle in motion (Vehicle Dynamics) they are able to determine what improvements can be made. They determine how they can improve drivability of the vehicle, how to improve the handling characteristics and what changes can be made to improve the vehicle in real world situations. The end result of all this study is the highest quality and performing suspension products in the world. What also sets ICON products apart is our incredible commitment of time and energy dedicated to both ride development and testing. From vehicle dynamic theory to our years of experience and involvement in off road racing, rock crawling and just about anything you can do with a vehicle on or off the road. ICON engineers are in control and the driving force of the entire product line and manufacturing processes. This is made possible because all of their laser cutting, metal forming, CNC machining, welding and assembly is done in house.
