SKU #: ICON-K214553T MPN #: K214553T

ICON 4.5" Suspension System - Stage 4 03-13 Dodge 2500/3500 4WD

$5,170.55

Get 5170 points in loyalty rewards

ICON 4.5" Suspension System - Stage 4 for 03-13 Dodge 2500 and 3500 4WD

Description

ICON's 4.5" Stage 4 Suspension System utilizes the same technology as the 2.5" systems while adding lift height and ground clearance. Additional engineered front end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road.The Stage 4 System is comprised of dual rate coil springs, tubular steel upper lower link arms, polyurethane bumpstops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, 2.5" V.S. Series shocks, bearing style adjustable track bar, and 2.5" lift blocks. ICON 2.5" Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation. These shocks include FK bearings, billet top cap rod ends, 7/8" shafts for strength, and the industry only forged stem on a 2.5" shock with rolled threads. The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON upper lower links increase the performance, strength, and range of alignment of your Ram. These link arms also decrease the bind found in the factory link bushings. This ultimate performance system offers extraordinary diversity across any terrain, all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market. TECH INFO: 4wd Applications only Lifted height specs based on diesel engine. Gas engines will bring slightly taller lift heights

Options

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

ICON's 4.5" Stage 4 Suspension System utilizes the same technology as the 2.5" systems while adding lift height and ground clearance. Additional engineered front end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road.

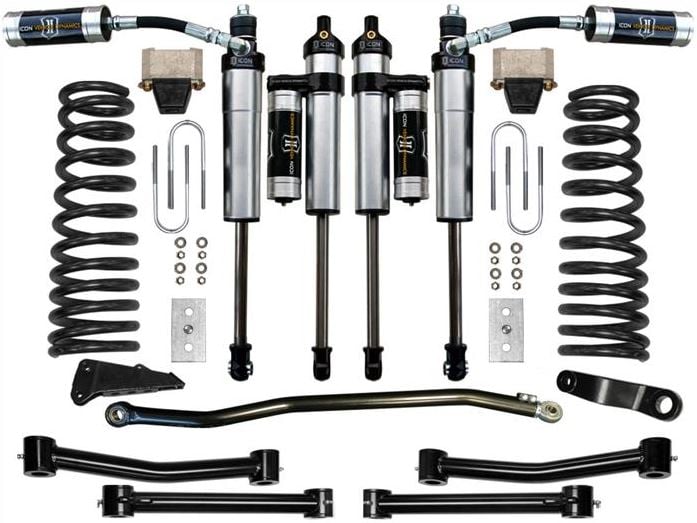

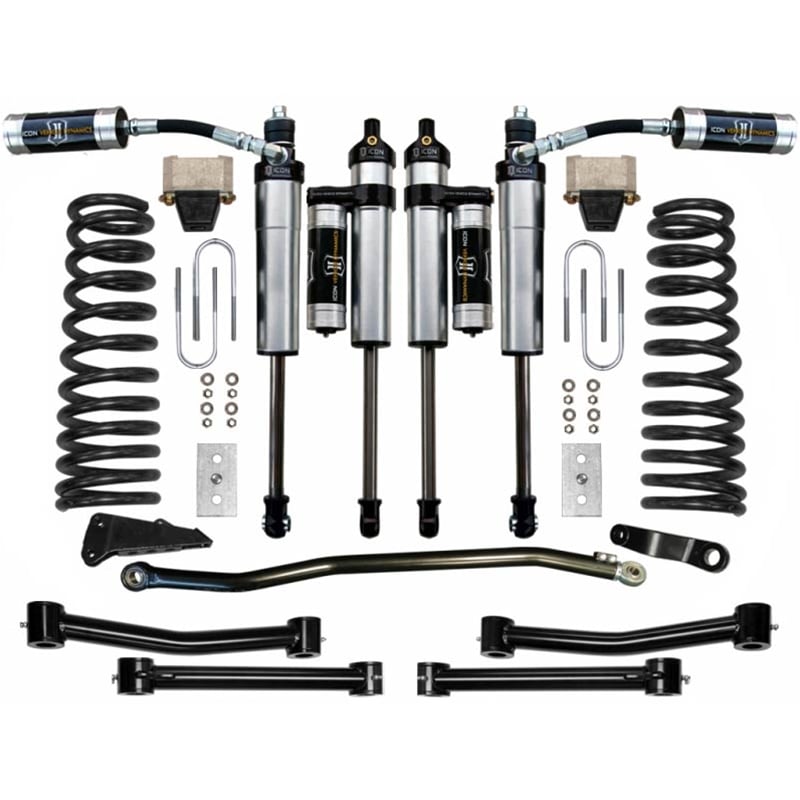

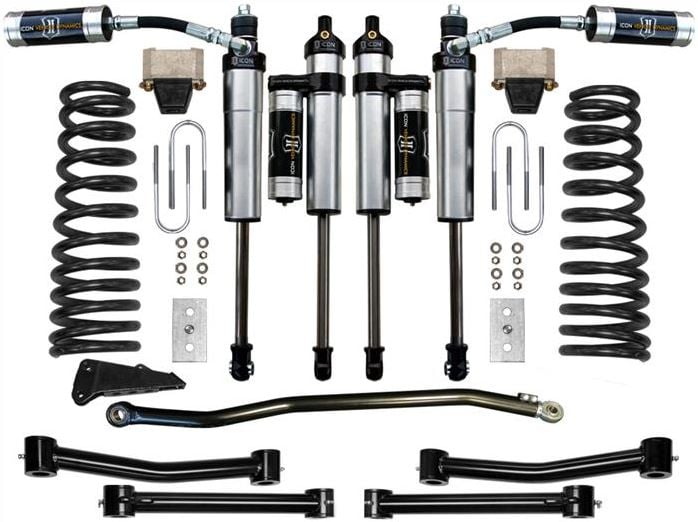

The Stage 4 System is comprised of dual rate coil springs, tubular steel upper lower link arms, polyurethane bumpstops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, 2.5" V.S. Series shocks, bearing style adjustable track bar, and 2.5" lift blocks.

ICON 2.5" Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation. These shocks include FK bearings, billet top cap rod ends, 7/8" shafts for strength, and the industry only forged stem on a 2.5" shock with rolled threads. The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON upper lower links increase the performance, strength, and range of alignment of your Ram. These link arms also decrease the bind found in the factory link bushings.

This ultimate performance system offers extraordinary diversity across any terrain, all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance.

With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.

TECH INFO:

4wd Applications only
Lifted height specs based on diesel engine. Gas engines will bring slightly taller lift heights

Manuals and Guides

Vehicle Fitment

2003-2013 Dodge Ram 2500 4x4|2003-2012 Dodge Ram 3500 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

WHEEL & TIRE FITMENT INFO:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys | 17" x 8.5" w/ 5.25” BS / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys | 20" x 9" w/5.75" BS / 19mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)

FEATURES & BENEFITS:

ICON engineered dual rate coil springs with match tuned 2.5" V.S. Series reservoir shocks
Adjustable track bar with PTFE lined FK bearings
Heavy-duty steel upper and lower link bars
Increased wheel travel and ride quality over stock with no change in towing capacity
Correctly positioned steering and track bar components
Level stance front to rear
Less body roll than stock
No drive shaft modifications needed
