SKU #: ICON-K214500T MPN #: K214500T

ICON 4.5" Suspension System - Stage 1 03-13 Dodge 2500/3500 4WD

$2,920.55

Get 2920 points in loyalty rewards

ICON 4.5" Suspension System - Stage 1 for 03-13 Dodge 2500 and 3500 4WD

Description

ICON's 4.5" Stage 1 Suspension System utilizes the same technology as the 2.5" systems, while adding lift height and ground clearance. Additional engineered front end components are added to ensure proper steering geometry with improved function throughout the entire travel range, whether on or off road. The Stage 1 System is comprised of dual rate coil springs, steel tubular upper lower link arms, polyurethane bumpstops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, rear 2.5" lift blocks with u-bolts, and 2.0 Aluminum Series smooth body shocks. ICON upper lower links increase the performance, strength, and range of alignment of your Ram. These link arms also decrease the bind found in the factory link bushings. This entry level system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning their suspension components and shocks together, you can rest assured you have the best suspension solution on the market.

Options

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

ICON's 4.5" Stage 1 Suspension System utilizes the same technology as the 2.5" systems, while adding lift height and ground clearance. Additional engineered front end components are added to ensure proper steering geometry with improved function throughout the entire travel range, whether on or off road.

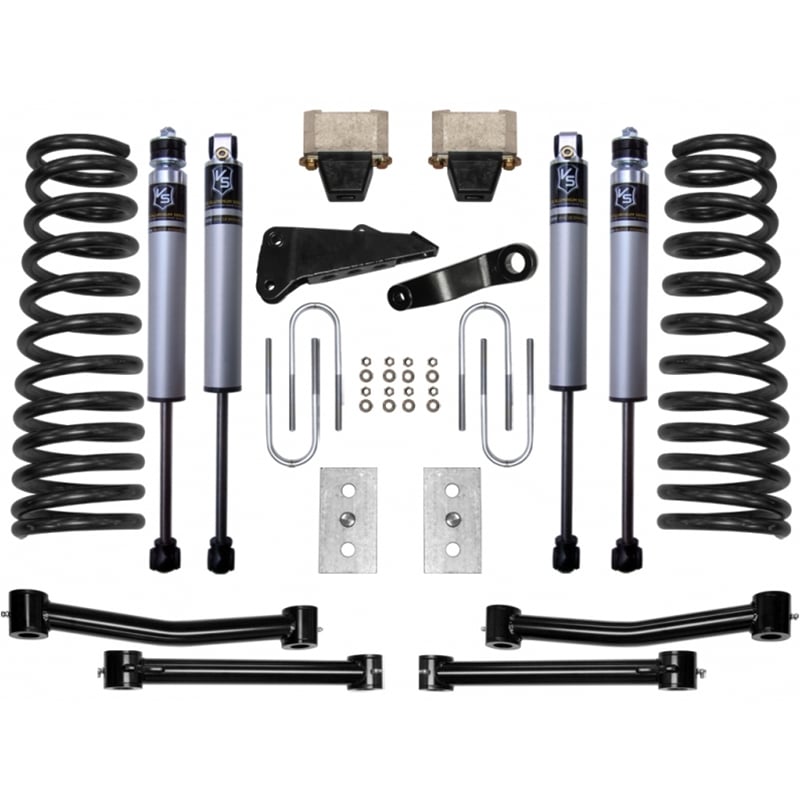

The Stage 1 System is comprised of dual rate coil springs, steel tubular upper lower link arms, polyurethane bumpstops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, rear 2.5" lift blocks with u-bolts, and 2.0 Aluminum Series smooth body shocks. ICON upper lower links increase the performance, strength, and range of alignment of your Ram. These link arms also decrease the bind found in the factory link bushings.

This entry level system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance.

With the endless hours ICON has spent testing and tuning their suspension components and shocks together, you can rest assured you have the best suspension solution on the market.

Manuals and Guides

Vehicle Fitment

2003-2013 Dodge Ram 2500 4x4|2003-2012 Dodge Ram 3500 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

WHEEL & TIRE FITMENT INFO:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys | 17" x 8.5" w/ 5.25” BS / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys | 20" x 9" w/5.75" BS / 19mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)

FEATURES & BENEFITS:

ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series shocks
Tubular Steel upper and lower link bars
Increased wheel travel and ride quality over stock with no change in towing capacity
Correctly positioned steering and track bar components
Level stance front to rear
Less body roll than stock
No drive shaft modifications needed
MADE IN THE USA

KIT CONTENTS 2003-2008:

37023 (QTY: 1) | 99-10 FSD DUALLY/03-12 RAM HD 15" U-BOLT KIT
211205 (QTY: 1) | 03-12 RAM HD 4WD 2.5" BLOCK KIT
214010 (QTY: 1) | 03-12 RAM HD 4WD 4.5" DUAL RATE SPRING KIT
214040 (QTY: 1) | 03-12 RAM HD 4.5" BOX KIT
214027 (QTY: 1) | 03-12 RAM HD FIXED TUBULAR LINK KIT
216523 (QTY: 2) | 03-12 RAM HD 4.5" FRONT 2.0 VS IR
216522 (QTY: 2) | 03-12 RAM HD 0-3" REAR 2.0 VS IR

About ICON Vehicle Dynamics

ICON Vehicle Dynamics is a premiere performance suspension manufacturer specializing in aftermarket suspension components for trucks, SUVs and off road suspension development. The companys business is customer-driven, technology-influenced, engineering-oriented and focuses on world-class manufacturing processes and techniques. Led by head engineer and SCORE champion driver Dylan Evans, ICON Vehicle Dynamics has the unique qualities to design and build the highest quality suspension components and test them in both real world applications as well as race conditions.

ICON is often asked how they develop such revolutionary performance suspension systems. The answer might surprise you. Their engineers actually start by determining a desired outcome of the vehicle they are working on. By studying forces and their effect on the vehicle in motion (Vehicle Dynamics) they are able to determine what improvements can be made. They determine how they can improve drivability of the vehicle, how to improve the handling characteristics and what changes can be made to improve the vehicle in real world situations. The end result of all this study is the highest quality and performing suspension products in the world. What also sets ICON products apart is our incredible commitment of time and energy dedicated to both ride development and testing. From vehicle dynamic theory to our years of experience and involvement in off road racing, rock crawling and just about anything you can do with a vehicle on or off the road. ICON engineers are in control and the driving force of the entire product line and manufacturing processes. This is made possible because all of their laser cutting, metal forming, CNC machining, welding and assembly is done in house.
