SKU #: ICON-61750 MPN #: 61750

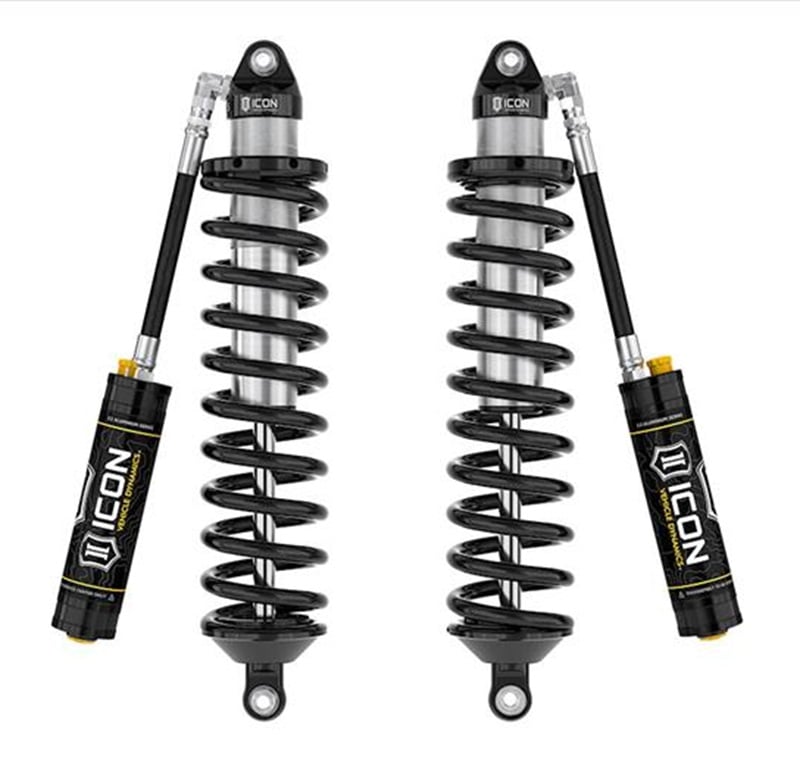

ICON 4.5" - 6.5" Lift Coil-over Shock Kit 05-16 Ford SuperDuty

$1,799.95

Get 1799 points in loyalty rewards

ICON 4.5" - 6.5" Lift Coil-over Shock Kit for 05-16 Ford SuperDuty

Description

These coil-over shocks are the ultimate suspension modification for your Super Duty. These are not race style shocks that were modified to fit, these Coil-Overs were designed from the ground up for this specific model year range Super Duty. Sold as a Pair Requires ICON Coil-Over Shock Mount Kit (Part Number 61950) The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir creating 10 levels of compression damping force ranges. Controlling the amount of oil flow externally allows for optimally adjusting damping for varying terrain. With the addition of an ICON CDC Valve a different tune is required on the working piston to get the ride quality range of adjustment to softer than standard at the "S" setting and much firmer than standard at the "H" setting. The ICON CDC Valve piston is custom tuned per application with different valve stacks because not all shocks or applications are equal. Adding on the CDC Valve is not a one size fits all if you want optimum performance. The CDCV external knob allows for 10 positive clicks of adjustment. Each detent from S-H is a noticeable difference in ride. When engineering this feature into each shock application, the main shock piston is re-calibrated such that setting "4" is equivalent to the non CDCV version. This allows for both a softer and firmer ride than the same application without this option. The ICON CDC Valve brings a new thinking to the table with an upgrade option that offers true ride quality diversity.

cdvc adjuster option

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

These coil-over shocks are the ultimate suspension modification for your Super Duty. These are not race style shocks that were modified to fit, these Coil-Overs were designed from the ground up for this specific model year range Super Duty.

Sold as a Pair
Requires ICON Coil-Over Shock Mount Kit (Part Number 61950)

The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir creating 10 levels of compression damping force ranges. Controlling the amount of oil flow externally allows for optimally adjusting damping for varying terrain. With the addition of an ICON CDC Valve a different tune is required on the working piston to get the ride quality range of adjustment to softer than standard at the "S" setting and much firmer than standard at the "H" setting. The ICON CDC Valve piston is custom tuned per application with different valve stacks because not all shocks or applications are equal. Adding on the CDC Valve is not a one size fits all if you want optimum performance. The CDCV external knob allows for 10 positive clicks of adjustment. Each detent from S-H is a noticeable difference in ride. When engineering this feature into each shock application, the main shock piston is re-calibrated such that setting "4" is equivalent to the non CDCV version. This allows for both a softer and firmer ride than the same application without this option. The ICON CDC Valve brings a new thinking to the table with an upgrade option that offers true ride quality diversity.

Manuals and Guides

PRODUCT DOCUMENTS

Vehicle Fitment

2005-2016 Ford F-250 / F-350 SuperDuty 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

WHEEL & TIRE FITMENT INFO:

Factory Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 8.5" wide wheel with 5" backspace
Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

FEATURES & BENEFITS:

Adjustable in ride height from 4.5" to 6.5" of lift
External Reservoir for excellent heat dissipation
Dual Rate Spring for a great ride quality on or off-road
Completely rebuildable
Available with CDVC!

About ICON Vehicle Dynamics

ICON Vehicle Dynamics is a premiere performance suspension manufacturer specializing in aftermarket suspension components for trucks, SUVs and off road suspension development. The companys business is customer-driven, technology-influenced, engineering-oriented and focuses on world-class manufacturing processes and techniques. Led by head engineer and SCORE champion driver Dylan Evans, ICON Vehicle Dynamics has the unique qualities to design and build the highest quality suspension components and test them in both real world applications as well as race conditions.

ICON is often asked how they develop such revolutionary performance suspension systems. The answer might surprise you. Their engineers actually start by determining a desired outcome of the vehicle they are working on. By studying forces and their effect on the vehicle in motion (Vehicle Dynamics) they are able to determine what improvements can be made. They determine how they can improve drivability of the vehicle, how to improve the handling characteristics and what changes can be made to improve the vehicle in real world situations. The end result of all this study is the highest quality and performing suspension products in the world. What also sets ICON products apart is our incredible commitment of time and energy dedicated to both ride development and testing. From vehicle dynamic theory to our years of experience and involvement in off road racing, rock crawling and just about anything you can do with a vehicle on or off the road. ICON engineers are in control and the driving force of the entire product line and manufacturing processes. This is made possible because all of their laser cutting, metal forming, CNC machining, welding and assembly is done in house.
