FASS Bulkhead and Suction Tube Kit 98.5-04.5 Dodge 5.9L Cummins

Name: FASS Bulkhead and Suction Tube Kit 98.5-04.5 Dodge 5.9L Cummins
Brand: FASS Fuel Systems
Price: 84.55 USD
Availability: InStock
Rating: 5.0 (3 reviews)

$84.55

Get 84 points in loyalty rewards

FASS Bulkhead and Suction Tube Kit for 98.5-04.5 Dodge 5.9L Cummins

Description

If you have a 1998.5-2004.5 truck, it came from the factory with a block mounted lift pump. Dodge has retrofitted many of these trucks with the later in-tank pumps. When installing a FASS fuel system, you must determine if your truck has the pump on the side of the block still or now has the in-tank pump. If it does have the in-tank pump, you will need the FASS Suction Tube Kit offered here. If the pump is still on the side of the block, you do not need this kit. To determine where the pump is, turn the key to the "On" position (do not start), and listen for the hum from the pump. It will either be in the tank, or on the driver's side of the block behind the fuel filter. The STK-1002 (Suction Tube Kit), machined from 6061 T-6 Billet Aluminum, is a Bulkhead Fitting comprised of a 5/8" Suction Tube along with a 1/2" Fuel Return Port. This new and improved version from FASS' previous STK-Kit allows you to plumb your FASS return line directly to the bulkhead fitting, eliminating all cutting of the filler neck, and significantly speeds up the installation process. The suction tube is fabricated of PTFE Teflon which can be easily cut to adapt to different depth fuel tanks. Properly installed, you can safely operate down to about 1/8 tank of fuel. IMPORTANT NOTE: This product is suggested to be installed with a FASS Titanium Series Lift Pumps. The larger suction tubes improve fuel delivery and work perfectly with higher volume fuel pumps. If you are purchasing a FASS Titanium Series pump at the same time check your kits contents, some pumps include this item standard. NOTE: to get FASS warranty coverage for your product you must fill out their registration form here.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

If you have a 1998.5-2004.5 truck, it came from the factory with a block mounted lift pump. Dodge has retrofitted many of these trucks with the later in-tank pumps. When installing a FASS fuel system, you must determine if your truck has the pump on the side of the block still or now has the in-tank pump. If it does have the in-tank pump, you will need the FASS Suction Tube Kit offered here. If the pump is still on the side of the block, you do not need this kit. To determine where the pump is, turn the key to the "On" position (do not start), and listen for the hum from the pump. It will either be in the tank, or on the driver's side of the block behind the fuel filter.

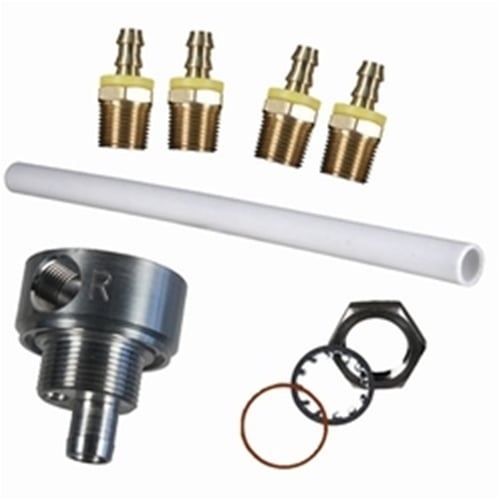

The STK-1002 (Suction Tube Kit), machined from 6061 T-6 Billet Aluminum, is a Bulkhead Fitting comprised of a 5/8" Suction Tube along with a 1/2" Fuel Return Port. This new and improved version from FASS' previous STK-Kit allows you to plumb your FASS return line directly to the bulkhead fitting, eliminating all cutting of the filler neck, and significantly speeds up the installation process. The suction tube is fabricated of PTFE Teflon which can be easily cut to adapt to different depth fuel tanks. Properly installed, you can safely operate down to about 1/8 tank of fuel.

IMPORTANT NOTE: This product is suggested to be installed with a FASS Titanium Series Lift Pumps. The larger suction tubes improve fuel delivery and work perfectly with higher volume fuel pumps. If you are purchasing a FASS Titanium Series pump at the same time check your kits contents, some pumps include this item standard.

NOTE: to get FASS warranty coverage for your product you must fill out their registration form here.

NOT LEGAL FOR SALE OR USE IN CALIFORNIA

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

1998.5-2004.5 Dodge 5.9L Cummins

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Both Suction Tube and Return Port
Increase Fuel Delivery
Eliminates 1/4 Tank Fuel Issue
Unique Design For Simple Installation
5/8" Suction Tube Port
1/2" Fuel Return Port
