SKU #: BDS-1741H MPN #: BDS1741H

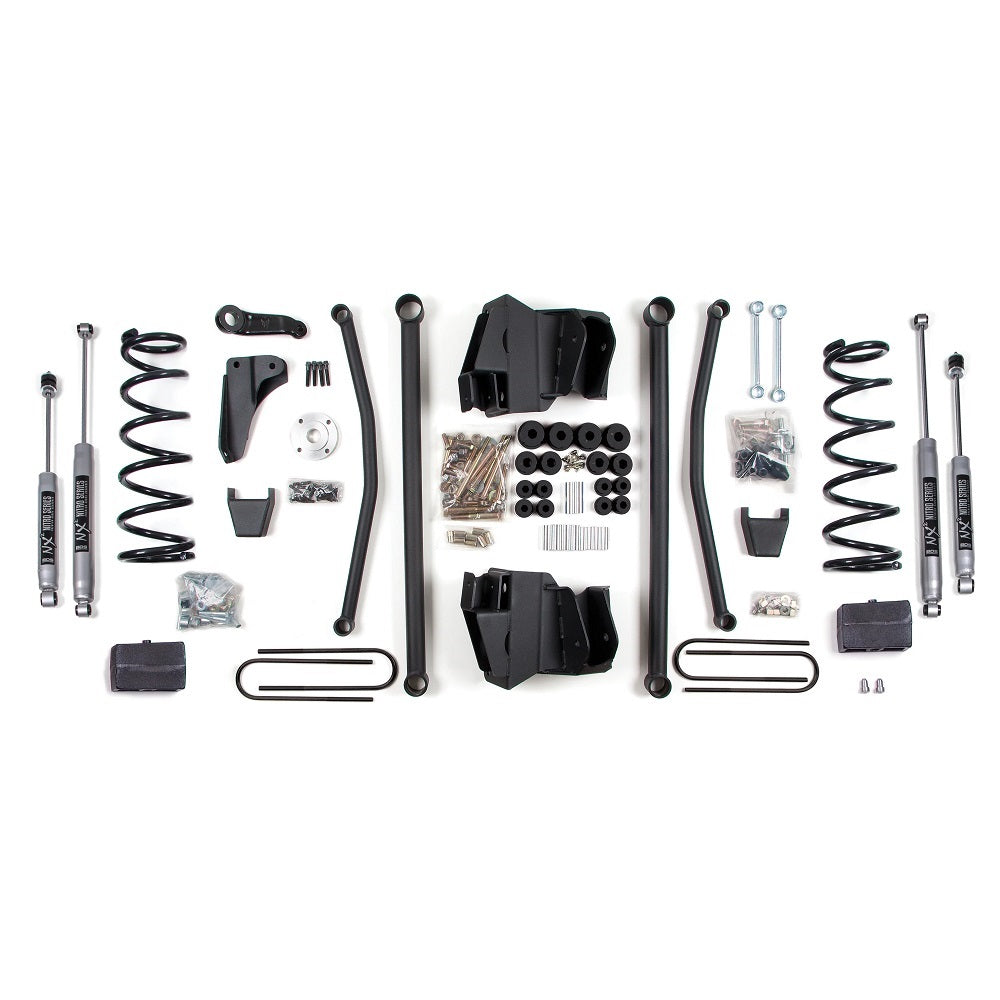

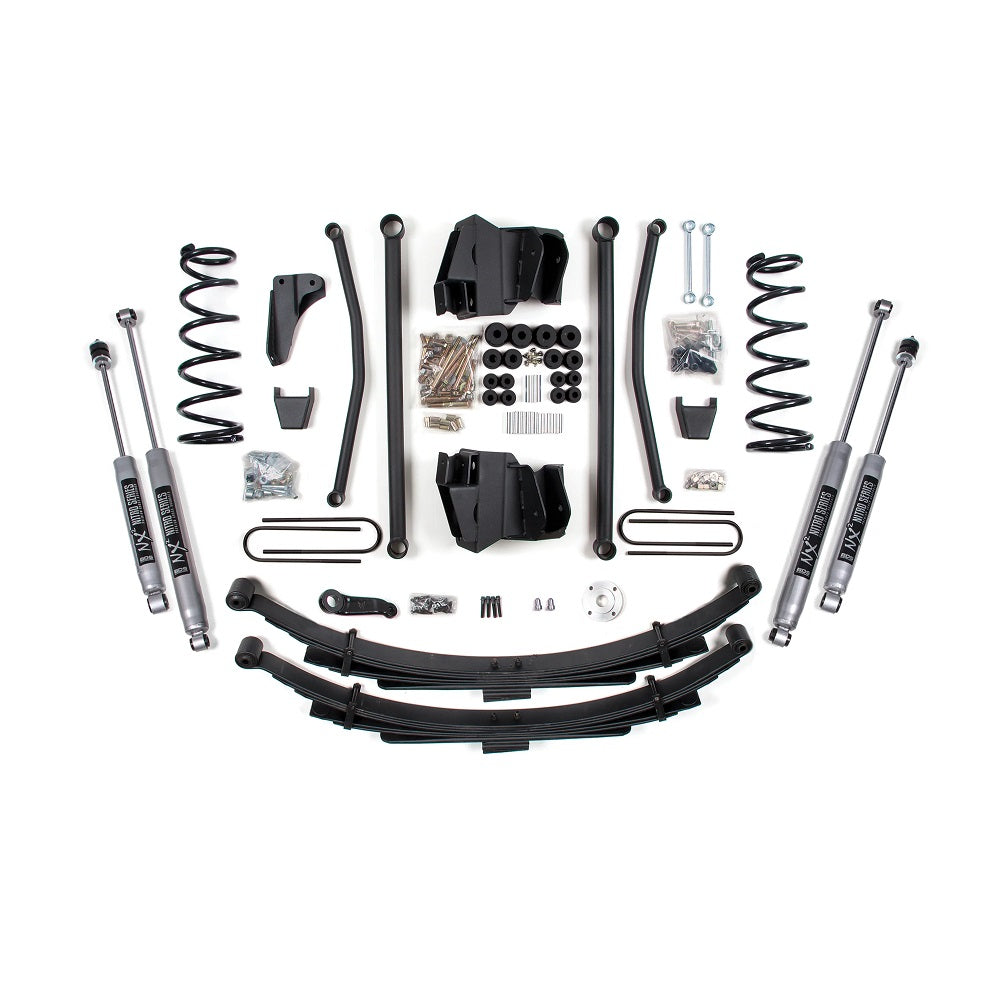

BDS Suspension 8" Long Arm Lift Kit 03-07 Dodge 2500 | 3500 4WD

$2,412.50

Get 2412 points in loyalty rewards

☆☆☆☆☆ (0)

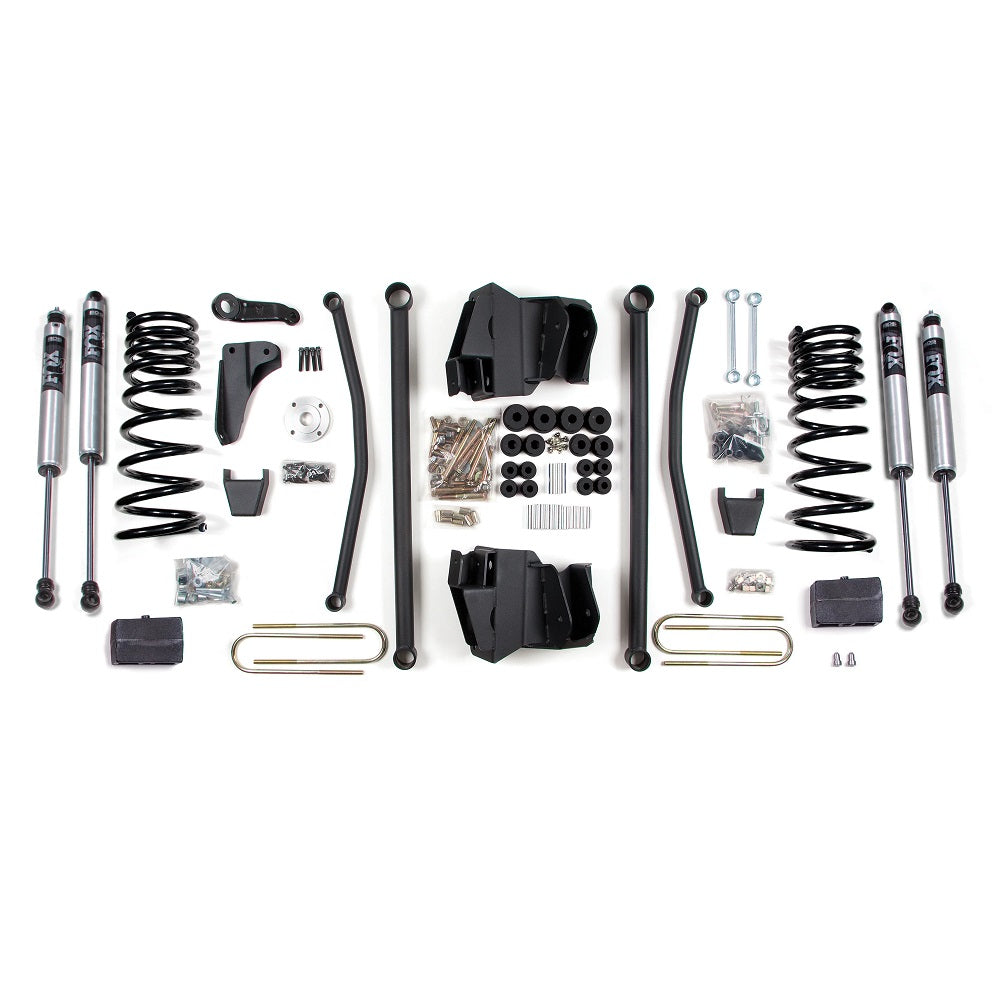

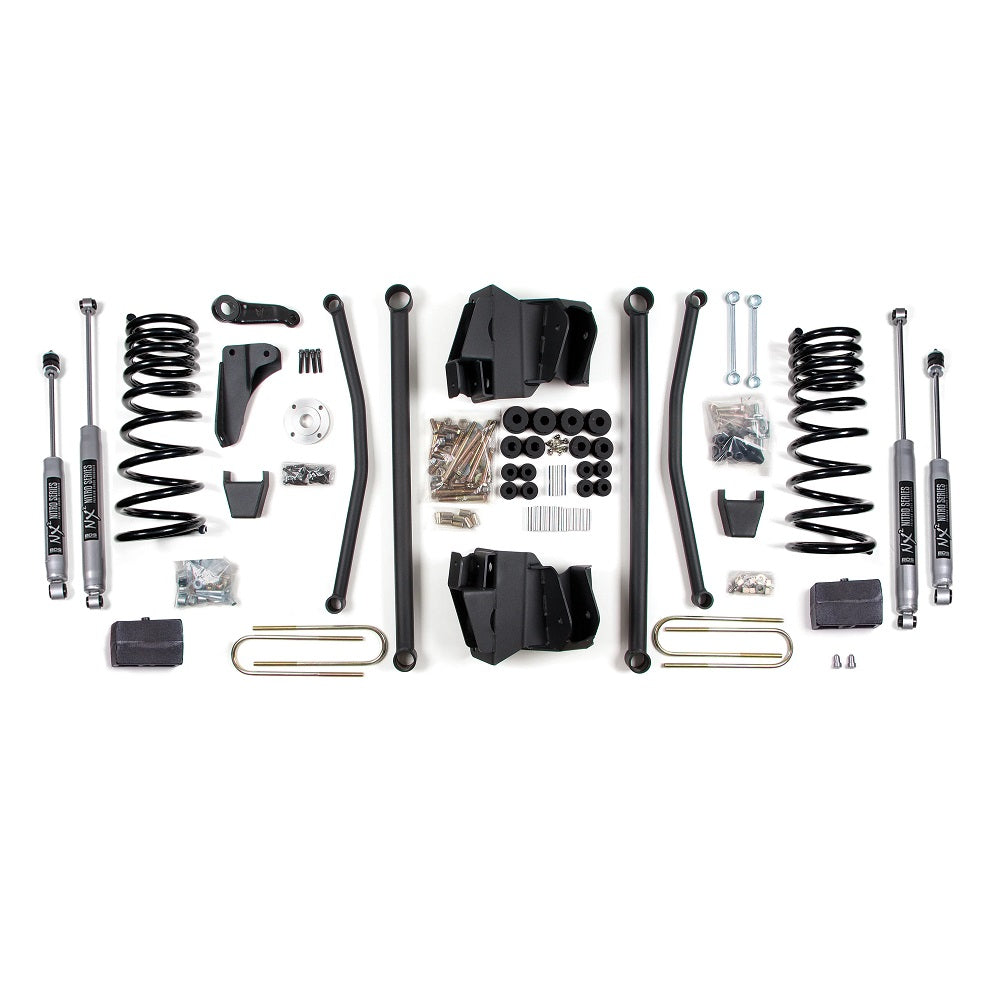

BDS Suspension 8" Long Arm Lift Kit 4" Axle for 09-13 Dodge Ram 2500 for 09-12 3500 4WD

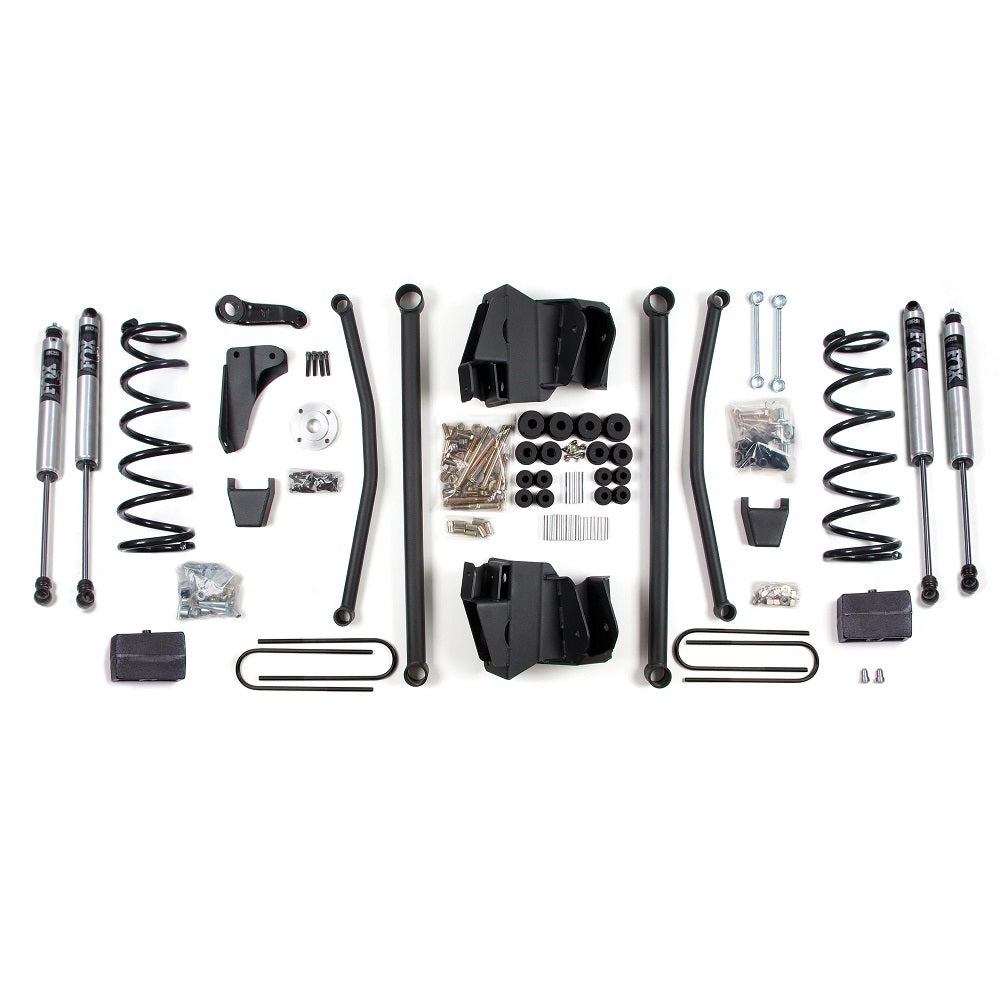

BDS Suspension 8" Long Arm Lift Kit for 03-07 Dodge 2500 3500 4WD

Description

Upgrade your suspension and turn your Ram into an unstoppable machine with properly engineered, built, and tested suspension components that will take a beating and still give you the luxury of smooth driving manners. This suspension system features 8" progressive Pro-Ride Coil Springs for Diesel models and heavy duty, long upper and lower control arms. The long control arms reduce caster change through wheel travel, creating a more controlled feeling in the steering wheel, both on and off road. All four control arms are greasable for long-term performance. This 4-Link long arm lift kit retains the factory triangulation of the arms, as well, which adds to the stability of the suspension system. A dropped forged pitman arm is included to maintain the factory steering angles. A track bar relocation bracket properly centers the axle under the vehicle. Extended bump stops and sway bar links maintain the OE characteristics. The rear is lifted via a 5" block kit or optional Glide-Ride Leaf Springs for optimum ride and performance. BDS has many optional accessories with this 8" lift kit such as a steering stabilizer, brake lines, traction bars, and shock options. Shock Options Choose between the custom valved NX2 series or the Fox 2.0 gas charged monotube shocks. You can also opt for dual front shocks at each corner for even more control and a cool inner fender appearance. BDS NX2 series gas shocks offer impressive performance on and offroad. They use a nitrogen charged, twin tube design with 10-stage velocity sensitive valving for lightning fast dampening and superior control. Fox 2.0 performance series shocks have been tuned and tested by both Fox and BDS Suspension to maximize performance specific to each application and to every BDS Suspension system. The basic shock design is based on proven Fox Racing Shox race products, but re-designed to maximize the ride quality, handling, and control of your BDS equipped truck or jeep, whether on or off the road.

Shock Options

Choose between the custom valved NX2 series or the Fox 2.0 gas charged monotube shocks. You can also opt for dual front shocks at each corner for even more control and a cool inner fender appearance. BDS NX2 series gas shocks offer impressive performance on and offroad. They use a nitrogen charged, twin tube design with 10-stage velocity sensitive valving for lightning fast dampening and superior control.

Fox 2.0 performance series shocks have been tuned and tested by both Fox and BDS Suspension to maximize performance specific to each application and to every BDS Suspension system. The basic shock design is based on proven Fox Racing Shox race products, but re-designed to maximize the ride quality, handling, and control of your BDS equipped truck or jeep, whether on or off the road.

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

2003-2007 Dodge Ram 2500 / 3500 4WD

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

Tire & Wheel Combinations

38" x 14.00" w/17 x 9 and 4.5" back spacing

Installation Notes

Estimated Installation: 8 hours
Difficulty Level (easy 1 - 5 complicated): 3

About BDS Suspension

BDS Suspension was started in 1996 by a business group who felt it was past time to create a suspension company that truly had the best interest of the off road consumer as its' foundation. With over 45 combined years experience with other major suspension companies, both buying and selling, the individuals that would make up the BDS name were frustrated by the lack of quality and the unwillingness to make things right by these 4x4 companies. So, they set out to create a suspension company that would be the best and made a list of the things they felt were not right and made it their mission to correct them.

One of the most important of these wrongs they were looking to right were that of other companies warranties. Too often, the standard protocol was that a broken or damaged part from another manufacturer was denied warranty because of abuse or neglect. For BDS, its simple, if it breaks, they'll replace it, and that is the motto in which they have based their entire warranty off of. So, they welcome you, try and break it, if you do, they'll replace it and probably try to determine a way to increase the rigidity of the product to ensure it never happens again.

BDS LIFT KITS

While most people whom have heard of BDS Suspension automatically think of "lift kits," that ony touches on the wide variety of suspension and steering related products that BDS offers. BDS understands that not everyone is after a complete lift kit, but still after the quality BDS products bring to the table. Some of our most popular products from BDS are replacement adjustable track bars and dual steering stabilizer kits that in many instances can be installed on a completely stock truck, or one that's leveled or lifted. Other popular "non lift kit" parts are leveling kits that include upgraded shocks, progressive rate coil springs, heavy duty control or radius arms, and even leaf springs.

SHOP BDS SUSPENSION LIFTS & MORE

When shopping for various BDS Suspension parts, we understand that all of the choices can be overwhelming! Shock options, dual steering stabilizers, replacement coil springs or spacers.....and the list goes on! As you're considering the right suspension upgrades for you and your truck, never hesitate to reach out to us for an honest opinion of what we'd recommend for your particular build and budget. Not everyone "needs" every option and we can help you weigh the benefits of each.
