SKU #: FPE-CLNTBYPS-CUMMINS-0305-SS
MPN #: FPE-CLNTBYPS-CUMMINS-0305-SS

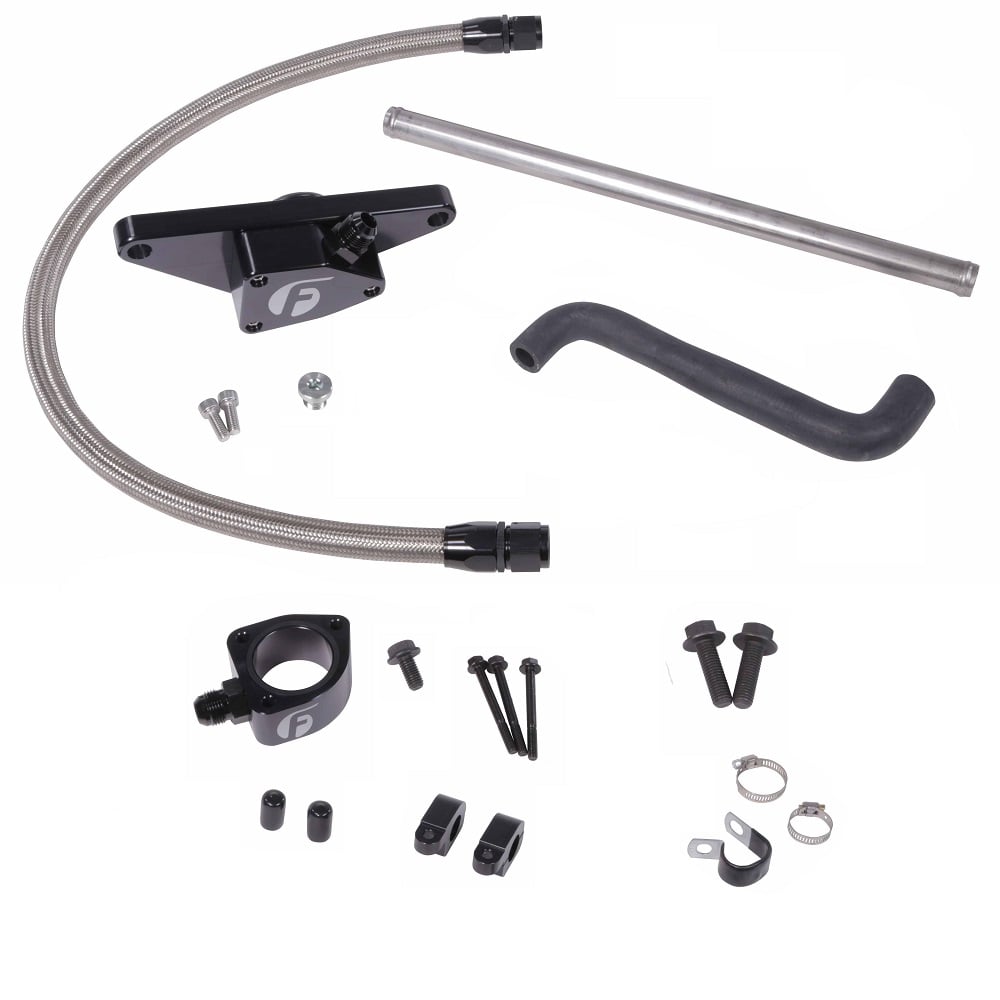

Fleece Performance Coolant Bypass Kit W/Stainless Braided lines 03-05 5.9L Auto Trans Cummins
Description
Help eliminate the possibility of scored rear cylinders and blown freeze plugs in your Cummins with this Coolant Bypass Kit from Fleece Performance! The Fleece Coolant Bypass with Stainless Lines solves the problem of excessive coolant pressure before it becomes a problem. The integrated secondary thermostat locates at the back of the block and allows coolant to flow freely when at normal operating temperatures ensuring consistent temperatures across all six cylinders and eliminates excessive pressure. The kit comes with high quality AN o-ring fittings and AN hose connections with braided hose to ensure a leak free installation and installs in two hours or less!
Increased Coolant Flow, Decreased Coolant Temperatures
The rear cylinders on the 24 Valve Cummins suffer from a lack of coolant flow, and therefore, experience the highest coolant temperatures. This can cause excessive pressure to build in the cooling system, especially the rear of the block and blow out freeze plugs externally, or the smaller diameter plugs under the valve cover, leading to a failure. Fleece's coolant bypass kit adds a secondary thermostat, that unlike other brands, works based on temperature instead of excessive pressure. This solves the problem before pressure becomes an issue by ensuring consistent temperatures across all six cylinders.
Why do I need a Fleece Coolant Bypass?
One of the biggest issues on the 24 valves is the coolant flow problem to the rear cylinders. This can cause catastrophic failure or blow outs of the freeze plugs in an over-temperature / over-pressure condition. The Fleece Coolant Bypass is one of the most important additions you make to improve the reliability and longevity of the Cummins platform.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
FEATURES & BENEFITS:
- Lowers coolant temperature at the rear cylinders
- Ensures consistent temperatures across all cylinders
- Prevents damaging coolant pressure build up
- Complete kit comes with Stainless Steel braided hose and AN O-ring fittings to ensure a leak-free installation.
