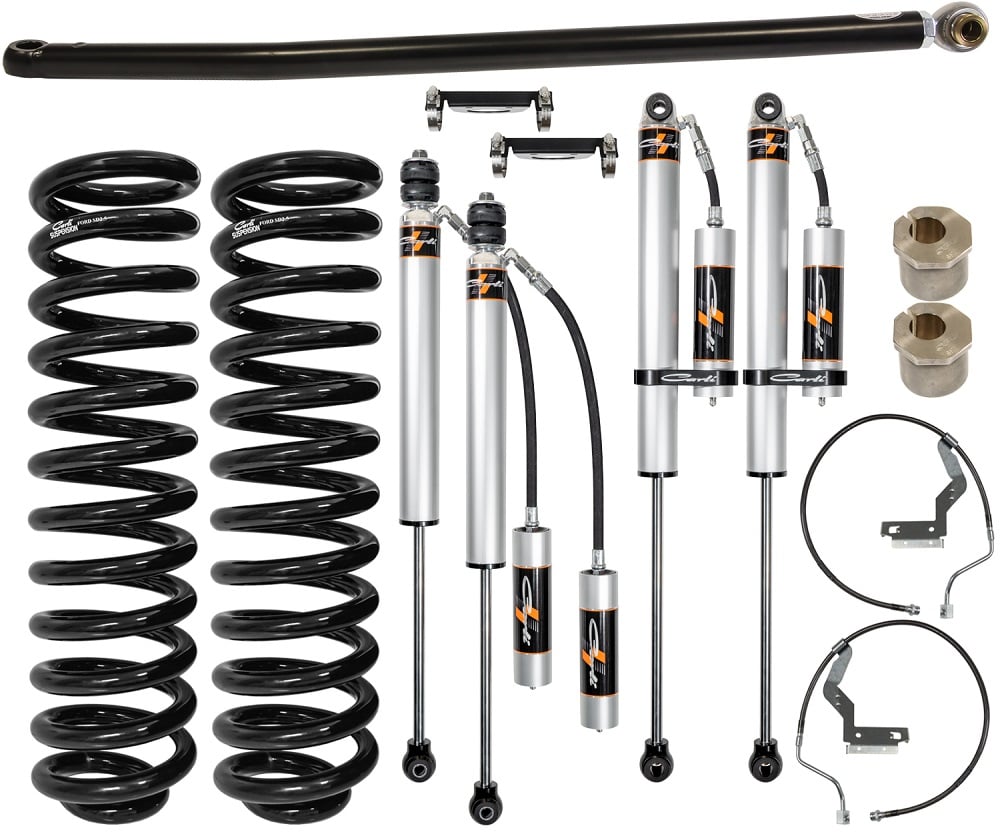

Carli SPEC 2.5" Leveling Backcountry 2.0 Suspension System 08-10 Ford 6.4L Powerstroke
Choose add-ons
Description
The Backcountry 2.0 Suspension System from Carli is about leveling your truck the RIGHT way. It's designed for people seeking light to medium off-roading while still maintaining good on-road driving. Utilizing Carli SPEC 2.0″ diameter shocks tuned for slow to mid speed off road use as well as all-around comfort and ride quality while driving in town, on the highway, towing, or hauling. Carli SPEC 2.0 boasts an aluminum body, hardened steel shaft, and full rebuild-ability. The shocks contain premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. Your truck will sit 2.5” higher in the front and have more wheel travel thanks to the taller, lighter rate coil springs. To accommodate the additional travel, the kit contains improved brake lines, an adjustable track bar, and caster adjusters to improve on the stock handling.
ADJUSTABLE TRACK BAR
The truck will sit 2.5” higher in the front and have more wheel travel thanks to the lighter rate Carli Coil Springs. The included Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, we include Caster Shims to tighten the steering.
REAR LEAF SPRING OPTIONS
The rear can be outfitted with a replacement Full Progressive Spring Pack (reduces capacity to a “light” ¾-ton) or factory leaf-pack modifying Progressive Add-a-Pack (maintains factory payload capacity and pairs with the factory 2” block). This is where the F250 and F350 are a bit different. Since 2008, the main spring packs on these two trucks is different; the F250 has a lighter rate spring pack than its 350 counterpart. The F250 Add-a-Pack equipped systems are a nice improvement over stock; the F350 with the Add-a-Pack is still very stiff in the rear as the main pack doesn’t move much unless loaded. Carli recommends the Full Replacement Leaf Spring packs for both trucks but especially the F350 given the super-stiff factory springs. If capacity is a concern, an aftermarket airbag system should be installed to compliment the Full Progressive Leaf Springs to restore the F350 capacity. Carli recommends a system that will allow the airbags to disconnect from the lower mount during suspension cycling to ensure you’re able to take advantage of all your rear suspension travel. The Full Progressive Leaf Spring Pack will shift the axle slightly forward in the wheel well to ensure maximum tire clearance for a 37” M/T at full compression.
This System has been optimized for use with the Full Progressive Leaf Springs. This system is also compatible with the Progressive Add-a-Packs but there will be a notable ride quality difference on and off-road. Selecting "NO Rear Leaf Spring Selection" will result in an unknown ride quality and height result as all Carli Systems are optimized to either the Add-a-Pack or Progressive Leaf Springs.
ADD-A-PACK SPECIFICATIONS:
Built in the USA by Deave Leaf Spring
Smooth progressive design
Supplied with u-bolts and hardware
Provides 2.0" of lift
OEM load capacity maintained, improved ride
3.5" axle tube
Super-Duties equipped with a factory 3-5/8" block will require the 2" factory block (Part numbers 7C3Z-5598-L, and 7C3Z-5598-K) to achieve a level stance. Fits 3.5″ axle tube.
FULL PROGRESSIVE LEAF SPRING KIT SPECIFICATIONS:
Block eliminating
Includes new u-bolts and rear bump stop drops
Provides a 1/2" rear high stance to Carli leveling suspension systems
37" tire fitment
3.5" axle tube
HEAVY DUTY FULL PROGRESSIVE LEAF SPRING KIT SPECIFICATIONS:
Block eliminating
Designed for those with constant 1,000lbs in the bed
Includes new u-bolts and rear bump stop drops
Provides a 1" rear high stance on matching 2.5" leveling suspension systems
37" tire fitment
3.5" axle tube
WHEEL AND TIRE FITMENT
Factory Wheels SHOULD NOT be run with oversized tires. They’re known to rub the radius arm, sway bar and most concerning – Brake Lines. Factory tires and factory wheels will work without issue but we DO NOT recommend running oversized tires on factory wheels. On our 2.5” Ford Systems, we recommend 17”-18” wheels, no more than 9” wide with 5.5” of backspacing with Carli Fabricated Radius Arms or 5” Backspace with factory arms; 5” will require a bit more trimming. Tires, 37×12.5” will fit with some trimming; 35” will likely fit without trimming. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.
IMPORTANT NOTES:
Wheels: Carli recommends a 17"-18" wheel, no more than 9" wide with 5" - 5.5" of backspacing
Tires: 35", E-rated tire is recommended. Tire pressure 45psi front, 40psi rear
Configuration: Carli leveling systems are designed and tested on vehicles with 17"-18" wheels with 35", E-rated tires. Running stock wheels and tires or a larger wheel diameter will result in a stiffer ride.
