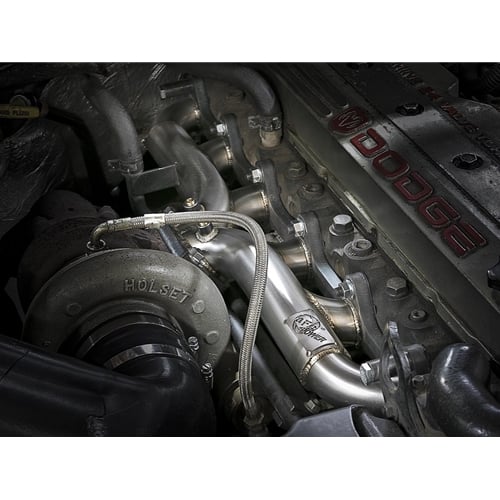

Looks great in person. 2001 ram 2500
"Fit and finish are really nice, was going to spray it gloss black but just left it."
Cummins
Shop All
SKU #: AFE-48-32020
MPN #: 48-32020

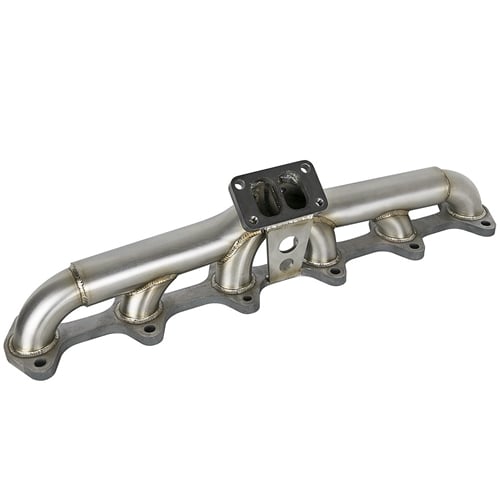

AFE Twisted Steel T3 304 Stainless Exhaust Header 98.5-02 Dodge 5.9L Cummins
Description
A header......for a Cummins?! There's something cool and nostalgic about headers. Back in the days of muscle cars and carburetors, they were a tried and true method of gaining power and getting a really cool sound, plus they looked great when you pop the hood. While these may not be your traditional long tube headers, this Twisted Steel Header from AFE will definitely aid in airflow for improved turbo response and lower EGT's. And yes, it looks pretty sweet, as well!
Unleash torque and horsepower with this Twisted Steel series header for your 24 valve Cummins. 1-3/4" head pipes stepped to 2" mandrel bent 304 stainless steel tubing and a 1/2" laser cut T3 divided flange builds quicker turbo boost, improves throttle response, and overall performance. TIG welded for strength and durability, this system is equipped with 1/8" EGT ports for auxiliary equipment.
1-3/4" TO 2" X 0.120 WALL STAINLESS STEEL: A 1-3/4" head pipe stepped to 2" x .120 wall stainless steel tubing, is used to increase exhaust velocity and increase usable torque. This means a more aggressive throttle response and increased passing power.

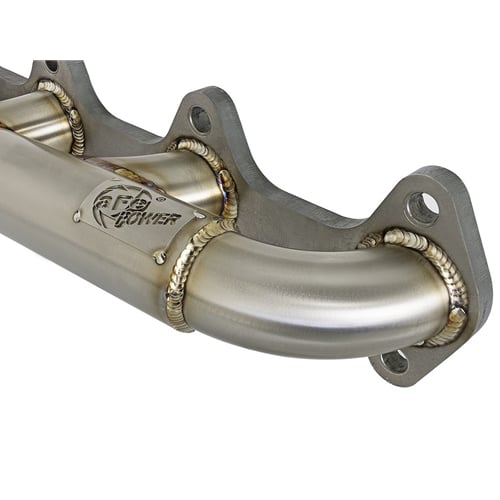

TIG-WELDED: 100% TIG-Welded by certified craftsmen provides the strongest welds reducing stress cracks for race proven strength and durability.
DIVIDED T3 FLANGE: This system utilizes a divided T3 flange that allows for a increase exhaust velocity, turbo spool, and boost.
INTEGRATED TURBOCHARGER BRACE: Turbocharger brace added to support turbo and take load off the header tubes.

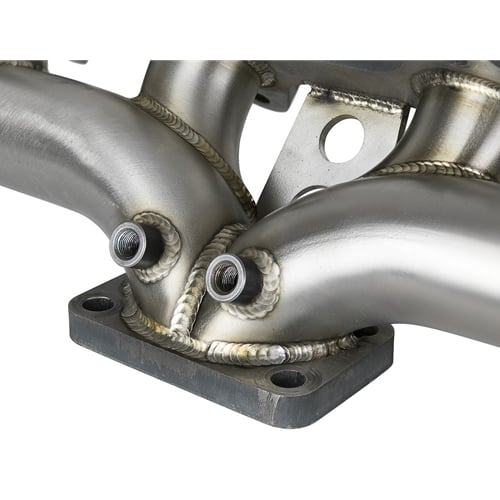

DUAL AUXILIARY PORTS: Two exhaust gas temperature (EGT) probe ports are supplied for easy installation of gauges or testing equipment.
HASSLE-FREE INSTALLATION: All necessary hardware and gasket are included for a hassle-free installation.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
FEATURES & BENEFITS:
- Increases Airflow by 52%
- Divided T3 Flange with intergrated turbo charger brace
- 100% hand TIG-welded, brush finished 304 stainless steel tubing

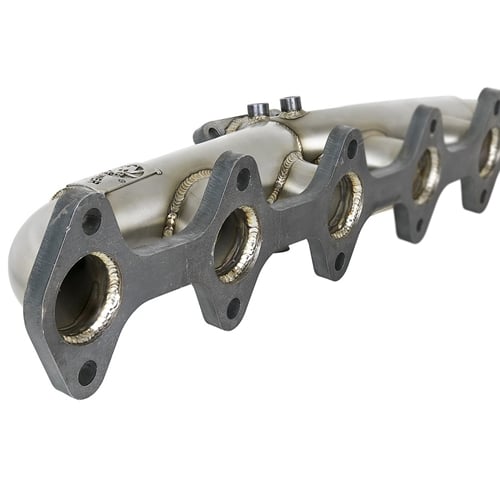

- 1/2" thick laser cut flanges for a durable leak-free seal
- 1/8" NPT exhaust gas temperature ports (EGT) ports provided for auxiliary equipment
- Necessary hardware included for hassle-free installation
IMPORTANT FITMENT NOTES:
- This manifold features a T3 flange, which is relatively standard and what would come from the factory. Some aftermarket turbos feature a T4 flange, such as most S400 based turbos. If you have upgraded your turbo, please confirm size.
- This manifold is a direct replacement for "2nd Gen" 1998.5-2002 model year Cummins. That being said, for those with 2003+ Cummins and building a "2nd Gen Swap" style of turbo kit in order to center the turbo on the head, this will bolt up to your head. You will need to supply provisions for the reorientation of your intake, intercooler pipe, downpipe, and oil lines.
About AFE
AFE POWER PERFORMANCE PARTS AND ACCESSORIES
Since its founding in 1999, AFE Power (Advanced Flow Engineering) has been a leader in diesel performance. Built to improve airflow, fuel efficiency, and overall vehicle power, AFE Power products are engineered to handle the demands of diesel enthusiasts and professionals alike.
From AFE cold air intakes to high-performance exhausts, AFE Power offers a complete lineup of parts to boost your truck’s performance. Whether you’re running a Cummins, Powerstroke, or Duramax engine, Diesel Power Products has a full range of AFE Power parts to maximize your vehicle’s potential.
AFE COLD AIR INTAKE SYSTEMS FOR MAXIMUM AIRFLOWOne of AFE Power’s best-known products is the AFE cold air intake system, designed to increase airflow and improve combustion efficiency. With options for both open and closed systems, AFE cold air intakes are built to optimize horsepower and throttle response. For those aiming to push their trucks to the limit, these intakes provide the airflow needed for consistent, powerful performance.
AFE FILTERS FOR DIESEL ENGINESAFE filters are made with various filter media to suit different driving environments. Choose from the Pro 5R, Pro 10R, Pro-GUARD 7, and Pro DRY S filters to achieve the right balance of airflow and filtration. Engineered with multiple layers of protection, AFE filters capture finer debris while maintaining excellent airflow, extending your engine's life and efficiency.
AFE POWER EXHAUST SYSTEMS FOR ENHANCED PERFORMANCEUpgrading to an AFE Power exhaust system reduces backpressure and increases exhaust flow, allowing for improved performance and fuel efficiency. Built with premium materials, these exhausts provide a deeper sound without compromising factory emissions. AFE Power’s exhaust options help you achieve a cleaner, more efficient burn while adding an aggressive tone to your truck’s performance.
ABOUT ADVANCED FLOW ENGINEERING (AFE)Headquartered in Corona, California, Advanced Flow Engineering (AFE) is known for its high-tech, in-house manufacturing and testing facilities, which include capabilities like CNC machining, CAD design, dyno testing, and more. With a commitment to quality and innovation, AFE Power continues to push the boundaries in diesel performance parts, delivering products that meet the needs of today’s diesel enthusiasts.
SHOP AFE PARTS AT DIESEL POWER PRODUCTSDiesel Power Products is proud to offer a comprehensive selection of AFE parts for diesel trucks. From cold air intakes and filters to exhaust systems and tuners, we carry everything you need to upgrade your diesel truck with high-performance AFE Power products. Our experts are here to help you find the right parts for your specific needs.
Blog
June 12, 2026
The diesel particulate filter (DPF) on your Cummins engine traps soot before it leaves the tailpipe. Over...
Read MoreCummins DPF Cleaning: Signs, Methods & Tips
June 12, 2026
P2509 flags when your Cummins ECM isn't seeing stable voltage coming from the battery and charging system....
Read MoreP2509 Cummins Code: Causes, Symptoms & Fixes
June 10, 2026
It starts small. Maybe the truck is a little slower to spool than usual. Maybe it sounds...
Read MoreHow to Find a Boost Leak Without Special Tools
June 05, 2026
Your exhaust system moves spent gases out of the engine and away from the cab. The muffler...
Read MoreResonator vs Muffler: Key Differences Explained
Overall rating: 3.0 / 5 from 2 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
Age header
"Do not buy this, poor quality. Missing parts out of box. Called them and they had confirmed it should have more parts. Asked them to overnight as this vehicle was planned to take on out of town at end of week. They said they couldn’t overnight package and then it took them two days to send. Horrible customer service and only take your money"
Q&A
- Hi Regarding your AFE twisted 304 stainless exhaust manifold, Will it bolt onto a 1996 5.9? We are doing a Cummins swap into a 1958 Chevy for SEMA, lots of custom fabrication. Also, can we flip it upside down, to have the turbo angled upwards? Thank you Jeff
- I believe it will bolt up, but the exhaust ports are wrong. 12v engines have a rectangular shape port and 24v engines have a round port.-Sands
- Hi Regarding your AFE twisted 304 stainless exhaust manifold, Will it bolt onto a 1996 5.9? We are doing a Cummins swap into a 1958 Chevy for SEMA, lots of custom fabrication. Also, can we flip it upside down, to have the turbo angled upwards? Thank you Jeff
- I believe it will bolt up, but the exhaust ports are wrong. 12v engines have a rectangular shape port and 24v engines have a round port.-Sands
