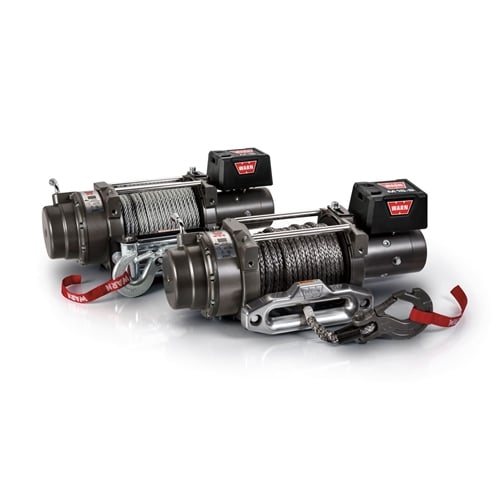

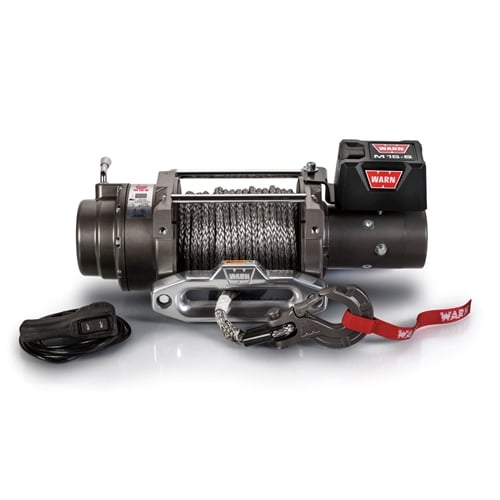

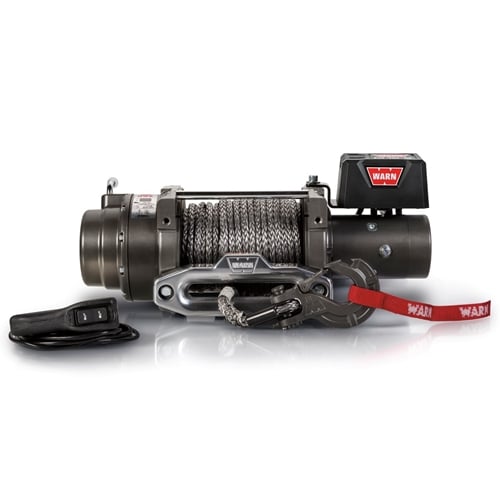

Warn 97730 M15-S Series 15,000 Lbs. Heavyweight Winch with Synthetic Rope
☆☆☆☆☆
(0)
Description
The Heavyweight Series of winches from Warn are designed to do some serious work. Whether its extracting your truck from a mud hole, pulling a downed tree, or helping a neighbor out, you can trust on it to get the job done. With a weight rating of 15,000 pounds and 80 feet of Spydura synthetic rope, you won't be disappointed in the performance of this winch.The WARN M15-S is a heavy-duty winch with 80' of 3/8" lightweight, easy-to-handle Spydura Pro synthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. And with a hefty 15,000 lb. pulling capacity, this winch is built for performing the long, heavy pulls.
FEATURES & BENEFITS:
- 15,000 lb. capacity
- Includes 80' of 3/8" Spydura Pro synthetic rope
- Includes 18,000 lb capacity EPIC hook
- Large-frame winch architecture mounts feet forward
- Contactor control for the ultimate in reliable electronics
- Powerful, efficient series-wound motor
- Durable, smooth three-stage planetary gear train
- Best-in-class cone brake
- Limited lifetime warranty
SPECIFICATIONS:
- Type: Electric
- Mount Type: Vehicle Mounted
- Recommended Use: Vehicle Recovery
- Voltage: 12 Volt
- Electrical Control Type: Contactors
- Motor Type: Series Wound
- Drive Gear Type: Planetary
- Gear Reduction Ratio: 315:1
- Free Spooling: Yes
- Brake Type: Mechanical Cone
- Line Diameter: 3/8 Inch
- Line Length: 80 Feet
- Line Material: Synthetic
- Fairlead Type: Hawse
- Conforms to J706 Standards: No
- Remote Type: Wired
- Mounting Hole Quantity: 4
- Operation Type: Automatic
- Mounting Pattern Length: 10 Inch
- Mounting Pattern Width: 4-1/2 Inch
- Includes Mounting Hardware: Yes
- Color: Gray
- Max Line Pull / Line Speed: 15000 Pound/ 2.48 Feet Per Minute
- Max Amp Draw / Line Pull: 460 Amp Draw/ 15000 Pound
About Warn
Over the past 60+ years, Warn has become more than a winch and hub manufacturer, they have become the leader in manufacturing for a complete line of off-road equipment and accessories to improve the capabilities of nearly any four-wheel drive vehicle, ATV, and utility vehicle.
Warn serves three distinct markets - Consumer Aftermarket, Industrial / Commercial, and Original Equipment. What this means is that not only does Warn produce top grade products for your personal use truck and ATV, but they also design and manufacture electric and hydraulic winches and hoists for commercial use, as well as build replacement components for the OEM market, such as hubs.
Warn Industries was founded in 1948 by Arthur and Sadie Warn in order to create a business of converting surplus World War II Jeeps into dependable civilian vehicles. Soon after, Arthur engineered the locking hub, which would become an optional factory upgrade to some of the major domestic automotive manufacturers by 1954. Five years later in 1959, the Warn winch was developed, and it was the first recreational winch ever produced. Today, Warn has a complete arsenal of products ranging from winches and hubs, to fender flares and bumpers, to lights and recovery accessories for applications ranging from ATV's to military spec equipment.
