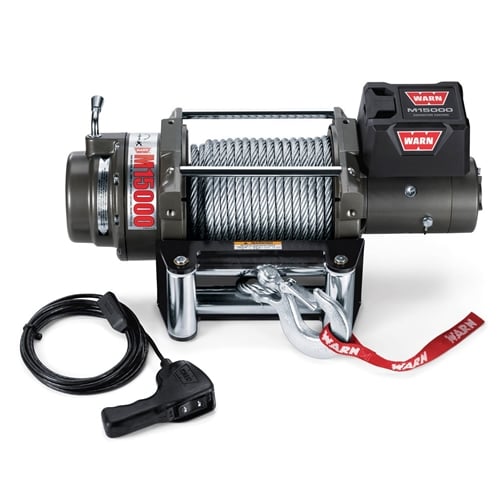

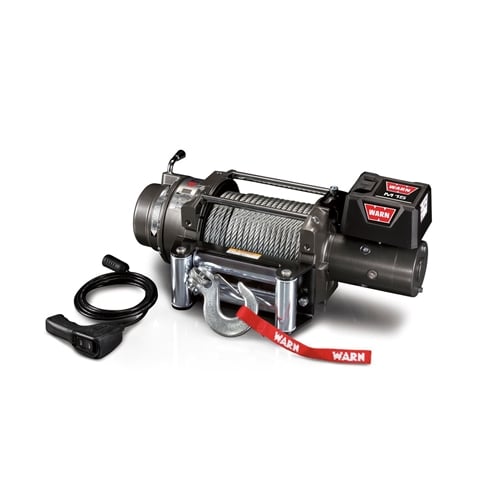

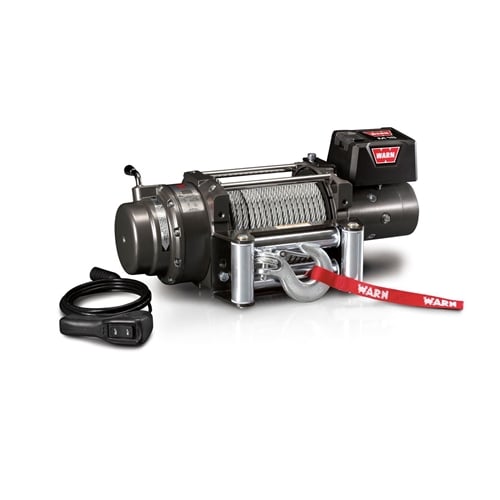

Warn 47801 M15 Series 15,000 Lbs. Heavyweight Winch

Name: Warn 47801 M15 Series 15,000 Lbs. Heavyweight Winch
Brand: Warn
Price: 2677.49 USD
Availability: InStock
Rating: 5.0 (1 reviews)

$2,677.49

Get 2677 points in loyalty rewards

Warn 47801 M15 Series 15,000 Lbs. Heavyweight Winch

Description

The Heavyweight Series of winches from Warn are designed to do some serious work. Whether its extracting your truck from a mud hole, pulling a downed tree, or helping a neighbor out, you can trust on it to get the job done. With a weight rating of 15,000 pounds and 90 feet of steel rope, you won't be disappointed in the performance of this winch.When you work hard enough to need a really big truck, you'll want a winch with enough capacity to get the job done. The Warn Winch boasts high strength carrier plates to handle the gear train stresses of a 15,000 Pounds Load. The gear ratio is 315:1, with 90 Foot of 7/16 Inch wire rope equipped with a large latched hook. The control pack is designed for generous clearance and ease of access.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

The Heavyweight Series of winches from Warn are designed to do some serious work. Whether its extracting your truck from a mud hole, pulling a downed tree, or helping a neighbor out, you can trust on it to get the job done. With a weight rating of 15,000 pounds and 90 feet of steel rope, you won't be disappointed in the performance of this winch.

When you work hard enough to need a really big truck, you'll want a winch with enough capacity to get the job done. The Warn Winch boasts high strength carrier plates to handle the gear train stresses of a 15,000 Pounds Load. The gear ratio is 315:1, with 90 Foot of 7/16 Inch wire rope equipped with a large latched hook. The control pack is designed for generous clearance and ease of access.

Vehicle Fitment

Universal Fitment

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Most Powerful Winches On The Market
Pulling Capacity Up To 16,500 Pounds
High Strength Carrier Plates To Handle The Heavy Gear Train Stresses
Limited Lifetime Warranty

SPECIFICATIONS:

Type: Electric
Mount Type: Vehicle Mounted
Recommended Use: Vehicle Recovery
Voltage: 12 Volt
Motor Horsepower: 4.6 Horsepower
Electrical Control Type: Contactors
Motor Type: Series Wound
Thermal Shutoff: No
Drive Gear Type: Planetary
Gear Reduction Ratio: 315:1
Free Spooling: Yes
Brake Type: Mechanical Cone
Line Diameter: 7/16 Inch
Line Length: 90 Feet
Line Material: Steel
Fairlead Type: Roller
Conforms to J706 Standards: No
Remote Type: Handheld Remote Switch
Mounting Hold Quantity: 4
Operation Type: Automatic

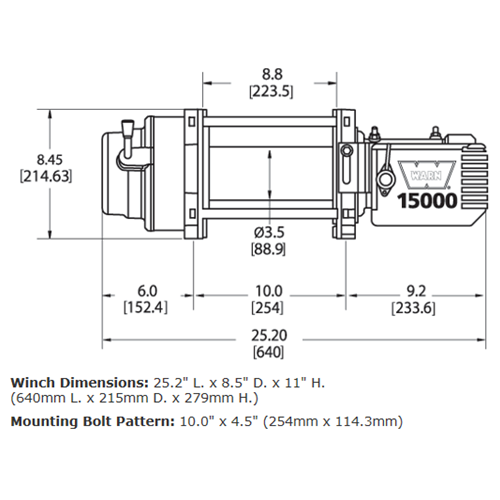

Mounting Pattern Length: 10 Inch
Mounting Pattern Width: 4-1/2 Inch
Includes Mounting Hardware: No
Color: Gray

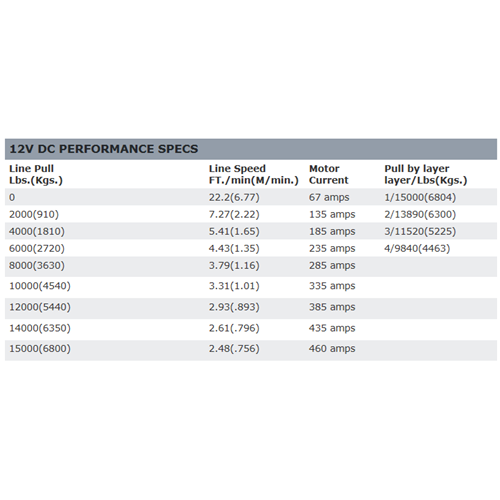

Max Line Pull / Line Speed: 15000 Pound/ 2.48 Feet Per Minute
Max Amp Draw / Line Pull: 460 Amp Draw/ 15000 Pound
