SKU #: WARN-92820 MPN #: 92820

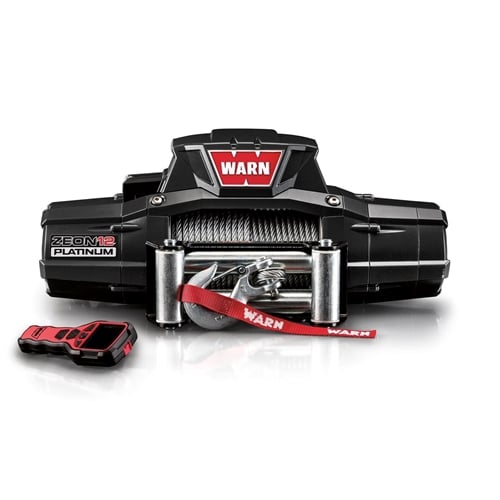

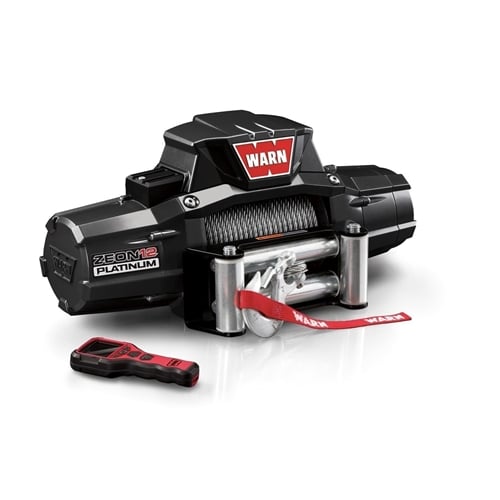

Warn 92820 ZEON 12 Platinum 12,000 Lbs. Winch with Steel Cable

$2,209.99
Get 2209 points in loyalty rewards
☆☆☆☆☆ (0)
Description
When your truck is stuck and you're relying on a winch to make it home safely, you want a strong, fast, reliable winch. And quite honestly, there's no better winch for the job than a ZEON Platinum from Warn. With 12,000 pounds of line pull and 80' of heavy duty 3/8" aircraft grade steel rope, you've got dependability on your side.Now the world's most technologically advanced winch - the ZEON Platinum - comes in a 12,000 pound capacity version spooled with extra-strong Spydura Pro synthetic rope. Already packed with performance features, ZEON Platinum 12-S features the Advanced Wireless Remote that puts winch, clutch and accessory control in the palm of your hand. And now, with the addition of Spydura Pro, you can really see what it means to be winching's top dog. FEATURES & BENEFITS: All-new high-speed motor, stronger gears, and heat-treated ring gear deliver 20% faster line speed, best-in-class efficiency, and our highest durability rating. The Advanced Wireless Remote gives you total control in the palm of your hand, allowing you to control the winch and up to two accessories. This sophisticated, advanced remote provides operator feedback on vehicle battery charge and winch motor temperature, controls operation of the winch clutch, and more. Includes USB charging cable and car charger adapter. Remote Controlled Clutch is engaged and disengaged with the Advanced Wireless Remote. The remote controls winch-in, winchout, and freespool operations. No more engaging a manual clutch, with frozen fingers while standing in the mud. Durable aluminum structure with flat black powder-coated finish and stainless steel fasteners delivers durability and maximum corrosion resistance-exceeding 400 hours of salt-spray testing. Large diameter alloy winch drum with steel sleeve is strong, light weight, reduces rope wear, and has an integrated rope anchor for easy rope installation. Extreme waterproofing meets rigorous IP68 standards - the highest rating in the WARN Truck/SUV winch lineup. Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately). The new-style control pack with contactor and advanced controls gives you extreme reliability and weather resistance. Limited Lifetime Warranty SPECIFICATIONS: Type: Electric Mount Type: Vehicle Mounted Recommended Use: Vehicle Recovery Voltage: 12 Volt Electrical Control Type: Contactors Motor Type: Series Wound Thermal Shutoff: No Drive Gear Type: Planetary Gear Reduction Ratio: 216:1 Free Spooling: Yes Brake Type: Mechanical Cone Line Diameter: 3/8 Inch Line Length: 80 Feet Line Material: Steel Fairlead Type: Roller Conforms to J706 Standards: No Remote Type: Wireless Mounting Hole Quantity: 4 Operation Type: Automatic Mounting Pattern Length: 12 Inch Mounting Pattern Width: 4-1/2 Inch Includes Mounting Hardware: Yes Color: Black Drum Material: Aluminum Max Line Pull / Line Speed: 12000 Pound/ 4.5 Feet Per Minute Max Amp Draw / Line Pull: 446 Amp Draw/ 12000 Pound
When your truck is stuck and you're relying on a winch to make it home safely, you want a strong, fast, reliable winch. And quite honestly, there's no better winch for the job than a ZEON Platinum from Warn. With 12,000 pounds of line pull and 80' of heavy duty 3/8" aircraft grade steel rope, you've got dependability on your side.

Now the world's most technologically advanced winch - the ZEON Platinum - comes in a 12,000 pound capacity version spooled with extra-strong Spydura Pro synthetic rope. Already packed with performance features, ZEON Platinum 12-S features the Advanced Wireless Remote that puts winch, clutch and accessory control in the palm of your hand. And now, with the addition of Spydura Pro, you can really see what it means to be winching's top dog.

FEATURES & BENEFITS:
  • All-new high-speed motor, stronger gears, and heat-treated ring gear deliver 20% faster line speed, best-in-class efficiency, and our highest durability rating.
  • The Advanced Wireless Remote gives you total control in the palm of your hand, allowing you to control the winch and up to two accessories. This sophisticated, advanced remote provides operator feedback on vehicle battery charge and winch motor temperature, controls operation of the winch clutch, and more. Includes USB charging cable and car charger adapter.
  • Remote Controlled Clutch is engaged and disengaged with the Advanced Wireless Remote. The remote controls winch-in, winchout, and freespool operations. No more engaging a manual clutch, with frozen fingers while standing in the mud.
  • Durable aluminum structure with flat black powder-coated finish and stainless steel fasteners delivers durability and maximum corrosion resistance-exceeding 400 hours of salt-spray testing.
  • Large diameter alloy winch drum with steel sleeve is strong, light weight, reduces rope wear, and has an integrated rope anchor for easy rope installation.
  • Extreme waterproofing meets rigorous IP68 standards - the highest rating in the WARN Truck/SUV winch lineup.
  • Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately). The new-style control pack with contactor and advanced controls gives you extreme reliability and weather resistance.
  • Limited Lifetime Warranty
SPECIFICATIONS:
  • Type: Electric
  • Mount Type: Vehicle Mounted
  • Recommended Use: Vehicle Recovery
  • Voltage: 12 Volt
  • Electrical Control Type: Contactors
  • Motor Type: Series Wound
  • Thermal Shutoff: No
  • Drive Gear Type: Planetary
  • Gear Reduction Ratio: 216:1
  • Free Spooling: Yes
  • Brake Type: Mechanical Cone
  • Line Diameter: 3/8 Inch
  • Line Length: 80 Feet
  • Line Material: Steel
  • Fairlead Type: Roller
  • Conforms to J706 Standards: No
  • Remote Type: Wireless
  • Mounting Hole Quantity: 4
  • Operation Type: Automatic

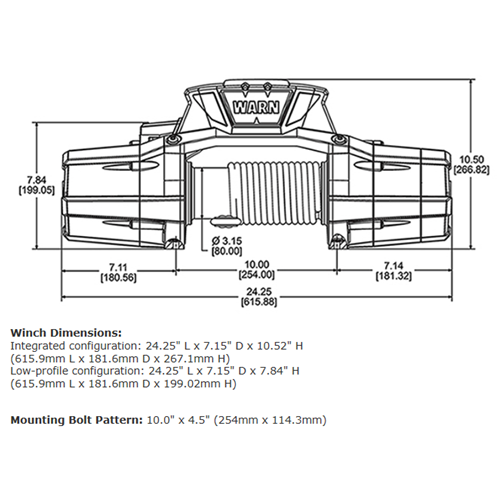

  • Mounting Pattern Length: 12 Inch
  • Mounting Pattern Width: 4-1/2 Inch
  • Includes Mounting Hardware: Yes
  • Color: Black
  • Drum Material: Aluminum

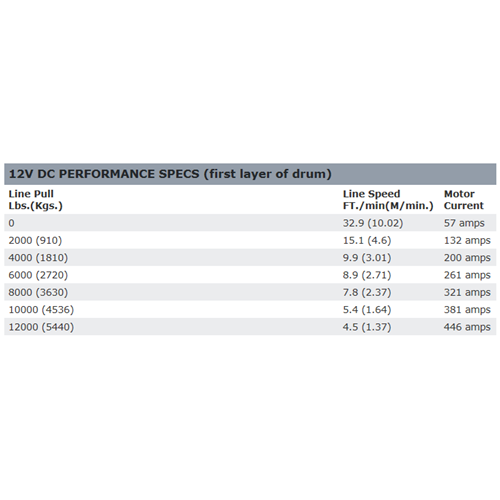

  • Max Line Pull / Line Speed: 12000 Pound/ 4.5 Feet Per Minute
  • Max Amp Draw / Line Pull: 446 Amp Draw/ 12000 Pound
Vehicle Fitment
Universal Fitment
About Warn
Over the past 60+ years, Warn has become more than a winch and hub manufacturer, they have become the leader in manufacturing for a complete line of off-road equipment and accessories to improve the capabilities of nearly any four-wheel drive vehicle, ATV, and utility vehicle. Warn serves three distinct markets - Consumer Aftermarket, Industrial / Commercial, and Original Equipment. What this means is that not only does Warn produce top grade products for your personal use truck and ATV, but they also design and manufacture electric and hydraulic winches and hoists for commercial use, as well as build replacement components for the OEM market, such as hubs. Warn Industries was founded in 1948 by Arthur and Sadie Warn in order to create a business of converting surplus World War II Jeeps into dependable civilian vehicles. Soon after, Arthur engineered the locking hub, which would become an optional factory upgrade to some of the major domestic automotive manufacturers by 1954. Five years later in 1959, the Warn winch was developed, and it was the first recreational winch ever produced. Today, Warn has a complete arsenal of products ranging from winches and hubs, to fender flares and bumpers, to lights and recovery accessories for applications ranging from ATV's to military spec equipment.
