SKU #: WARN-17801 MPN #: 17801

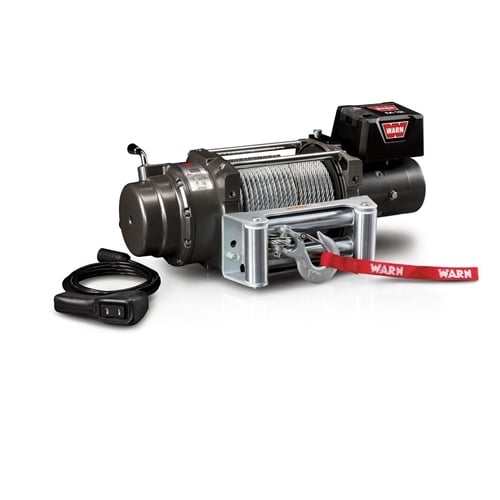

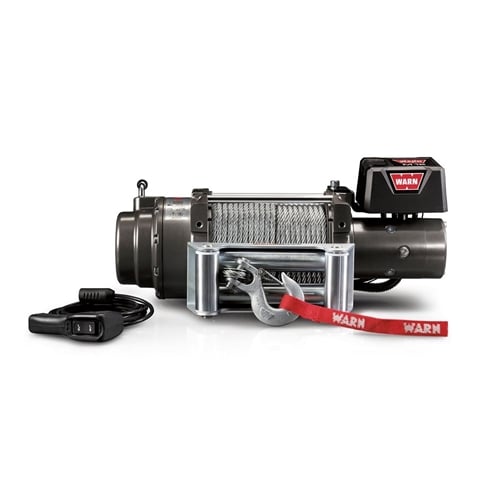

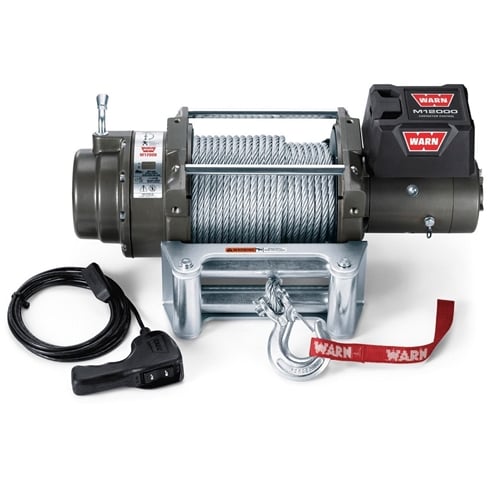

Warn 17801 M12 Series 12,000 Lbs. Heavyweight Winch

$2,409.74
Get 2409 points in loyalty rewards
☆☆☆☆☆ (0)
Description
The Heavyweight Series of winches from Warn are designed to do some serious work. Whether its extracting your truck from a mud hole, pulling a downed tree, or helping a neighbor out, you can trust on it to get the job done. With a weight rating of 12,000 pounds and 125 feet of steel rope, you won't be disappointed in the performance of this winch.
The Heavyweight Series of winches from Warn are designed to do some serious work. Whether its extracting your truck from a mud hole, pulling a downed tree, or helping a neighbor out, you can trust on it to get the job done. With a weight rating of 12,000 pounds and 125 feet of steel rope, you won't be disappointed in the performance of this winch.

Vehicle Fitment
Universal Fitment
FEATURES & BENEFITS:
  • 12,000 lb. (5,440 kg) pulling capacity (single line)
  • Large frame winch design is designed to handle heavier winch loads
  • Series-wound, high-speed motor provides fast line speed and strong pulls
  • Brake provides superior control while winching
  • Remote-mount control box allows for various mounting options
  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Remote control with 12' (3.7m) lead
  • Chip-resistant powder-coated finish
  • 125' of 3/8" (38m of 9.5mm) diameter wire rope
  • Limited Lifetime Warranty
SPECIFICATIONS:
  • Type: Electric
  • Mount Type: Vehicle Mounted
  • Recommended Use: Vehicle Recovery
  • Voltage: 12 Volt
  • Motor Horsepower: 4.6 Horsepower
  • Electrical Control Type: Contactors
  • Motor Type: Series Wound
  • Thermal Shutoff: No
  • Drive Gear Type: Planetary
  • Gear Reduction Ratio: 261:1
  • Free Spooling: Yes
  • Brake Type: Mechanical Cone
  • Line Diameter: 3/8 Inch
  • Line Length: 125 Feet
  • Line Material: Steel
  • Fairlead Type: Roller
  • Conforms to J706 Standards: No
  • Remote Type: Handheld Remote Switch
  • Mounting Hold Quantity: 4
  • Operation Type: Automatic
  • Mounting Pattern Length: 10 Inch
  • Mounting Pattern Width: 4-1/2 Inch
  • Includes Mounting Hardware: No
  • Color: Gray
  • Max Line Pull / Line Speed: 12000 Pound/ 3.86 Feet Per Minute
  • Max Amp Draw / Line Pull: 440 Amp Draw/ 12000 Pound
About Warn
Over the past 60+ years, Warn has become more than a winch and hub manufacturer, they have become the leader in manufacturing for a complete line of off-road equipment and accessories to improve the capabilities of nearly any four-wheel drive vehicle, ATV, and utility vehicle. Warn serves three distinct markets - Consumer Aftermarket, Industrial / Commercial, and Original Equipment. What this means is that not only does Warn produce top grade products for your personal use truck and ATV, but they also design and manufacture electric and hydraulic winches and hoists for commercial use, as well as build replacement components for the OEM market, such as hubs. Warn Industries was founded in 1948 by Arthur and Sadie Warn in order to create a business of converting surplus World War II Jeeps into dependable civilian vehicles. Soon after, Arthur engineered the locking hub, which would become an optional factory upgrade to some of the major domestic automotive manufacturers by 1954. Five years later in 1959, the Warn winch was developed, and it was the first recreational winch ever produced. Today, Warn has a complete arsenal of products ranging from winches and hubs, to fender flares and bumpers, to lights and recovery accessories for applications ranging from ATV's to military spec equipment.
