SKU #: CU-857133
MPN #: 857133

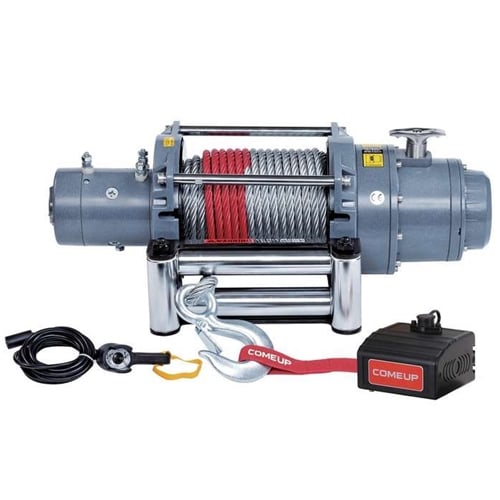

ComeUp 857133 DV-12 12,000 Lbs. Winch
Description
Upgrading your truck with a fast and powerful winch will be one of the best upgrades you've ever made. While most think of a winch as strictly for recovery when offroad, it has so many purposes from moving a fallen tree to helping a neighbor stuck in a snow drift. This DV-12 from ComeUp is rated at 12,000 pounds and features a heavy duty 3-stage planetary gear set for maximum mechanical efficiency.
DESCRIPTION:
Fast, powerful and high efficiency performance.
Heavy duty series wound motor delivers superior torque output and faster line speed.
Submersible sealed contactor with silver-alloy contact pads, thick copper buss bars and submersible construction ensures weather resistance.
Patented Cone Brake Structure - "Brake outside the drum" - allows rapid heat dispersion.
Tough Aluminum alloy housings.
Industrial grade waterproof remote control comes with a thermometric LED indicator on the hand-held switch that automatically alerts when the motor is over-heated.
Rugged and quiet 3-stage steel planetary gears for maximum mechanical efficiency.
An ergonomic T-handle positively engages the free spool clutch through multiple evenly spaced locking holes for rapid rope payout. The entire clutch can be rotated to reposition the T-handle in multiple locations.
SPECIFICATIONS:
Rated Line Pull: 12,000 lbs (5,443 kg) single line
Motor: 5.6 hp / 4,180 w 12V Series Wound
Gear Ratio: 3-Stage Planetary 261:1
Clutch (freespooling): Rotating Ring Gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch Construction: Aluminum Die Cast Housing with Steel Drum

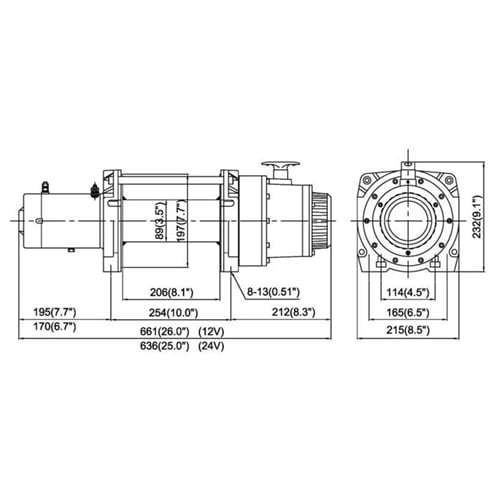

Drum Size: 3.5" x 8.1" (89 x 206 mm)
Control: Waterproof remote with thermometric indicator LED w/17' (5 m) cord
Rope Type: Galvanized aircraft A7 x 19
Rope Size: 3/8" x 125' (9.5 mm x 38 m)

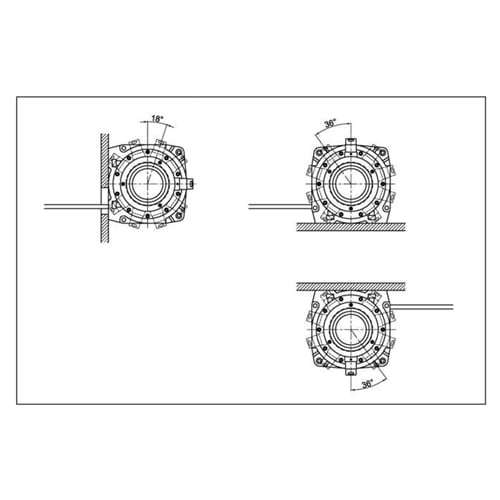

Mounting Bolt Pattern: 10.0" x 4.5" (254 x 114 mm)
Winch Weight: 121 lbs (55 kg)
Gross Weight: 147.7 lbs (67 kg)
Fast and Free Shipping
No Salesmen, Just Enthusiasts
About ComeUp Winch
Are you after a hardcore, well built, high quality winch without the big name price?ComeUp Winch delivers on all fronts with a winch to suit any need.Maybe you're in need of a fully sealed, compact, yet heavy duty winch to mount behind your bumper.Or maybe you want one to mount on your four wheeler for running a plow.Or possibly you just want something to mount in the ceiling of your shop to act as a hoist.On all fronts, ComeUp has you covered.
The ComeUp brand is rated as one of the highest quality winches in the world.ComeUp has exclusively manufactured nothing but winches for over 37 years. As a behind the scenes private label manufacturer for the U.S. market for many years, ComeUp has chosen to go direct with its own brand name to bring its value added high quality winches to the U.S. market at a lower price. Though the ComeUp brand is not yet known in the U.S. ComeUp is highly regarded, very popular and widely used in the rest of the world. ComeUp Winch's reputation for quality, durability and innovative engineering won it the selection for use by Arctic Truck in Polar expeditions to both the South and the North Poles. The expedition to the North Pole was captured on film by the popular international television program œTop Gear.
This honor has given ComeUp winches the distinction of being the only winch to take a driven vehicle to both the North and South Poles, traversing the most hostile and rugged terrains on the face of the Earth.
Some of what makes the ComeUp winch superior are engineering and design solutions for todays actual applications. With the increasing use of synthetic rope on winches today the current designs of all the competitions winches have the brake inside the drum spool.With an internal brake the synthetic rope acts as an insulator and keeps the heat from the brake inside the drum causing brake fade, slipping and failure.The ComeUp winch has what is called a œCBS (cone brake system) which is outside the drum where it can dissipate the heat and stay firmly engaged.The CBS system is also an adjustable true friction brake and provides the most brake surface area of any winch on the market. Many of the inexpensive units on the market do not even have a friction brake but use a coil spring in a bind up arrangement that is very prone to failure.
ComeUp USA offers a full range of winches from 1,500 lbs. utility, ATV and UTV, all the way up to 18,000 lbs. 12V/24V electric and hydraulic self-recovery and industrial winches, with everything in between.
The ComeUp brand is rated as one of the highest quality winches in the world.ComeUp has exclusively manufactured nothing but winches for over 37 years. As a behind the scenes private label manufacturer for the U.S. market for many years, ComeUp has chosen to go direct with its own brand name to bring its value added high quality winches to the U.S. market at a lower price. Though the ComeUp brand is not yet known in the U.S. ComeUp is highly regarded, very popular and widely used in the rest of the world. ComeUp Winch's reputation for quality, durability and innovative engineering won it the selection for use by Arctic Truck in Polar expeditions to both the South and the North Poles. The expedition to the North Pole was captured on film by the popular international television program œTop Gear.
This honor has given ComeUp winches the distinction of being the only winch to take a driven vehicle to both the North and South Poles, traversing the most hostile and rugged terrains on the face of the Earth.
Some of what makes the ComeUp winch superior are engineering and design solutions for todays actual applications. With the increasing use of synthetic rope on winches today the current designs of all the competitions winches have the brake inside the drum spool.With an internal brake the synthetic rope acts as an insulator and keeps the heat from the brake inside the drum causing brake fade, slipping and failure.The ComeUp winch has what is called a œCBS (cone brake system) which is outside the drum where it can dissipate the heat and stay firmly engaged.The CBS system is also an adjustable true friction brake and provides the most brake surface area of any winch on the market. Many of the inexpensive units on the market do not even have a friction brake but use a coil spring in a bind up arrangement that is very prone to failure.
ComeUp USA offers a full range of winches from 1,500 lbs. utility, ATV and UTV, all the way up to 18,000 lbs. 12V/24V electric and hydraulic self-recovery and industrial winches, with everything in between.
