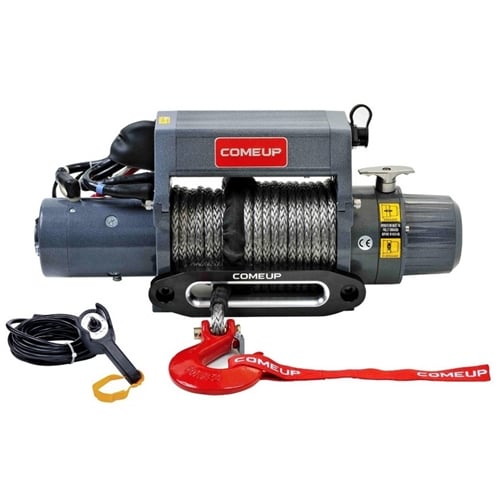

Are you ready for a fast, reliable, compact winch rated for up to 9,000 lbs. at a price point that can't be beat? Check out the DV-9si from ComeUp Winches.
DESCRIPTION:
Fast, powerful and high efficiency performance.
Heavy duty series wound motor delivers superior torque output and faster line speed.
Submersible sealed contactor with silver-alloy contact pads, thick copper buss bars and submersible construction ensures weather resistance.
Patented Cone Brake Structure - "Brake outside the drum" - allows rapid heat dispersion.
Tough Aluminum alloy housings.
Industrial grade waterproof remote control comes with a thermometric LED indicator on the hand-held switch that automatically alerts when the motor is over-heated.
Rugged and quiet 3-stage steel planetary gears for maximum mechanical efficiency.
An ergonomic T-handle positively engages the free spool clutch through multiple evenly spaced locking holes for rapid rope payout. The entire clutch can be rotated to reposition the T-handle in multiple locations.
SPECIFICATIONS:
Rated Line Pull: 9,000 lbs (4,082 kg) single line
Motor: 4.6 hp / 3,430 w 12V Series Wound
Gear Ratio: 3-Stage Planetary 156:1
Clutch (freespooling): Rotating Ring Gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch Construction: Aluminum Die Cast Housing with Steel Drum
Drum Size: 2.5" x 8.9" (63.5 x 227 mm)
Control: Waterproof remote with thermometric indicator LED w/17' (5 m) cord
Rope Type: Synthetic Rope SK-75
Rope Size: 3/8" x 100' (10 mm x 30.5 m)

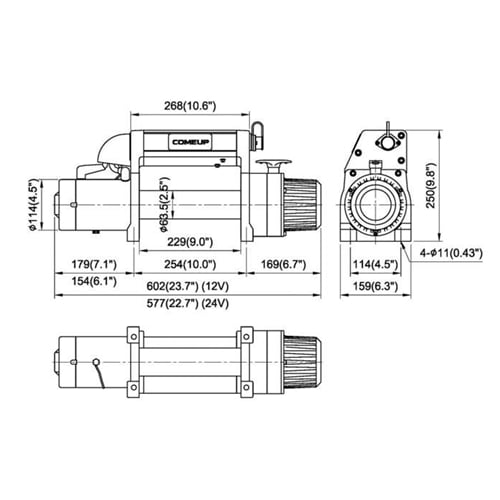

Mounting Bolt Pattern: 10.0" x 4.5" (254 x 114 mm)
Winch Weight: 68.3 lbs (31 kg)
Gross Weight: 81.6 lbs (37 kg)
