SKU #: ICON-K67112 MPN #: K67112

ICON Vehicle Dynamics K67112 7" Stage 2 Suspension System 17-22 6.7L Ford Powerstroke 4WD

Name: ICON Vehicle Dynamics K67112 7" Stage 2 Suspension System 17-22 6.7L Ford Powerstroke 4WD
Brand: ICON Vehicle Dynamics
SKU: ICON-K67112
Price: 6759.2 USD
Availability: InStock

$6,759.20

Get 6759 points in loyalty rewards

☆☆☆☆☆ (0)

ICON Vehicle Dynamics K67112 7" Stage 2 Suspension System 17-22 6.7L Ford Powerstroke 4WD

Description

Technically, one could define this as a lift kit, but its really better described as a complete suspension system. When most think of a lift kit, images of large lift blocks and flimsy drop brackets start flashing through our heads, when that's the complete opposite of this 7" lift system from the professionals at ICON Vehicle Dynamics. You'll get vehicle specific valved 2.5" diameter shocks and all of the necessary components to drastically improve the ride and performance of your suspension, coupled with the ability to clear 37" tires without issue.This suspension system is perfect for on-road and off-road use including towing, job site duty, and general off-road adventure. ICON's 7" Stage 2 System is comprised of dual rate coil springs, progressive leaf springs, radius arm drop brackets, adjustable track bar, dual opposing steering stabilizer kit, ICON 2.5 Series internal reservoir front and rear shocks, plus all of the necessary hardware for installation. With the endless hours ICON has spent testing and tuning their suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Technically, one could define this as a lift kit, but its really better described as a complete suspension system. When most think of a lift kit, images of large lift blocks and flimsy drop brackets start flashing through our heads, when that's the complete opposite of this 7" lift system from the professionals at ICON Vehicle Dynamics. You'll get vehicle specific valved 2.5" diameter shocks and all of the necessary components to drastically improve the ride and performance of your suspension, coupled with the ability to clear 37" tires without issue.

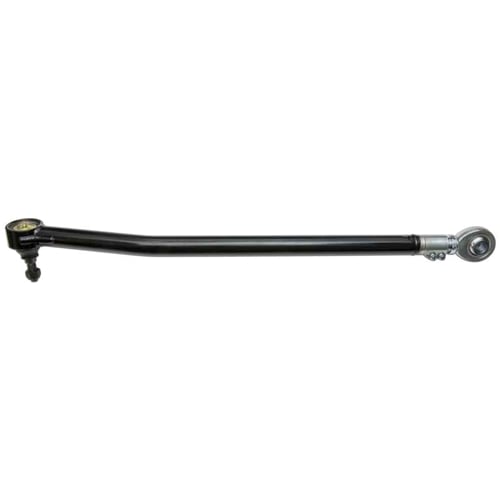

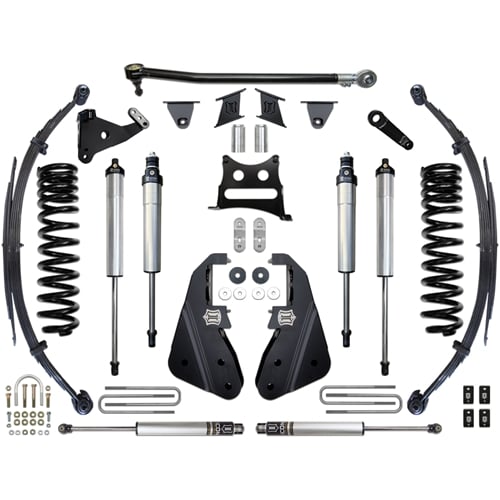

This suspension system is perfect for on-road and off-road use including towing, job site duty, and general off-road adventure. ICON's 7" Stage 2 System is comprised of dual rate coil springs, progressive leaf springs, radius arm drop brackets, adjustable track bar, dual opposing steering stabilizer kit, ICON 2.5 Series internal reservoir front and rear shocks, plus all of the necessary hardware for installation. With the endless hours ICON has spent testing and tuning their suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Manuals and Guides

Vehicle Fitment

2017-2022 6.7L Ford Powerstroke 4x4

WHEEL & TIRE FITMENT INFO:

OEM Wheels & Tires: Yes
Aftermarket Wheels: 8.5-9" Wide, 5" Backspace
Aftermarket Tires: 37 x 12.50 (Larger tires may fit but fender trimming and modifications will be required)

FEATURES & BENEFITS:

Fits 2017-UP F250 / F350 4WD applications
Lifetime guarantee against coil spring breakage or sag
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Approximately 50% increased front wheel travel over stock
ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
Progressive leaf springs improve ride quality without reducing towing capacity

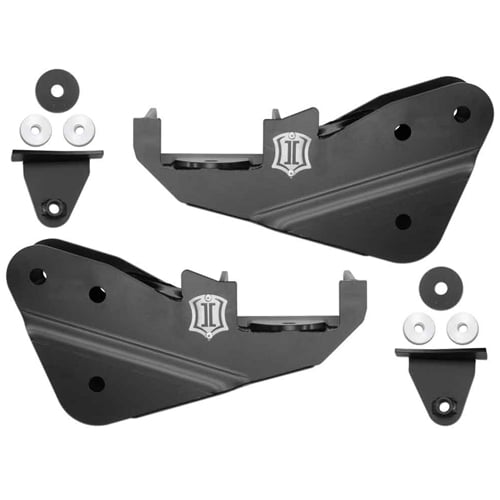

Radius arm drop brackets correct geometry and caster for optimal alignment specs
ICON shocks feature vehicle specific tune for superior performance and ride quality
Shocks are fully rebuildable and revalvable
Corrosion resistant CAD plated shock body with 7/8" shaft (2.5 Series shocks)
FK Rod End bearings provide extended longevity and minimal deflection

About ICON Vehicle Dynamics

ICON Vehicle Dynamics is a premiere performance suspension manufacturer specializing in aftermarket suspension components for trucks, SUVs and off road suspension development. The companys business is customer-driven, technology-influenced, engineering-oriented and focuses on world-class manufacturing processes and techniques. Led by head engineer and SCORE champion driver Dylan Evans, ICON Vehicle Dynamics has the unique qualities to design and build the highest quality suspension components and test them in both real world applications as well as race conditions.

ICON is often asked how they develop such revolutionary performance suspension systems. The answer might surprise you. Their engineers actually start by determining a desired outcome of the vehicle they are working on. By studying forces and their effect on the vehicle in motion (Vehicle Dynamics) they are able to determine what improvements can be made. They determine how they can improve drivability of the vehicle, how to improve the handling characteristics and what changes can be made to improve the vehicle in real world situations. The end result of all this study is the highest quality and performing suspension products in the world. What also sets ICON products apart is our incredible commitment of time and energy dedicated to both ride development and testing. From vehicle dynamic theory to our years of experience and involvement in off road racing, rock crawling and just about anything you can do with a vehicle on or off the road. ICON engineers are in control and the driving force of the entire product line and manufacturing processes. This is made possible because all of their laser cutting, metal forming, CNC machining, welding and assembly is done in house.
