SKU #: DDP-505-50-LEVEL1 MPN #: DDP-505-50-LEVEL1

Dynomite Diesel 50 Horsepower Injector Package with Basic Install Kit 04.5-07 Dodge 5.9L Cummins

$3,216.77
Get 3216 points in loyalty rewards
Description
When it comes time to replace the injectors in your Cummins, wouldn't it be nice if you could get everything you needed in one complete package? Of course it would, and that's why we've put together this complete package that will deliver you a set of Dynomite Diesel 50 horsepower injectors, injector connector tubes, connector tube removal tool, fuel filter, and even a bottle of F-Bomb fuel additive. All you need to supply are a pair of hands and some basic hand tools to complete the job. The original injectors found in the 2004.5-2007 Cummins are sometimes termed "505 injectors" which simply is relating to the Bosch part number of 0 986 435 505, as the last three numbers are what typically change throughout the various engine changes. These injectors in their original state were found to have a high failure rate that Bosch (and Dodge....and Cummins) deemed due to both poor fuel quality and inadequate filtration. But didn't your truck come with a fuel filter?! Overall, they did confirm that an update was necessary, thus a design change was put in place that are substantially more robust than the original units. But for those that never had updated injectors installed, or are simply looking for an increase in horsepower, a new set of 50 horsepower REMAN injectors from Dynomite Diesel will deliver not only the extra power you're looking for, but the longevity that will outlast your truck. As we previously mentioned, though, when it does come time to install your new injectors, you'll need more components than JUST the injectors. First, you really need to replace the connector tubes, which essentially connect the injector inside of the head to the injector lines, external the head. These tube are also known to wear, like the injectors, both internally, as well as externally, where the tube seats into the side of the injector. Most leaks upon installation of new injectors are due to either improper installation of the connector tubes, or reusing the original ones. And guess what, Bosch made an update to the original connector tubes, as well. While the original style tubes are fine, the newer, stainless versions are less susceptible to abrasion and feature a larger inside diameter to aid in fuel flow. Because we always recommend replacing them with new injectors, they are included! Next, in order to remove and install your connector tubes, you COULD use needle nose pliers like many end up doing. However, doing so can very easily cause damage to the threads. The fix? We include a connector tube tool that gets threaded onto the tube and features a knurled grip for simple threading of the tubes. It really doesn't get much easier than this. Now that you've got your new injectors and connector tubes installed, don't you think that protecting that investment would be a good idea? Of course it would be! That's why we've included a new Baldwin 5 micron fuel filter that is a direct replacement for the filter in your stock canister. Lastly, a bottle of F-Bomb Diesel Fuel Additive will ensure that everything is clean, water free, and with a boost of cetane for proper combustion.

Please agree to the Terms and Conditions to Defer the Core Charge, or Accept the Core Charge.

Enter your zip and we'll see if installation is available.

  • Request quotes from local installers at checkout
  • Compare options and choose the best fit for your install

When it comes time to replace the injectors in your Cummins, wouldn't it be nice if you could get everything you needed in one complete package? Of course it would, and that's why we've put together this complete package that will deliver you a set of Dynomite Diesel 50 horsepower injectors, injector connector tubes, connector tube removal tool, fuel filter, and even a bottle of F-Bomb fuel additive. All you need to supply are a pair of hands and some basic hand tools to complete the job.

The original injectors found in the 2004.5-2007 Cummins are sometimes termed "505 injectors" which simply is relating to the Bosch part number of 0 986 435 505, as the last three numbers are what typically change throughout the various engine changes. These injectors in their original state were found to have a high failure rate that Bosch (and Dodge....and Cummins) deemed due to both poor fuel quality and inadequate filtration. But didn't your truck come with a fuel filter?! Overall, they did confirm that an update was necessary, thus a design change was put in place that are substantially more robust than the original units. But for those that never had updated injectors installed, or are simply looking for an increase in horsepower, a new set of 50 horsepower REMAN injectors from Dynomite Diesel will deliver not only the extra power you're looking for, but the longevity that will outlast your truck.

As we previously mentioned, though, when it does come time to install your new injectors, you'll need more components than JUST the injectors. First, you really need to replace the connector tubes, which essentially connect the injector inside of the head to the injector lines, external the head. These tube are also known to wear, like the injectors, both internally, as well as externally, where the tube seats into the side of the injector. Most leaks upon installation of new injectors are due to either improper installation of the connector tubes, or reusing the original ones. And guess what, Bosch made an update to the original connector tubes, as well. While the original style tubes are fine, the newer, stainless versions are less susceptible to abrasion and feature a larger inside diameter to aid in fuel flow. Because we always recommend replacing them with new injectors, they are included!

Next, in order to remove and install your connector tubes, you COULD use needle nose pliers like many end up doing. However, doing so can very easily cause damage to the threads. The fix? We include a connector tube tool that gets threaded onto the tube and features a knurled grip for simple threading of the tubes. It really doesn't get much easier than this.

Now that you've got your new injectors and connector tubes installed, don't you think that protecting that investment would be a good idea? Of course it would be! That's why we've included a new Baldwin 5 micron fuel filter that is a direct replacement for the filter in your stock canister. Lastly, a bottle of F-Bomb Diesel Fuel Additive will ensure that everything is clean, water free, and with a boost of cetane for proper combustion.

NOT LEGAL FOR SALE OR USE IN CALIFORNIA
Manuals and Guides
Vehicle Fitment
2004.5-2007 Dodge 5.9L Cummins
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

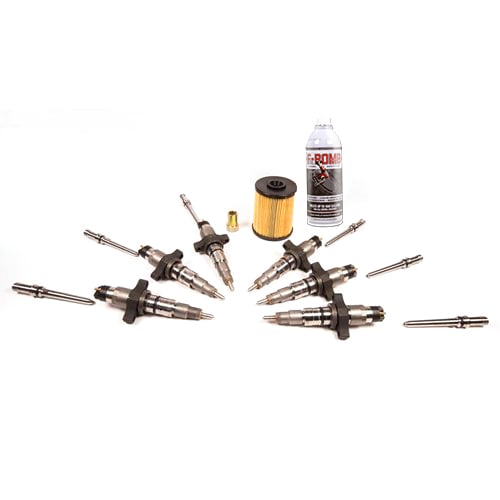

KIT CONTENTS (See 'Related Products' section for more information):

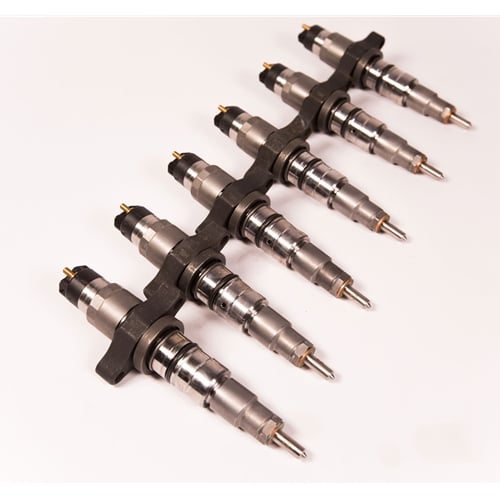

  • Reman Dynomite Diesel 50 Horsepower Injector Set

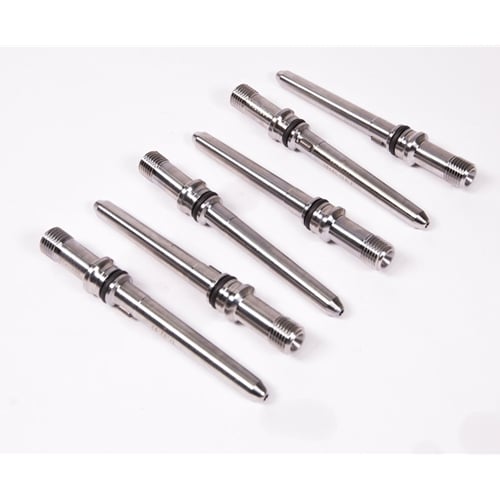

  • Bosch New Style Connector Tubes

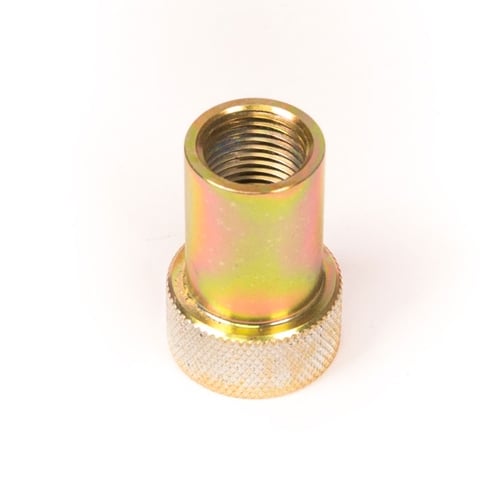

  • Tork-Tek Connector Tube Removal Tool

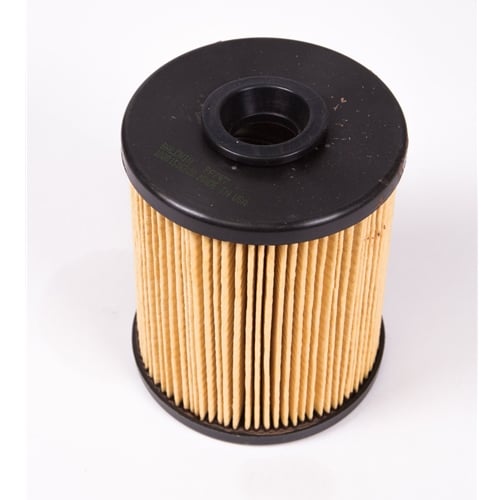

  • Baldwin Fuel Filter

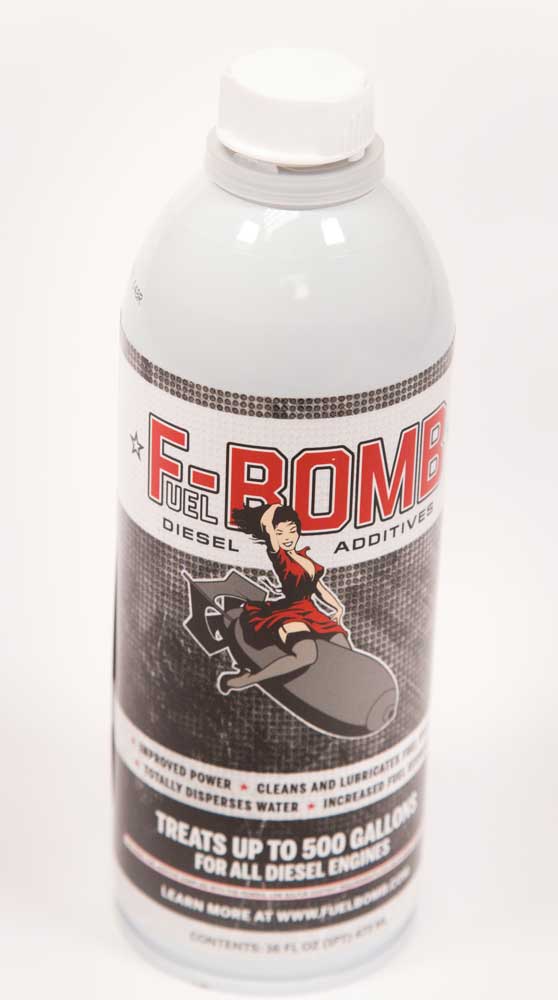

  • F-Bomb Diesel Fuel Additive
About Dynomite Diesel
DDP DIESEL PRODUCTS

Dynomite Diesel was originally founded in 2000 as a fuel injection supply and repair company based out of Washington State by then and now owner Lenny Reed. Over the years, the goals and priorities of DDP would shift away from the repair side of their business and towards fuel injection modification and manufacturing. Today, many of the most reputable high horsepower diesel race truck owners are fueled by a set of Dynomite Diesels Super Mental series injectors, whether its a Cummins, Duramax, or Powerstroke.

DYNOMITE DIESEL INJECTORS & MORE

Now, what really separates a Dynomite Diesel fuel injector from their competition? Many would argue that it comes down to time spent and the materials and tools utilized by DDP to get the job done. Each set of fuel injectors are precisely modified using state of the art machinery and matched as a single set to eliminate any unnecessary deviation that can occur in batch production. Further, Dynomite Diesel spends countless hours testing and measuring various samples, using bore scopes to inspect and measure their modified injectors at the micron level and so many other details that the naked eye simply cannot detect. Lenny and his team are continually testing new methods to create efficiency in fuel combustion. While many would presume this only means fuel economy (MPGs), rather, anytime that more fuel can be turned into power, efficiency is created, as well as net power gained, and exhaust gas temperatures (EGTs) reduced. And for the final touch, each DDP injector is engraved with their logo to ensure you know youre getting a quality Dynomite Diesel product.

Whether youre building a high horsepower sled puller or youre like most and simply want some added power for pulling your equipment or travel trailer without causing any unwanted side effects such as black smoke or high EGTs, upgrading with a set of Dynomite Diesel injectors is an upgrade we stand behind.

Video
Deferred Core Program Explanation

Ben explains the benefits of our deferred core program and how to return your core when necessary. Not sure what that is or need to send your core back? Give this video a watch for information and answers to many FAQ's.

If you’d like more information on our core return policy or need to start the core return process just give us a call at 1-888-993-4373.

Video
Product Overview: Dynomite Diesel Injectors 04.5-07 Dodge 5.9L Cummins
Lenny Reed from Dynomite Diesel Products sits down with Ben to discuss what they are doing to make their 2004.5-2007 Ram 5.9L Cummins Injectors the BEST on the market.
Video
Dynomite Diesel Injector Build Walkthrough Video
Grab a coffee and take a seat, you’re about to learn, A LOT. Join us for an in-depth, start-to-finish, video on how Dynomite Diesel Products makes an injector, specifically their nozzles, the devil is in the details, and the folks at Dynomite know that, and it shows.

Overall rating: 5.0 / 5 from 1 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Great injectors

"Great injectors"

Riley F. (5/5)

Q&A

Are these reman injectors or new?
They are a Reman injector by Dynomite Diesel. If you are looking for new injectors they have a new 50hp injector also that we could put together a kit for you similar to that one. DppSands
