Poor quality
"This is a addendum to my earlier review. Don't buy. Get a FASS. Tried to use my truck the other day and the pump is leaking badly. Now I have no truck to use and my livelyhood depends upon having a vehicle."
Cummins
Shop All
SKU #: AFE-42-12041
MPN #: 42-12041

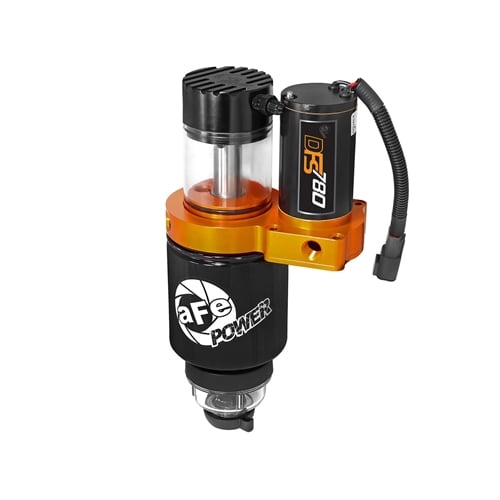

AFE DFS780 Full Time Operation Fuel Pump 14-18 Ram 3.0L 1500 EcoDiesel
Description
Ensure that your EcoDiesel is getting a steady supply of good, clean fuel no matter the engine load by upgrading with a DFS780 fuel pump. By operating full time, as opposed to AFE's Boost Activated model, you're ensured you always have fuel on tap.
Relay Controlled:
The DFS780 is powered by your ignition and can be run independently or in parallel with the stock fuel pump.
Clear High-Impact Polycarbonate Sight Glass:
Allows visual inspection of fuel.
Helical Bronze Spur Gears:
Bronze gears more forgiving of contaminants than steel gears. The Helical spur gear design runs quieter than straight cut gears.
Billet 6061-T6 Aluminum Manifold:
Eliminates porosity concerns with cast aluminum.
"Marine Grade" Motor:
Protected against dust intrusion and powerful water jets.
Plug & Play Installation:
Supplied harness attaches directly to battery and utilizes Deutsch weather-proof connectors. No cutting or modifications of the stock fuel lines required. Vehicle can easily be returned to stock.
Boost Activated Pump Engagement:
Supplied preset boost switch activates pump only under load, reducing wear tear on both the DFS780 and the stock lift pump.
PEEK Bearing Wear Surfaces:
The DFS780 spur gears ride on PEEK (Polyether Ether Ketone) bearing surfaces to reduce both noise and wear.
Contoured CNC Machining Of Manifold Passages:
Enhances flow through the manifold to reduce pressure drop due to flow restrictions.
Direct Bolt-on Steel Mounting Bracket:
Heavy duty bracket mounts to the frame and utilizes existing hole to secure.
Fuel Pressure Gauge Port:
1/8" NPT port allows customer to attach an external pressure gauge to monitor fuel pressure.
O.E Quality Viton Seals:
Compatible with diesel and biodiesel fuels.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
DETAILS:
- Clear high-impact polycarbonate sight glass for visual inspection of fuel
- Helical Spur Gears runs quieter than straight cut gears
- "Marine Grade" motor protects against dust and water
- Contoured CNC manifold enhances flow
- Fuel pressure gauge port
- O.E. quality Viton Seals
- Typical install is 2 hours
- Built in the U.S.A
