SKU #: ZON-F38N MPN #: ZONF38N

Zone Offroad 6" Radius Arm Suspension System 05-07 Ford F-250 / F-350 SuperDuty

$1,346.45

Get 1346 points in loyalty rewards

Zone Offroad 6" Radius Arm Suspension System for 05-07 Ford F-250 and F-350 SuperDuty

Description

Bring your SuperDuty to new heights with this complete suspension system from Zone! This lift kit delivers so much more than cheap alternatives such as fully boxed, replacement radius arms and progressive rate coil springs, but at a price point that you can't pass up coupled with the ability to clear 37's! Lift your Super Duty with Zone Offroad's 6" radius arm suspension lift for an attention grabbing, smooth riding, complete, and affordable system. For less than the cost of some radius arm drop kits on the market, you can buy this system with bullet proof radius arms that provide more ground clearance, better looks, and a big strength improvement over the stockers. American made, gas diesel specific coil springs will not sag to provide you the lift to clear 37's and a ride you might not expect from a system this price competitive. This system includes everything you need and more, including a dropped pitman arm and track bar relocation bracket. To avoid stacking rear blocks or going too tall with a single block, Zone includes a 5" cast iron block with an integrated bump stop as well as an add-a-leaf. This block and add-a-leaf system will reduce spring wrap, level the truck, and is also designed to shift the axle forward to ensure the tire stays centered in the rear wheel well.

Select Shocks

Choose add-ons

Add Zone Offroad Carrier Bearing Drop Kit 99-24 Ford F-250 / F-350 SuperDuty +$45.95

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Bring your SuperDuty to new heights with this complete suspension system from Zone! This lift kit delivers so much more than cheap alternatives such as fully boxed, replacement radius arms and progressive rate coil springs, but at a price point that you can't pass up coupled with the ability to clear 37's!

Lift your Super Duty with Zone Offroad's 6" radius arm suspension lift for an attention grabbing, smooth riding, complete, and affordable system. For less than the cost of some radius arm drop kits on the market, you can buy this system with bullet proof radius arms that provide more ground clearance, better looks, and a big strength improvement over the stockers. American made, gas diesel specific coil springs will not sag to provide you the lift to clear 37's and a ride you might not expect from a system this price competitive.

This system includes everything you need and more, including a dropped pitman arm and track bar relocation bracket. To avoid stacking rear blocks or going too tall with a single block, Zone includes a 5" cast iron block with an integrated bump stop as well as an add-a-leaf. This block and add-a-leaf system will reduce spring wrap, level the truck, and is also designed to shift the axle forward to ensure the tire stays centered in the rear wheel well.

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

2005-2007 Ford F-250 / F-350 SuperDuty 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

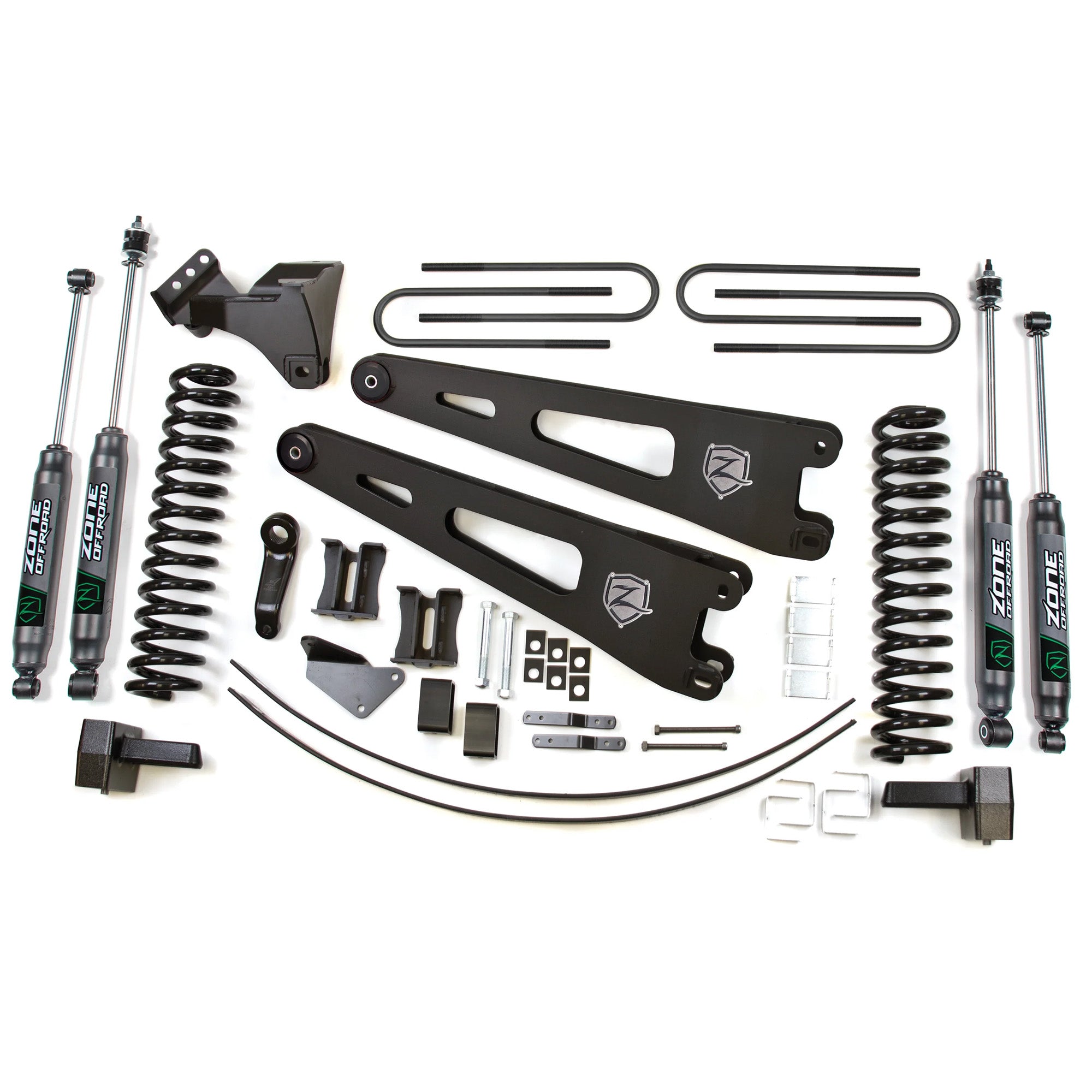

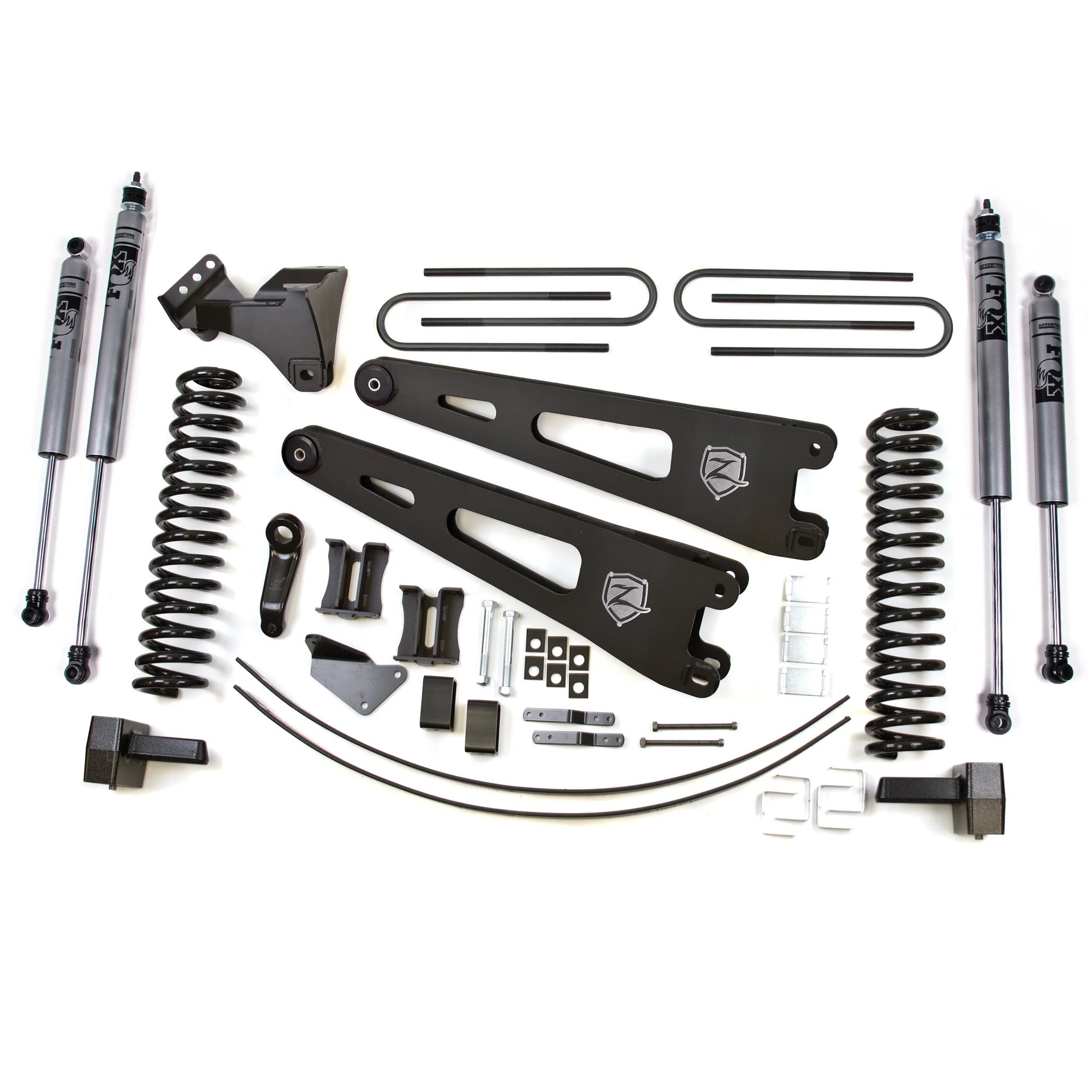

FEATURES & BENEFITS:

1/4" boxed radius arms with oversize greasable bushings
Diesel or gas specific coil springs for an accurate lift height and proper ride quality
Increased ground clearance and better looks than a radius arm drop system
Track bar bracket and dropped pitman arm included to correct steering geometry
Sway bar drop brackets to maintain the OE sway bar angle
Front bump stop spacers
Front and rear brake line relocation brackets
Steering stabilizer relocation bracket
5" rear block with integrated bump stop
Single rear add-a-leafs
Designed to level the truck with removal of the factory block

QUICK SPECS:

Front Lift Height: 6"
Front Lift Method: Radius Arm System with Replacement Coil Springs
Rear Lift Height: 4"
Rear Lift Method: Add-A-Leaf and Block Kit
Install Time Hrs: 6 hrs
Difficulty Level 1-5: 3
Wheel Size: 17 Up
Back Spacing: 4.5"
Max Tire Size: 37 X 12.50

About Zone Offroad Suspension

Zone Offroad Products was developed to bring you quality offroad products at the BEST VALUE in the industry.

Zone is an engineering & manufacturing division of Sport Truck USA, the same parent company that has brought you BDS and JKS, with over 20 years of experience serving offroad enthusiasts. And we will be the first to tell you that Zone's first intention when designing and building a suspension system is not to be the lowest price, thus cutting corners wherever possible, rather about building a complete system that will perform superbly, but at a price point nearly anyone can afford.

Zone offers numerous systems for nearly every application to perfectly suit the stance you're after whether it be a simple 2" leveling kit or a complete 8" suspension system. Browse through our selection of Zone Offroad, and as always, if you don't see what you're looking for or having trouble determining which kit is right for you, do not hesitate to give us a call and we would be happy to assist.
