What are the key features of the Zone Offroad 6" Radius Arm Suspension System 11-16 Ford 6.7L Powerstroke?

1/4" boxed radius arms with oversize greasable bushings; Diesel specific coil springs for accurate lift height and proper ride quality; Increased ground clearance and improved looks versus a radius arm drop system; Track bar bracket and dropped pitman arm to correct steering geometry; Sway bar drop brackets maintain OE sway bar angle; Front bump stop spacers included; Front and rear brake line relocation brackets included; Steering stabilizer relocation bracket included; 5" rear block with integrated bump stop; Dual rear add-a-leafs; Designed to level the truck with removal of the factory block

What are the specifications of the Zone Offroad 6" Radius Arm Suspension System 11-16 Ford 6.7L Powerstroke?

6" lift; 1/4" boxed radius arms; 5" rear block

SKU #: ZON-F30 MPN #: F30

Zone Offroad 6" Radius Arm Suspension System 11-16 Ford 6.7L Powerstroke

$1,268.65

Get 1268 points in loyalty rewards

Zone Offroad 6" Radius Arm Suspension System for 11-16 Ford 6.7L Powerstroke

Description Overview

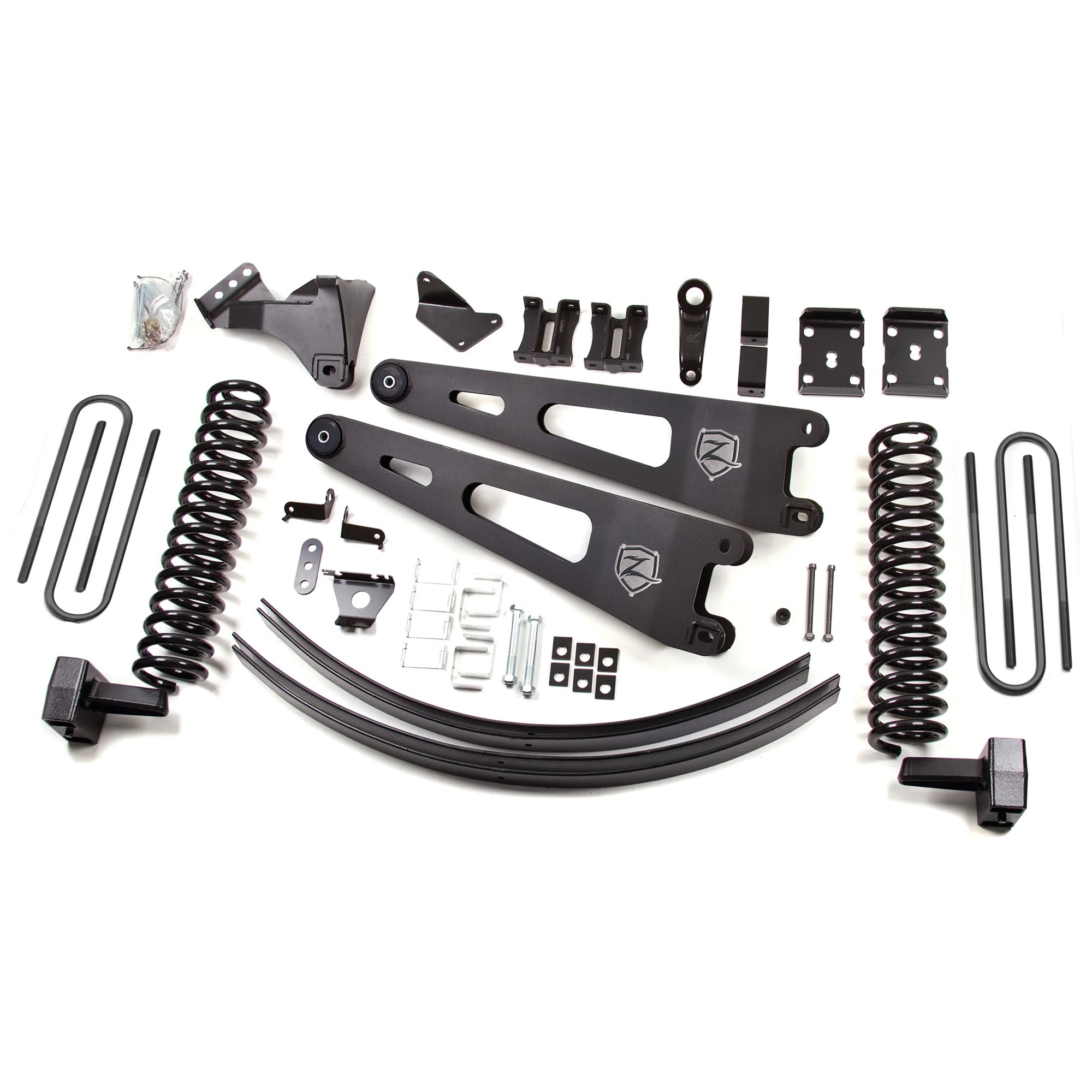

Bring your SuperDuty to new heights with this complete suspension system from Zone! This lift kit delivers so much more than cheap alternatives such as fully boxed, replacement radius arms and progressive rate coil springs, but at a price point that you can't pass up coupled with the ability to clear 37's! Lift your Super Duty with Zone Offroad's 6" radius arm suspension lift for an attention grabbing, smooth riding, complete, and affordable system. For less than the cost of some radius arm drop kits on the market, you can buy this system with bullet proof radius arms that provide more ground clearance, better looks, and a big strength improvement over the stockers. American made, diesel specific coil springs will not sag to provide you the lift to clear 37's and a ride you might not expect from a system this price competitive. This system includes everything you need and more, including a dropped pitman arm and track bar relocation bracket. To avoid stacking rear blocks or going too tall with a single block, Zone includes a 5" cast iron block with an integrated bump stop as well as dual add-a-leafs. This block and add-a-leaf system will reduce spring wrap, level the truck, and is also designed to shift the axle forward to ensure the tire stays centered in the rear wheel well. OPTIONS NOTE: No Overload is for trucks that DO NOT have factory top mounted rear overload springs. With Overload is for trucks that DO have factory top mounted rear overload springs.

Does Your Truck Have Factory Overload Springs?

Product photos may not match the selected option. Please confirm your choice before adding to cart.

Choose add-ons

Add Zone Offroad Carrier Bearing Drop Kit 99-24 Ford F-250 / F-350 SuperDuty +$45.95

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Complete 6" radius arm suspension lift system for Super Duty trucks, featuring 1/4" boxed radius arms and diesel-specific coil springs for increased ground clearance.

Fits: 2011-2016 Ford 6.7L Powerstroke 4x4
Brand: Zone Offroad Suspension
Best for: Lifting a Super Duty for improved ground clearance and ride quality
Key features: 1/4" boxed radius arms with oversize greasable bushings
Diesel specific coil springs for accurate lift height and proper ride quality
Increased ground clearance and improved looks versus a radius arm drop system
Track bar bracket and dropped pitman arm to correct steering geometry
Sway bar drop brackets maintain OE sway bar angle
Front bump stop spacers included
Front and rear brake line relocation brackets included
Steering stabilizer relocation bracket included
5" rear block with integrated bump stop
Dual rear add-a-leafs
Designed to level the truck with removal of the factory block
Key specs: 6" lift
1/4" boxed radius arms
5" rear block

Summarized by AI from this product’s description and specs. Confirm fitment for your year, make and engine before ordering.

Bring your SuperDuty to new heights with this complete suspension system from Zone! This lift kit delivers so much more than cheap alternatives such as fully boxed, replacement radius arms and progressive rate coil springs, but at a price point that you can't pass up coupled with the ability to clear 37's!

Lift your Super Duty with Zone Offroad's 6" radius arm suspension lift for an attention grabbing, smooth riding, complete, and affordable system. For less than the cost of some radius arm drop kits on the market, you can buy this system with bullet proof radius arms that provide more ground clearance, better looks, and a big strength improvement over the stockers. American made, diesel specific coil springs will not sag to provide you the lift to clear 37's and a ride you might not expect from a system this price competitive.

This system includes everything you need and more, including a dropped pitman arm and track bar relocation bracket. To avoid stacking rear blocks or going too tall with a single block, Zone includes a 5" cast iron block with an integrated bump stop as well as dual add-a-leafs. This block and add-a-leaf system will reduce spring wrap, level the truck, and is also designed to shift the axle forward to ensure the tire stays centered in the rear wheel well.

OPTIONS NOTE:

No Overload is for trucks that DO NOT have factory top mounted rear overload springs.
With Overload is for trucks that DO have factory top mounted rear overload springs.

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

2011-2016 Ford 6.7L Powerstroke 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

1/4" boxed radius arms with oversize greasable bushings
Diesel specific coil springs for an accurate lift height and proper ride quality
Increased ground clearance and better looks than a radius arm drop system
Track bar bracket and dropped pitman arm included to correct steering geometry
Sway bar drop brackets to maintain the OE sway bar angle
Front bump stop spacers
Front and rear brake line relocation brackets
Steering stabilizer relocation bracket
5" rear block with integrated bump stop
Dual rear add-a-leafs
Designed to level the truck with removal of the factory block

QUICK SPECS:

Front Lift Height: 6"
Front Lift Method: Radius Arm System with Replacement Coil Springs
Rear Lift Height: 4"
Rear Lift Method: Dual Add-A-Leafs and Block Kit
Install Time Hrs: 6 hrs
Difficulty Level 1-5: 3
Wheel Size: 17 X 9
Back Spacing: 4.5"
Max Tire Size: 37 X 12.50
Wheel Size 20 X 9
Back Spacing 4.5"
Max Tire Size: 37 X 12.50

About Zone Offroad Suspension

Zone Offroad Products was developed to bring you quality offroad products at the BEST VALUE in the industry.

Zone is an engineering & manufacturing division of Sport Truck USA, the same parent company that has brought you BDS and JKS, with over 20 years of experience serving offroad enthusiasts. And we will be the first to tell you that Zone's first intention when designing and building a suspension system is not to be the lowest price, thus cutting corners wherever possible, rather about building a complete system that will perform superbly, but at a price point nearly anyone can afford.

Zone offers numerous systems for nearly every application to perfectly suit the stance you're after whether it be a simple 2" leveling kit or a complete 8" suspension system. Browse through our selection of Zone Offroad, and as always, if you don't see what you're looking for or having trouble determining which kit is right for you, do not hesitate to give us a call and we would be happy to assist.
