SKU #: ZON-F25N MPN #: ZONF25N

Zone Offroad 4" Radius Arm Suspension System 11-16 Ford 6.7L Powerstroke

$1,115.50

Get 1115 points in loyalty rewards

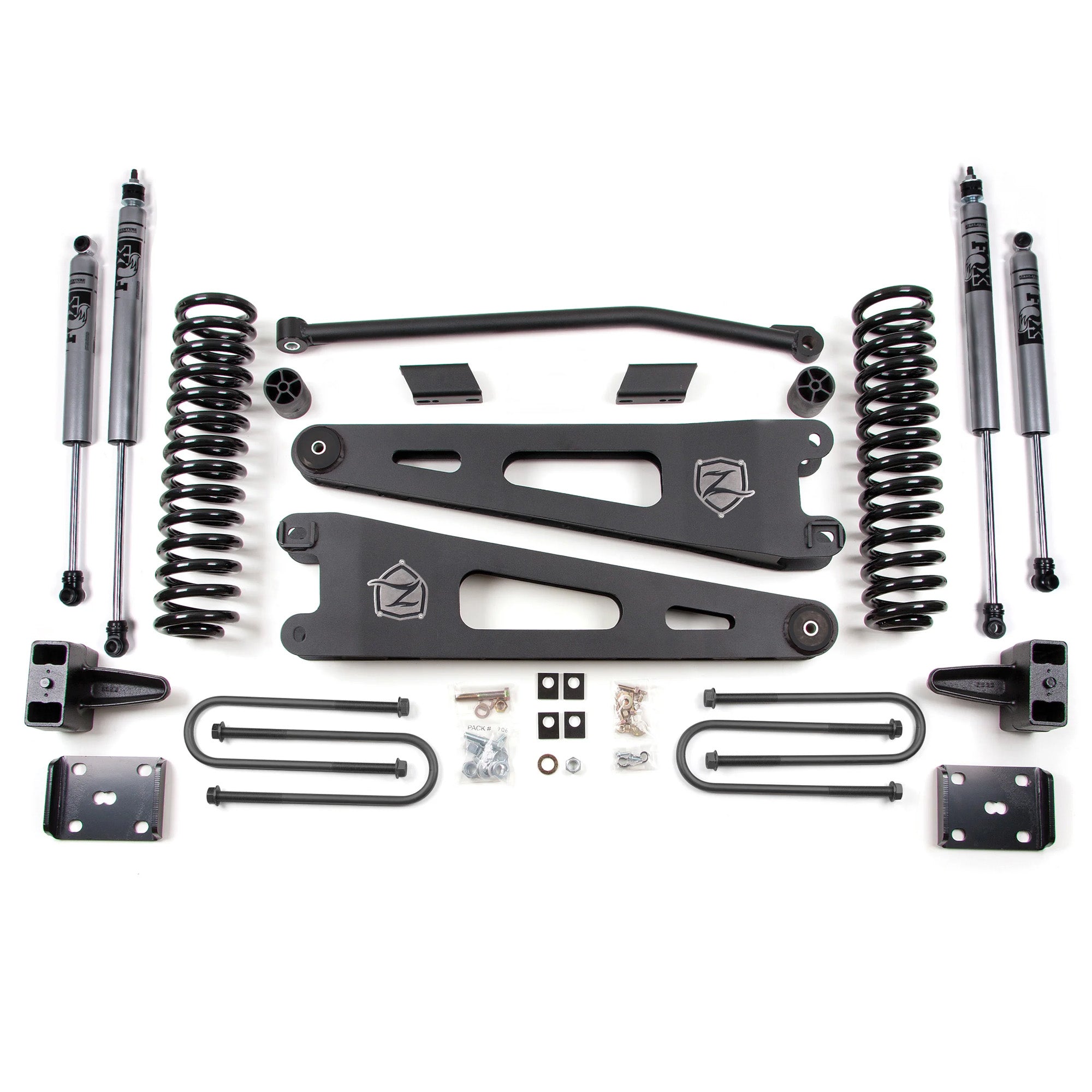

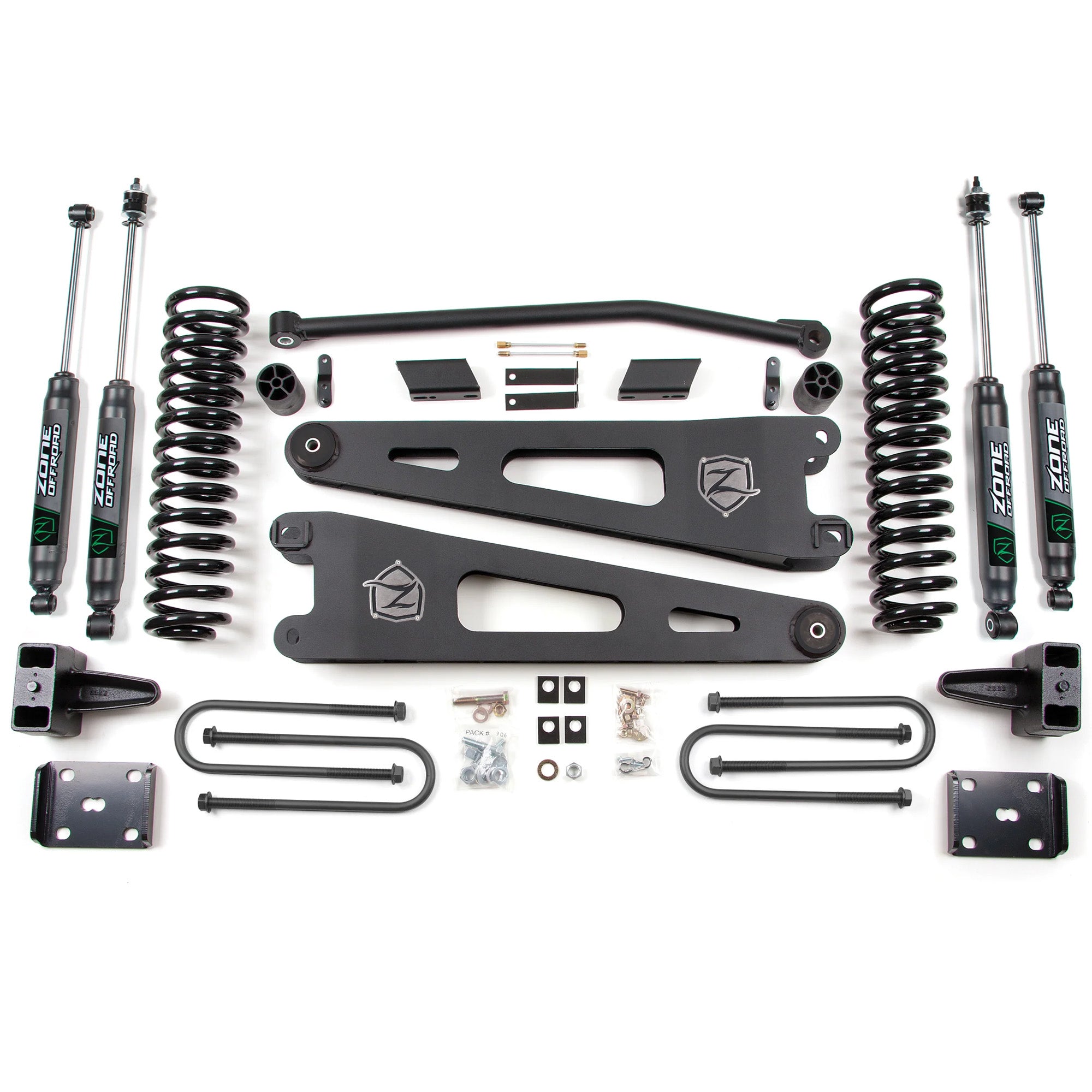

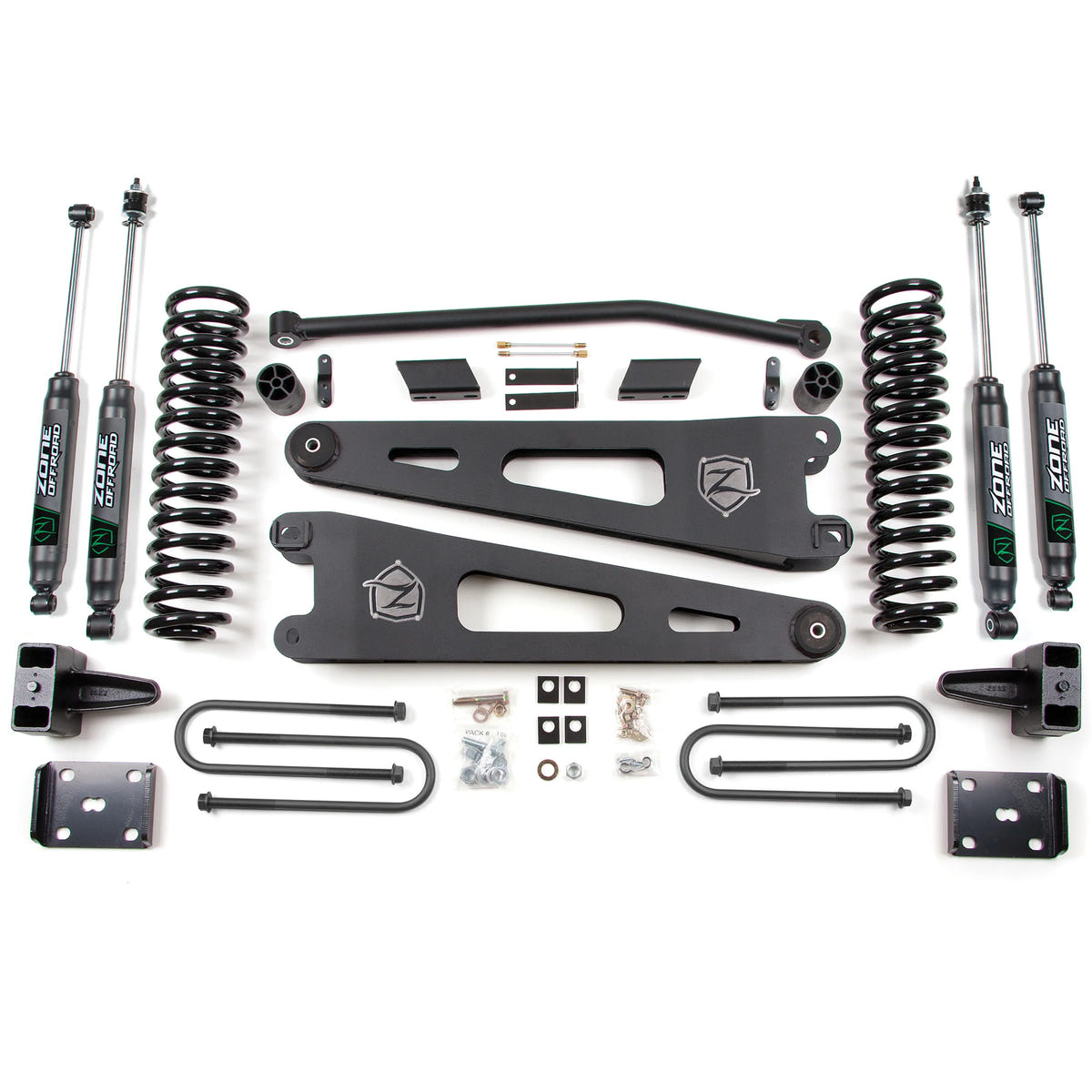

Zone Offroad 4" Radius Arm Suspension System for 11-16 Ford 6.7L Powerstroke

Description

Bring your SuperDuty to new heights with this complete suspension system from Zone! This lift kit delivers so much more than cheap alternatives such as fully boxed, replacement radius arms and progressive rate coil springs, but at a price point that you can't pass up. This radius arm suspension lift features tough replacement radius arms that are considerably stronger than their stock counterparts, made of 1/4" steel, fully boxed steel, and utilizing large 2-1/2", greasable urethane bushings. The arms bolt directly into the stock location, and position the axle for the proper caster and wheel location. The lower mount point at the axle utilizes Zone's popular cam lock design, making it adjustable for 4" or 6" of lift. Engine specific front coil springs are designed to not only ride great, but will hold up over the long haul. A 1-1/2" solid steel track bar is included to properly center the axle after lifting. This track bar features new oversized, high-durometer (hardness) urethane bushings for long term performance and improved handling. The rear is lifted with a 5" block used to replace the factory block instead of stacking blocks. This system is also one of the easiest installations on the market because of the use of a front track bar and rear block kit. If you are looking to not only lift your Super Duty, but improve the looks, strength, and feel of your suspension, choose the Zone Offroad radius arm system.

Select Shocks

Select Rear Lift

Choose add-ons

Add Zone Offroad Carrier Bearing Drop Kit 99-24 Ford F-250 / F-350 SuperDuty +$45.95

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Bring your SuperDuty to new heights with this complete suspension system from Zone! This lift kit delivers so much more than cheap alternatives such as fully boxed, replacement radius arms and progressive rate coil springs, but at a price point that you can't pass up.

This radius arm suspension lift features tough replacement radius arms that are considerably stronger than their stock counterparts, made of 1/4" steel, fully boxed steel, and utilizing large 2-1/2", greasable urethane bushings. The arms bolt directly into the stock location, and position the axle for the proper caster and wheel location. The lower mount point at the axle utilizes Zone's popular cam lock design, making it adjustable for 4" or 6" of lift.

Engine specific front coil springs are designed to not only ride great, but will hold up over the long haul. A 1-1/2" solid steel track bar is included to properly center the axle after lifting. This track bar features new oversized, high-durometer (hardness) urethane bushings for long term performance and improved handling.

The rear is lifted with a 5" block used to replace the factory block instead of stacking blocks. This system is also one of the easiest installations on the market because of the use of a front track bar and rear block kit. If you are looking to not only lift your Super Duty, but improve the looks, strength, and feel of your suspension, choose the Zone Offroad radius arm system.

Vehicle Fitment

2011-2016 Ford F-250 / F-350 SuperDuty 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Front coil springs offering off-road performance and great ride qualtiy that will not sag.
1/4" boxed steel radius arms, utilizing 2 1/2" greasable urethane bushings.
1-1/2" Solid steel track bar featuring specifically engineered bushings.
Yellow zinc plated rear u-bolts with high nuts hardened washers.
Rear 5" block kit to eliminate the factory block - NO stacking blocks!

QUICK SPECS:

Front Lift Height: 4"
Front Lift Method: Radius Arm System with Replacement Coil Springs
Rear Lift Height: 3"
Rear Lift Method: Block Kit
Install Time Hrs: 6 hrs
Difficulty Level 1-5: 2
Wheel Size: 17 X 9
Back Spacing: 4.5"³
Max Tire Size: 35 X 12.50

About Zone Offroad Suspension

Zone Offroad Products was developed to bring you quality offroad products at the BEST VALUE in the industry.

Zone is an engineering & manufacturing division of Sport Truck USA, the same parent company that has brought you BDS and JKS, with over 20 years of experience serving offroad enthusiasts. And we will be the first to tell you that Zone's first intention when designing and building a suspension system is not to be the lowest price, thus cutting corners wherever possible, rather about building a complete system that will perform superbly, but at a price point nearly anyone can afford.

Zone offers numerous systems for nearly every application to perfectly suit the stance you're after whether it be a simple 2" leveling kit or a complete 8" suspension system. Browse through our selection of Zone Offroad, and as always, if you don't see what you're looking for or having trouble determining which kit is right for you, do not hesitate to give us a call and we would be happy to assist.
