SKU #: ZON-D57N MPN #: D57N

Zone Offroad D57 6.5" Radius Arm Suspension System 13-18 Ram 3500 6.7L Cummins

Name: Zone Offroad D57 6.5" Radius Arm Suspension System 13-18 Ram 3500 6.7L Cummins
Brand: Zone Offroad Suspension
Price: 1158.5 USD
Availability: InStock

$1,158.50

Get 1158 points in loyalty rewards

Zone Offroad D57 6.5" Radius Arm Suspension System for 13-18 Ram 3500 6.7L Cummins

Description

There's a big difference between your run of the mill "lift kit" and a legitimate "suspension system." This system from Zone definitely falls more in line with a suspension system as it takes into account all angles to not only lift your Cummins powered Ram, but also improve upon the performance of the suspension for an improved ride, on or offroad. With this kit, you'll be able to clear up to 37" x 13.50" tires to separate your Ram 3500 from the crowd and allow you to venture anywhere! This kit offers improved strength, performance, and ride quality over the standard drop bracket kit. Engineered to match the brawn of the RAM 3500 4WD Cummins powered trucks, these systems upgrade the factory front radius arms and offer impressive handling characteristics on road while improving offroad performance and allowing for up to 37" tires to be installed. The new radius arms are a substantial upgrade to the factory stamped units and improve the ground clearance compared to drop bracket kits. The arms are fully boxed, internally gusseted and designed to bolt in the factory location while correcting the suspension geometry at 6.5'' of lift. At the frame mount, the arms utilize extra large, greaseable bushings to isolate road noise and vibrations while the axle mount is designed to retain the factory alignment cams for adjustability. The arms are formed inward to maximize tire clearance and looks great under the RAM HDs. In addition to the replacement radius arms, this system gets its height from 6.5" progressive rate front coils designed for a smooth ride for unmatched highway and trail performance. Steering correction comes from a forged dropped pitman arm and a heavy duty, fully welded front track bar bracket that is used at the frame to recenter the front axle securely under the truck. Rounding out the front of this 6.5" radius arm system are a pair of polyurethane extended bump stops, brake line relocation brackets, your choice of Zone Hydro or Zone Nitro shocks at all 4 corners, and all the necessary hardware to complete the install. Out back the rear is lifted using a 5" block and long u-bolts to level the stance and allow for up to 37" tires to be installed.

Choose add-ons

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

There's a big difference between your run of the mill "lift kit" and a legitimate "suspension system." This system from Zone definitely falls more in line with a suspension system as it takes into account all angles to not only lift your Cummins powered Ram, but also improve upon the performance of the suspension for an improved ride, on or offroad. With this kit, you'll be able to clear up to 37" x 13.50" tires to separate your Ram 3500 from the crowd and allow you to venture anywhere!

This kit offers improved strength, performance, and ride quality over the standard drop bracket kit. Engineered to match the brawn of the RAM 3500 4WD Cummins powered trucks, these systems upgrade the factory front radius arms and offer impressive handling characteristics on road while improving offroad performance and allowing for up to 37" tires to be installed.

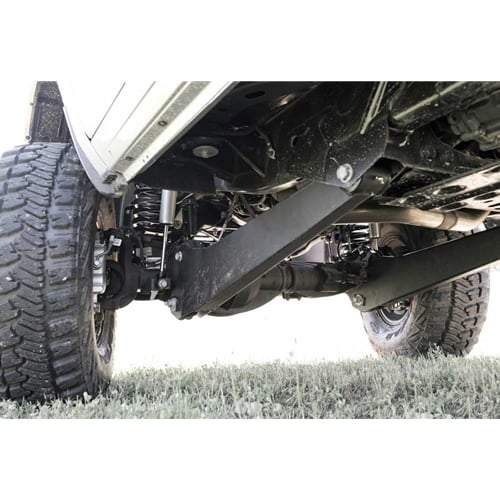

The new radius arms are a substantial upgrade to the factory stamped units and improve the ground clearance compared to drop bracket kits. The arms are fully boxed, internally gusseted and designed to bolt in the factory location while correcting the suspension geometry at 6.5'' of lift. At the frame mount, the arms utilize extra large, greaseable bushings to isolate road noise and vibrations while the axle mount is designed to retain the factory alignment cams for adjustability. The arms are formed inward to maximize tire clearance and looks great under the RAM HDs.

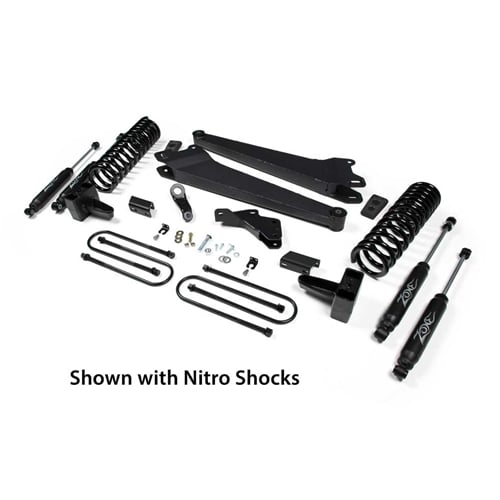

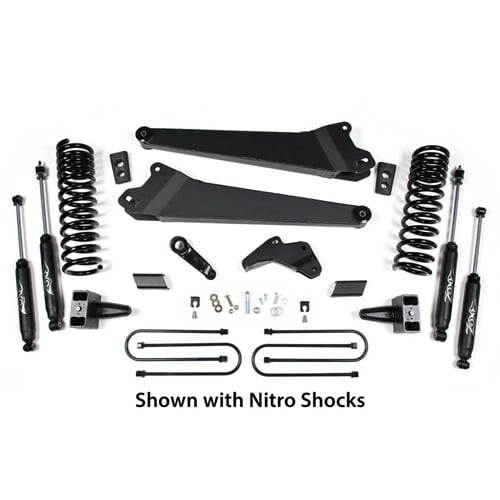

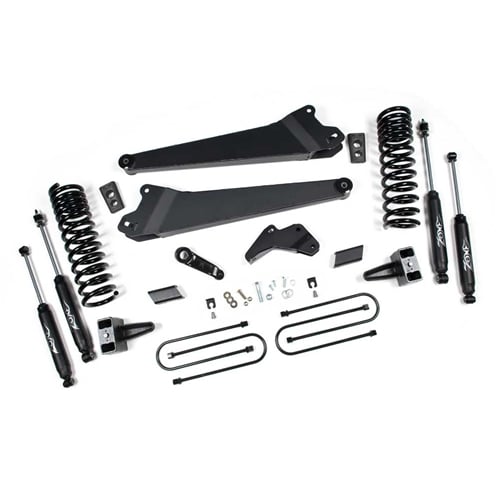

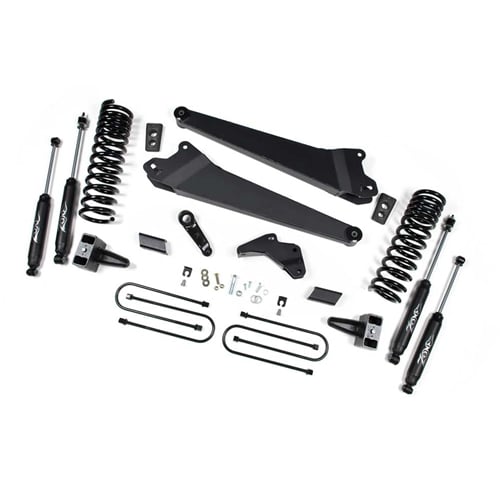

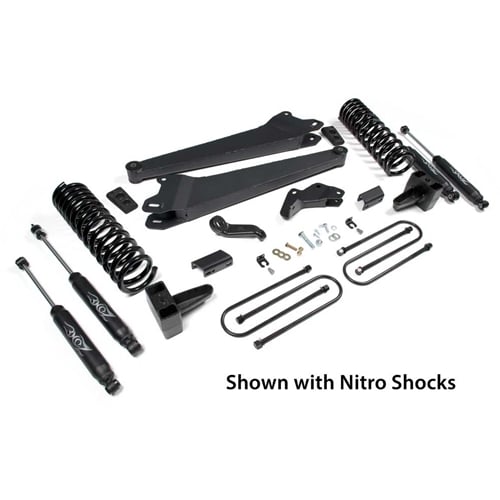

In addition to the replacement radius arms, this system gets its height from 6.5" progressive rate front coils designed for a smooth ride for unmatched highway and trail performance. Steering correction comes from a forged dropped pitman arm and a heavy duty, fully welded front track bar bracket that is used at the frame to recenter the front axle securely under the truck. Rounding out the front of this 6.5" radius arm system are a pair of polyurethane extended bump stops, brake line relocation brackets, your choice of Zone Hydro or Zone Nitro shocks at all 4 corners, and all the necessary hardware to complete the install. Out back the rear is lifted using a 5" block and long u-bolts to level the stance and allow for up to 37" tires to be installed.

Vehicle Fitment

2013-2018 Ram 3500 6.7L Cummins 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Heavy Duty Internally Gusseted Radius Arms
Progressive Rate Front Coil Springs
Correct Suspension Geometry

IMPORTANT NOTES:

Although very rare, front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Optional t-case indexing ring kit recommended to reduce front driveline angle. Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813.
Vehicles equipped with a two piece drive shaft and a carrier bearing require bearing drop kit D5405.
Not designed for dually models.
Not designed for factory rear airbag suspension models.

About Zone Offroad Suspension

Zone Offroad Products was developed to bring you quality offroad products at the BEST VALUE in the industry.

Zone is an engineering & manufacturing division of Sport Truck USA, the same parent company that has brought you BDS and JKS, with over 20 years of experience serving offroad enthusiasts. And we will be the first to tell you that Zone's first intention when designing and building a suspension system is not to be the lowest price, thus cutting corners wherever possible, rather about building a complete system that will perform superbly, but at a price point nearly anyone can afford.

Zone offers numerous systems for nearly every application to perfectly suit the stance you're after whether it be a simple 2" leveling kit or a complete 8" suspension system. Browse through our selection of Zone Offroad, and as always, if you don't see what you're looking for or having trouble determining which kit is right for you, do not hesitate to give us a call and we would be happy to assist.
