SKU #: ZON-D55N MPN #: ZOND55N

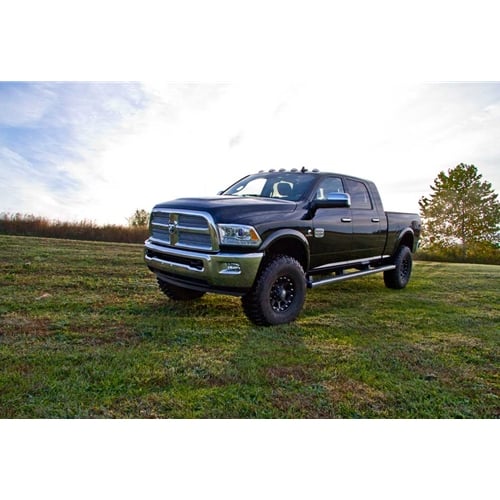

Zone Offroad 4.5" Radius Arm Suspension System 14-18 Ram 2500 6.7L Cummins

$1,246.50

Get 1246 points in loyalty rewards

Zone Offroad 4.5" Radius Arm Suspension System for 14-18 Ram 2500 6.7L Cummins

Description

This heavy duty radius arm upgrade package features tough replacement radius arms that will work with most 4" - 6.5" suspension lifts. Made of fully boxed and internally gusseted 1/4" steel and utilizing large greasable urethane bushings, these arms are a considerable upgrade in strength from the stock arms. Holding true to typical Zone form, this lift system is centered around two new massive radius arms to replace the factory arms. The new arms are fully boxed, internally gusseted and designed to bolt in the factory location while adjusting the suspension geometry for 4.5" to 6.5" of lift. The arms utilize extra large, greaseable bushings at the frame and are designed to use the factory alignment cams at the axle. They are formed for maximum tire clearance. Lastly, they just flat-out look cool and are a nice upgrade from the standard radius arm drop systems. In the rear, the new 4 link suspension designed is modified for 2.5" of lift via a new heavy duty coil spring spacer setup. The coil spring spacers located and bolt directly to the factory axle mount. The new provided track bar relocation bracket centers the axle. Extended sway bar links and bump stops round out the rear kit components.

Select Shocks

Choose add-ons

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

This heavy duty radius arm upgrade package features tough replacement radius arms that will work with most 4" - 6.5" suspension lifts. Made of fully boxed and internally gusseted 1/4" steel and utilizing large greasable urethane bushings, these arms are a considerable upgrade in strength from the stock arms.

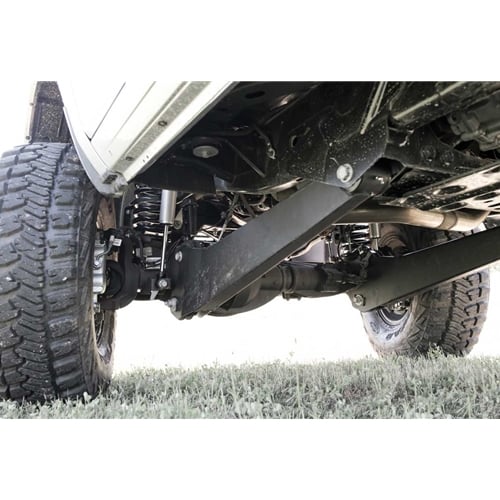

Holding true to typical Zone form, this lift system is centered around two new massive radius arms to replace the factory arms. The new arms are fully boxed, internally gusseted and designed to bolt in the factory location while adjusting the suspension geometry for 4.5" to 6.5" of lift.

The arms utilize extra large, greaseable bushings at the frame and are designed to use the factory alignment cams at the axle. They are formed for maximum tire clearance. Lastly, they just flat-out look cool and are a nice upgrade from the standard radius arm drop systems.

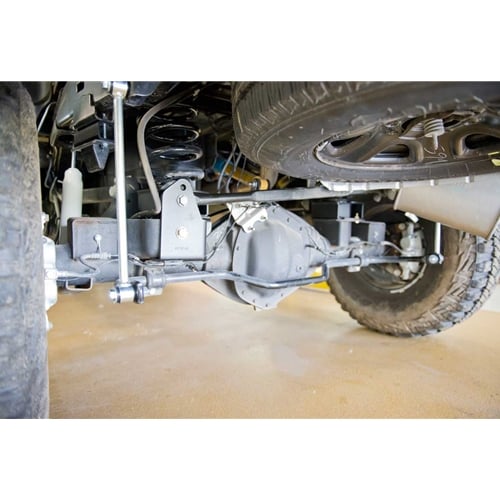

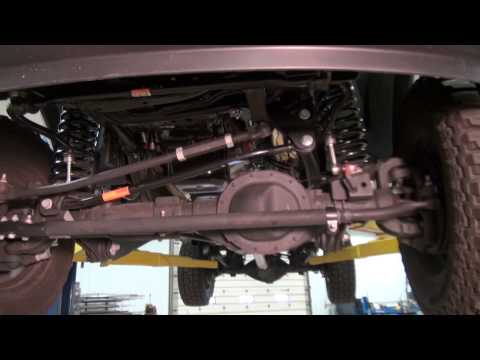

In the rear, the new 4 link suspension designed is modified for 2.5" of lift via a new heavy duty coil spring spacer setup. The coil spring spacers located and bolt directly to the factory axle mount. The new provided track bar relocation bracket centers the axle. Extended sway bar links and bump stops round out the rear kit components.

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

2014-2018 Ram 2500 6.7L Cummins 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

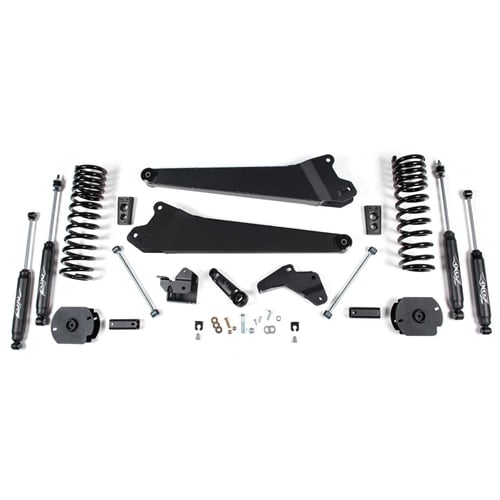

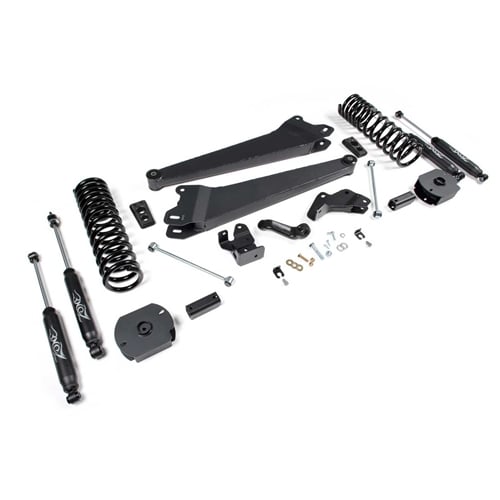

FEATURES & BENEFITS:

Heavy duty Internally Gusseted Radius Arms
Progressive Rate Front Coil Springs
Correct Suspension Geometry
Heavy duty Track Bar Relocation Bracket
Drop Pitman Arm
Extended rear sway bar links
Application specific valved shocks
Bump stop extensions

IMPORTANT NOTES:

Although very rare, front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Optional t-case indexing ring kit recommended to reduce front driveline angle. Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813.
Vehicles equipped with a two piece rear drive shaft and a carrier bearing require bearing drop kit D5405.
Not designed for factory rear airbag suspension models.

About Zone Offroad Suspension

Zone Offroad Products was developed to bring you quality offroad products at the BEST VALUE in the industry.

Zone is an engineering & manufacturing division of Sport Truck USA, the same parent company that has brought you BDS and JKS, with over 20 years of experience serving offroad enthusiasts. And we will be the first to tell you that Zone's first intention when designing and building a suspension system is not to be the lowest price, thus cutting corners wherever possible, rather about building a complete system that will perform superbly, but at a price point nearly anyone can afford.

Zone offers numerous systems for nearly every application to perfectly suit the stance you're after whether it be a simple 2" leveling kit or a complete 8" suspension system. Browse through our selection of Zone Offroad, and as always, if you don't see what you're looking for or having trouble determining which kit is right for you, do not hesitate to give us a call and we would be happy to assist.
