SKU #: ZON-D136N MPN #: ZOND136N

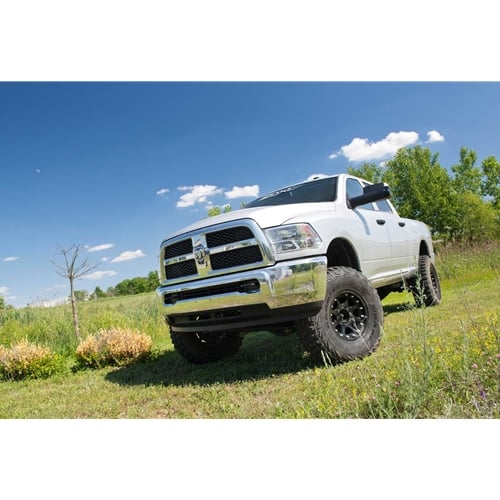

Zone Offroad 4.5" Radius Arm Suspension System 13-18 Ram 3500 6.7L Cummins

$1,098.50

Get 1098 points in loyalty rewards

Zone Offroad 4.5" Radius Arm Suspension System 13 18 Ram 3500 6.7L Cummins

Description

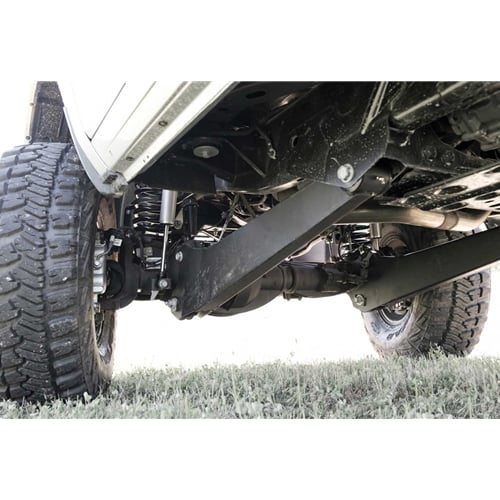

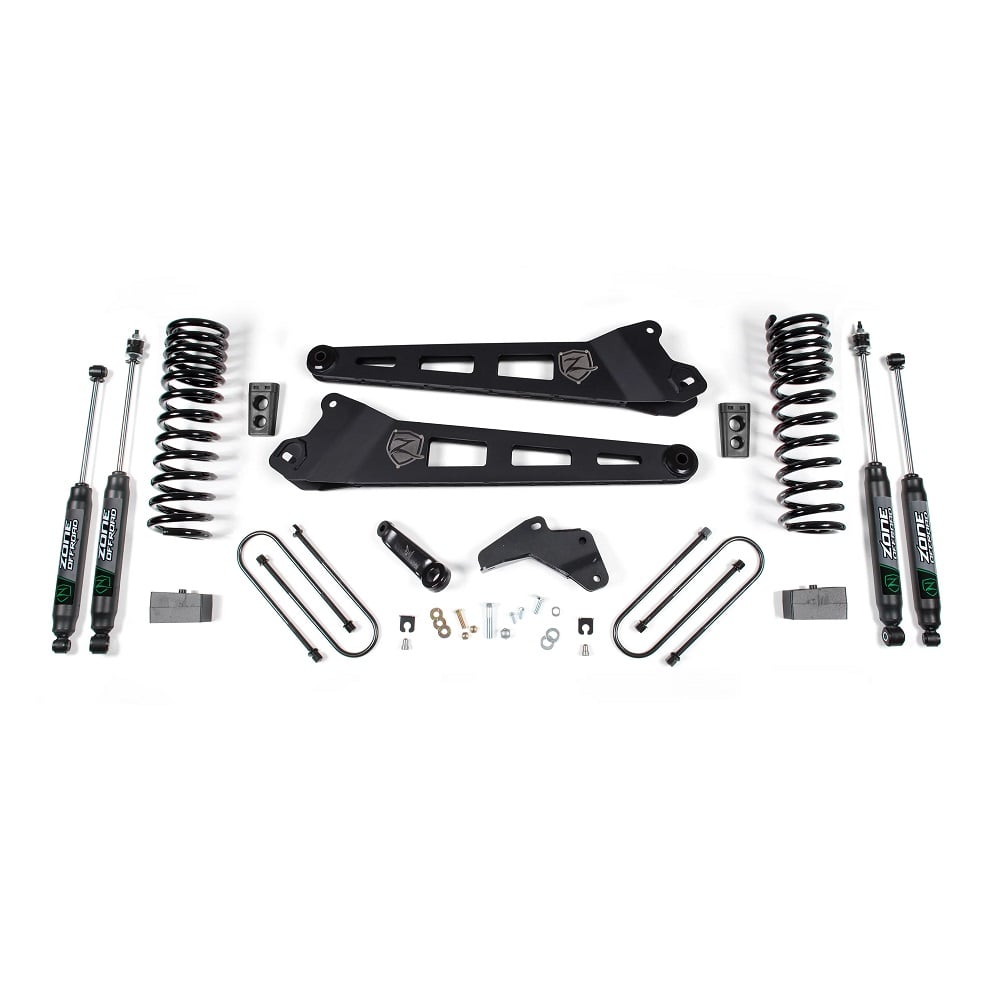

There's a big difference between your run of the mill "lift kit" and a legitimate "suspension system." This system from Zone definitely falls more in line with a suspension system as it takes into account all angles to not only lift your Cummins powered Ram, but also improve upon the performance of the suspension for an improved ride, on or offroad. With this kit, you'll be able to run up to 37" tires to separate your Ram from the crowd and allow you to venture anywhere! Holding true to typical Zone form, this lift system is centered around two new massive radius arms to replace the factory arms. The new arms are fully boxed, internally gusseted and designed to bolt in the factory location while adjusting the suspension geometry for 4.5" to 6.5" of lift. The arms utilize extra large, greaseable bushings at the frame and are designed to use the factory alignment cams at the axle. They are formed for maximum tire clearance. Lastly, they just flat-out look cool and are a nice upgrade from the standard radius arm drop systems. In addition to the new radius arms, like other Zone Ram kits, this system gets progressive rate front coils, track bar relocation and steering correction. Out back there is a lift block and u-bolts to level everything out. Shock Options: NX2 Nitro Series Shocks - NX2 series gas shocks offer impressive performance on and offroad. They use a nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving for lightning-fast dampening and superior control. FOX 2.0 Performance Series Shocks - FOX 2.0 performance series shocks have been tuned and tested by both FOX and ZONE Suspension to maximize performance specific to each application and every ZONE Suspension system. The Internal Floating Piston (IFP) shock design is based on proven Fox Racing Shocks race products but re-designed to maximize the ride quality, handling, and control of your ZONE-equipped truck, whether on or off the road. Carrier Bearing Drop Kit A 2-piece rear drive shaft will require some extra work as the geometry of your drive system will now have some added stress. We recommend adding this carrier bearing drop to avoid any potential driveline vibration with the added lift height.

Shock Options:

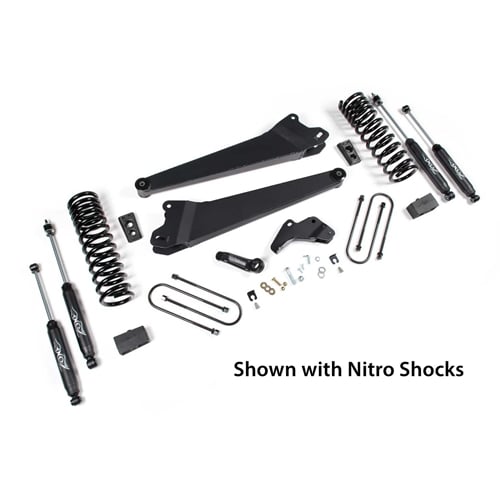

NX2 Nitro Series Shocks - NX2 series gas shocks offer impressive performance on and offroad. They use a nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving for lightning-fast dampening and superior control.
FOX 2.0 Performance Series Shocks - FOX 2.0 performance series shocks have been tuned and tested by both FOX and ZONE Suspension to maximize performance specific to each application and every ZONE Suspension system. The Internal Floating Piston (IFP) shock design is based on proven Fox Racing Shocks race products but re-designed to maximize the ride quality, handling, and control of your ZONE-equipped truck, whether on or off the road.

Carrier Bearing Drop Kit

A 2-piece rear drive shaft will require some extra work as the geometry of your drive system will now have some added stress. We recommend adding this carrier bearing drop to avoid any potential driveline vibration with the added lift height.

Vehicle Fitment

2013-2018 Ram 3500 6.7L Cummins 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Heavy Duty Internally Gusseted Radius Arms
Progressive Rate Front Coil Springs
Correct Suspension Geometry

IMPORTANT NOTES:

Although very rare, front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Optional t-case indexing ring kit recommended to reduce front driveline angle. Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813.
Vehicles equipped with a two piece drive shaft and a carrier bearing require bearing drop kit D5405.
Not designed for dually models.
Not designed for factory rear airbag suspension models.

QUICK SPECS:

Front Lift Height: 4.5
Front Lift Method: HD Replacement Radius Arms
Rear Lift Height: 3
Rear Lift Method: Block
Install Time Hrs: 6
Difficulty Level 1-5: 3
Wheel Size: 17x9+
Back Spacing: 4.5"
Max Tire Size: 35 X 12.50
Wheel Size: 17x9+
Back Spacing: 5.625"
Max Tire Size: 37 X 12.50

About Zone Offroad Suspension

Zone Offroad Products was developed to bring you quality offroad products at the BEST VALUE in the industry.

Zone is an engineering & manufacturing division of Sport Truck USA, the same parent company that has brought you BDS and JKS, with over 20 years of experience serving offroad enthusiasts. And we will be the first to tell you that Zone's first intention when designing and building a suspension system is not to be the lowest price, thus cutting corners wherever possible, rather about building a complete system that will perform superbly, but at a price point nearly anyone can afford.

Zone offers numerous systems for nearly every application to perfectly suit the stance you're after whether it be a simple 2" leveling kit or a complete 8" suspension system. Browse through our selection of Zone Offroad, and as always, if you don't see what you're looking for or having trouble determining which kit is right for you, do not hesitate to give us a call and we would be happy to assist.
