SKU #: ZON-D53N MPN #: D53N

Zone Offroad 6.5" Suspension System 14-18 6.7L Cummins Ram 2500

Name: Zone Offroad 6.5" Suspension System 14-18 6.7L Cummins Ram 2500
Brand: Zone Offroad Suspension
Price: 1214.5 USD
Availability: InStock

$1,214.50

Get 1214 points in loyalty rewards

Zone Offroad 6.5" Suspension System for 14-18 6.7L Cummins Ram 2500

Description

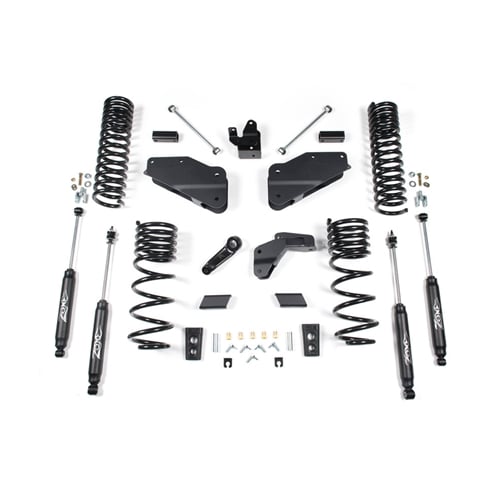

Gain the necessary height to clear 37's on your Cummins with this complete 6.5" lift kit from Zone. This 6.5" suspension system utilizes heavy-duty radius arm drop brackets to properly compensate for the massive 6.5" progressive rate coil springs in order to get your front axle properly positioned with the new height. The supplied drop pitman arm, extended bump stops, track bar relocation bracket, sway bar drops and brake line relocation adjust all the rest of the critical components and angles. The system coupled with a choice of standard hydraulic or Nitro shocks provides a great handling, smooth ride suspension system. The rear of the truck is lifted with a replacement coil spring to provide a level stance. For those looking to use their 4wd on the road at speed we highly recommend adding the optional t-case indexing kit to improve the front driveline angles. These two kits (for the 6-bolt and 8-bolt T-cases) come with a t-case indexing ring, front driveshaft spacer and heavy-duty replacement transmission crossmember. The t-case indexing kits can be installed when the lift is installed or anytime after if the need arises. The indexing kits will also work with other lift heights and brands for those customers in need of one.

Choose add-ons

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Gain the necessary height to clear 37's on your Cummins with this complete 6.5" lift kit from Zone. This 6.5" suspension system utilizes heavy-duty radius arm drop brackets to properly compensate for the massive 6.5" progressive rate coil springs in order to get your front axle properly positioned with the new height.

The supplied drop pitman arm, extended bump stops, track bar relocation bracket, sway bar drops and brake line relocation adjust all the rest of the critical components and angles. The system coupled with a choice of standard hydraulic or Nitro shocks provides a great handling, smooth ride suspension system. The rear of the truck is lifted with a replacement coil spring to provide a level stance.

For those looking to use their 4wd on the road at speed we highly recommend adding the optional t-case indexing kit to improve the front driveline angles. These two kits (for the 6-bolt and 8-bolt T-cases) come with a t-case indexing ring, front driveshaft spacer and heavy-duty replacement transmission crossmember. The t-case indexing kits can be installed when the lift is installed or anytime after if the need arises. The indexing kits will also work with other lift heights and brands for those customers in need of one.

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

2014-2018 6.7L Cummins Dodge Ram 2500 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

Featured Technology Benefits

Utilizes Heavy Duty Drop Brackets
Correct Suspension Geometry
Progressive Rate Coil Springs

Important Notes

Front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813.
Vehicles equipped with a two piece drive shaft and a carrier bearing require bearing drop kit D5405.
Not designed for factory rear airbag suspension models.
Will not fit Power Wagon models

About Zone Offroad Suspension

Zone Offroad Products was developed to bring you quality offroad products at the BEST VALUE in the industry.

Zone is an engineering & manufacturing division of Sport Truck USA, the same parent company that has brought you BDS and JKS, with over 20 years of experience serving offroad enthusiasts. And we will be the first to tell you that Zone's first intention when designing and building a suspension system is not to be the lowest price, thus cutting corners wherever possible, rather about building a complete system that will perform superbly, but at a price point nearly anyone can afford.

Zone offers numerous systems for nearly every application to perfectly suit the stance you're after whether it be a simple 2" leveling kit or a complete 8" suspension system. Browse through our selection of Zone Offroad, and as always, if you don't see what you're looking for or having trouble determining which kit is right for you, do not hesitate to give us a call and we would be happy to assist.
