SKU #: ZON-D58N MPN #: ZOND58N

Zone Offroad 6.5" Radius Arm Suspension System 14-18 6.7L Cummins Ram 2500

$1,452.40

Get 1452 points in loyalty rewards

Zone Offroad 6.5" Radius Arm Suspension System for 14-18 6.7L Cummins Ram 2500

Description

When lifting your heavy duty Ram, especially heights over 4.5", it is imperative to address the angles of the factory radius arms in order to maintain and even improve upon the factory ride and overall performance of the suspension. This complete 6.5" system from Zone includes all of the necessary components to not only lift your Cummins, but deliver an improvement in your suspension's capabilities and performance. Engineered to match the strength of the RAM 2500 4WD trucks, these systems upgrade the factory front radius arms and offer great ride quality and handling characteristics on road while improving offroad performance and allowing 37" tires to be installed. The new radius arms are a substantial upgrade to the factory stamped units and improve the ground clearance compared to drop bracket kits. The arms are fully boxed, internally gusseted and designed to bolt in the factory location while correcting the suspension geometry at 6.5" of lift. At the frame mount, the arms utilize extra large, greaseable bushings to isolate road noise and vibrations while the axle mount is designed to retain the factory alignment cams for adjustability. The arms are formed inward to maximize tire clearance and looks great under the RAM HDs. In addition to the new radius arms, this system gets its height from 6.5'' progressive rate front coils designed for a smooth ride for unmatched highway and trail performance. Steering correction comes from a forged dropped pitman arm and a heavy duty, fully welded front track bar bracket is used at the frame to recenter the front axle securely under the truck. Rounding out the front of this 6.5" radius arm system are a pair of polyurethane extended bump stops, brake line relocation brackets, and Zone Nitro shocks along with all the necessary hardware to complete the install. Out back the the new coil sprung rear is lifted using 4.5" progressive rate coils designed to level the stance while offering a great ride quality on and offroad without hindering the towing capabilities. Also included are extended sway bar links, bump stop extensions and a rear track bar bracket to recenter the rear axle.

Select Shocks

Choose add-ons

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

When lifting your heavy duty Ram, especially heights over 4.5", it is imperative to address the angles of the factory radius arms in order to maintain and even improve upon the factory ride and overall performance of the suspension. This complete 6.5" system from Zone includes all of the necessary components to not only lift your Cummins, but deliver an improvement in your suspension's capabilities and performance.

Engineered to match the strength of the RAM 2500 4WD trucks, these systems upgrade the factory front radius arms and offer great ride quality and handling characteristics on road while improving offroad performance and allowing 37" tires to be installed. The new radius arms are a substantial upgrade to the factory stamped units and improve the ground clearance compared to drop bracket kits. The arms are fully boxed, internally gusseted and designed to bolt in the factory location while correcting the suspension geometry at 6.5" of lift. At the frame mount, the arms utilize extra large, greaseable bushings to isolate road noise and vibrations while the axle mount is designed to retain the factory alignment cams for adjustability. The arms are formed inward to maximize tire clearance and looks great under the RAM HDs.

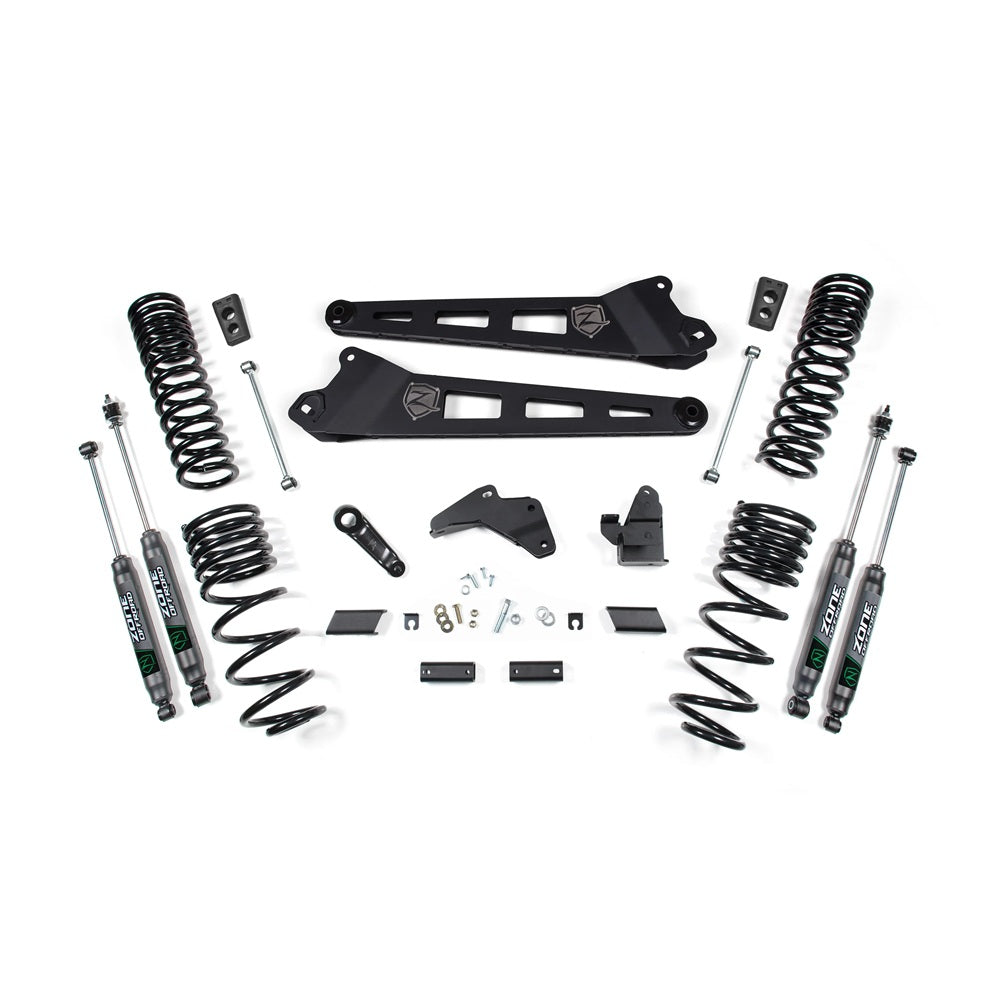

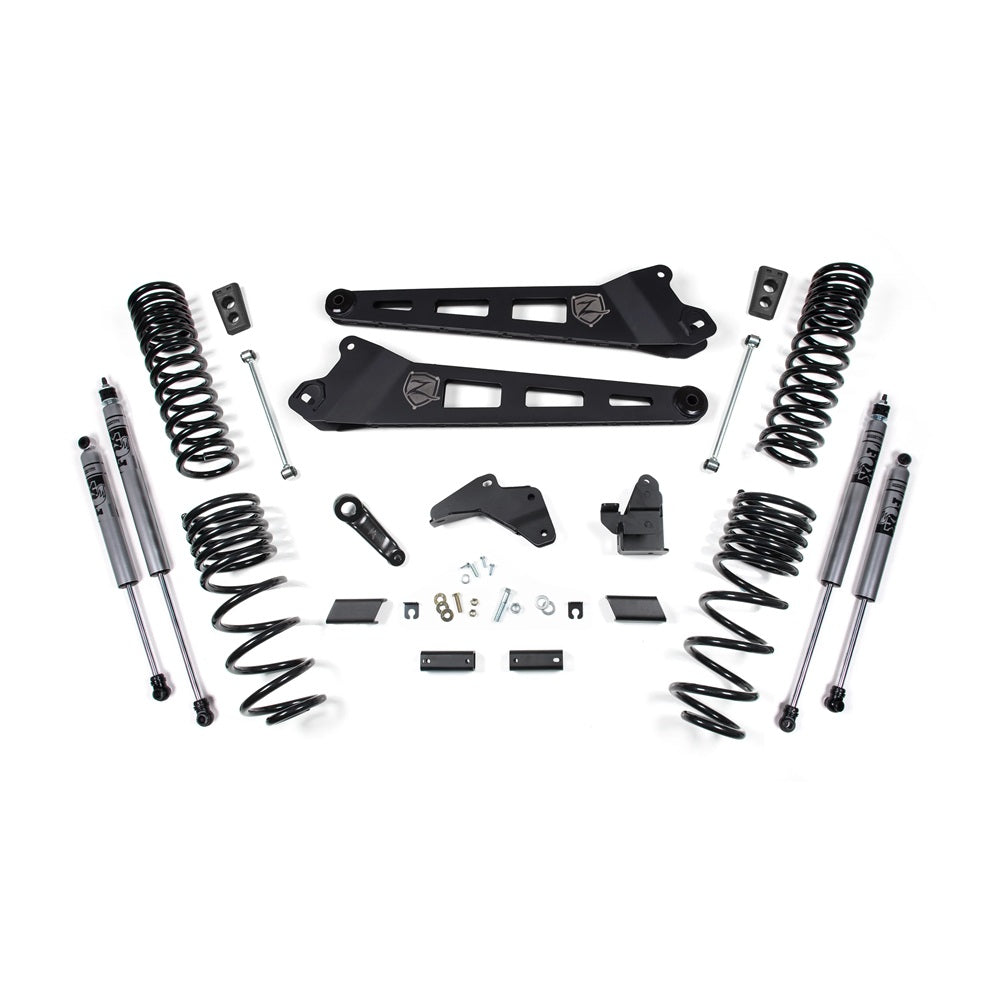

In addition to the new radius arms, this system gets its height from 6.5'' progressive rate front coils designed for a smooth ride for unmatched highway and trail performance. Steering correction comes from a forged dropped pitman arm and a heavy duty, fully welded front track bar bracket is used at the frame to recenter the front axle securely under the truck. Rounding out the front of this 6.5" radius arm system are a pair of polyurethane extended bump stops, brake line relocation brackets, and Zone Nitro shocks along with all the necessary hardware to complete the install. Out back the the new coil sprung rear is lifted using 4.5" progressive rate coils designed to level the stance while offering a great ride quality on and offroad without hindering the towing capabilities. Also included are extended sway bar links, bump stop extensions and a rear track bar bracket to recenter the rear axle.

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

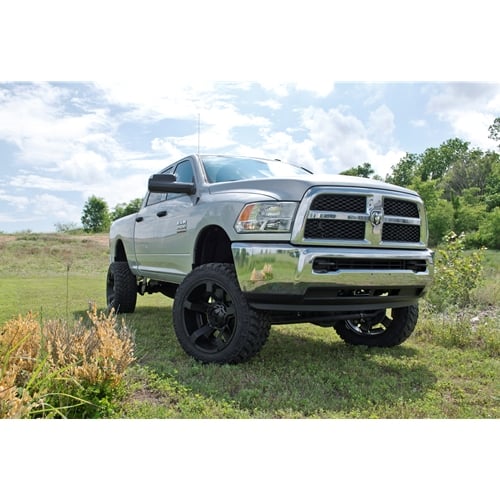

2014-2018 6.7L Cummins Dodge Ram 2500 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

Featured Technology Benefits

Utilizes Heavy Duty Drop Brackets
Correct Suspension Geometry
Progressive Rate Coil Springs

Important Notes

Front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813.
Vehicles equipped with a two piece drive shaft and a carrier bearing require bearing drop kit D5405.
Not designed for factory rear airbag suspension models.
Will not fit Power Wagon models

About Zone Offroad Suspension

Zone Offroad Products was developed to bring you quality offroad products at the BEST VALUE in the industry.

Zone is an engineering & manufacturing division of Sport Truck USA, the same parent company that has brought you BDS and JKS, with over 20 years of experience serving offroad enthusiasts. And we will be the first to tell you that Zone's first intention when designing and building a suspension system is not to be the lowest price, thus cutting corners wherever possible, rather about building a complete system that will perform superbly, but at a price point nearly anyone can afford.

Zone offers numerous systems for nearly every application to perfectly suit the stance you're after whether it be a simple 2" leveling kit or a complete 8" suspension system. Browse through our selection of Zone Offroad, and as always, if you don't see what you're looking for or having trouble determining which kit is right for you, do not hesitate to give us a call and we would be happy to assist.
