SKU #: II-227411 MPN #: 227411

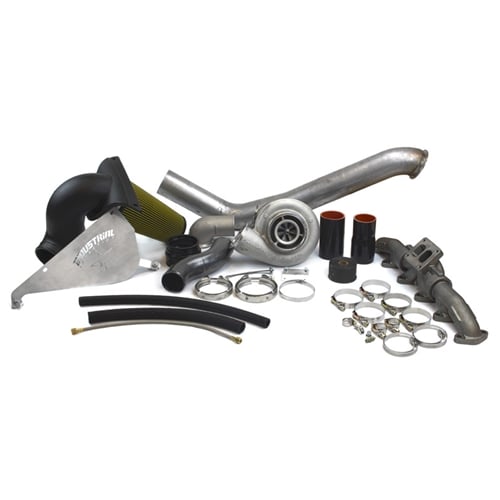

Industrial Injection S464 2nd Gen Turbo Kit 03-07 Dodge 5.9L Cummins

$3,116.56

Get 3116 points in loyalty rewards

☆☆☆☆☆ (0)

Industrial Injection S464 2nd Gen Turbo Kit for 03-07 Dodge 5.9L Cummins

Description

Are you ready for a big upgrade to the airflow potential in your Cummins? Let me introduce you to my little friend, the S400 2nd Gen Turbo Installation Kit from Industrial Injection.The factory turbo found on the 03-07 Cummins is capable of supporting sub-450 horsepower levels. Above this point, it is being oversped that will result in failure, as well as the fact it simply cannot supply enough air to support horsepower levels above this point. Further, the placement of the factory turbo is not positioned in an ideal position as its centered on cylinders four and five as opposed to three and four, resulting in the front cylinders running hotter than the rear. So, what's the fix? Easy, this complete turbo and installation kit from Industrial Injection to improve airflow and square the turbo on the engine! The S464 turbo used in this kit is a great towing performance setup for someone looking for more reliability and pulling power out of their Cummins with superb street manners and quick spool up characteristics when paired with moderate tuning and minimal fueling upgrades. NOTE: Does not come with hardware for mounting the manifold to the head. TURBO OPTIONS: The standard turbo kit will utilize a 1.10 A/R exhaust housing which is great for maximum boost levels and low drive pressure. However, if you're running minimal injector size (around 100), oversized tires, 3.42 or 3.73 gears, etc., you would be better suited to run a smaller A/R ratio to actually increase drive pressure to assist in turbo spool. But if you're somewhere in the middle, say running 150 horsepower injectors, 35" tires, 3.73 gears, and daily drive the truck, you may be best suited for the 1.00 A/R housing. TURBO DIMENSIONS: 63.5mm Compressor Wheel 83/74mm Turbine Wheel .90, 1.0, 1.10, 1.25 T4 Turbine Housings Options 66lbs/min

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Are you ready for a big upgrade to the airflow potential in your Cummins? Let me introduce you to my little friend, the S400 2nd Gen Turbo Installation Kit from Industrial Injection.

The factory turbo found on the 03-07 Cummins is capable of supporting sub-450 horsepower levels. Above this point, it is being oversped that will result in failure, as well as the fact it simply cannot supply enough air to support horsepower levels above this point. Further, the placement of the factory turbo is not positioned in an ideal position as its centered on cylinders four and five as opposed to three and four, resulting in the front cylinders running hotter than the rear.

So, what's the fix? Easy, this complete turbo and installation kit from Industrial Injection to improve airflow and square the turbo on the engine! The S464 turbo used in this kit is a great towing performance setup for someone looking for more reliability and pulling power out of their Cummins with superb street manners and quick spool up characteristics when paired with moderate tuning and minimal fueling upgrades.

NOTE: Does not come with hardware for mounting the manifold to the head.

TURBO OPTIONS:

The standard turbo kit will utilize a 1.10 A/R exhaust housing which is great for maximum boost levels and low drive pressure. However, if you're running minimal injector size (around 100), oversized tires, 3.42 or 3.73 gears, etc., you would be better suited to run a smaller A/R ratio to actually increase drive pressure to assist in turbo spool. But if you're somewhere in the middle, say running 150 horsepower injectors, 35" tires, 3.73 gears, and daily drive the truck, you may be best suited for the 1.00 A/R housing.

TURBO DIMENSIONS:

63.5mm Compressor Wheel
83/74mm Turbine Wheel
.90, 1.0, 1.10, 1.25 T4 Turbine Housings Options
66lbs/min

NOT LEGAL FOR SALE OR USE IN CALIFORNIA

Vehicle Fitment

2003-2007 Dodge 5.9L Cummins

KEY FEATURES:

Tow/Street Performance
Lower EGTs
Increased Reliability
Complete Install Kit
Custom S&B Designed Intake
Injector Upgrades Recommended
