SKU #: FPE-CP3X2 MPN #: FPE-CP3X2

Fleece CP3X2 Dual CP3 Wiring Harness 06-18 Ram 5.9L / 6.7L Cummins

Name: Fleece CP3X2 Dual CP3 Wiring Harness 06-18 Ram 5.9L / 6.7L Cummins
Brand: Fleece Performance Engineering
Price: 72.13 USD
Availability: InStock

$72.13

Get 72 points in loyalty rewards

Fleece CP3X2 Dual CP3 Wiring Harness for 06-18 Ram 5.9L and 6.7L Cummins

Description

Take full control of your Cummins dual CP3's using your just your ECM. The CP3X2 harness allows you to control your Cummins dual pumps without an expensive dual pump controller. Fleece recommends multiplying the stock FCA current table (D0787) on the Cummins ECM's by 1.6-1.7 as a place to start. The FCA current varies from truck to truck based on the solenoid characteristics, age, and idle lift pump pressure. Higher lift pump pressures at idle will require more amperage at the top of the table (low desired fuel flow) to keep the rail at it's target pressure. If the truck will not start after multiplying the table by 1.7, revert back to the original tune and multiply by a smaller number until the truck starts easily, yet maintains the target rail pressure at idle. This is one of the more time consuming calibration procedures on heavily modified trucks, so make calculated changes, so that you can dial it in as quickly as possible. Once you have the truck idling at the correct target pressure you may need to modify the middle and lower portions of the table to prevent rail pressure overshoot or undershoot. Again, methodical changes in the FCA table will yield the best results. Use the EFILive Scan Tool to log your changes and adjust in the Tuning Tool as necessary. Keep in mind, more current is less flow, and less current is more, zero current being full flow from all pumps. Theoretically you should be able to control 3 pumps with the 5000mA of current that the FCA driver is capable of. This may shorten the life of the driver in the ECM so it's best reserved for competition use.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

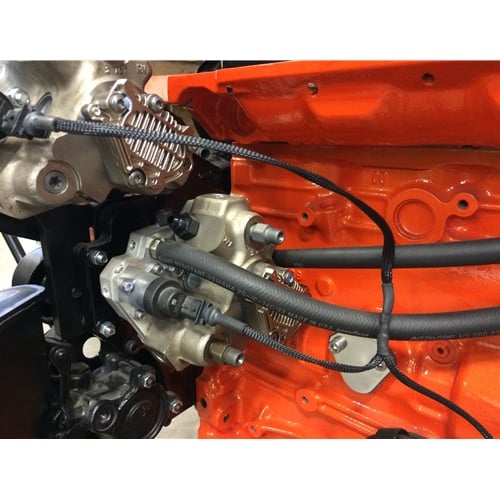

Take full control of your Cummins dual CP3's using your just your ECM. The CP3X2 harness allows you to control your Cummins dual pumps without an expensive dual pump controller.

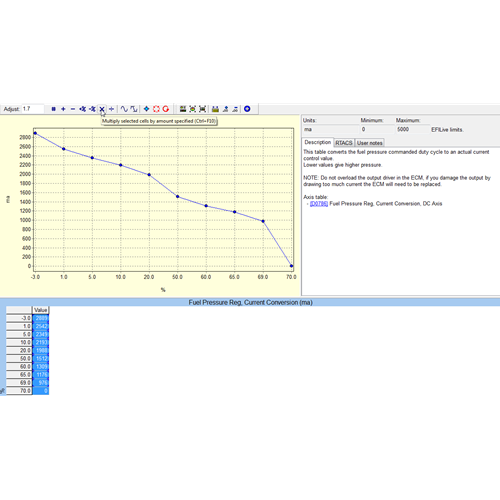

Fleece recommends multiplying the stock FCA current table (D0787) on the Cummins ECM's by 1.6-1.7 as a place to start. The FCA current varies from truck to truck based on the solenoid characteristics, age, and idle lift pump pressure. Higher lift pump pressures at idle will require more amperage at the top of the table (low desired fuel flow) to keep the rail at it's target pressure. If the truck will not start after multiplying the table by 1.7, revert back to the original tune and multiply by a smaller number until the truck starts easily, yet maintains the target rail pressure at idle. This is one of the more time consuming calibration procedures on heavily modified trucks, so make calculated changes, so that you can dial it in as quickly as possible. Once you have the truck idling at the correct target pressure you may need to modify the middle and lower portions of the table to prevent rail pressure overshoot or undershoot. Again, methodical changes in the FCA table will yield the best results. Use the EFILive Scan Tool to log your changes and adjust in the Tuning Tool as necessary. Keep in mind, more current is less flow, and less current is more, zero current being full flow from all pumps. Theoretically you should be able to control 3 pumps with the 5000mA of current that the FCA driver is capable of. This may shorten the life of the driver in the ECM so it's best reserved for competition use.

Vehicle Fitment

2006-2018 Ram 5.9L / 6.7L Cummins
