SKU #: BDS-670H MPN #: 670H

BDS Suspension 4" Lift Kit 13-18 Ram 1500 Without Air Ride

$2,228.65

Get 2228 points in loyalty rewards

BDS Suspension 4" Lift Kit for 13-18 Ram 1500 Without Air Ride

Description

Designed for the dual purpose ride, this 4" lift kit offers impressive handling for the driver that wants both on-road drivability and off-road performance. In order to custom tailor this kit for you, we offer this system with either 2" or 3" rear coil spacers. For those that prefer a level ride when unloaded, we recommend the 2" rear spacers. But for those that want a slight nose down stance, the 3" would be better suited for you. We also offer this kit with both the standard BDS NX2 Series shocks, or you can upgrade to Fox 2.0 Performance Series shocks for an improvement in overall ride. This 4" lift kit will clear up to 35" tires and is based around two one-piece, 1/4" laser cut high-clearance crossmembers and replacement steering knuckles. The high-clearance crossmembers increase ground clearance for off road performance. The replacement steering knuckles reduce installation time as well as maintain proper steering angles and ball joint angles. A differential skid plate is included for off road protection The system also includes bump stop drops, anti-sway bar links, 3 point differential drop system, strut relocation brackets, and front stainless steel brake lines. The rear is lifted via BDS 2" coil spacers to level most trucks. The rear for this Dodge Ram lift kit is completed with a track bar bracket, upper link relocation brackets and sway bar links. A 3" rear coil spring option is available depending on your desired stance. BDS Suspension is leading the industry by independently testing all suspension kits to verify our kits are fully compliant with the stability control system requirements set by Federal Motor Vehicle Safety Standard (FMVSS) No. 126.

Select Rear Lift

Select Shocks

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Designed for the dual purpose ride, this 4" lift kit offers impressive handling for the driver that wants both on-road drivability and off-road performance. In order to custom tailor this kit for you, we offer this system with either 2" or 3" rear coil spacers. For those that prefer a level ride when unloaded, we recommend the 2" rear spacers. But for those that want a slight nose down stance, the 3" would be better suited for you.

We also offer this kit with both the standard BDS NX2 Series shocks, or you can upgrade to Fox 2.0 Performance Series shocks for an improvement in overall ride.

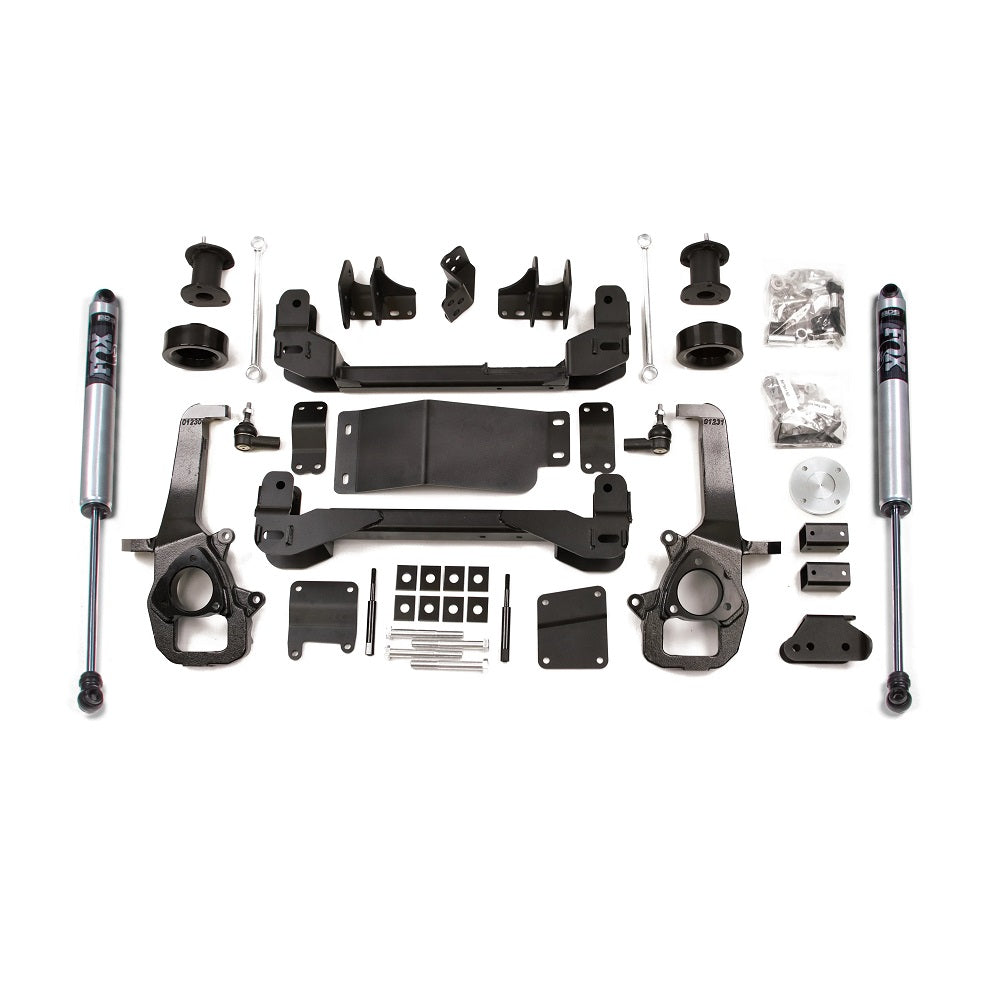

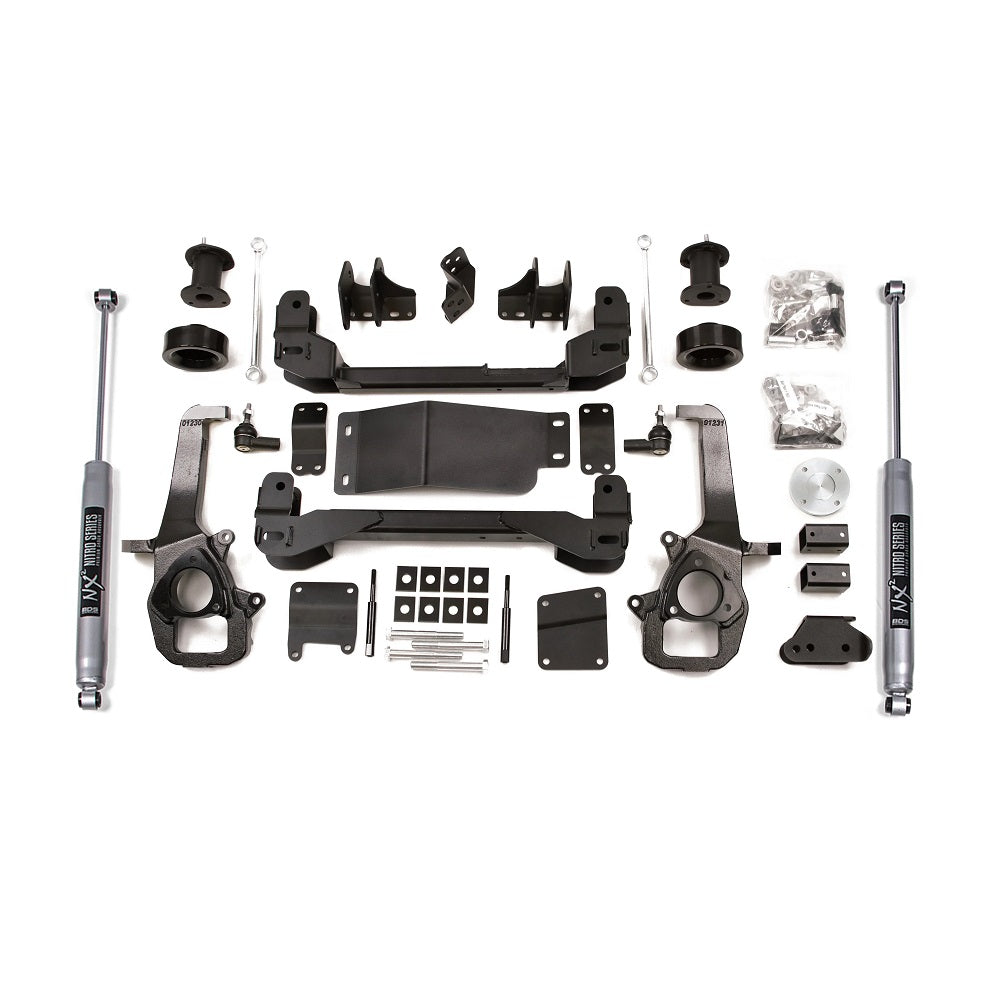

This 4" lift kit will clear up to 35" tires and is based around two one-piece, 1/4" laser cut high-clearance crossmembers and replacement steering knuckles. The high-clearance crossmembers increase ground clearance for off road performance.

The replacement steering knuckles reduce installation time as well as maintain proper steering angles and ball joint angles. A differential skid plate is included for off road protection The system also includes bump stop drops, anti-sway bar links, 3 point differential drop system, strut relocation brackets, and front stainless steel brake lines.

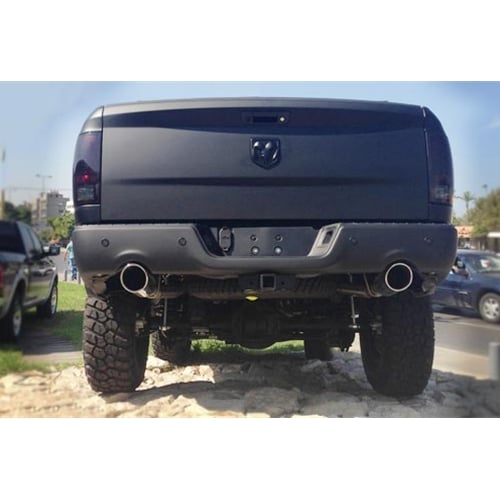

The rear is lifted via BDS 2" coil spacers to level most trucks. The rear for this Dodge Ram lift kit is completed with a track bar bracket, upper link relocation brackets and sway bar links. A 3" rear coil spring option is available depending on your desired stance.

BDS Suspension is leading the industry by independently testing all suspension kits to verify our kits are fully compliant with the stability control system requirements set by Federal Motor Vehicle Safety Standard (FMVSS) No. 126.

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

2013-2018 Dodge Ram 1500 4x4 Gas or EcoDiesel

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

Tire Wheel Combinations

35" x 12.50" w/17 x 9 and 4-1/2" back spacing
35" x 12.50" w/18 or 20 x 9 and 5" back spacing

Estimated Installation: 10 hours
Difficulty Level (easy 1 - 5 complicated): 4

IMPORTANT NOTES:

The rack and pinion steering system is extremely sensitive to an out-of -round or out-of-balance tire/wheel combination. The larger the tire and the less the backspacing, the more sensitive the system becomes, causing minor steering wheel shimmy.
Not recommended for AWD models.
Stock 17" wheels can not be re-installed. Stock 20" can be reinstalled with factory tire.
Will not fit adjustable air suspension equipped models
This kit is FMVSS No.126 Compliant - The NHTSA's Federal Motor Vehicle Safety Standard (FMVSS) No.126 requires all new passenger vehicles to include Electronic Stability Control (ESC) systems that meet certain standards that can be tested through a comprehensive series of evasive maneuvers. Aftermarket products must meet these standards as well.
